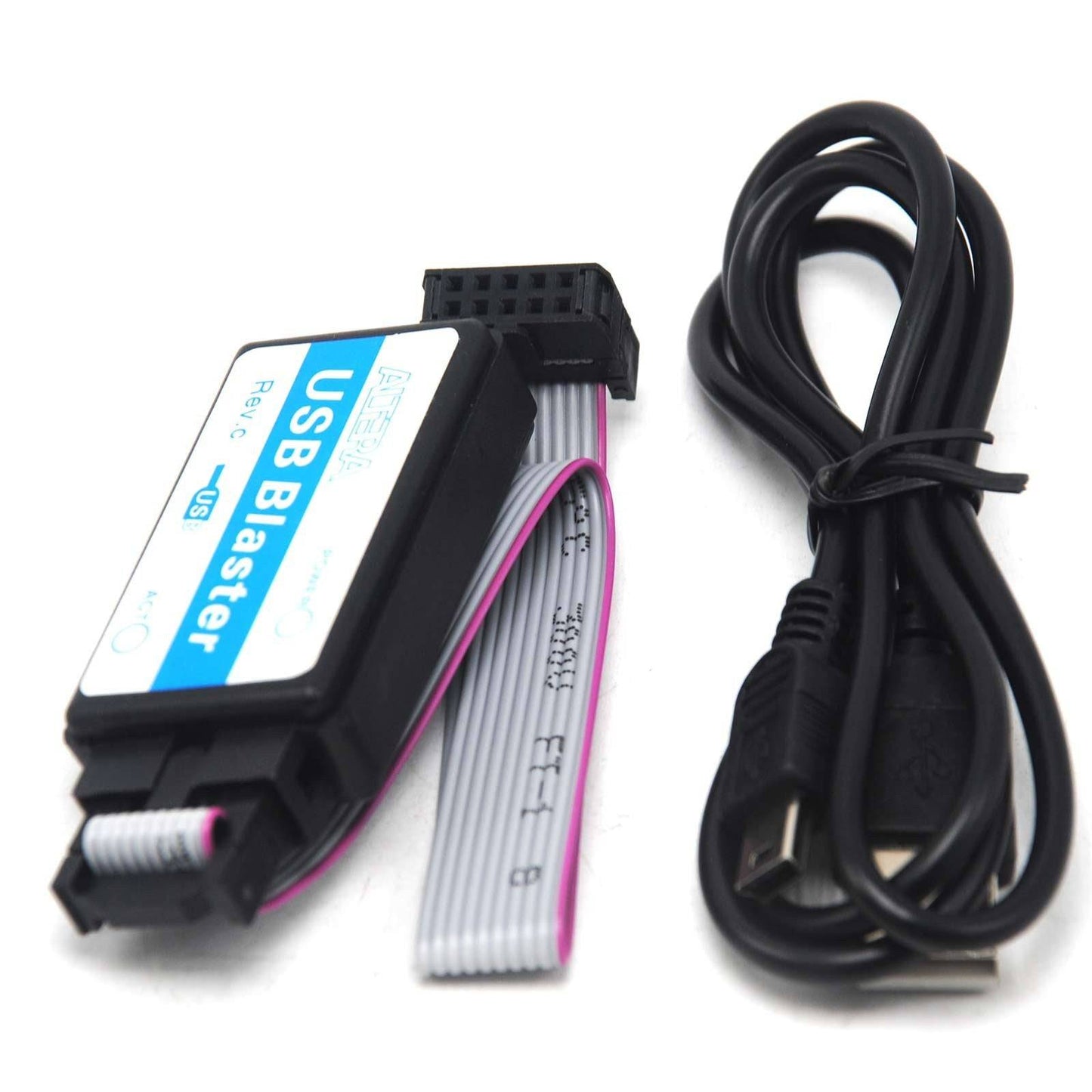

USB Blaster (ALTERA CPLD/FPGA Download Cable)- NA259

USB Blaster (ALTERA CPLD/FPGA Download Cable)- NA259

SKU:NA259

45 in stock

Regular price Rs. 249.00
Regular price Sale price Rs. 249.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

USB Blaster ALTERA CPLD/FPGA programmer Supports 1.5V,1.8V,2.5V,3.5V and 5.0V as well as all ALTERA products like CPLD ( MAX3000, MAX7000, MAX9000 and MAX II ) ; FPGA ( Stratix, StratixII, Cyclone, CycloneII, ACEX 1K, APEX20K and FLEX 10K ), Cyclone (EP1C3, EP1C6, EP1C12, EP1C20) ; Cyclone II (EP2C5, EP2C8, EP2C35) ; Stratix (EP1S10, EP1S20, EP1S25); Stratix II(EP2S60) ; FLEX10K(EPF10K10, EPF0K30) ; ACEX1K(EP1K30) ; MAX7000(MAX7128SLC84, MAX7128) ; AETC100(MAX3000, MAX3128) ; MAXII(MAXII240, MAXII570, MAXII1270) ; EPCS(EPCS1, EPCS4, EPCS16) ; EPC(EPC1, EPC4); Active serial configuration device (EPCS1, EPCS4, EPCS16). The device is tested with the different program modes like JTAG ( Cyclone, CycloneII, Stratix II, Flex10K, Acex1K, Max7000, and Max3000); AS ( EPCS1, EPCS4, EPCS16); PS (Stratix, Stratix GX ). ALTERA USB Blaster Support AS, PS, and JTAG program ( with Verify and BankCheck function), Support embedded logic analyzer function of SignalTapII and NIOS II communication and debugger — When you use it to debug your Black Gold, it will not Pop-up warning. It is Faster about 6 times than ByteblasterII and with a USB interface, you don’t need a PC with a serial port now. It is 100% compatible with the Official ALTERA USB Blaster.

Specification:

  • Model: GET-0022
  • Microprocessor: Altera
  • RAM Size: 2 GB
  • Architecture: CPLD/FPGA
  • Connectors: USB

Features:

  • Stably support SignalTap II embedded logic analyzer function, no mistake while crawling data.
  • Fully support all Altera products such as CPLD: MAX3000, MAX7000, MAX9000, and MAXII.
  • FPGA: Stratix, StratixII, StratxIII, Cyclone, CycloneII, CycloneIII, ACEX1K, APEX20K, and FLEX10K, etc.
  • Active serial configuration device: EPCS1, EPCS4, EPCS16, EPCS64 etc.
  • Enhanced configuration devices: EPC1, EPC4.
  • Supports 3 download modes: AS, PS, and JTAG.
  • Support and Nios II embedded soft core processor communication and debugging Rev.C latest version Hardware. Support jtag_uart.
  • Speed is 6 times faster than parallel port download cable ByteBlasterII.
  • Easy to use: MiniUSB interface, easy connection, two status indicator makes debugging more comfortable.
  • Fully compatible with ALTERA USB Blaster, functionality and performance are the same as ALTERA original download cable.
  • Operating Voltage: 1.5~5V JTAG IO Voltage.
  • System configuration: Windows XP, Windows Vista, Windows7, USB interface.

Package Included:

1 x USB Blaster (ALTERA CPLD/FPGA Download Cable)
