Ultra-small size esp-m1 esp8285 serial Wireless WiFi Transmission module serialnet Mode fully compatible with esp8266 - RS1463

• Built-in tensile L106 Ultra-Low Power 32 bit CPU,
• main frequency supports 80 MHz and160mhz, and rtos
• External interface: hspi, UART, I2C, i2S, remote control go, PWM, gpio
• Support CCMP (cbc-mac, Computation mode), TKIP (MIC, RC4), wapi (sms4), WEP (RC4), CRC etc.
• for hardware acceleration.

Description :

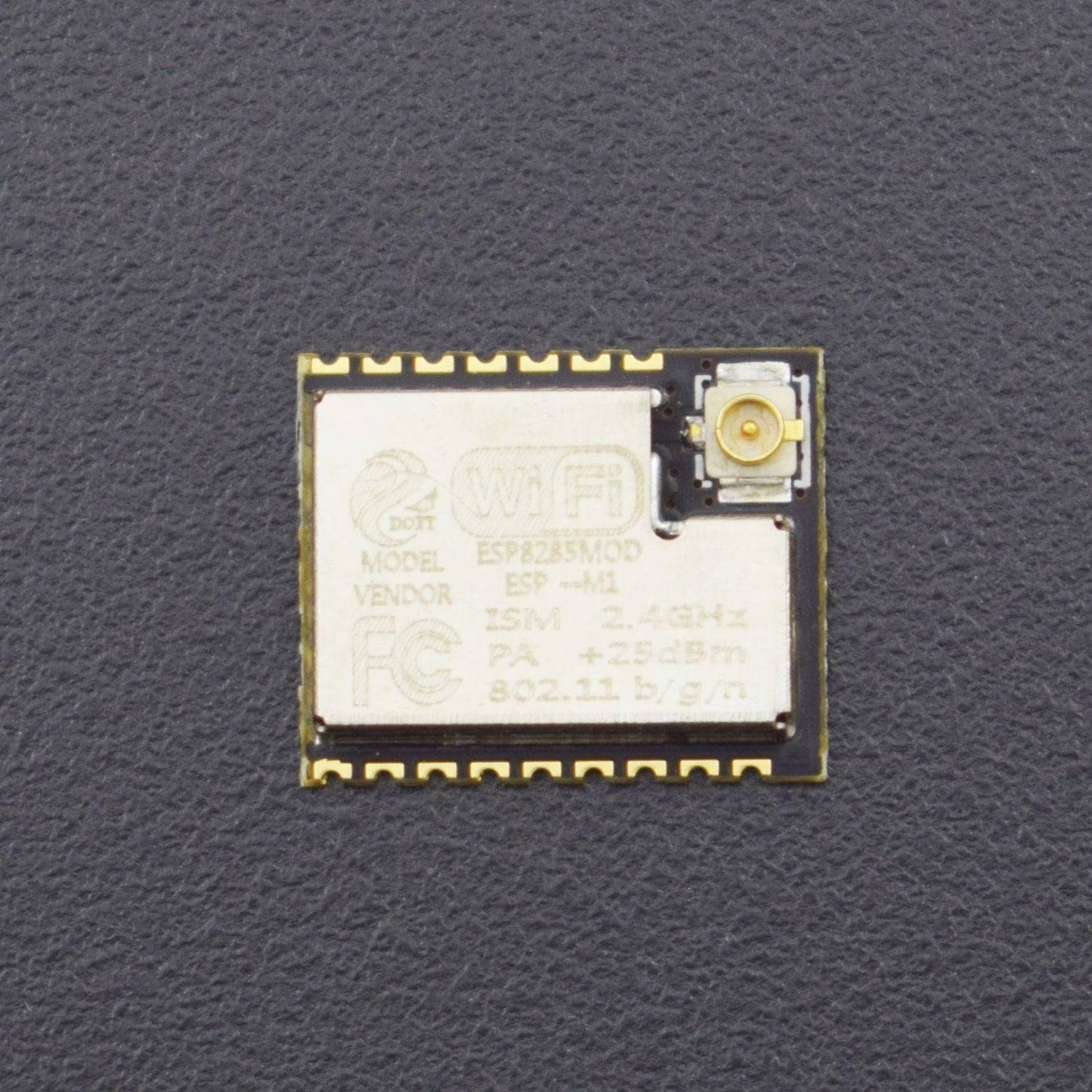

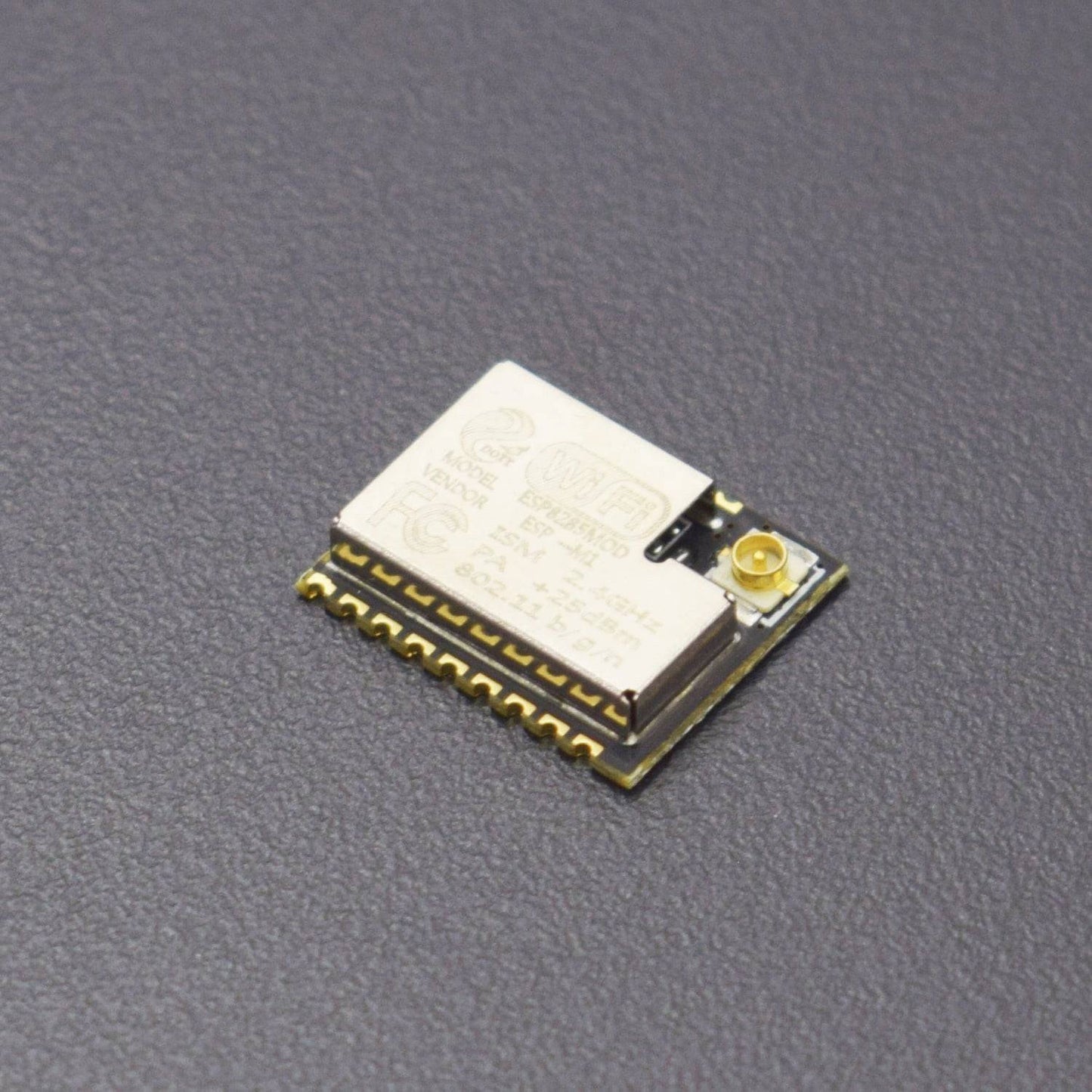

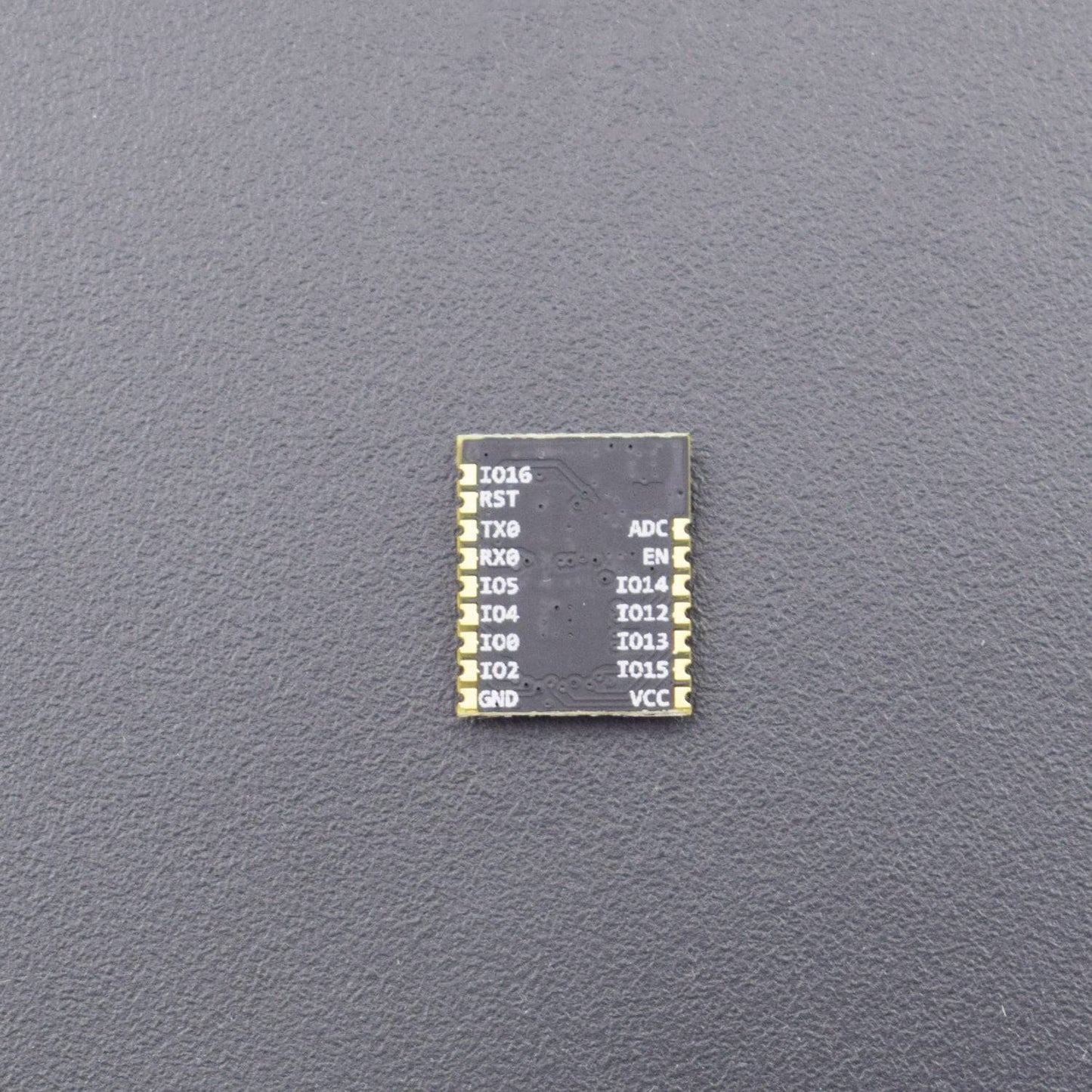

ESP-M1 Core module is The high performance esp8285 chip, which is equal to the esp8266 chip plus 1 m Flash. The esp825 chip is encapsulated in an advanced tensile processor, along with SRAM. Esp825 has the complete and complete WiFi connection, which can be used independently and alsosed as a slaver with other hoster MCUs, which can start directly from the construction flash. In addition, the built-in high-speed buffer benefits from system performance. Especially, esp8285 can be used as WiFi adapter by SPI / sdio and / or I2C / UART interface, when applied to the other MCU design.

Characteristics :

• Ultra-small size
• Series A WiFi support
• Wireless transparent transmission
• Long distance transmission with ultra low power
• External antenna support
• With high temperature at 125 ℃, compared to 85 ℃ for esp8266.

Specification :

• SOC features
• Built-in tensile L106 Ultra-Low Power 32 bit CPU,
• main frequency supports 80 MHz and160mhz, and rtos;
• Built-in TCP / IP protocol;
• High precision ADC of a 10-bit channel
• External interface: hspi, UART, I2C, i2S, remote control go, PWM, gpio;
• The deep sleep current is 10ua, the cutting current is smaller than 5ua;
• Transmission and transmission data package within 2 ms;
• The power consumption is less than 1.0 MW (dtim3) when it is in the Status position;
• Built in 1 m byte for SPI flash.

Wi-fi features :

• Support 802.11 b / g / n / e / I
• Support station, smooth AP, soft AP mode + STA
• Direct WiFi support (P2P)
• Support CCMP (cbc-mac, Computation mode), TKIP (MIC, RC4), wapi (sms4), WEP (RC4), CRC etc., for hardware acceleration.
• P2P find, P2P Mode mode / GC and P2P power manage WPA / pa2psk and WPS
• 802.11 security certification: pre-certification and TSN
• Support 802.11n (2.4 GHz)

Package Included :

1 x Ultra-small size esp-m1 esp8285 serial Wireless WiFi Transmission module serialnet Mode fully compatible with esp8266
