ULN2003 Stepper Motor Driver ULN2003A Driver Module Stepper Motor Driver Board - RS007

ULN2003 Stepper Motor Driver ULN2003A Driver Module Stepper Motor Driver Board - RS007

SKU:RS007

104 in stock

Regular price Rs. 35.00
Regular price Sale price Rs. 35.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

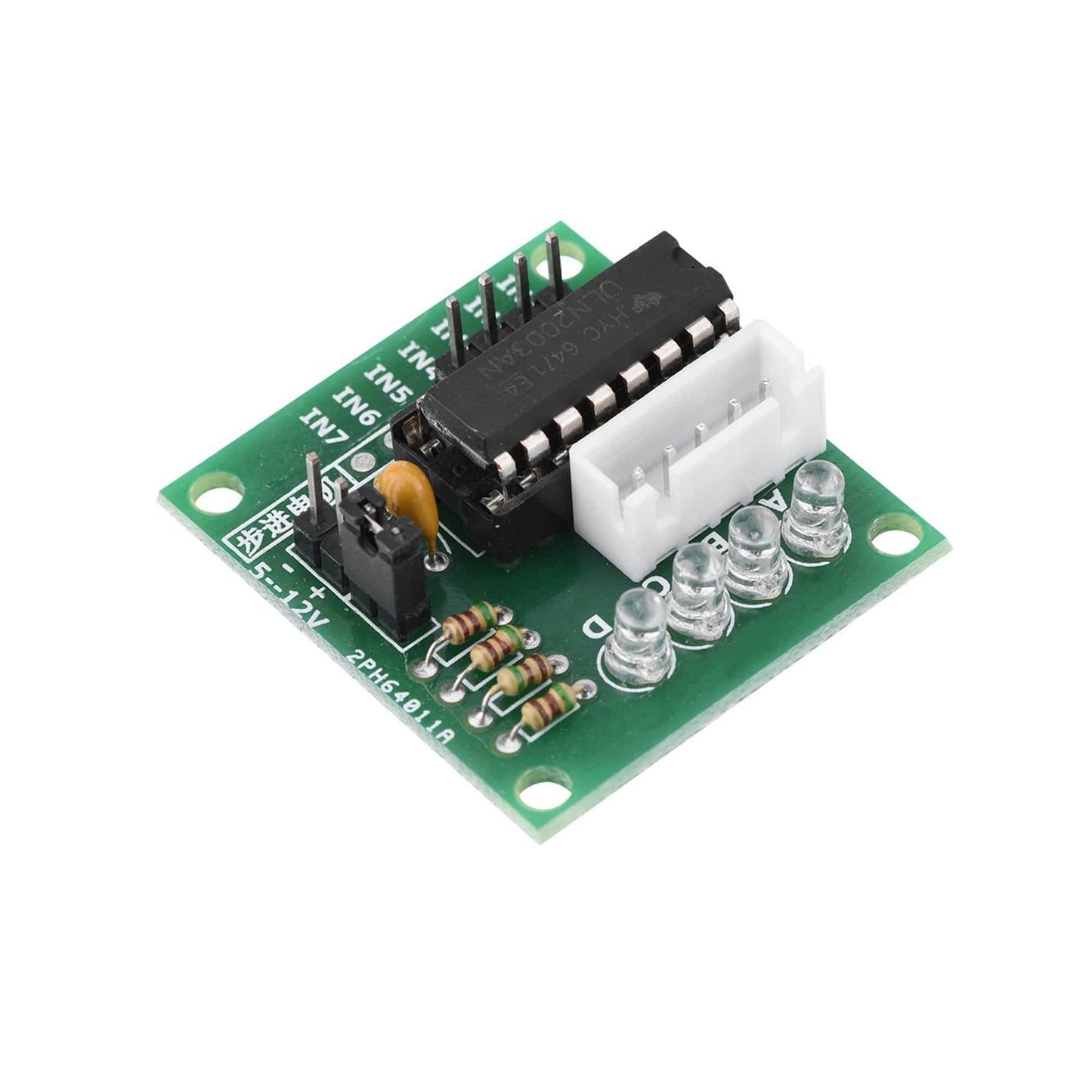

This is a ULN2003 Stepper Motor Driver Board, small in size and easy to use. ULN2003 Stepper Motor Driver uses the ULN2003 driver chip to amplify the control signal from the Arduino. This Ultra Lightweight and cheap option is commonly used to run and control the small applications of stepper motors. ULN2003 Stepper Motor Driver uses the ULN2003 DARLINGTON ARRAYS to drive the 4-phase 5-wire stepper motor (5v-12v). ULN2003 Stepper Motor Driver is easy to use Arduino or other development platforms to drive the stepper motor by this diver board.

Features:

  • 4-way signal indicator
  • Chip all the pins have Input leads Mounted for easy connection to use
  • XH-5P socket can be connected directly to the 28BYJ-48 Model stepper motor

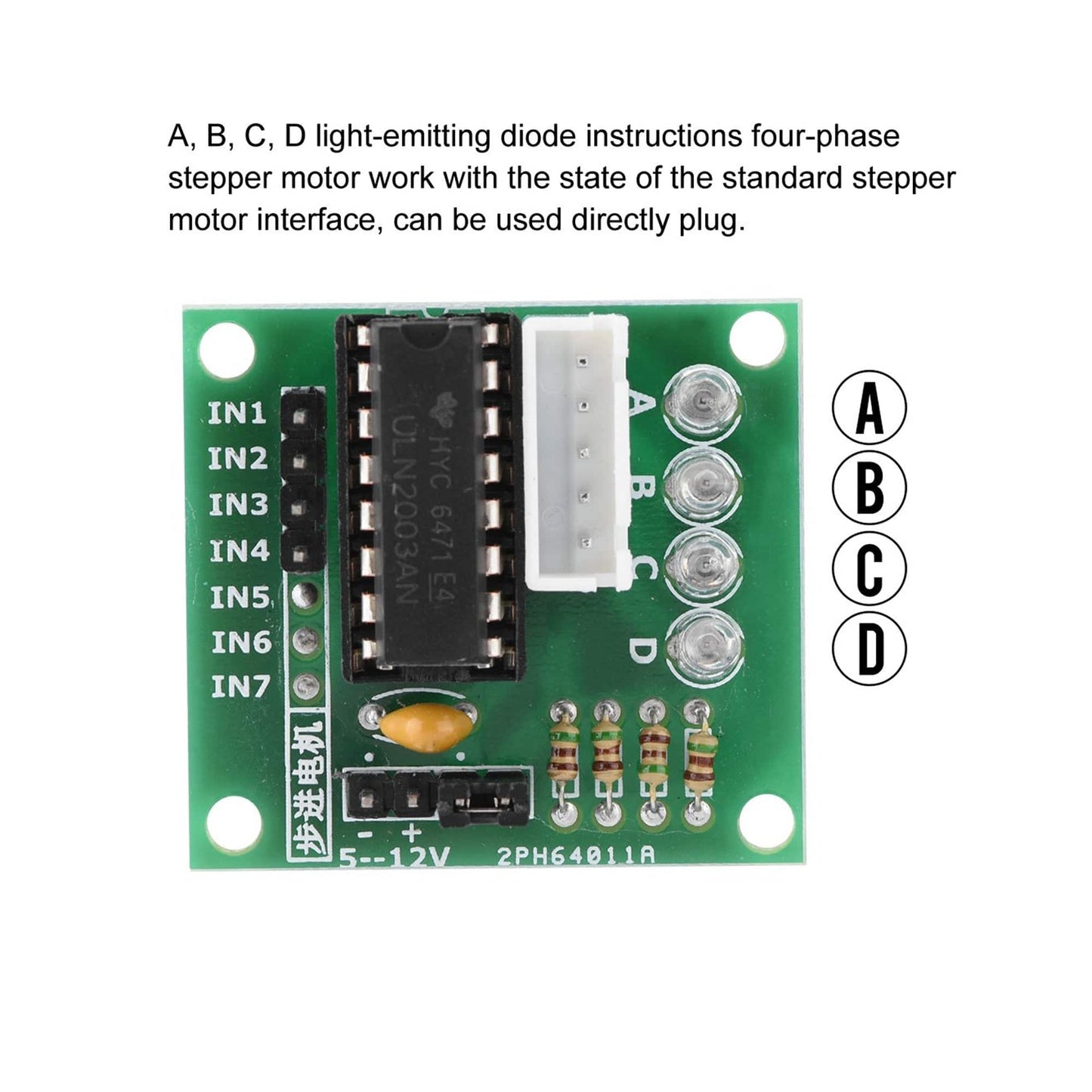

  • A. B. C. D LED indicating the four-phase stepper motor working condition.
  • White jack is the four-phase stepper motor standard jack.
  • Power pins are separated

How to Control Stepper:

The step motor is a machine that converts the pulse to angular displacement. So if you give the stepper driver a certain pulse signal, it will drive the step motor to a certain angle. you can control the angle stepper moves by the number of pulses. And you also can control the speed of the stepper rotation by the frequency of the pulse.

Package Included:

1 x ULN2003 Stepper Motor Driver ULN2003A Driver Module Stepper Motor Driver Board
