Description:
NEO-M8 combines a high level of robustness and integration capability with flexible connectivity options. The future-proof NEO-M8N includes an internal Flash that allows simple firmware upgrades for supporting additional GNSS systems. The DDC (I2C compliant) interface provides connectivity and enables synergies with most Ublox cellular modules. For RF optimization the NEO-M8N features an additional front-end LNA for easier antenna integration and a front-end SAW filter for increased jamming immunity. This module ships with a baud rate of 38400, 10Hz. Features a Genuine u-blox NEO-M8N (M8 Concurrent GNSS LCC Module, TCXO, Flash, SAW, LNA). The NEO's Integrated Flash Memory allows Position Logging, 30-days' Offline Assistance Data, Firmware Updates, Saving of Configuration. 43cm accuracy (GPS+Galileo+Glonass) - Cirocomm Antenna - 3.01 firmware on ROM - upgradeable. Honeywell HMC5883L Digital Compass, Rechargeable 3V Backup Battery.
Features:
- Ublox Neo-M8N module
- Industry leading -167 dBm navigation sensitivity
- Navigation update rate up to 10 Hz
- Cold starts: 26s
- LNA MAX2659ELT+
- 25 x 25 x 4 mm ceramic patch antenna
- Rechargeable 3V lithium backup battery
- Low noise 3.3V regulator
- Power and fix indicator LEDs
- Protective case
- 30cm Pixhawk2.4 compatible 6-pin and APM compatible 5-pin 2 types cable included
- Diameter 60mm total size, 32 grams with the case.
Package Included:

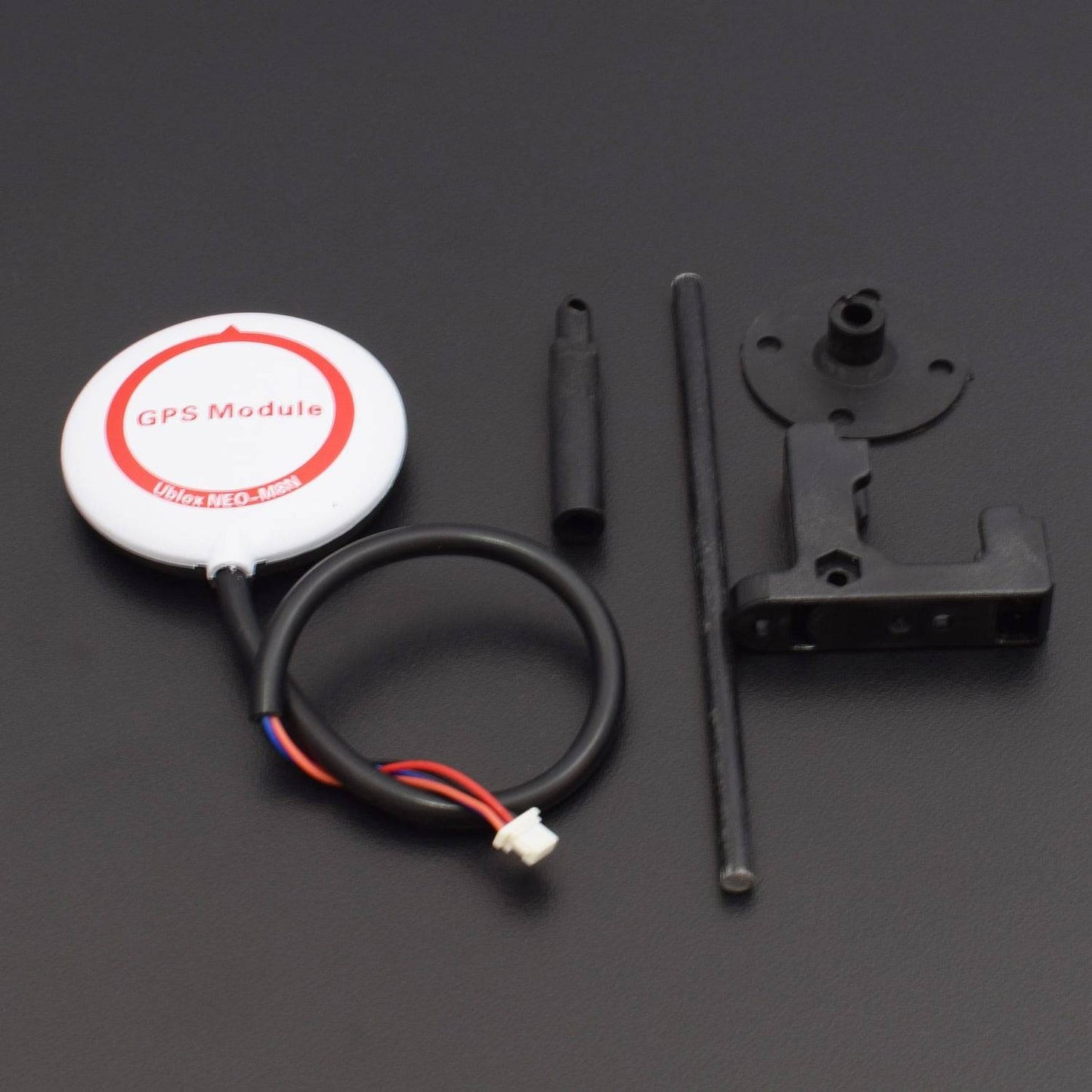

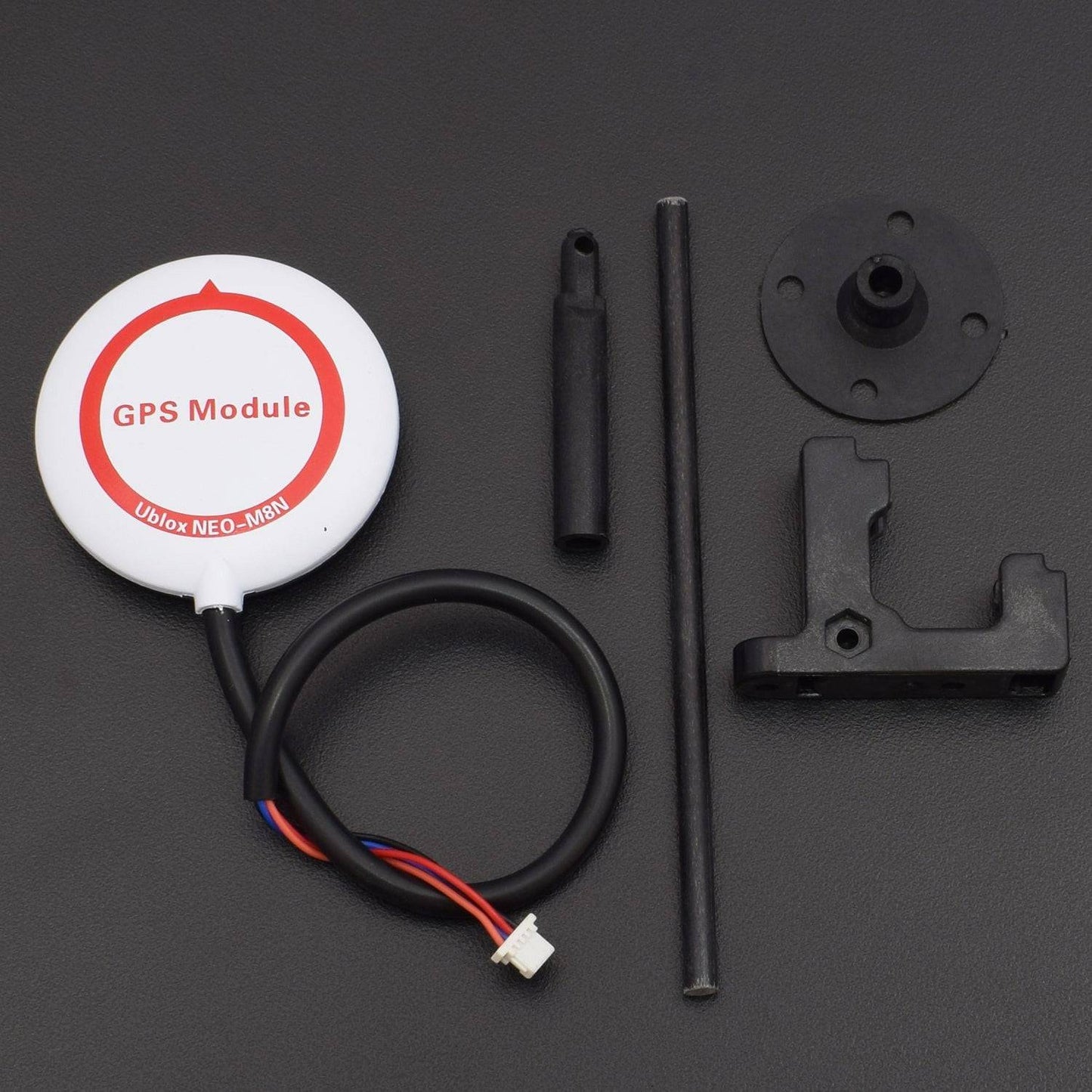

1 x NEO-M8N with compass module and case set
