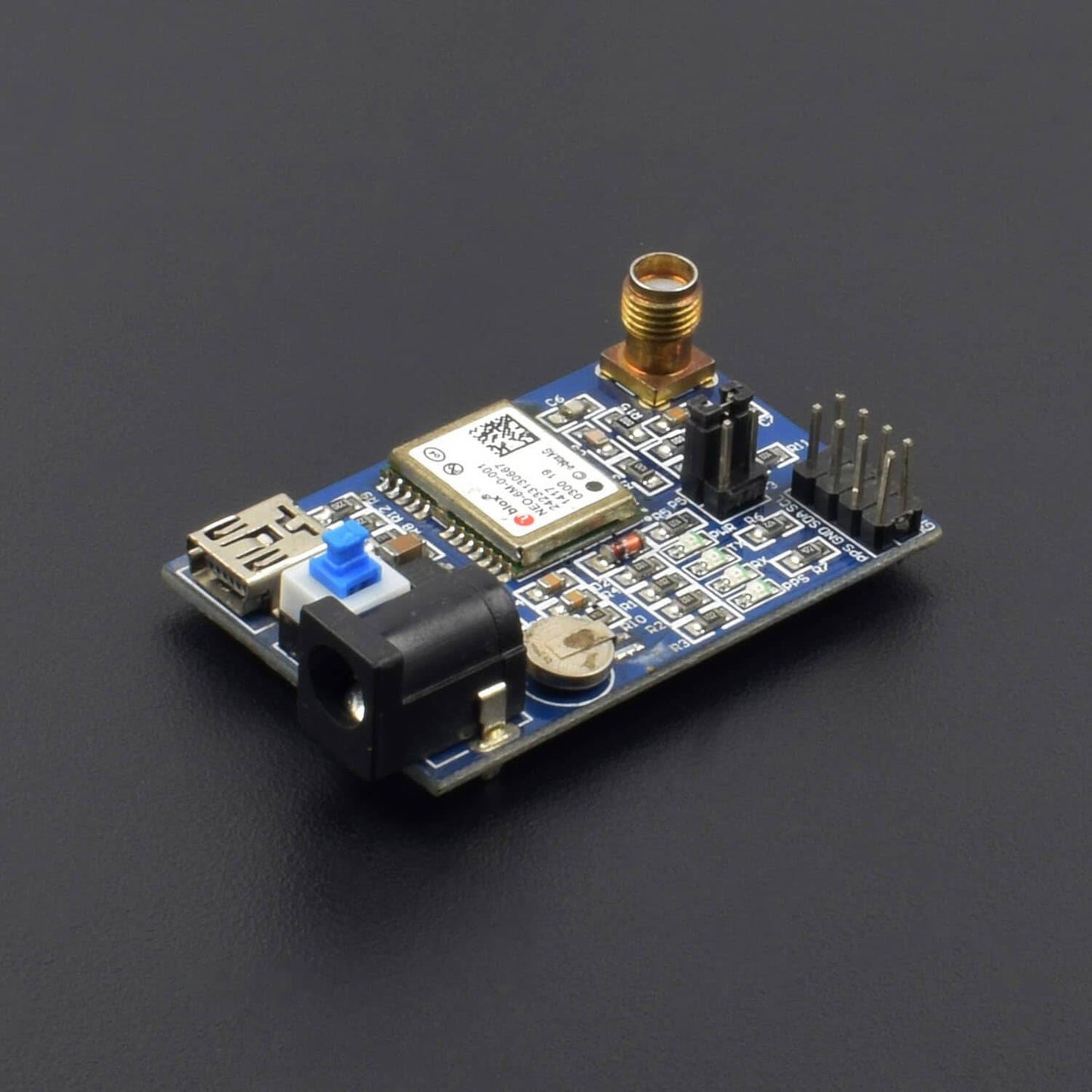

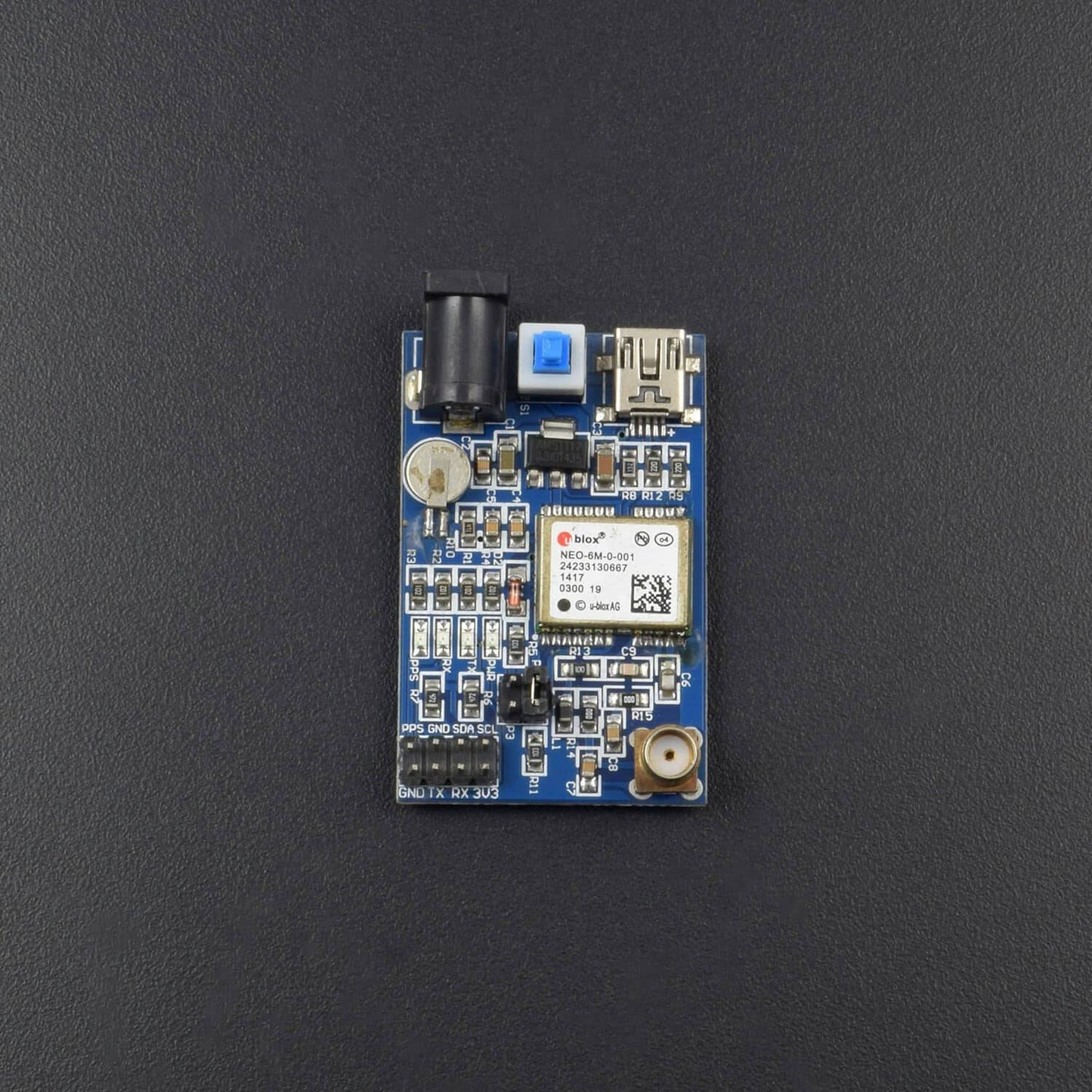

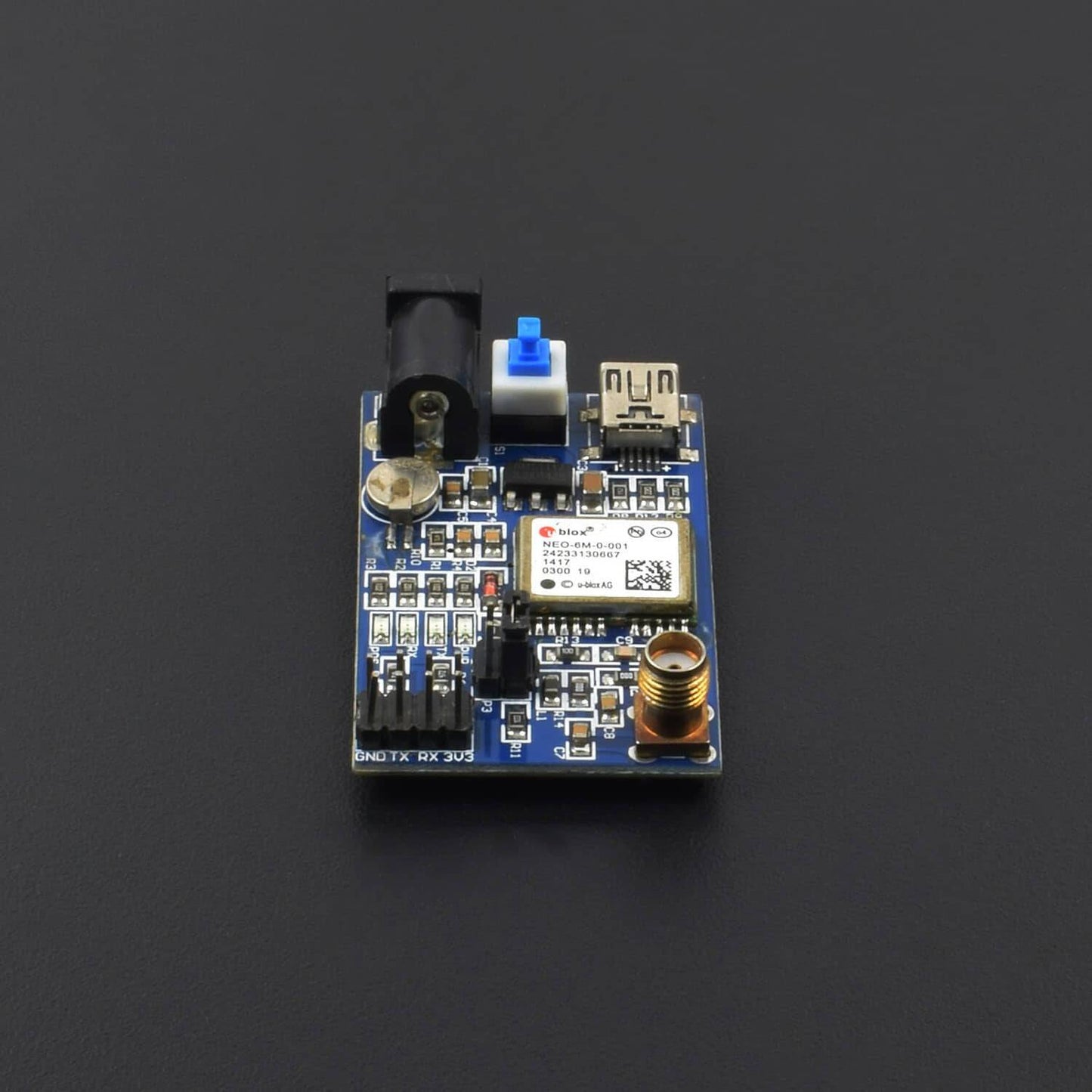

UBLOX NEO - 6M- 0-001 GPS module with GPS active antenna -ML025

Description:

This is a UBLOX NEO - 6M- 0-001 GPS module with GPS active antenna. It has onboard DC and MINI USB interface, convenient to the board and onboard power switch and AMS1117-3.3 power supply chip and onboard battery backup rechargeable, can keep the ephemeris data when power supply drop. The module support UART interface and IIC interface module, convenient communication and other equipment.

Specification:

• Input voltage: 5V DC
• Operating temperature -40°C to +85°C

Features:

• Onboard UBLOX NEO – 6 M – 0-001 core modules
• Onboard DC and MINI USB interface, convenient to the board
• Onboard power switch and AMS1117-3.3 power supply chip
• Onboard battery backup rechargeable, can keep the ephemeris data when power supply drop
• Onboard SMA interface, convenient to connect all kinds of GPS antenna
• The module support UART interface and IIC interface module, convenient communications and other equipment

Application:

• Remote Control Application
• Quad Copter

1 x UBLOX NEO - 6M- 0-001 GPS module with GPS active antenna
