Description:

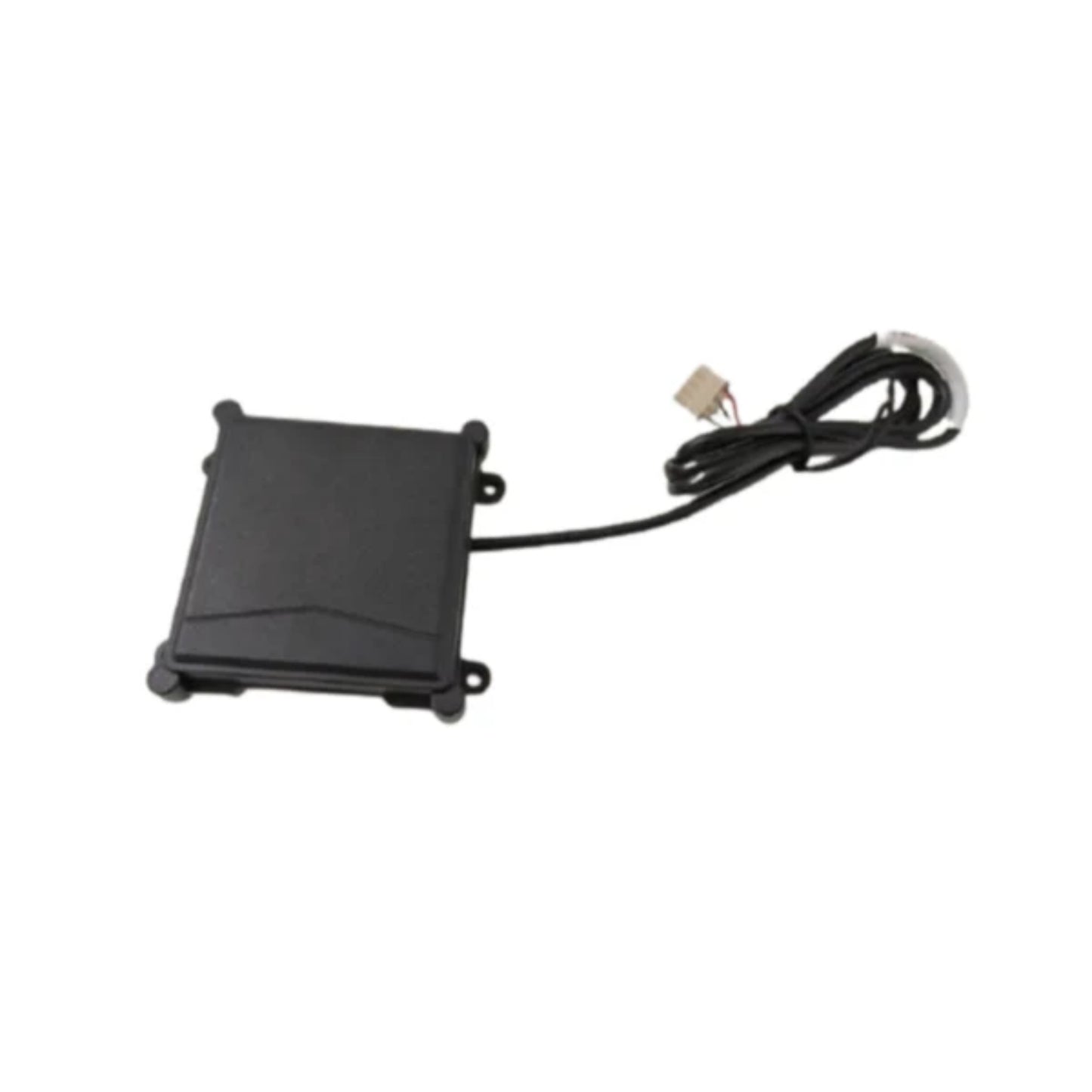

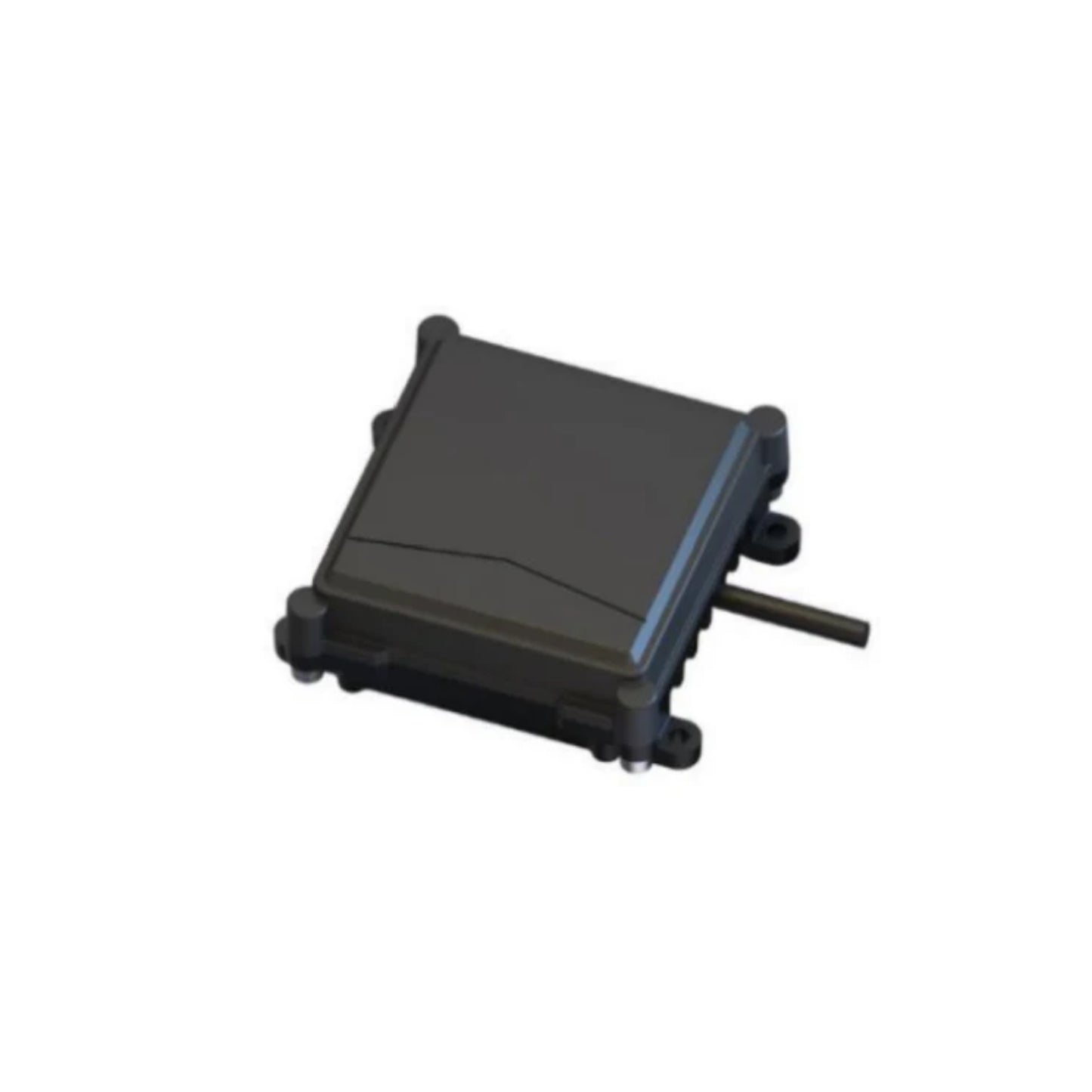

The UAV-R22-1 (UART) Obstacle Avoidance Radar is offers exceptional measurement accuracy, high sensitivity, and a compact design, making it easy to integrate into various UAV systems. This radar operates in the 77GHz frequency range, utilizing a fan-shaped electromagnetic wave to effectively detect obstacles in real time.
The processed echo signals provide critical data on obstacle distance, relative speed, and orientation to guide UAVs in avoiding potential collisions. With its stable performance and intelligent functionality, the UAV-R22-1 ensures safe, autonomous flight by helping drones navigate complex environments with enhanced obstacle detection and avoidance capabilities.
Specifications:
- Model: UAV-R22-1
- Model Type: Avoidance Radar Sensor
- Temp. Measuring Range (°C): -40 to 85
- Communication Mode: UART
- Power Consumption (W): 3
- Frequency(GHz): 79
Features:
- 2T4R MIMO array antenna design,±15°azimuth FOV, High angular resolution, and angular detection accuracy.
- Operating frequency is 77GHz~81GHz， sensitive to moving targets, high range detection accuracy.
- Single-chip DSP+ARM dual-core architecture signal processing and control unit, radar data processing, target detection, target tracking, and other algorithms are run on the internal high-speed digital signal processor.
- Support UART protocol output, Default baud rate115200.
- Effective detection distance 27m.
Package Included:
1 x UAV-R22-1 Obstacle Avoidance Radar Sensor 77-81GHz Radar Sensor High-frequency Obstacle Detection Radar With UART Interface For Safe Autonomous Flight Navigation
