Description:

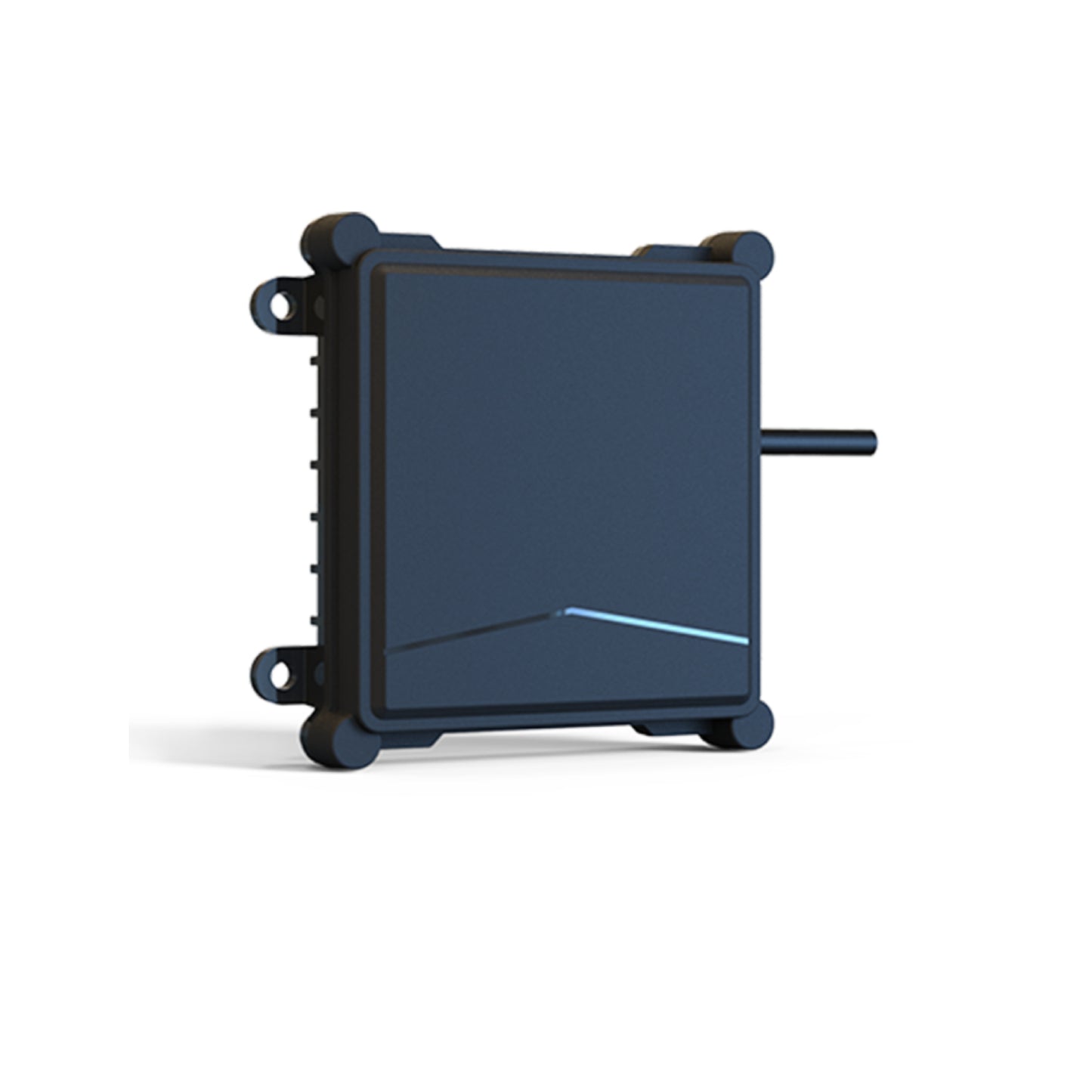

The UAV-R21-1 Obstacle Avoidance Radar Sensor is a high-performance radar system designed for UAVs, offering real-time obstacle detection and collision avoidance. Its compact, lightweight design ensures minimal impact on flight performance while providing reliable data to the flight control system for safe navigation in any environment.
The UAV-R21-1 CAN Radar Sensor enhances UAV safety with advanced obstacle detection, ensuring real-time data transmission to avoid collisions. Its lightweight, compact design integrates seamlessly into UAVs, maintaining optimal flight performance and agility.
The UAV-R21-1 CAN is an advanced obstacle avoidance radar sensor designed for UAVs. With its lightweight, compact form and real-time data integration, it enables safe, efficient navigation by detecting obstacles and preventing collisions, even in challenging conditions.
Specifications:
- Model Type: Avoidance Radar Sensor
- Antenna Azimuth: ±15°
- Antenna Elevation: -5° ~ +3°
- Antenna EIRP: 30dBM
- Radar Range Scope (m): 1.5~27
- Radar Range Resolution(m): 0.12
- Radar Range Accuracy(m): ±0.1
- Radar Frequency Band(GHz): 79
- Distance Measuring Range(M): 1.5 to 279
- Interface: CAN/UART for Choose
- Radar Refresh Rate(Hz): 20
- Radar Band Width (GHz): 1.4
- Operating Voltage (V): 5~24V
- Power: 3W
Features:
- Alternative port.
- Long Distance.
- High Accuracy.
- Water Proof.
- Tiny Body.
- UAV Adapt.
Package Included:
1 x UAV-R21-1 Obstacle Avoidance Radar Sensor High-Precision UAV Obstacle Avoidance Radar With CAN Interface For Real-Time Collision Detection and Autonomous Navigation
