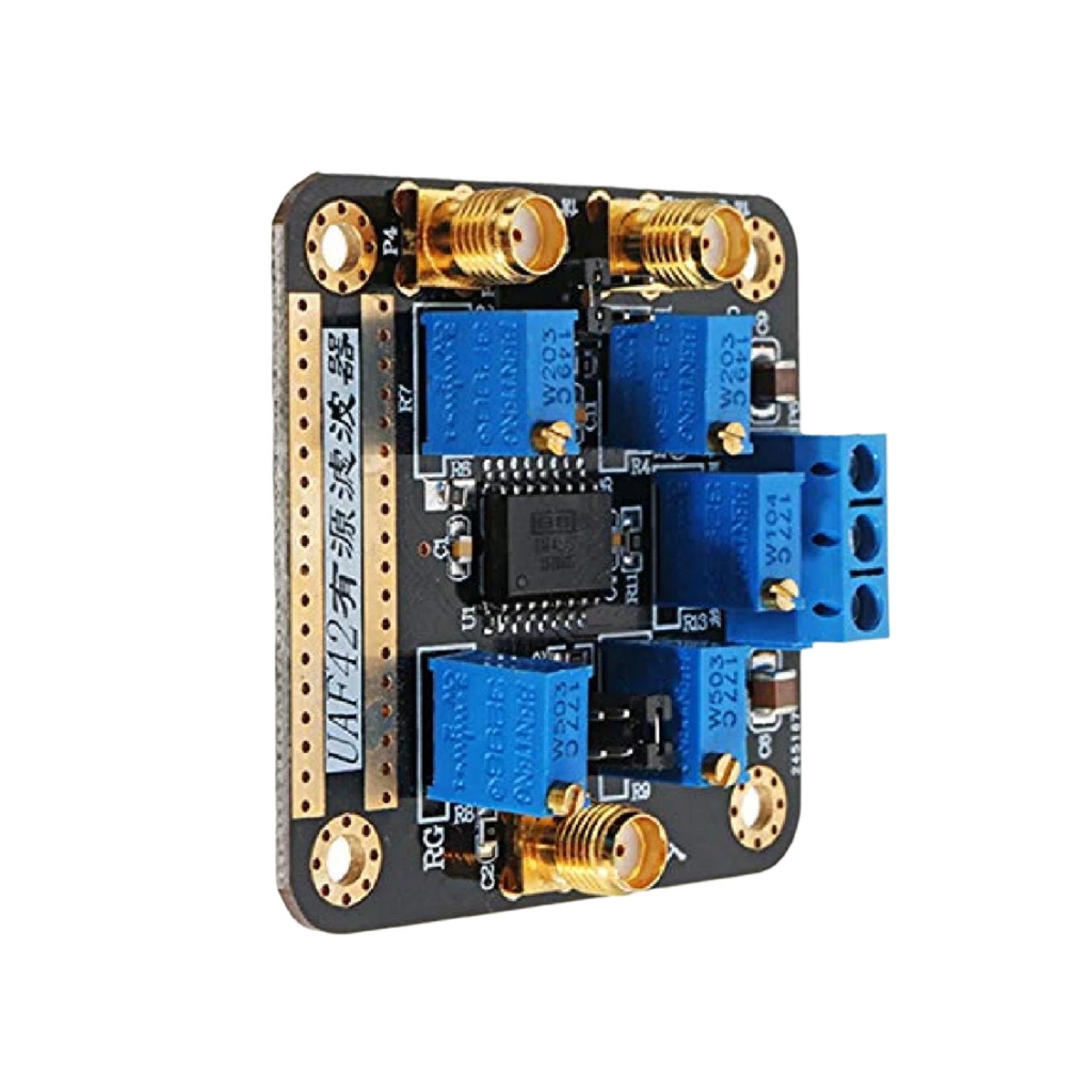

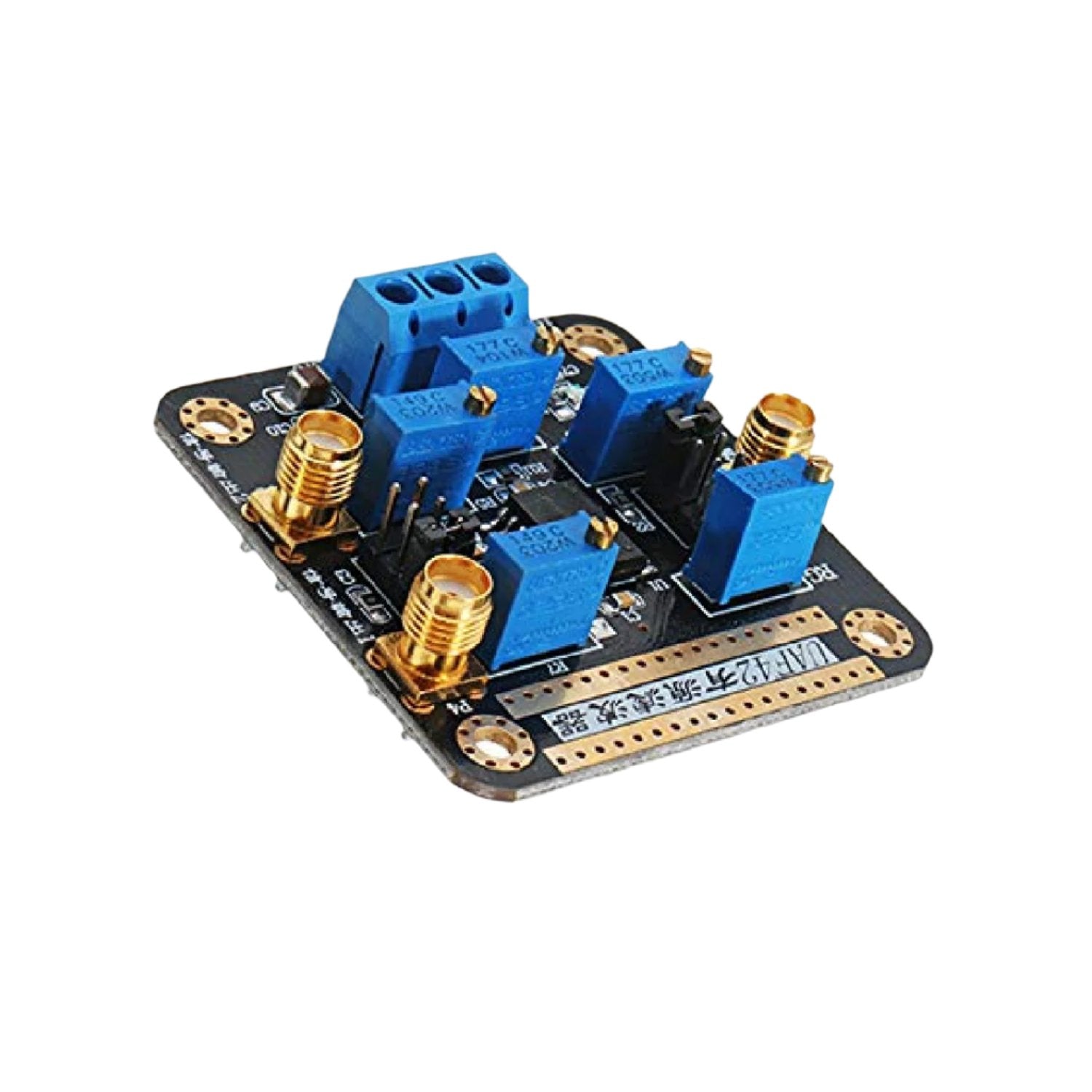

Description:
UAF42 Universal Active Filter is a universal active filter that can be configured for various low-pass, high-pass, and band-pass filters. It uses a classic state-variable analog architecture with an inverting amplifier and two integrators.
The integrator includes an on-chip 1000pF capacitor trimmed to 0.5%. A fourth useless FET input operational amplifier (same as the other three) can be used to form additional stages, or for special filters such as band stop and inverse Chebyshev.
Generally used in power system, sensor signal processing, transmitter and receiver, signal generator processing, etc.
Specifications:
- Module model: UAF42
- Module type: universal adjustable filter
- Supply voltage: ±5V-±15V
- Module current: 10mA (Max)
- Module control mode: potentiometer
- Filter type: high-pass, low-pass, band-pass;
- Input signal form: single-ended; default VIN2 input
- Input signal voltage range: less than positive and negative power supply
-
Input frequency range: DC-1MHz
- Supply voltage range: maximum ±18V
- Module gain range: 40dB (MAX)
- Quality factor Q value adjustable range: 20 (MAX)
- Module input and output interface: SMA; 24-hour salt spray anti-oxidation
- Module working temperature: 0-75℃;
Features:
- Its neat layout is designed strictly in reference to filter circuit.
- Using high-quality materials
- Various filter functions
- Suitable for student competition and personal project development

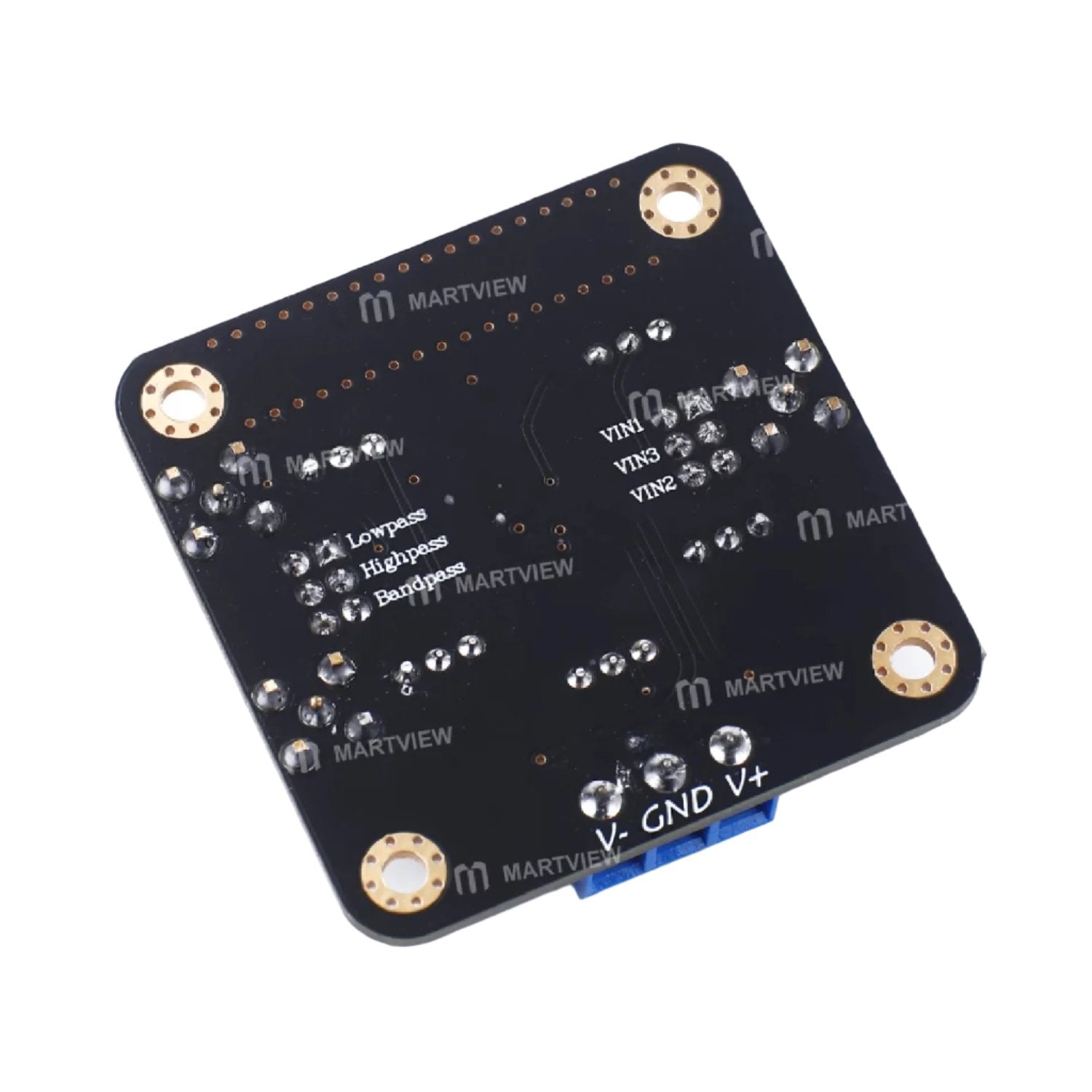

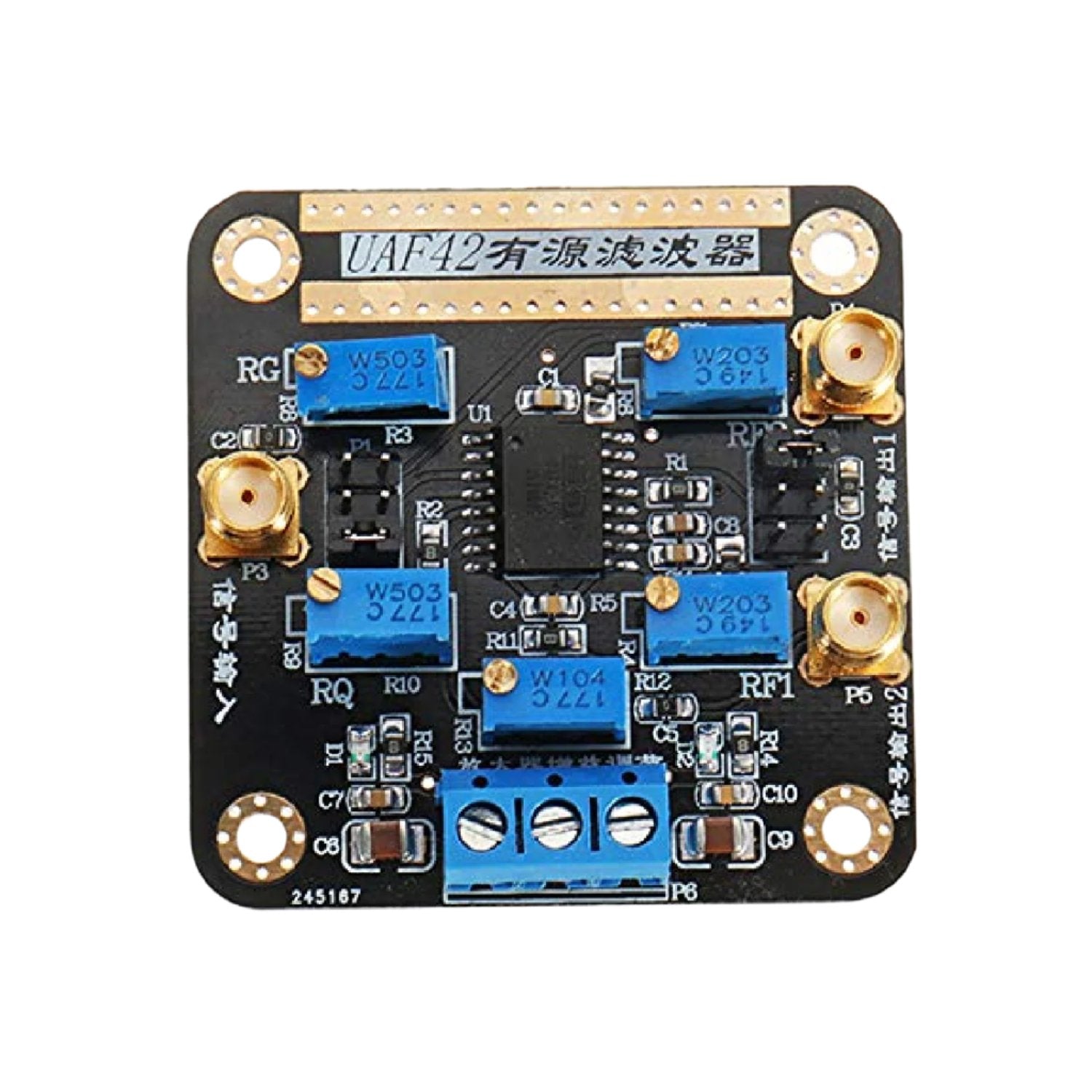

Pin Description:
Package Included:

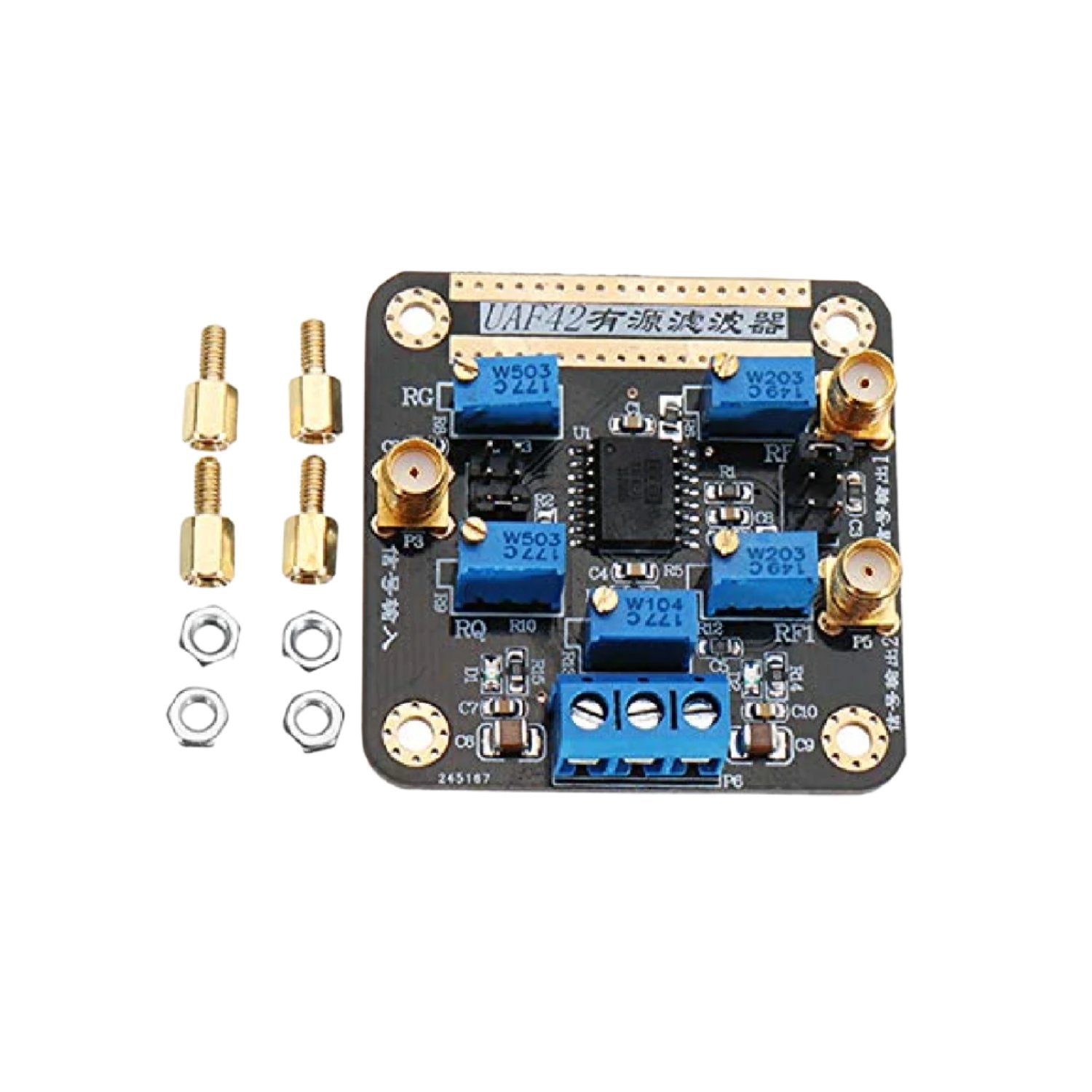

1 x UAF42 Universal Active Filter Module
