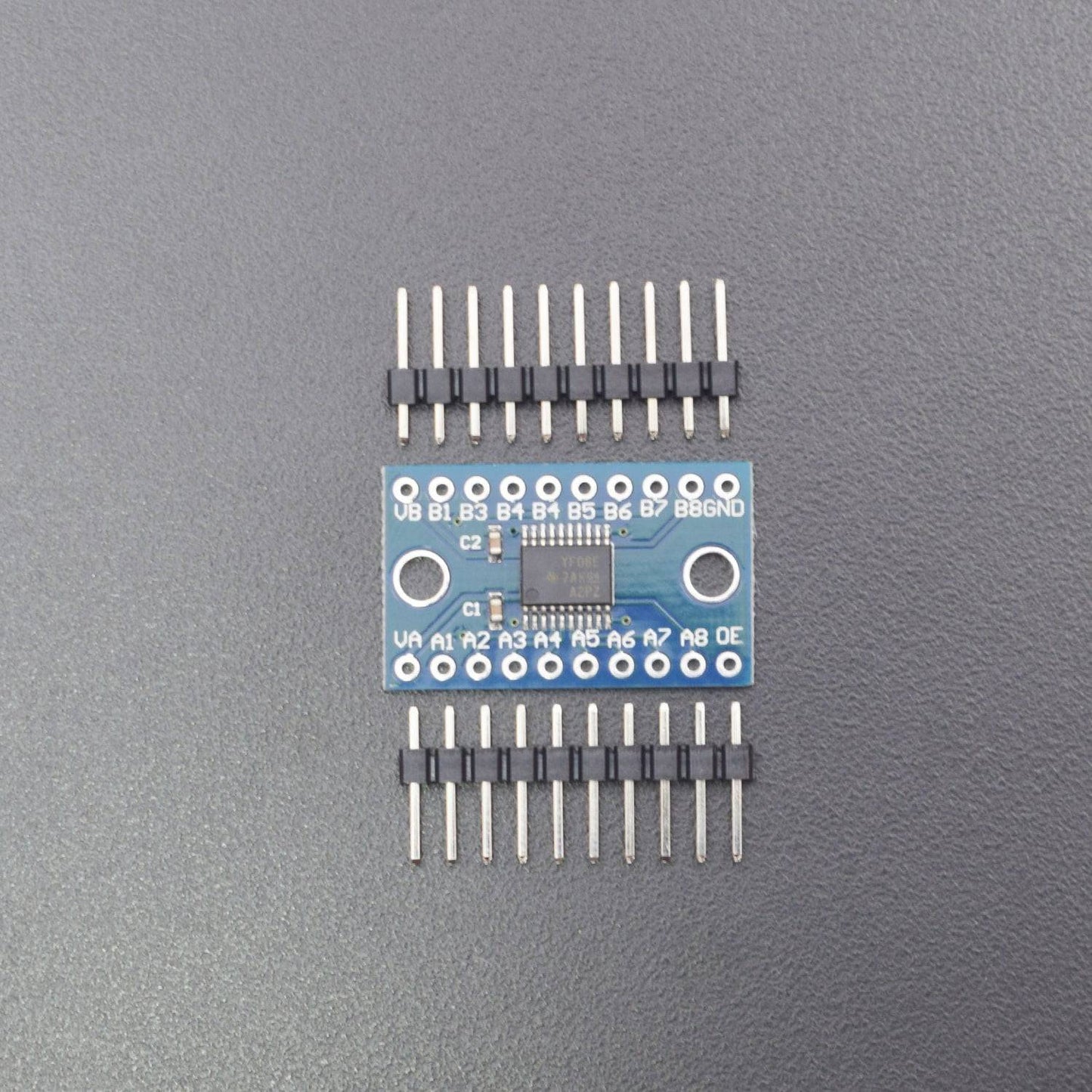

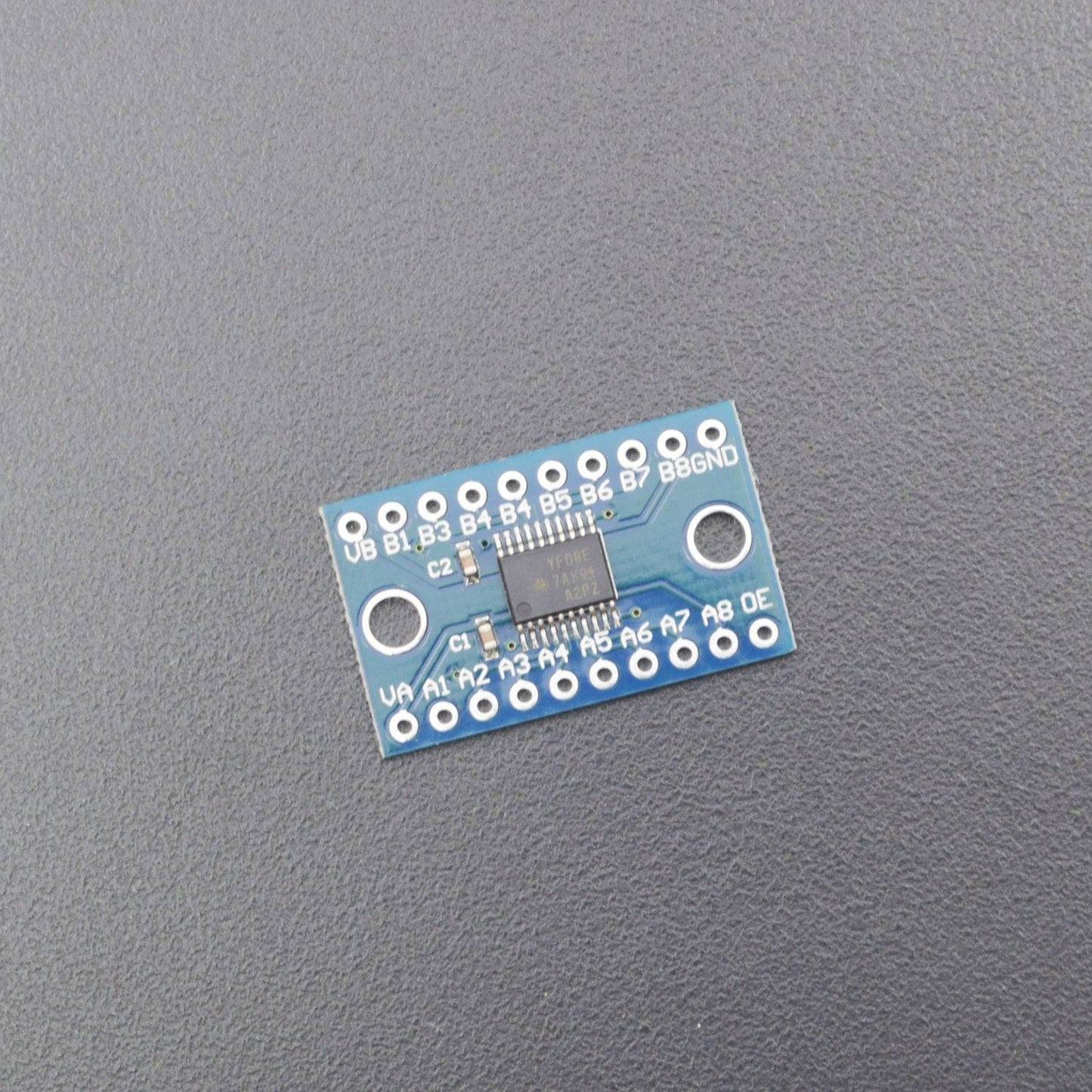

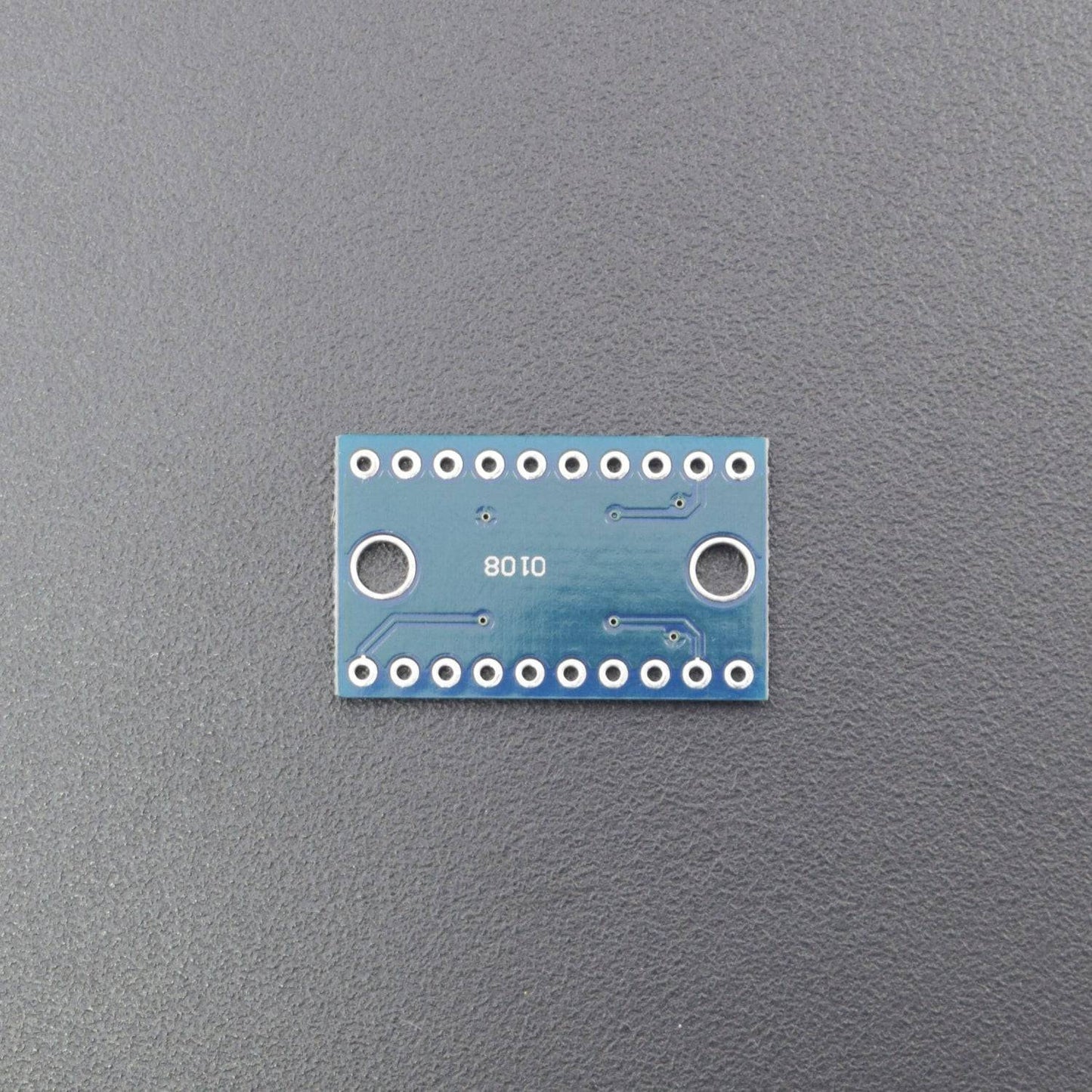

TXS0108E High Speed Full Duplex 8 Way 8 Channel Level Conversion Module - RS1923

TXS0108E High Speed Full Duplex 8 Way 8 Channel Level Conversion Module - RS1923

SKU:RS1923

40 in stock

Regular price Rs. 95.00
Regular price Sale price Rs. 95.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

  • 3.3V and 5V MCU module.
  • Compatible and other communications support.
  • MCU and SD card communication level conversion.
  • SCM and iic, spi serial device level converter.

DESCRIPTION

If you’ve ever tried to connect a 3.3V device to a 5V system, you know what a challenge it can be. This bi-directional logic level converter is a small device to convert the 1.8V 3.3V 5V logic level mutually enable you to successfully set your high and low voltages and step up and down between them safely on the same channel. Each level converter has the capability of converting 8 pins on the high side to 8 pins on the low side.The level converter provide serial inteface compatible with UART/IIC/SPI port is very easy to use.

SPECIFICATION

  • Provide two-way communication capabilities.
  • Provide 3.3-5V, 1.8-3.3v and other common level conversion capability.
  • Serial communication interface compatible with UART/IIC/SPI port easy to connect.
  • Widely used in the MCU and SD card, MCU and serial devices,MCU and 5V/3V module communiction.
  • OE active high enable IO recommended by a low voltage side of the IO port.

FEATURES

  • Provide two-way communication capability.
  • VCCA side support voltage: 1.2V-3.6V.
  • VCCB side support voltage: 1.65v-5.5v.
  • Can provide 3.3-5V, 1.8-3.3v and other common level conversion capability.

PACKAGE INCLUDED

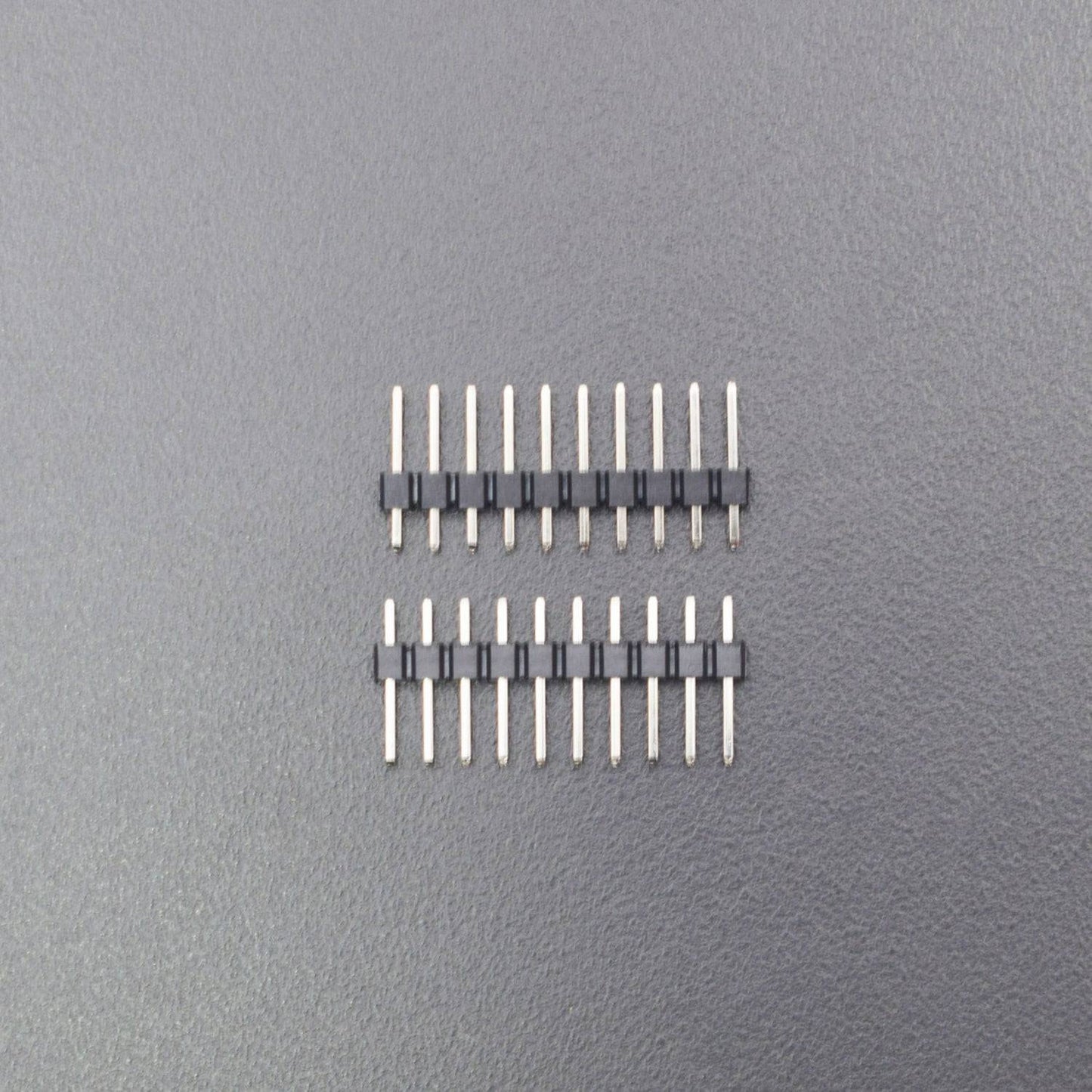

  • 1 x TXS0108E High Speed Full Duplex 8 Channel Logic Level Bi-directional Converter Module
