Turn ON-OFF 2 LED’s by making Touch Sensor using 555 Timer IC - KT909
Turn ON-OFF 2 LED’s by making Touch Sensor using 555 Timer IC - KT909
SKU:KT909
999 in stock
Regular price
Rs. 150.00
Regular price
Sale price
Rs. 150.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

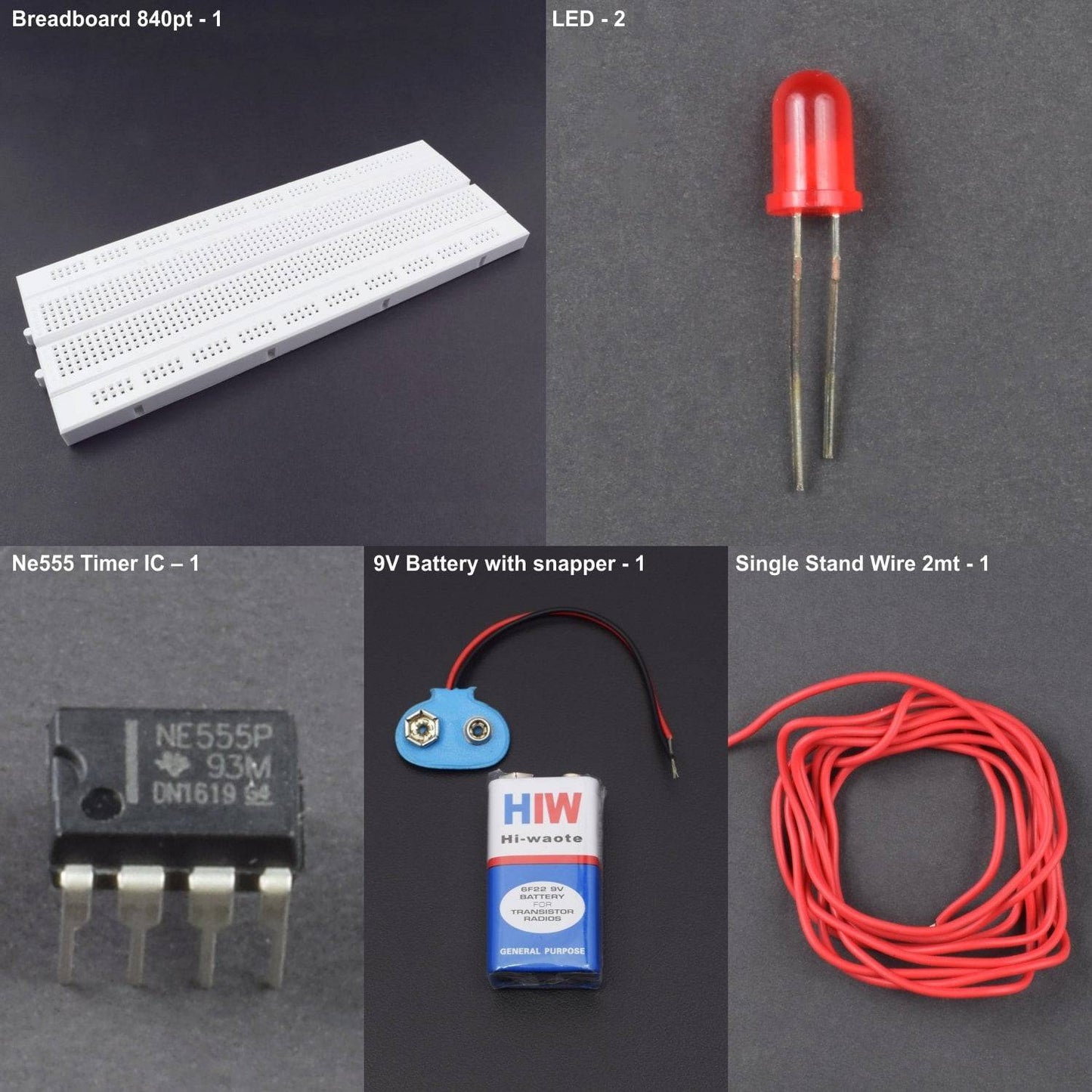

KIT INCLUDED:

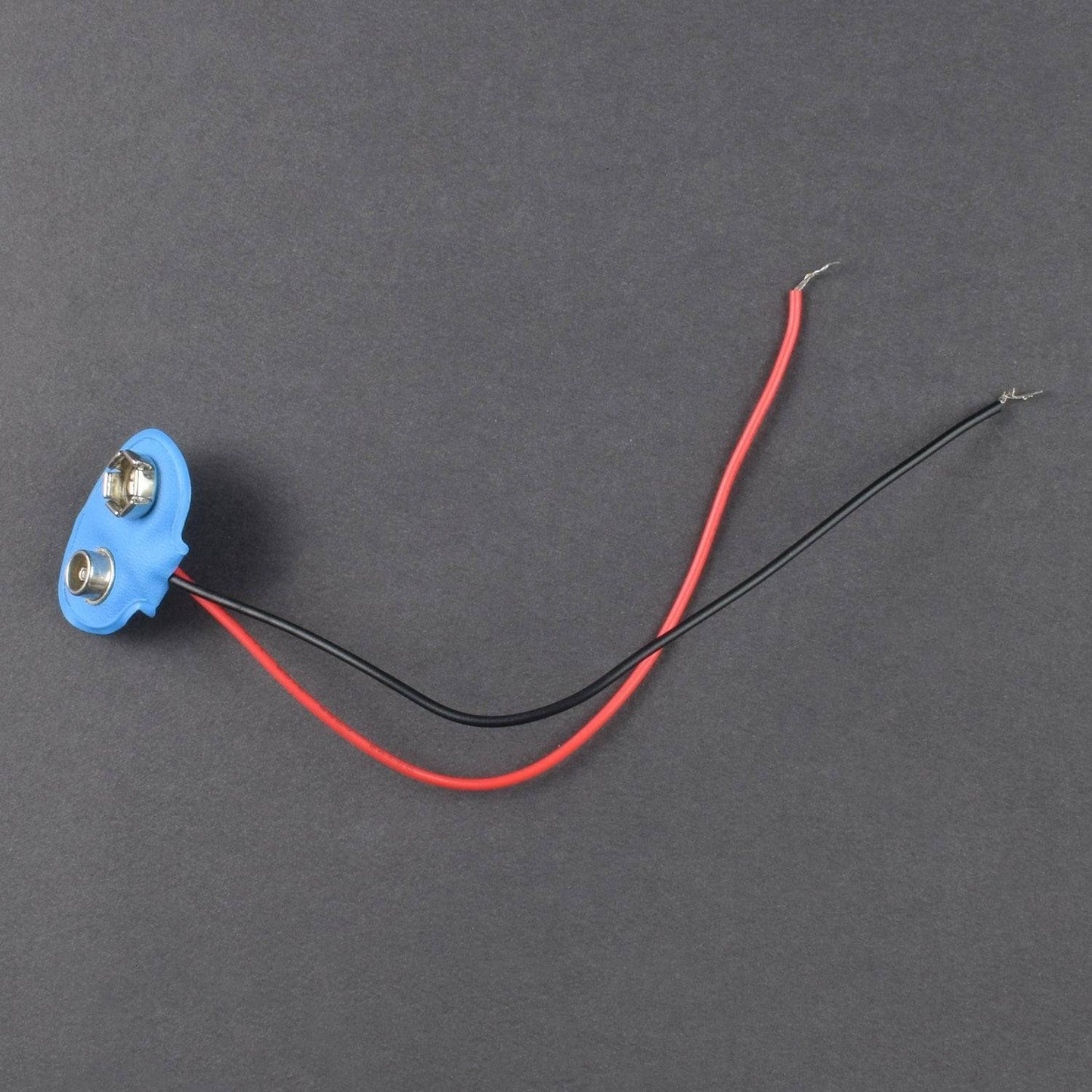

- 9v Battery with battery Snapper - 1
- Iron Wire – 2

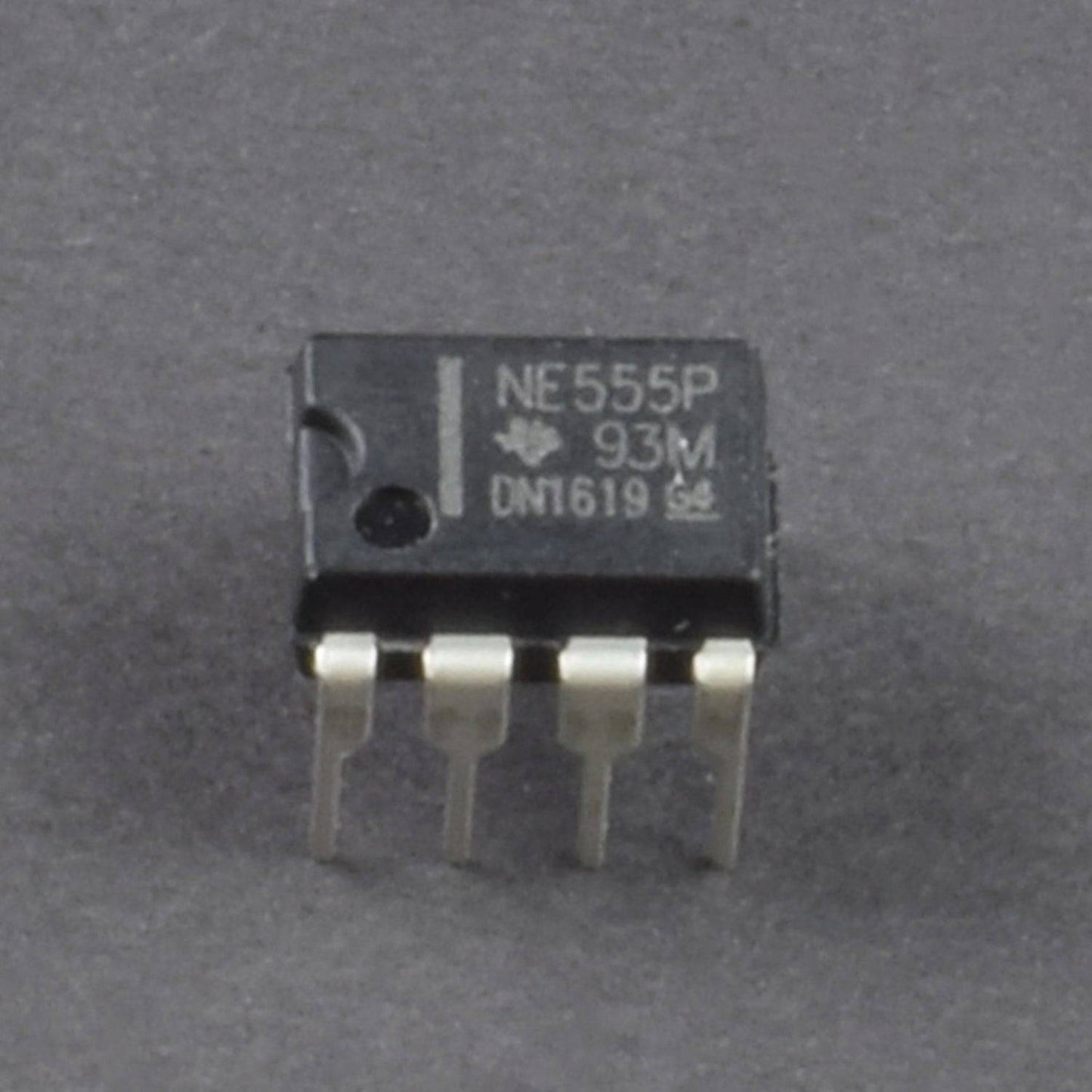

- NE555 Timer IC – 1
- Single stand wire – 1

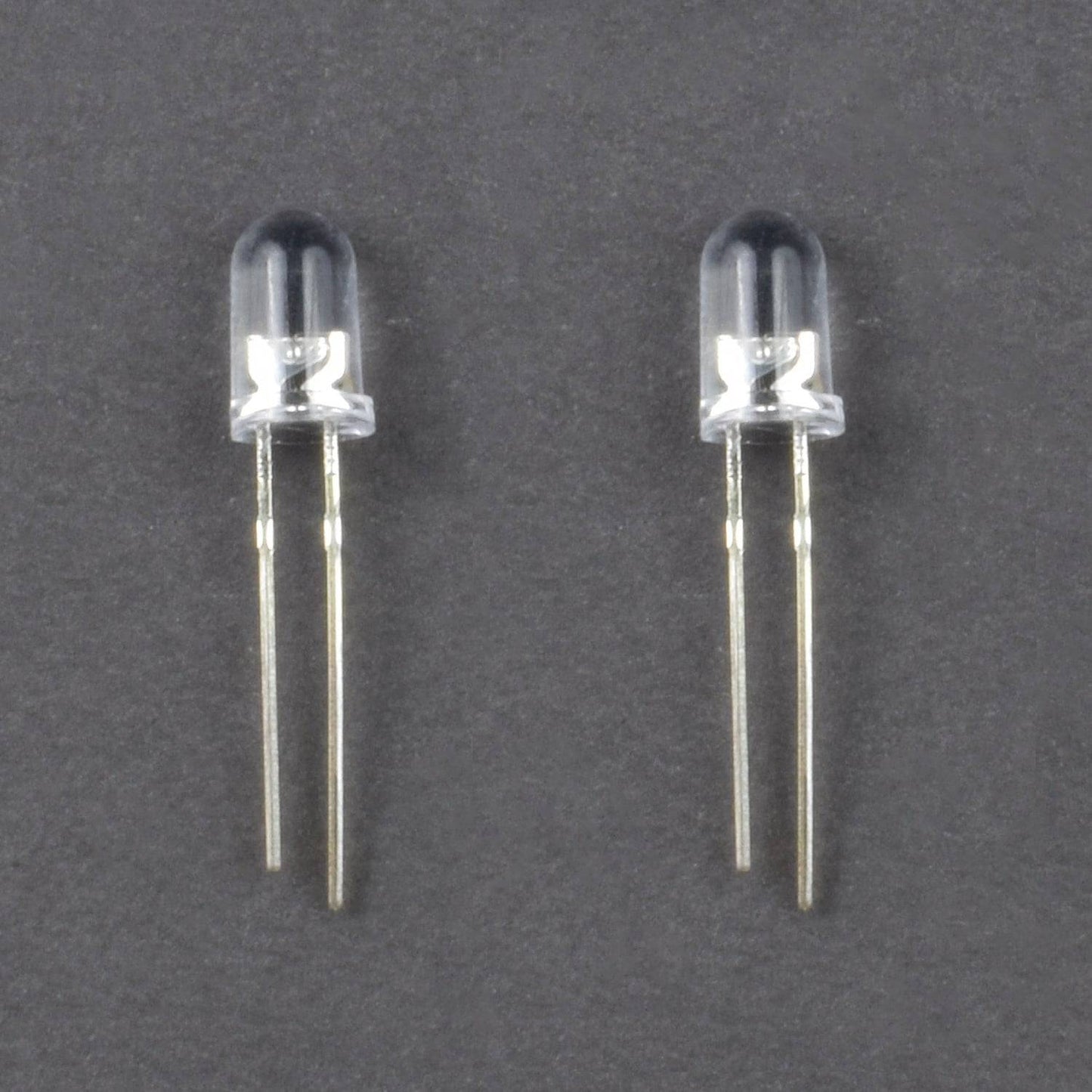

- Led – 2

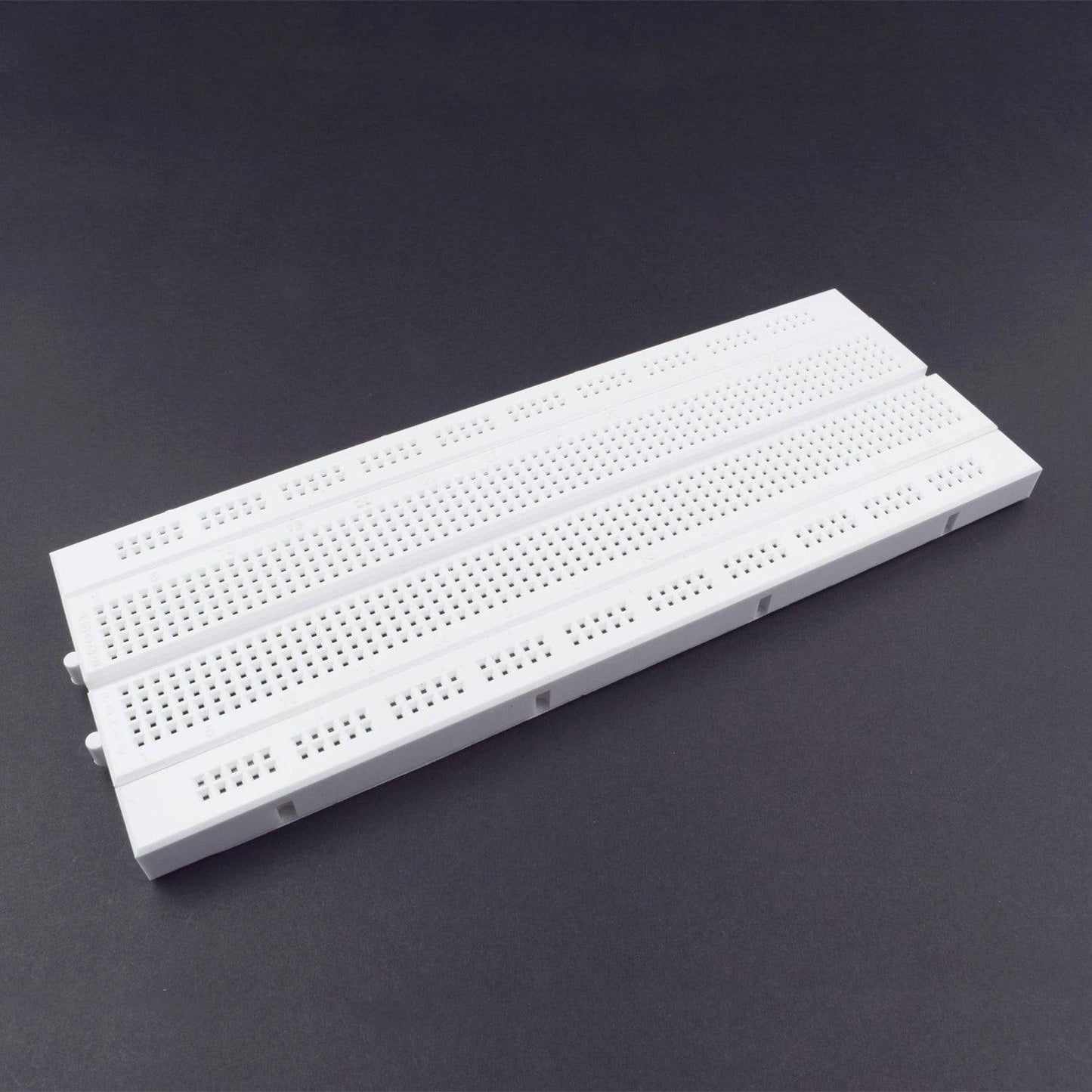

- Breadboard 840 points - 1
HARDWARE REQUIRED
- 9v Battery with battery Snapper - 1
- Iron Wire – 2
- NE555 Timer IC – 1
- Single stand wire – 1
- Led – 2
- Breadboard 840 points - 1
PIN DESCRIPTION
LED
555 TIMER IC
CIRCUIT DIAGRAM
- IC POINT 1 connects to BATTERY NERGATIVE
- IC POINT 2 connects to Touch plate or IRON WIRE
- IC POINT 3 connects to LED 1( -VE)
- IC POINT 3 connects to LED 2( +VE)
- IC POINT 6 connects to CONNECT WIRE
- IC POINT 8 connects to CONNECT WIRE
- IC POINT 8 connects to BATTERY ( +VE)

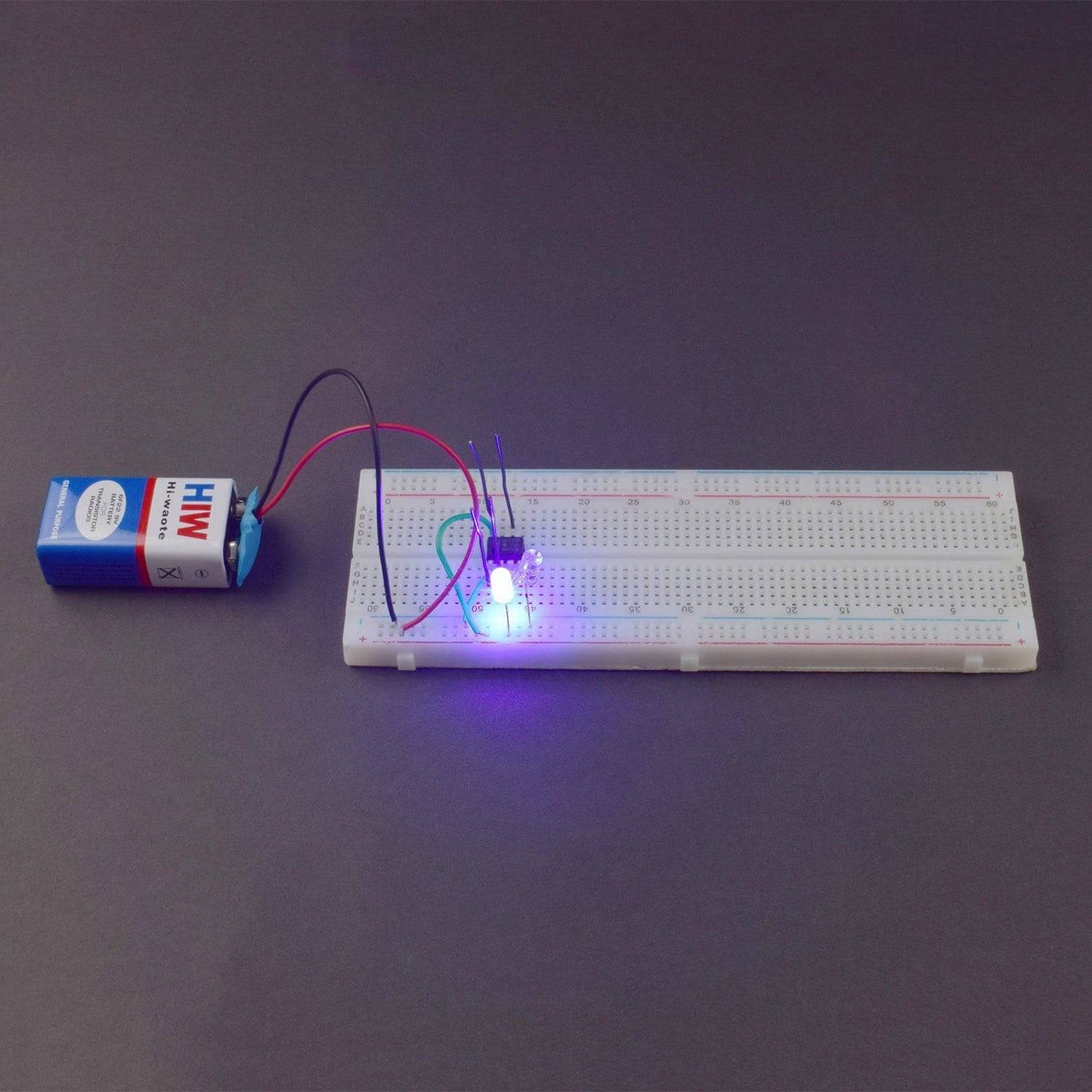

WORKING
Once you connect the battery then touch on the 'Touch Plates' to see the L.E.D's changing.
