Description

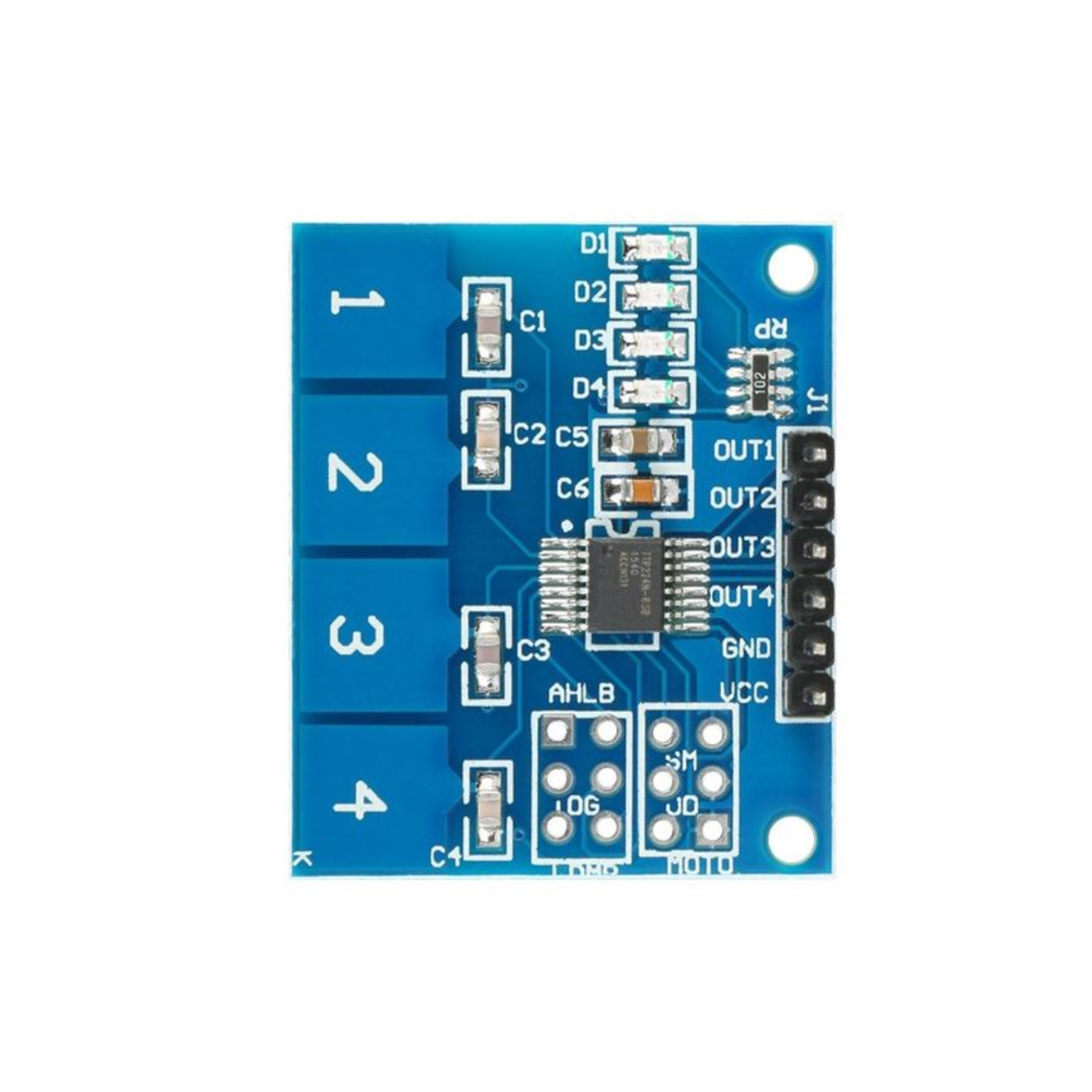

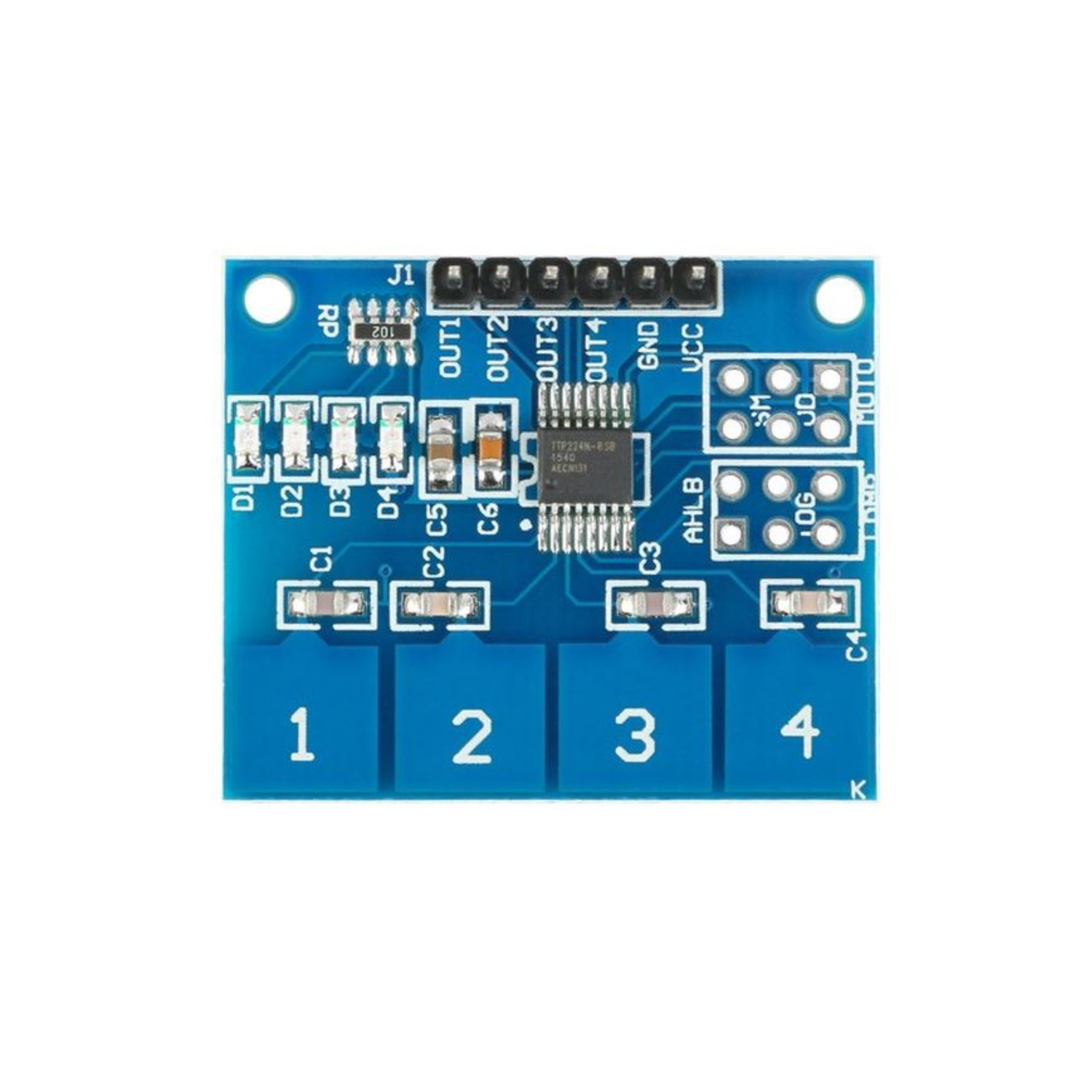

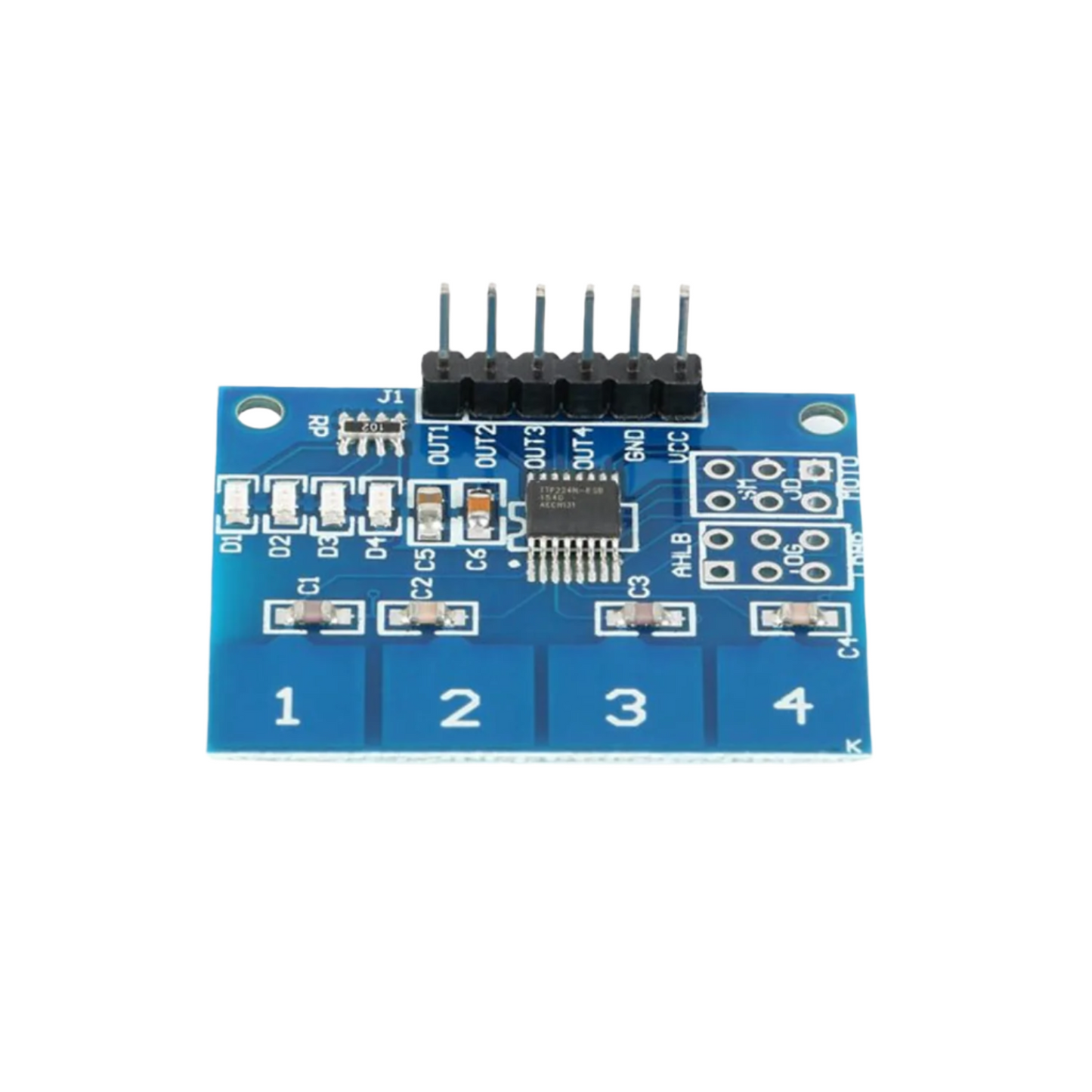

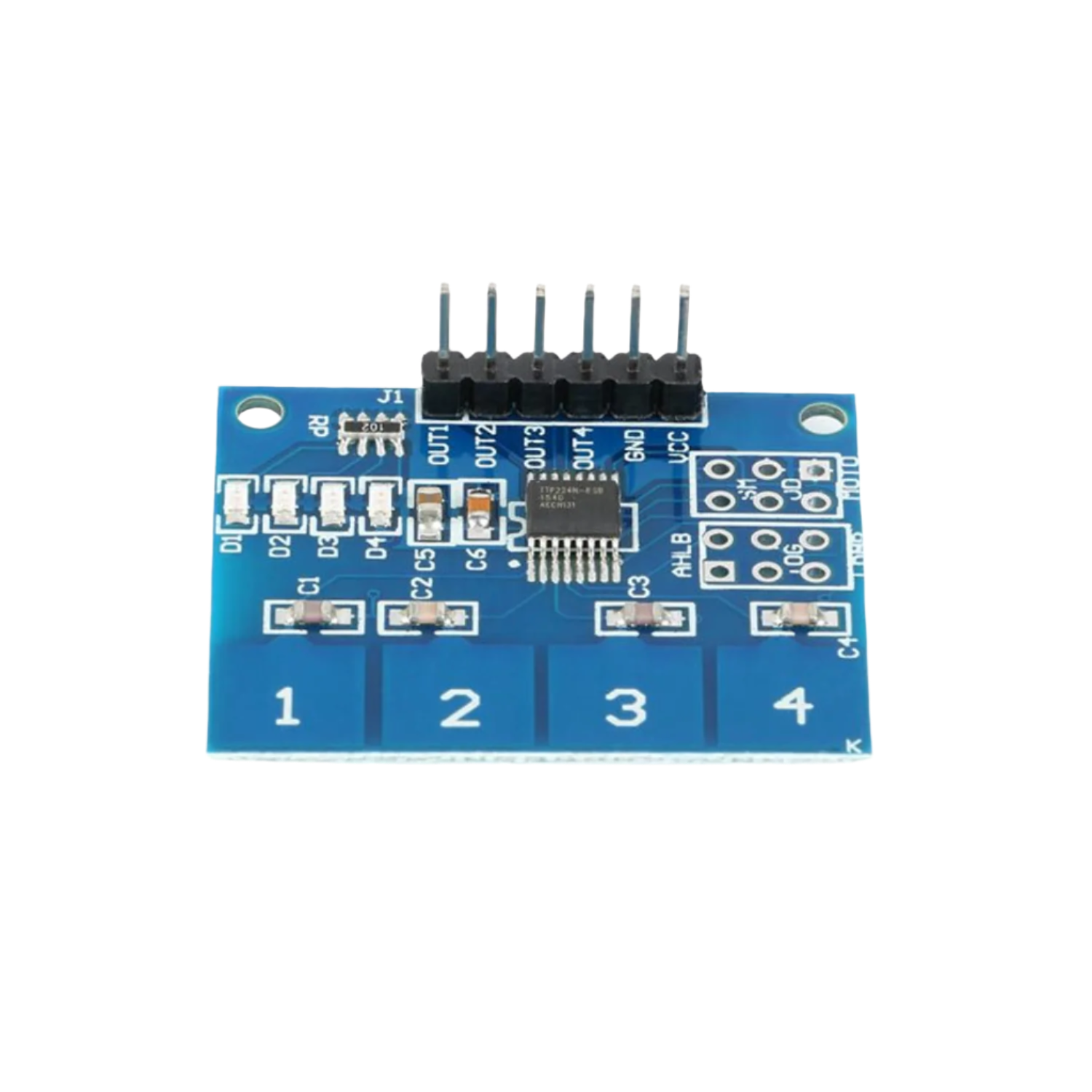

This 4-switch digital touch sensor is powered by advanced capacitive sensing technology. The heart of this module is the TTP224 IC, meticulously engineered to provide a responsive and reliable capacitive sense input, perfect for crafting sleek and modern touchpad controls. The board features four generously sized, finger-friendly touchpads, inviting effortless interaction.
Customize your user experience with versatile jumper configurations, allowing you to seamlessly switch between Timed and Toggle output modes, as well as Active High and Active Low logic levels. Fine-tune the sensor's responsiveness with dedicated jumpers, choosing between a lightning-fast 60ms response or a power-efficient 160-ms setting.
Specification:
- Model Type: Touch Switch
- Operating Voltage (VDC): 2 to 5.5
- Response time(ms): 160mS @ Low Power Mode, Output 60mS @ Fast Mode
- Color: Blue
Features:
- TTP224 4-way switch digital touch capacitive touch sensor module
- 4 keyboard TTP224 capacitive touch sensor IC
- Onboard 4-level status indicator
Package Included:
1 x TTP224 4-way Capacitive Touch Switch Module
