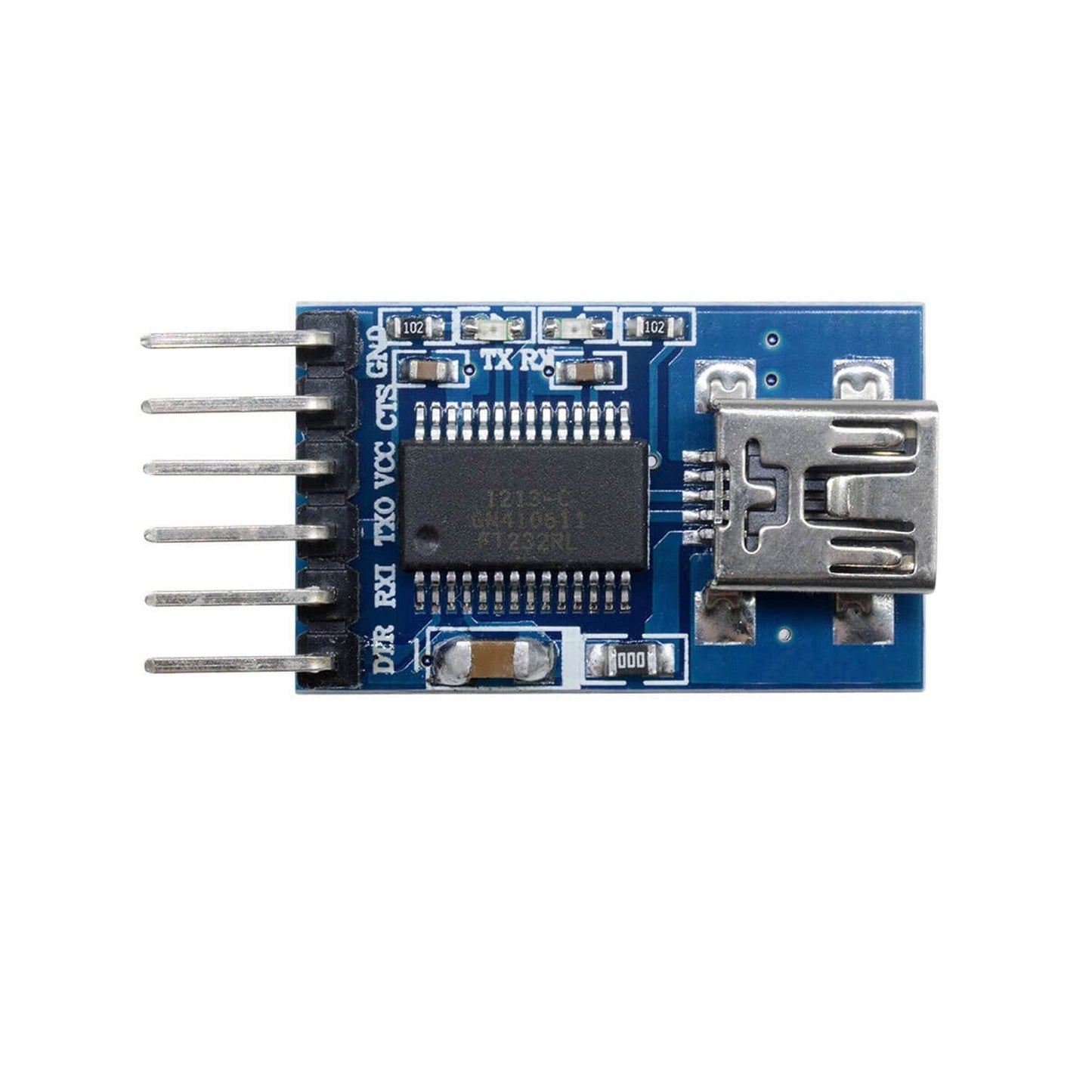

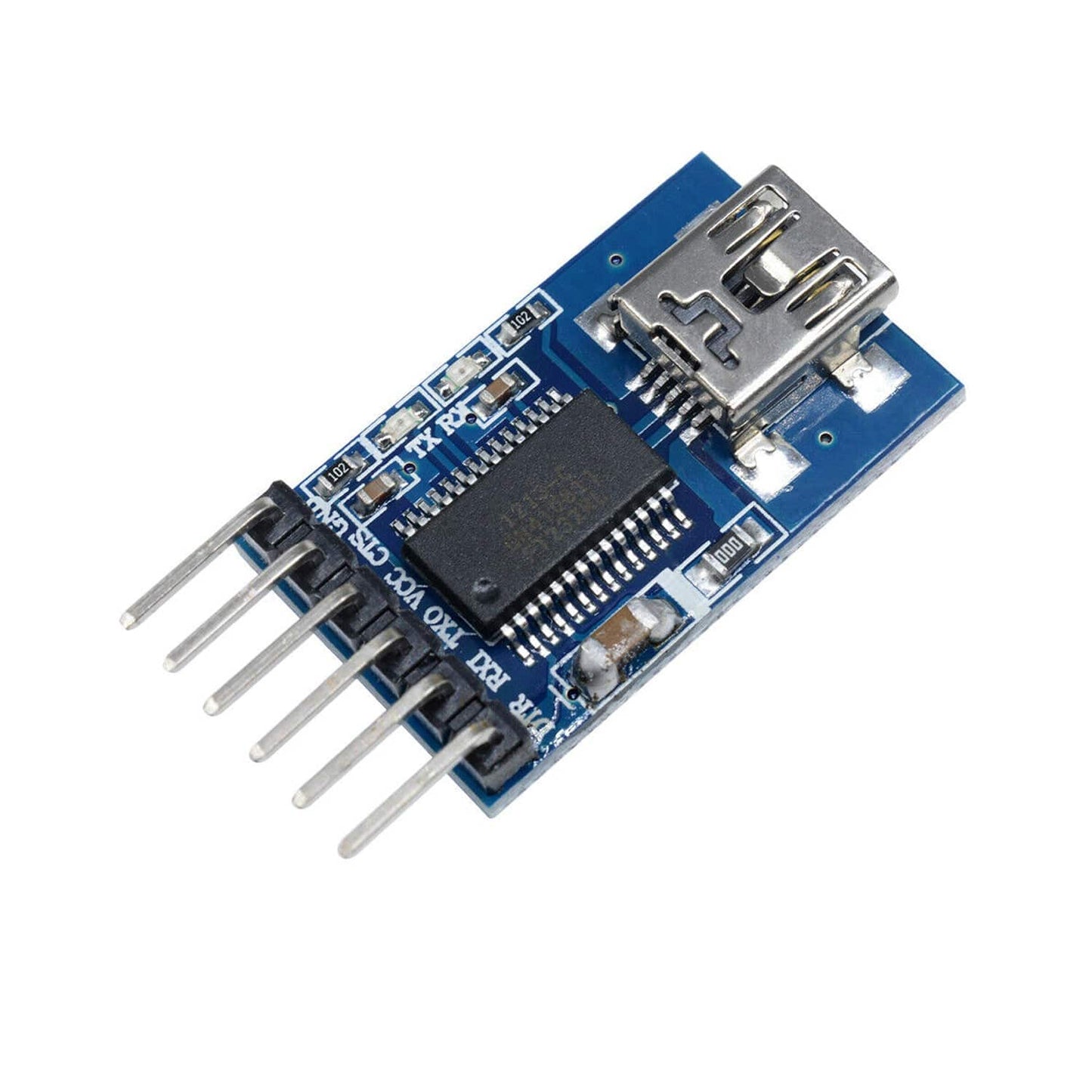

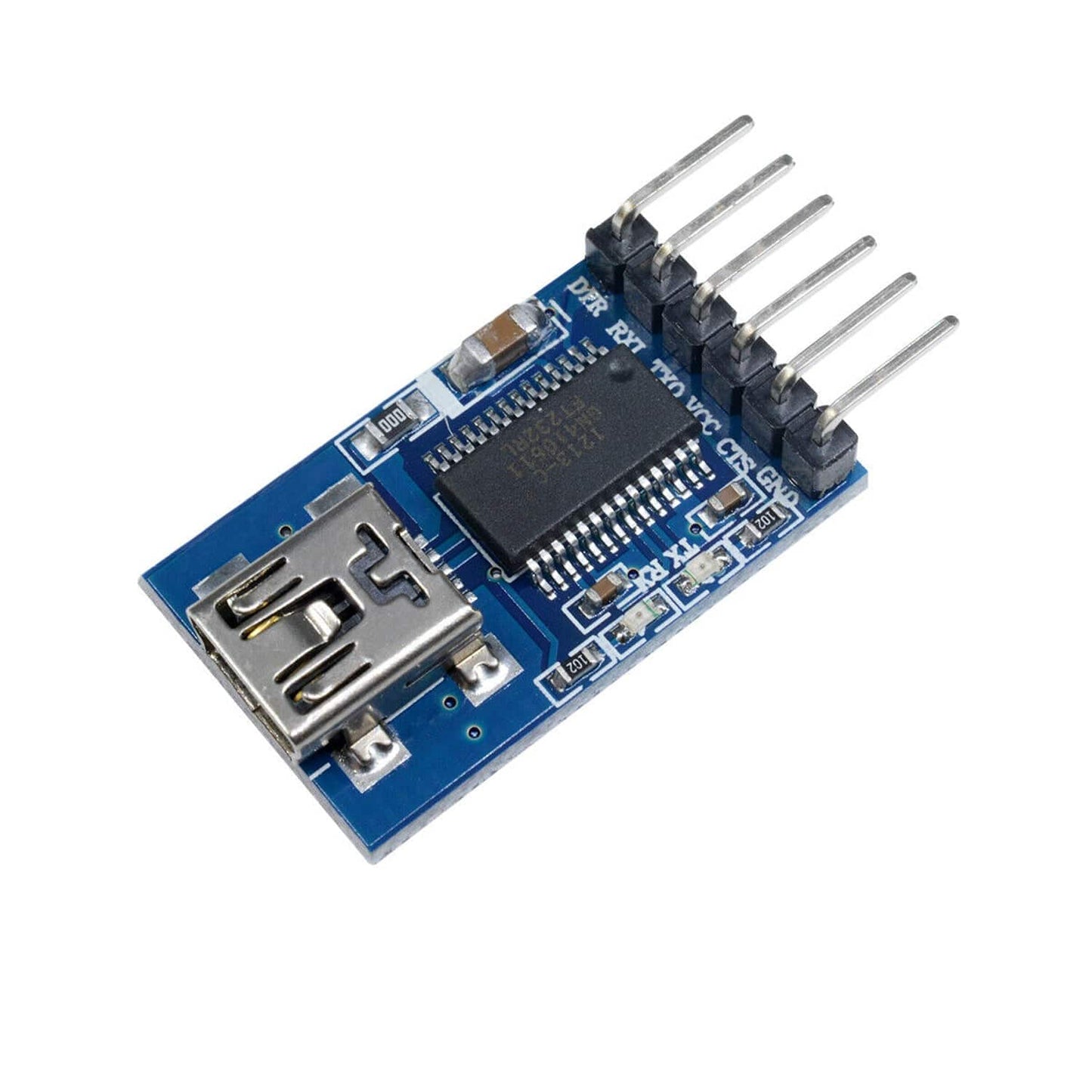

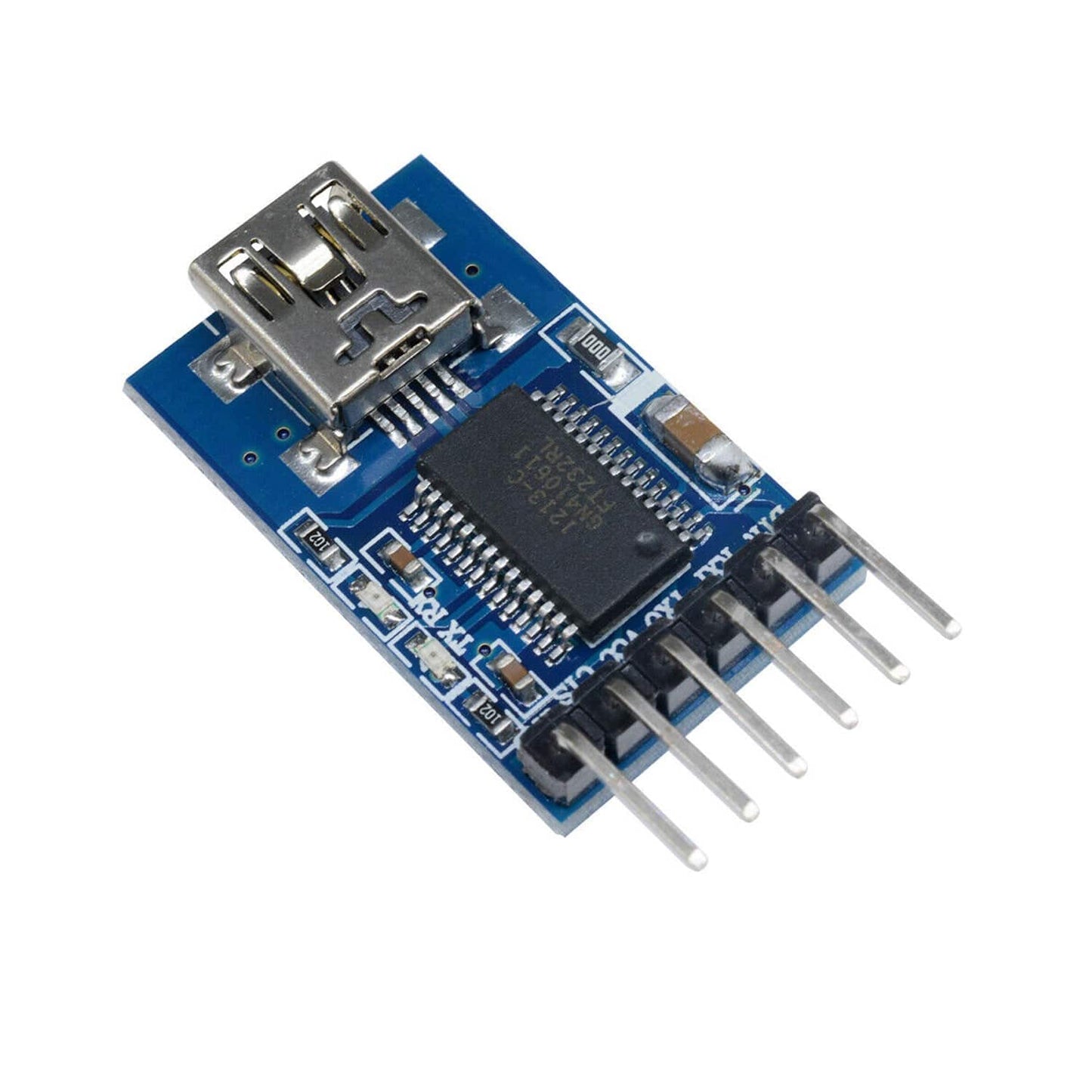

Description:
By using this TTL FTDI Transmitter USB Module, you can easily install your project or product into a USB interface. The cs2102 is an SI labs product that can communicate (for example, the Arduino multiview 2.5 is the same as the GPS in the APM pack and any other.
TTL FTDI Transmitter USB Module is a device that has a TTL port that provides the computer with a USB port. By connecting this TTL FTDI Transmitter USB Module to the computer and installing the driver program, which adds a virtual serial port to the computer ports, which is capable of working with Windows operating systems, MAC, and Linux. On the output of this converter, in addition to the TXD, RXD and GND pins, the output voltage is also 5v and 3.3v.
TTL FTDI Transmitter USB Module based on FT232RL high quality, high-performance USB-to-Serial Bridge Controller. The famous manufacturer of USB/TTL converter products produced this chip. The FTDI TTL USB is the latest device to be added to FTDI’s range of USB UART interface Integrated Circuit Devices.

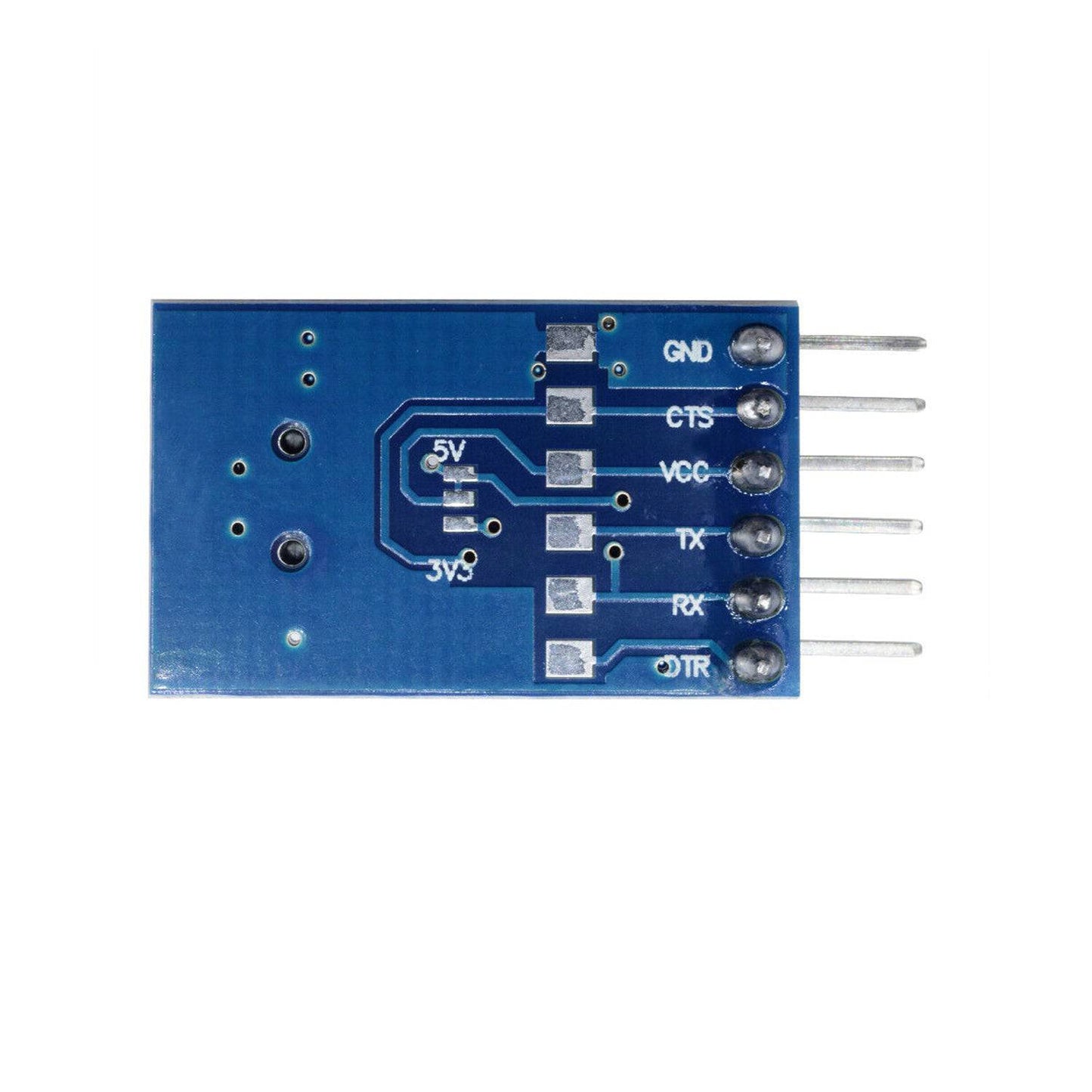

This TTL FTDI Transmitter USB Module decreases the cost of Arduino development and increases ease of use. The jumper on the back of the board allows the board’s power output and IO level to be configured to either 3.3V or 5V. You can cut the default 5V trace and add a solder jumper to switch to 3.3V
Specifications:
- IC Chip: FT232RL
- Connector Type: Mini USB
Features:
- Automatic detection of data transfer speeds up to 1Mbps
- Data exchange capability with an external interface with UART protocol
- Output Voltage 5v and 3.3vIndicator LEDs USB Connector
- TTL FTDI Transmitter USB Module with RX and TX Indicator LEDs
- Manage System for Reducing Flow In Idle and Standby Mode
- Support for serial output devices such as modems, card reader devices, digital cameras and more.
- Interface: Mini USB
- +3.3V and +5.0V signal Level Support using SMD jumper.
- Supports Windows 8, Windows 7, Windows Vista, Windows XP, Linux, Mac OS X, Windows CE 4.2-5.2, Windows CE 6.0
- DTR and CTS pins. DTR pin can be used for Automatic Reset of Arduino Pro Mini boards while coding downloads
Package Included:
1 x TTL FTDI Transmitter USB Module TTL FTDI Transmitter USB For 3.3V/5V Dual power FT232RL MWC Programmer
