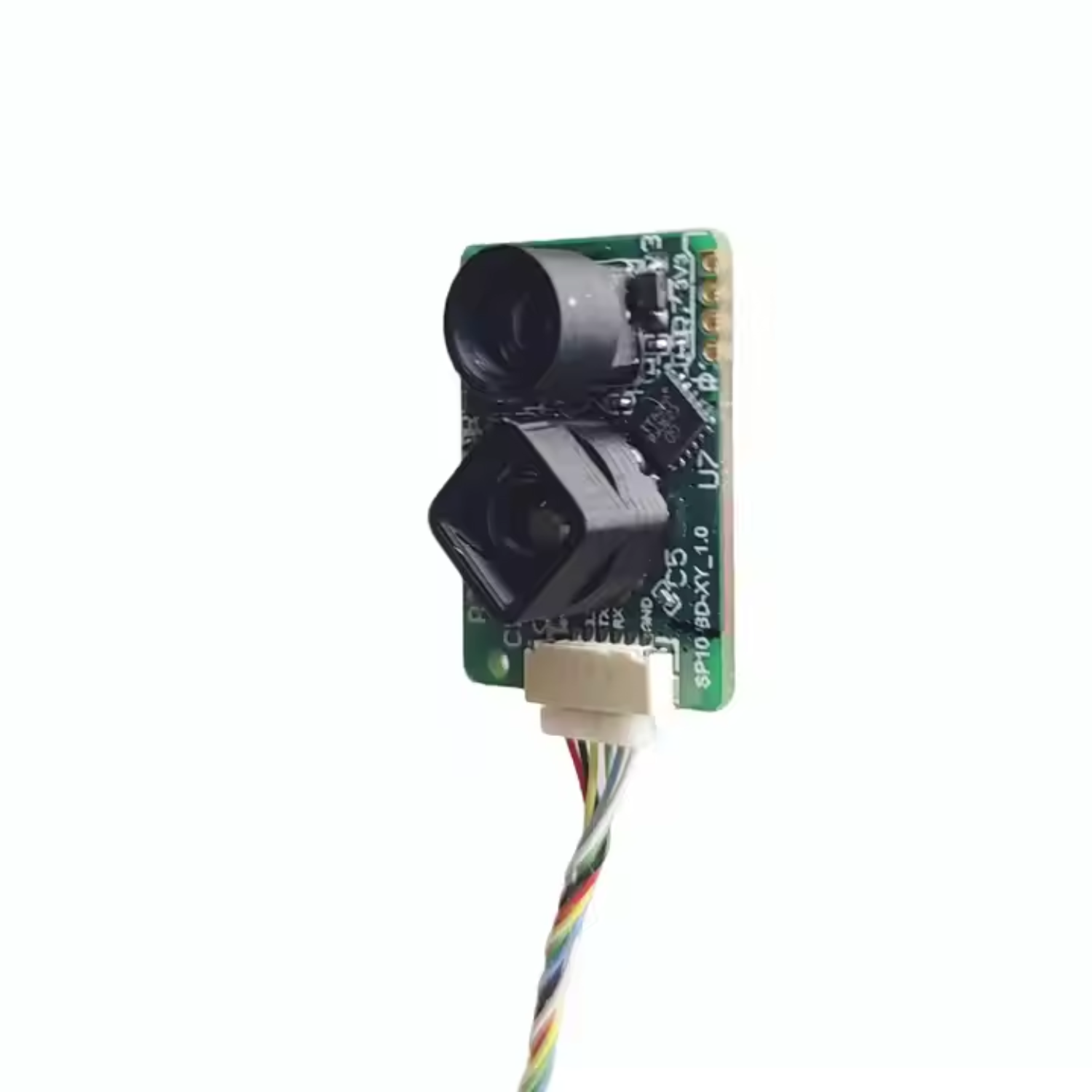

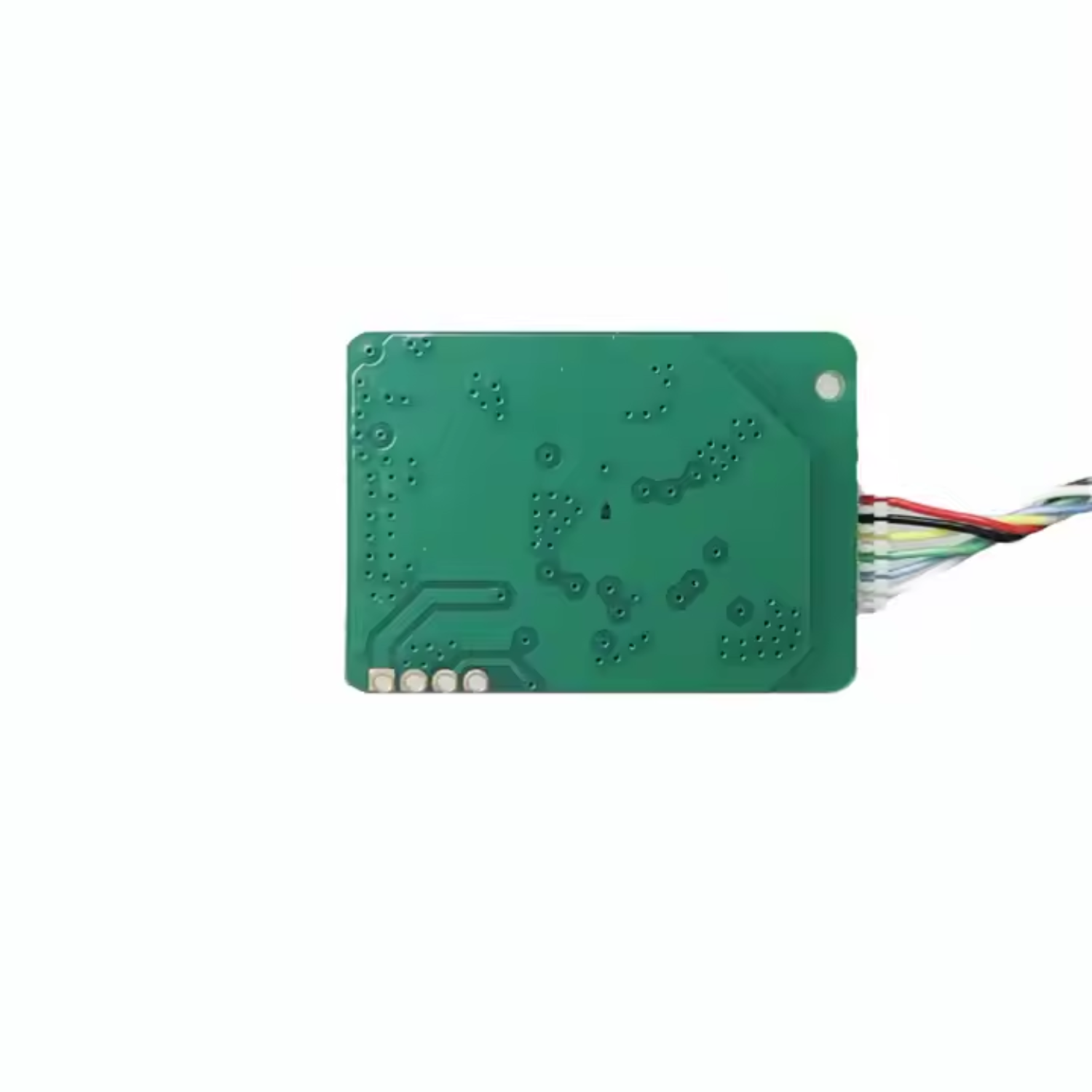

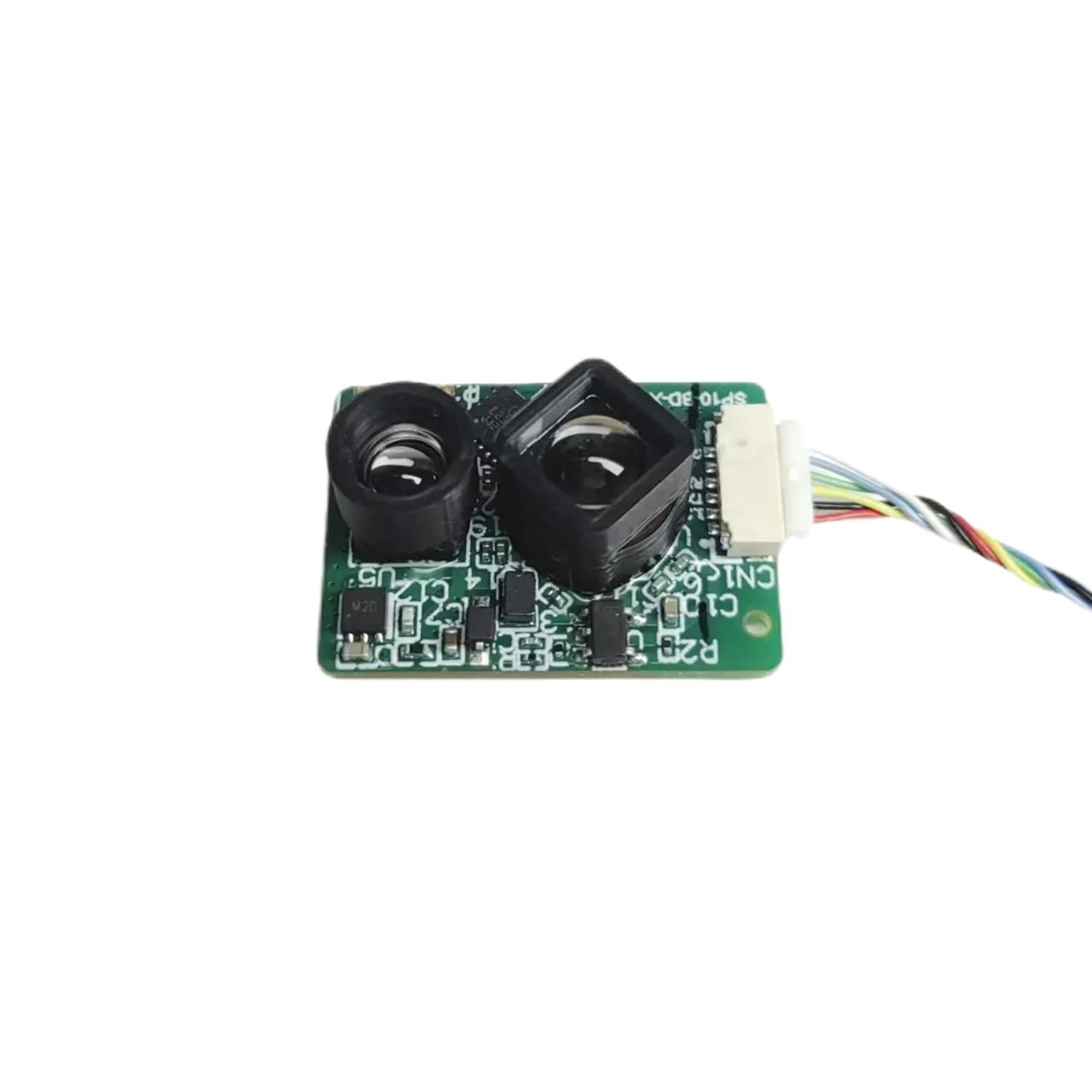

TSD20 Short Distance Laser Sensor Module High Speed Proximity Detection For Robotics and Industrial Applications

Description:

The TSD20 Short Distance Laser Sensor Module with a high-sensitivity SPAD sensor to deliver precise single-point ranging—0.05–20 m on 90% reflective targets and 0.05–10 m on 10% reflectivity—ideal for drones, robots, and automation needs. At 200 Hz, it ensures lightning-fast refresh rates, backed by ±5 cm accuracy under 5 m and 1% beyond, with exceptional ±10 mm repeatability, making it ultra-reliable in dynamic environments.

 Its robust optical design resists up to 100 KLux of ambient light, and the 905 nm Class 1 eye-safe laser ensures user safety while maintaining sharp focus with a 3.4° field of view. Powered by just 3–3.6 V and consuming under 0.4 W, it’s optimized for battery-operated systems. Engineered to endure –20 °C to +60 °C, with UART/I²C interfaces, it blends high performance, durability, and integration ease.

Specifications:

• Model: TSD20
• Range: 0.05m～20m (90%reflectivity),  0.05m～10m (10%reflectivity)
• Frequency: 200Hz
• Accuracy: ±5cm (<5m), 1% (≥5m)
• Repeatability: ±10mm
• Ambient Light Immunity: 8m@100KLux
• Central Wavelength: 905nm
• Photobiological Safety: Class1

• Wavelength for Indication: N/A
• Photobiological Safety for Indication: N/A
• Supply Voltage: 3~3.6VDC
• Peak Current: 140mA
• Average Current: 75mA
• Average Power Consumption: <0.4W
• Communication Interface: UART/IIC
• Operating Temperature: -20℃~ +60℃
• Protection Level: N/A
• FOV: 3.4°

Features:

• Compact size, flexible to install.
• High resistance to ambient light.
• Cost-effective

Applications:

• High-speed Measuring and Safety Monitoring in Traffic and Industrial Automation.
• Drone Altitude Holding and Obstacle Avoidance.
• Robots Obstacle Avoidance.
• Industrial Grade Light Curtain.
• AGV Obstacle Avoidance.

Useful Link:

• TSD20 Short Distance Laser Sensor Module
• Usermanual

Package Included:

1 x TSD20 Short Distance Laser Sensor Module
