Description:

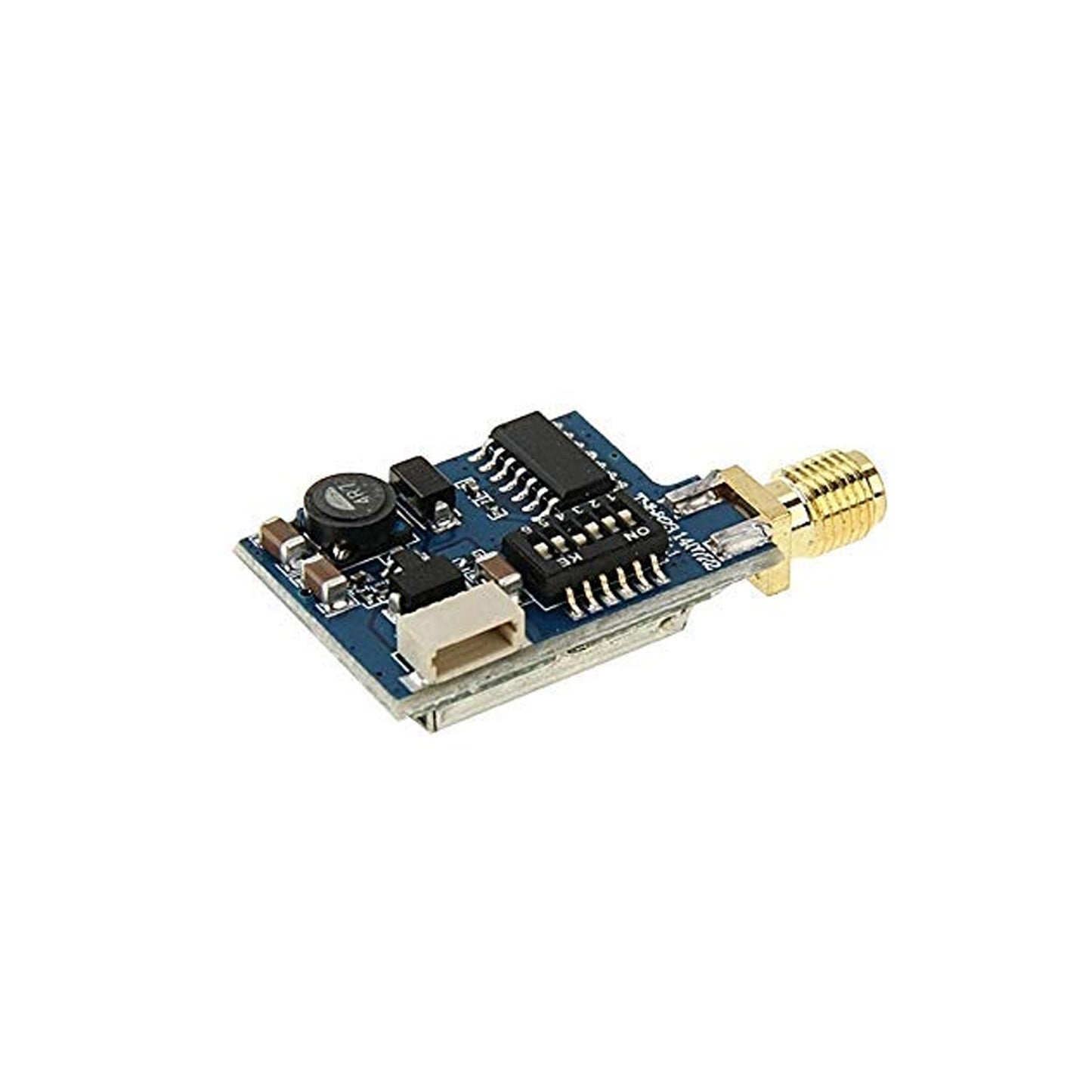

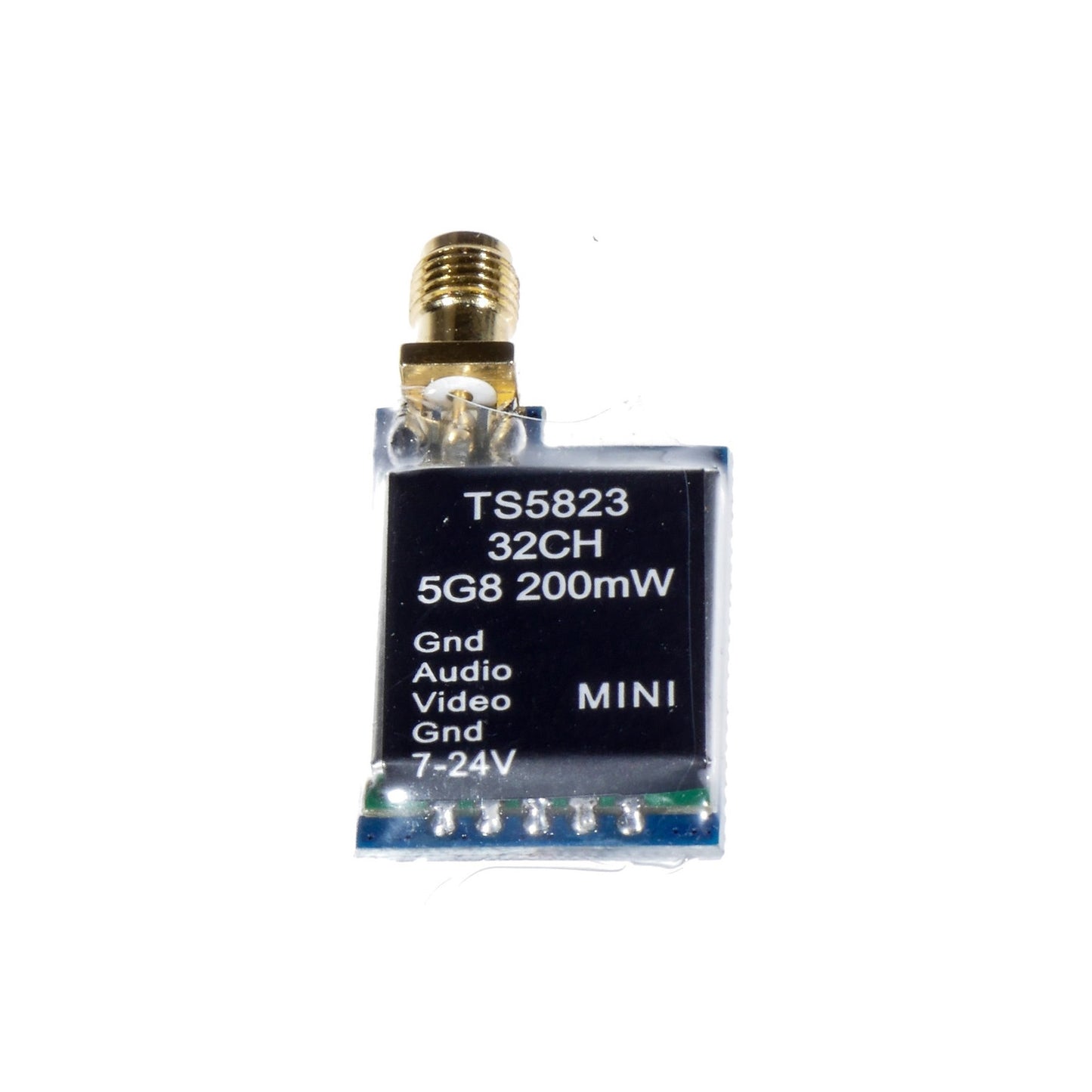

The TS5823 5.8G 32 Transmitter packs 200mw of ultra-clean 5.8Ghz power in a micro-sized video/audio transmitter. A must-have for those looking to save size and weight while still getting good performance. The TS5823 5.8G 32 Transmitter is transmitting a full range of 32 channels. It's perfect for a wide range of aircraft, especially small models and 350-size multi-rotors such as Quanum Nova, DJI phantom, qr x350 and more. This transmitter can easily transmit audio and video from your FPV plane, drone, heli or car. It's TINY and lightweight and also doesn't get too hot. This kit has everything you need to connect it to your portable HD Camera as well.
Specifications:
- Item No.: TS5823
- Modulate: Wideband FM Modulate
- Video Format: NTSC/PAL
- Output Impedance:50 Ohm
- Output Power: 23-24dBm
- Channel:32 CH
- Operating Voltage: 7V-24V
- Supply Current: 190mA
- Operating Temperature: -10~85℃
- Video Band Width: 0~8.0 MHz
- Audio Carrier Frequency: 6.5 MHz
- Video Input Level: 0.8~1.2 Vp-p
- Video Input Impedance: 75 Ohm
- Audio Input Level: 0.5~2.0 Vp-p
- Audio Input Impedance: 10K Ohm
- Connector: RP-SMA Male(Inner hole)
- Antenna Connector: RP-SMA Male(Inner hole)
Features:
- Microsized and lightweight
- Perfect for use with small models
Package Included:

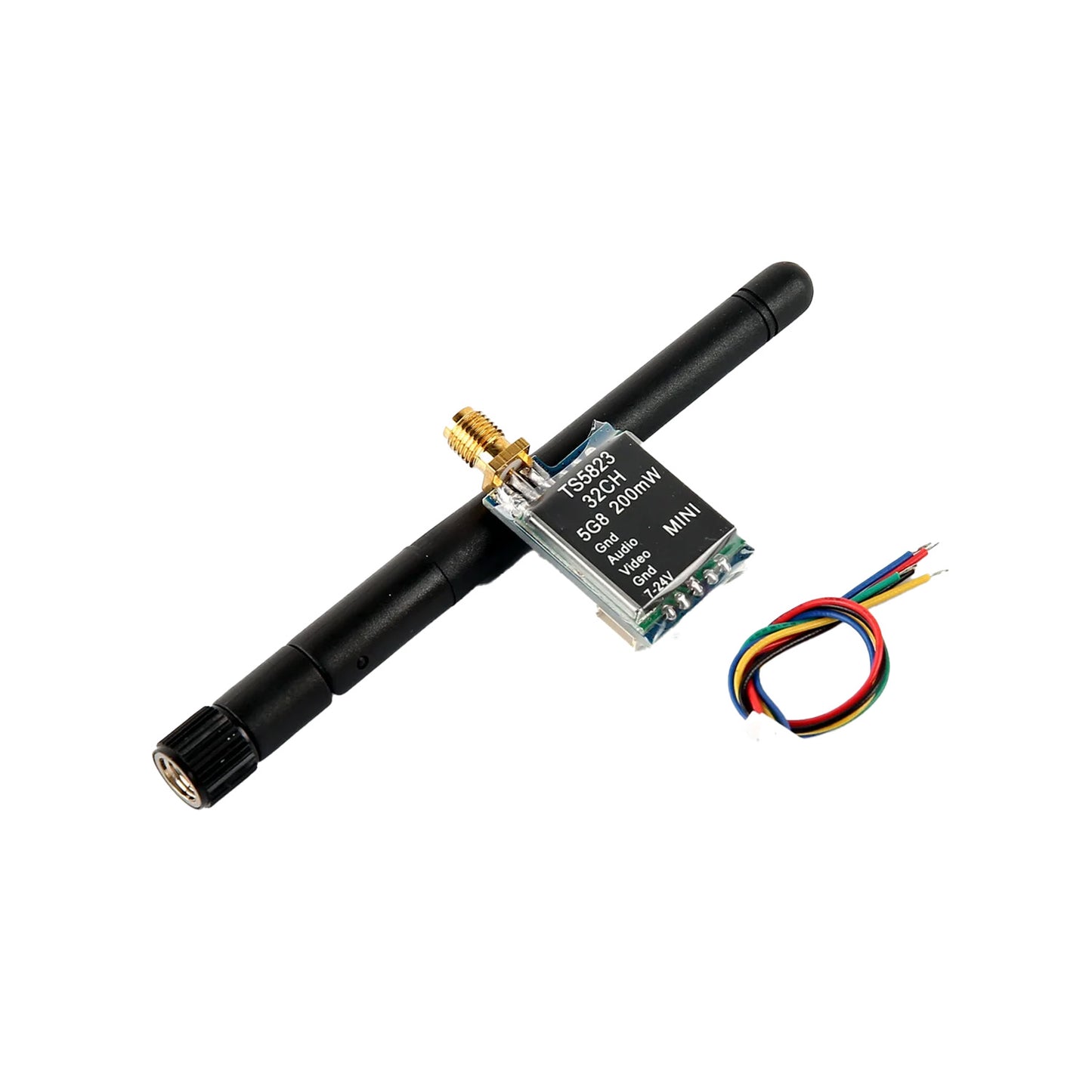

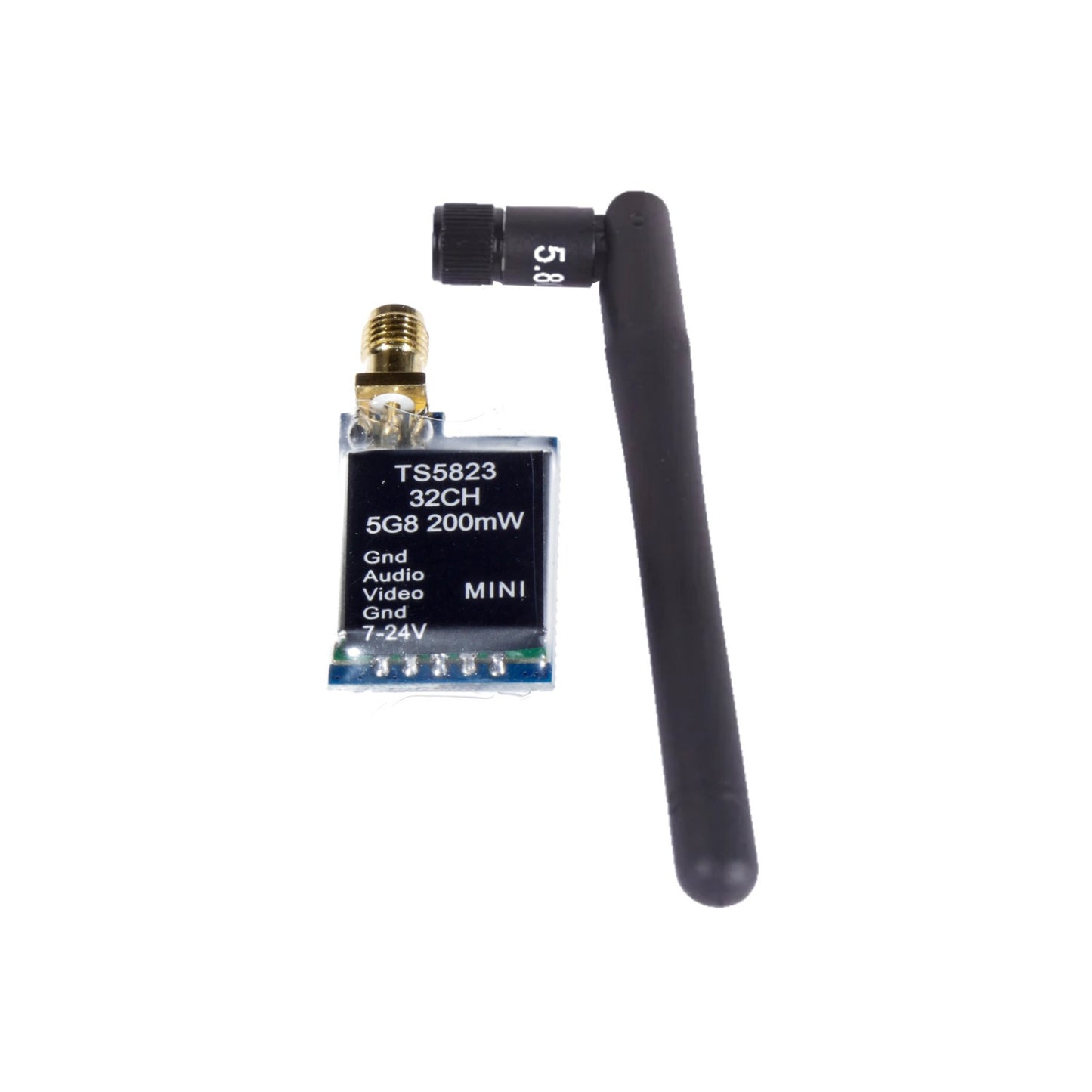

1 x TS5823 5.8G 32 Channel Transmitter TS5823 5.8G 200Mw 32 Channel Long-Range Wireless Video And Audio Transmitter For FPV Drone
