Description

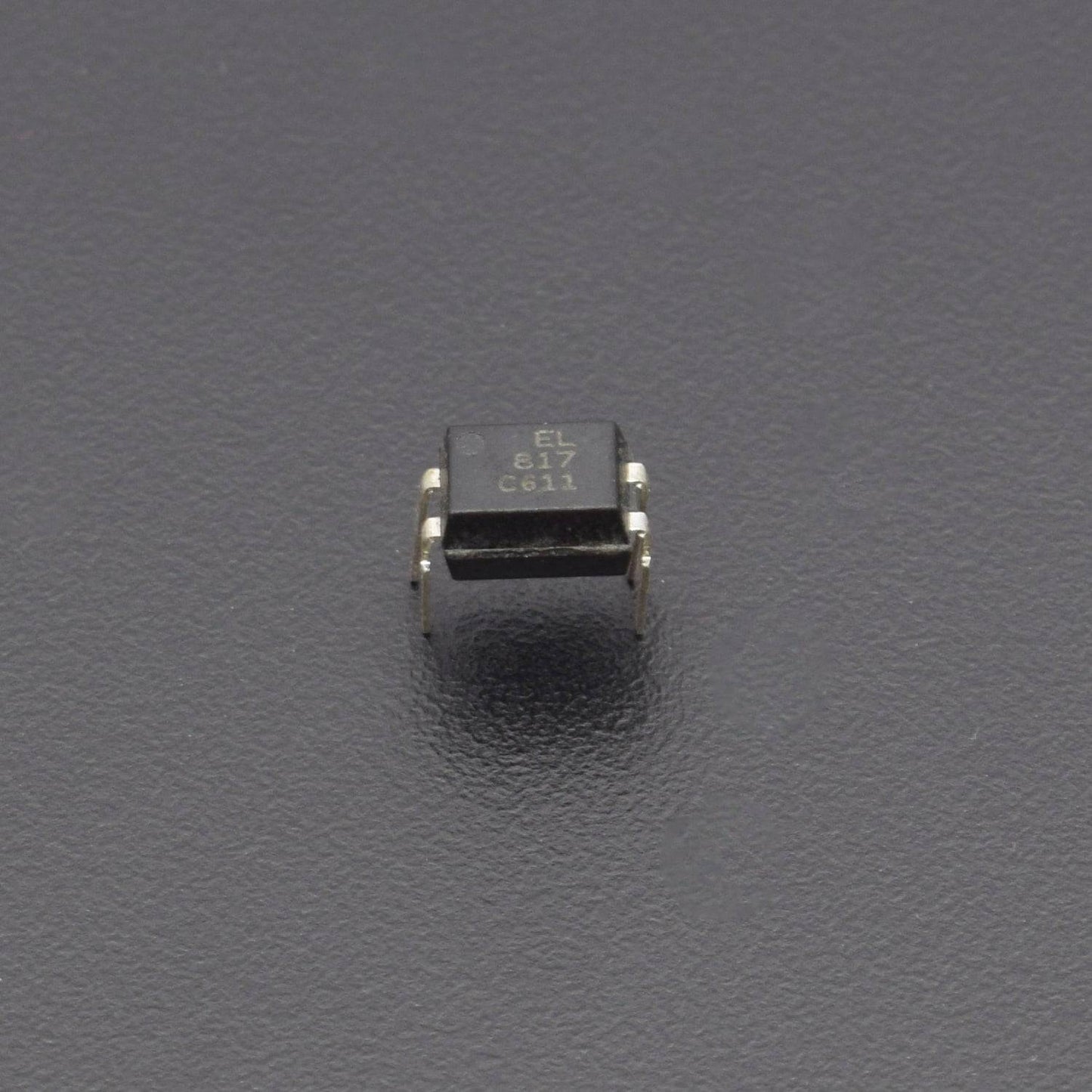

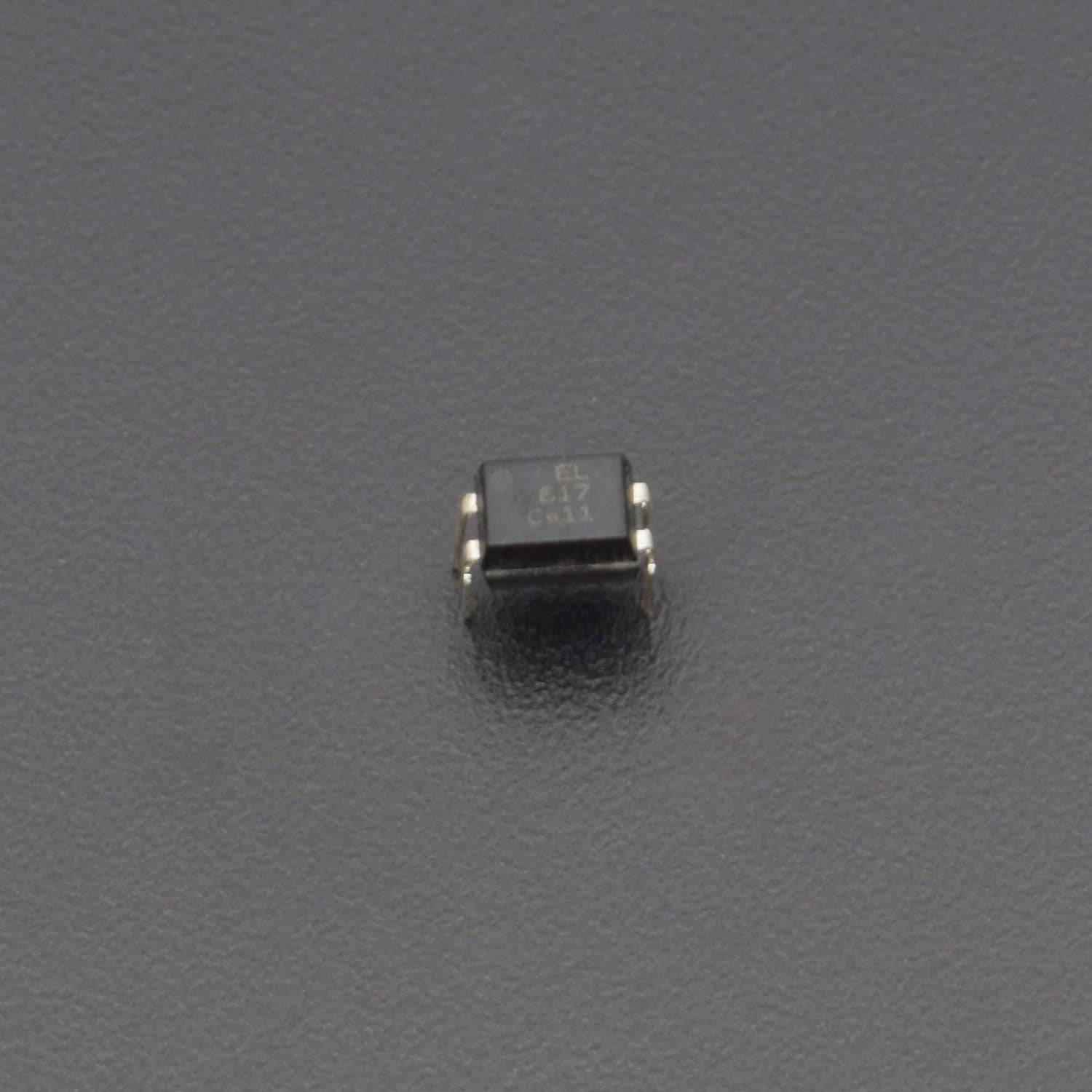

The EL817 series of devices each consist of optically coupled to a phototransistor detector.
They are packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option.
4 PIN DIP PHOTOTRANSISTOR
OPHOTOCOUPLER
Features:
¢ Current transfer ratio
(CTR: 50~600% at I
=5mA, VF
High isolation voltage between input and output (Viso=5000 V rms )
Creepage distance >7.62 mm
Operating temperature up to +110°C
Compact small outline package
Pb free and RoHS compliant.
UL approved (No. E214129)
VDE approved (No. 132249)
SEMKO approved (No. 716108)
NEMKO approved (No. P06206474)
DEMKO approved (No. 313924)
FIMKO approved (No. FI 22807)
CSA approved (No. 1143601)
DATASHEET
