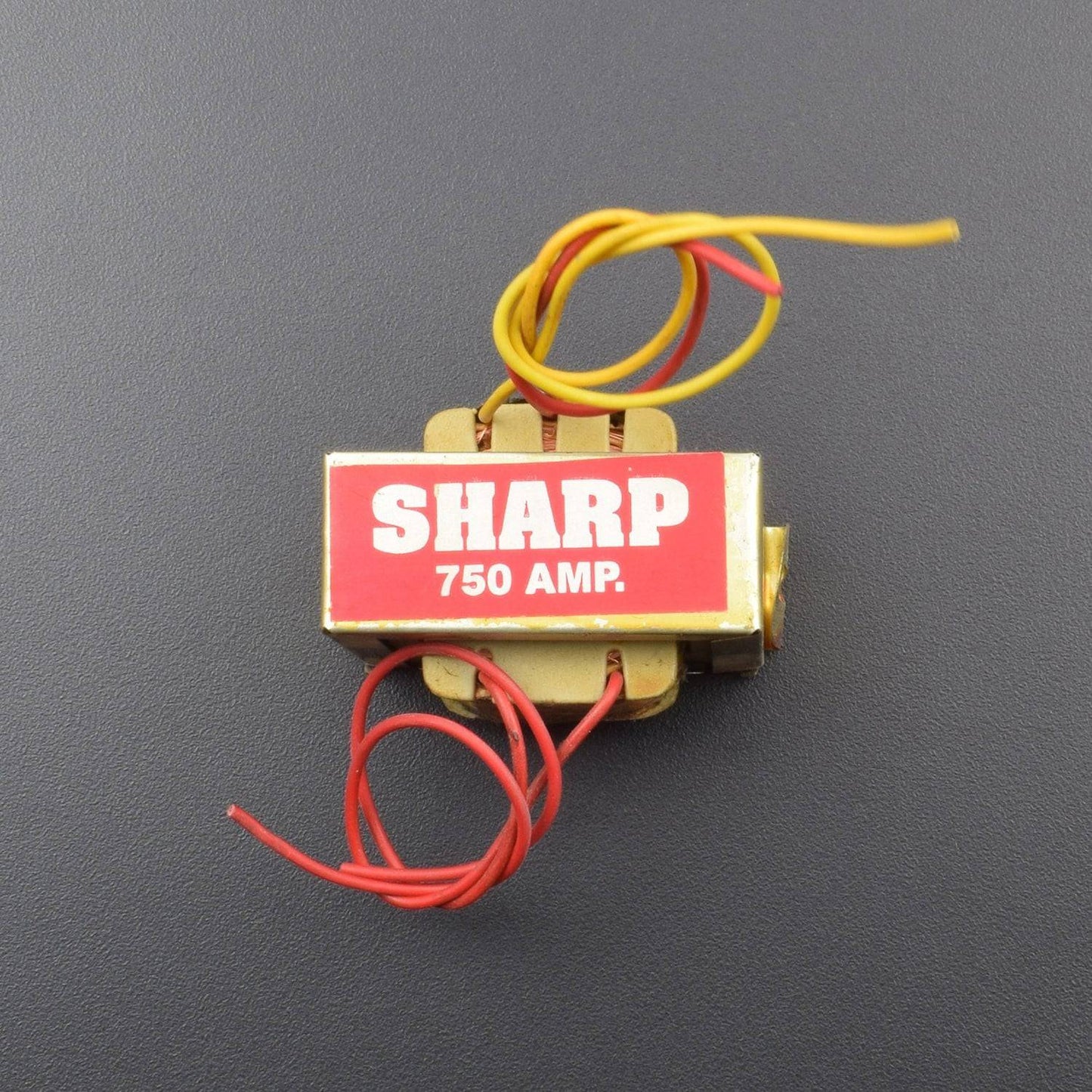

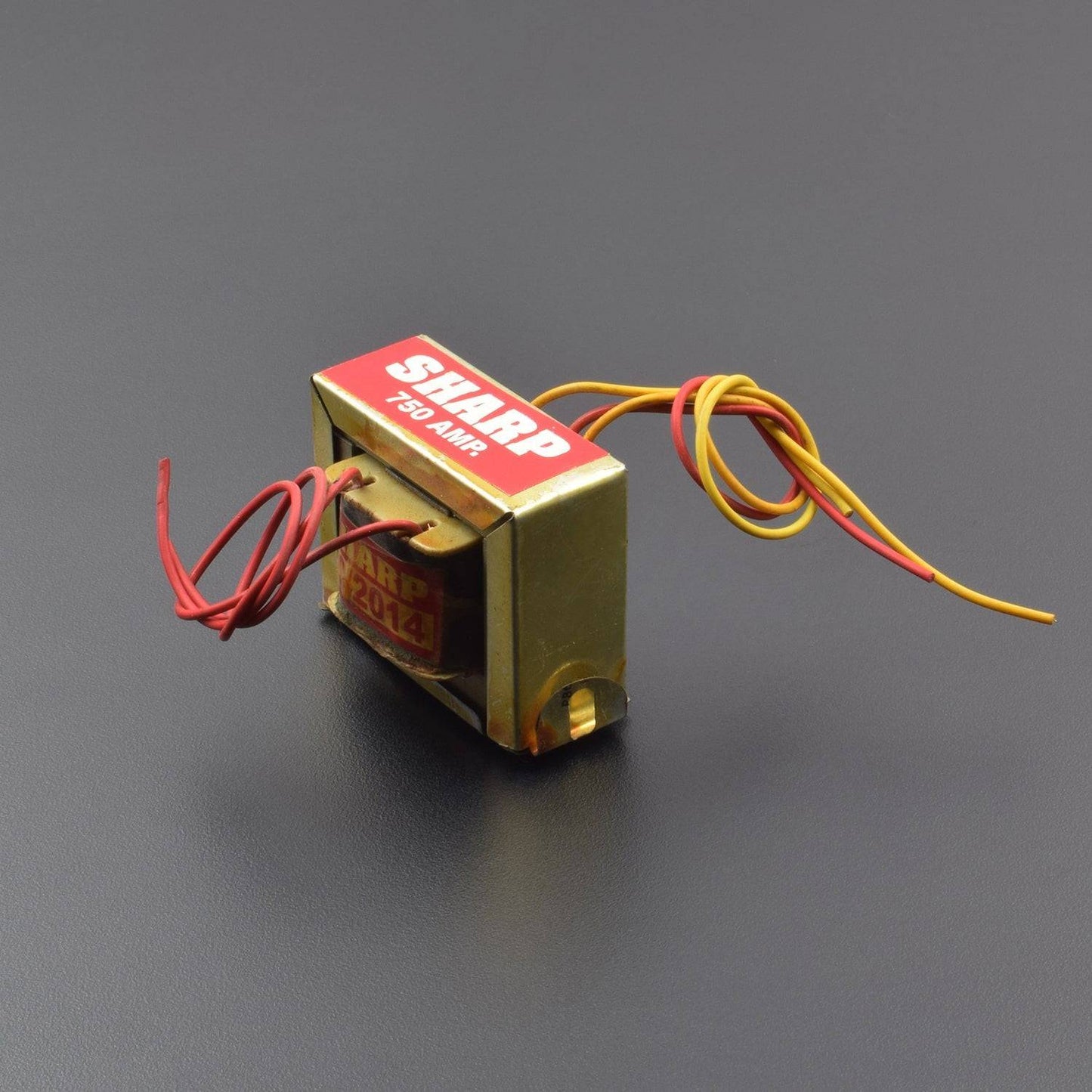

Transformer 9-0-9 / 750A - EK009

• Soft Iron Core.
• 1A Current Drain.

Description:

9-0-9 Step down Transformer 1A is a general purpose chassis mounting mains transformer. Transformer has 240 V primary windings and centre tapped secondary winding. The transformer has flying colored insulated connecting leads ( Approx 100 mm long ). The Transformer act as step down transformer reducing AC - 240V to AC - 9V.The Transformer gives two outputs of 9V, 9V and 0V. The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer's core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serves to greatly reduce the magnetizing current and confine the flux to a path which closely couples the windings.

Features ·

• Soft Iron Core.
• 1A Current Drain.

Application:

• DIY projects Requiring In-Application High current drain.
• On chassis AC/AC converter.
• Designing a battery Charger.

Package Included:

1 x Transformer 9-0-9 / 750A
