Description:

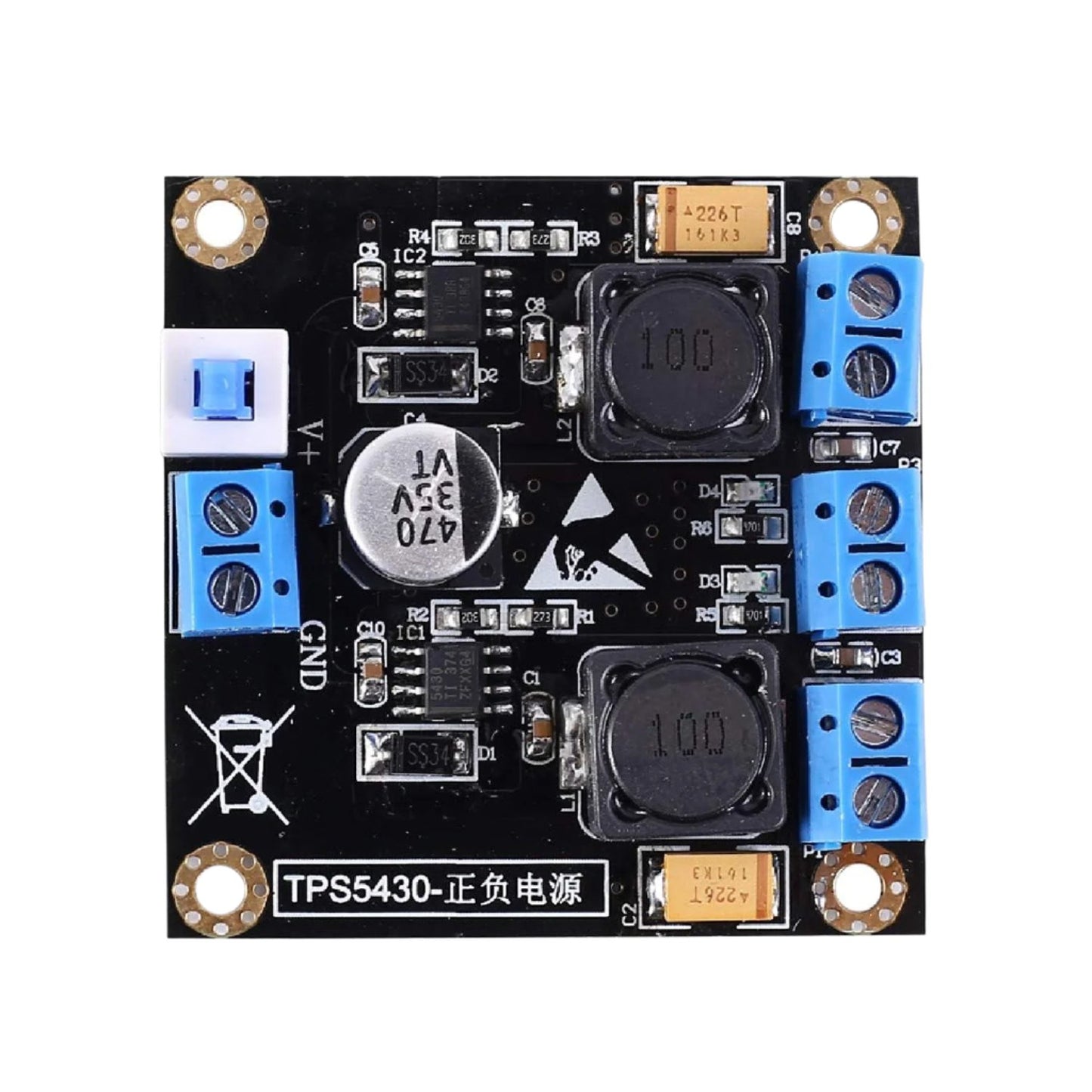

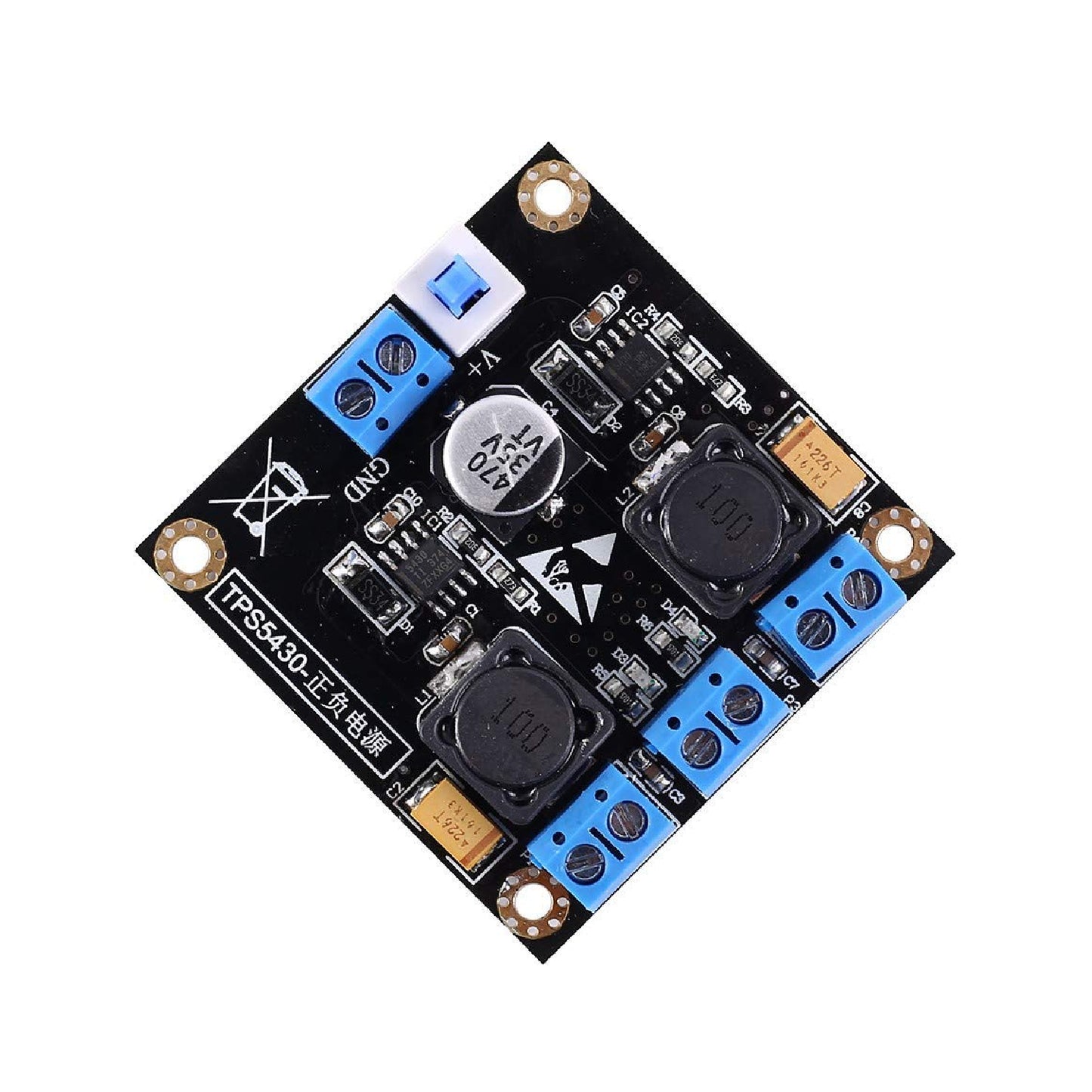

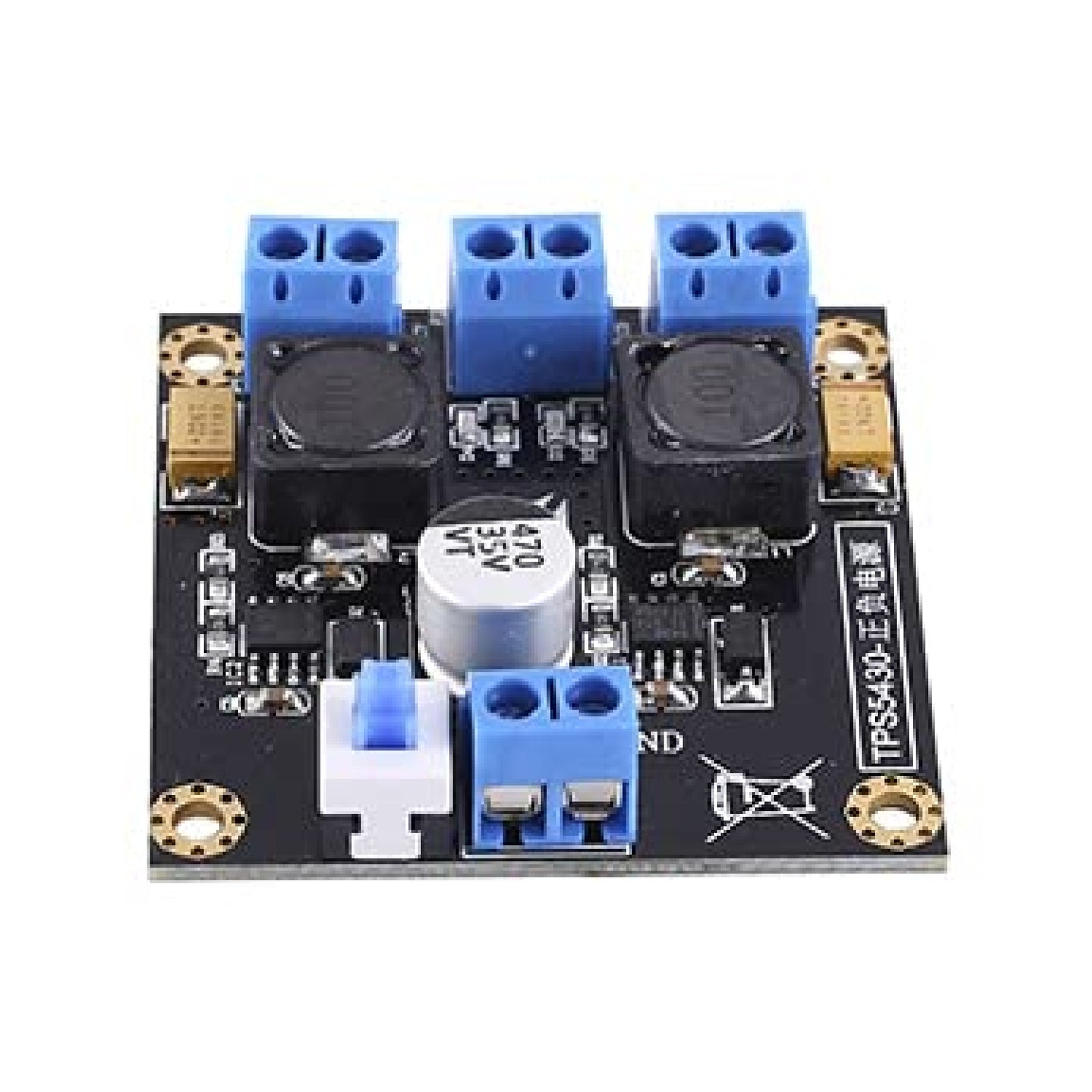

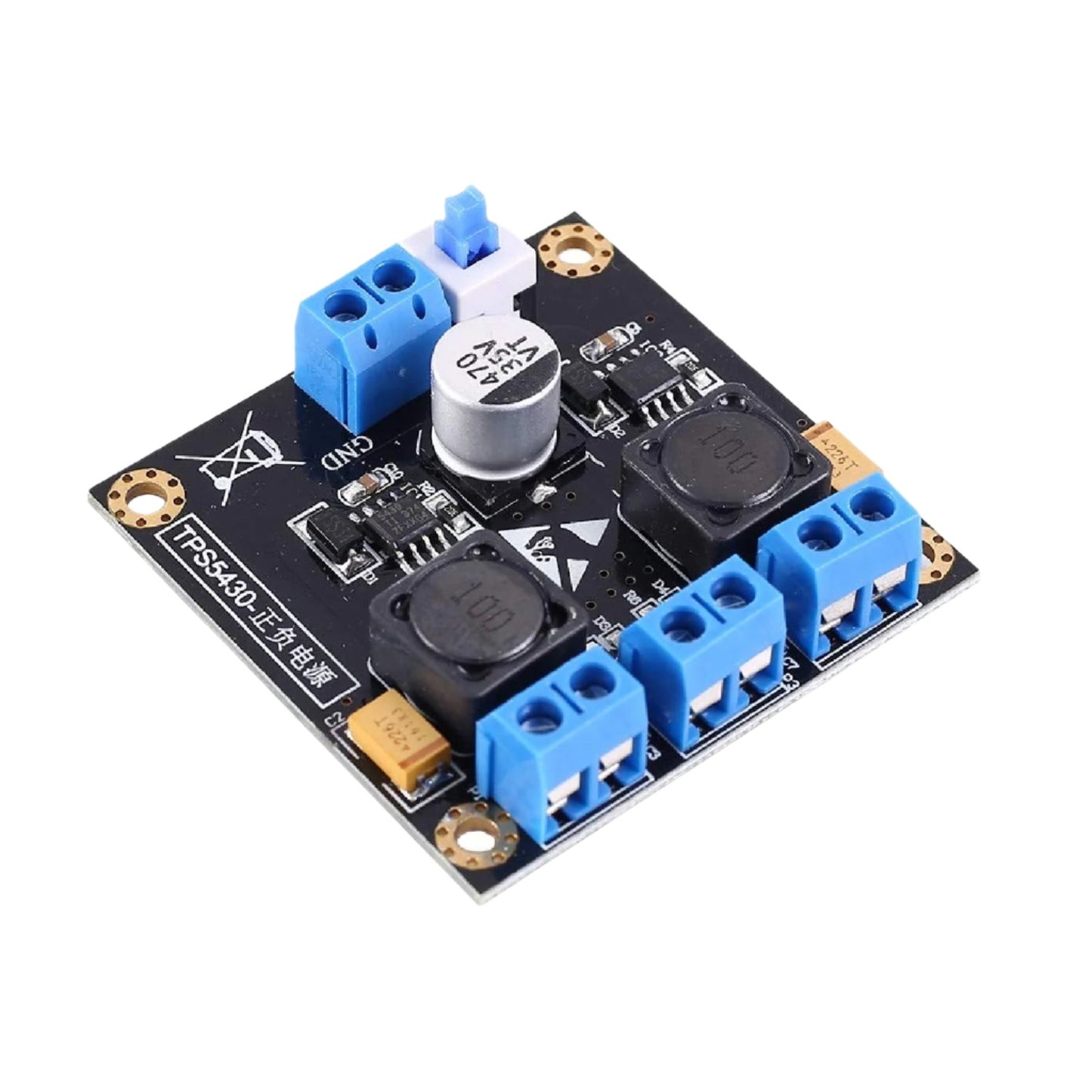

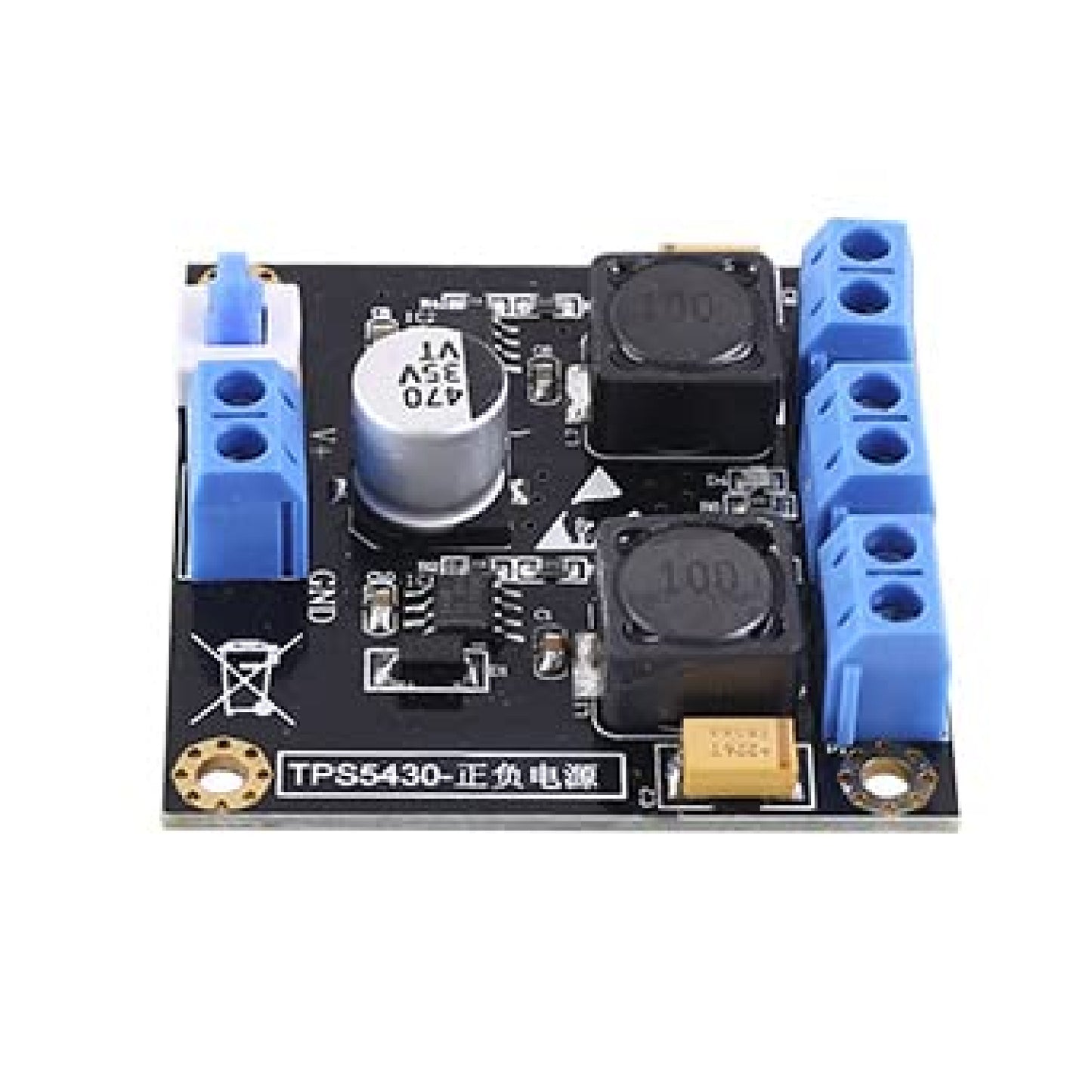

TPS5430 Based Power Supply is a Dual Output Step Down Power Supply Module with input DC 13V~36V and output DC -12V and +12V.It can provide stable +/-12V output.It can maximum output 2.5A.
High efficiency: Conversion efficiency: >88%. Operating Humidity: 5%~95%RH. Ultra small volume. PCB Size: 50*50*18mm. Low power consumption. Output power: 30W(Need heat sink when more than 10W).
International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.
Specifications:
- Converter IC: TPS5430
- Input voltage: DC 13V~36V
- Output voltage: DC -12V and +12V
- Output power: 30W(Need heat sink when more than 10W)
- Conversion efficiency: >88%
- Output ripple: <80mV
- Work frequency: 500KHz
- Stand-by current: 10mA
- Operating Temperature: -20?~85?
- Operating Humidity: 5%~95%RH
- PCB Size: 50*50*18mm
Features:
- Low ripple.
- High efficiency.
- Low power consumption.
- Ultra small volume.
- Fixed output voltage.
- Dual voltage output.

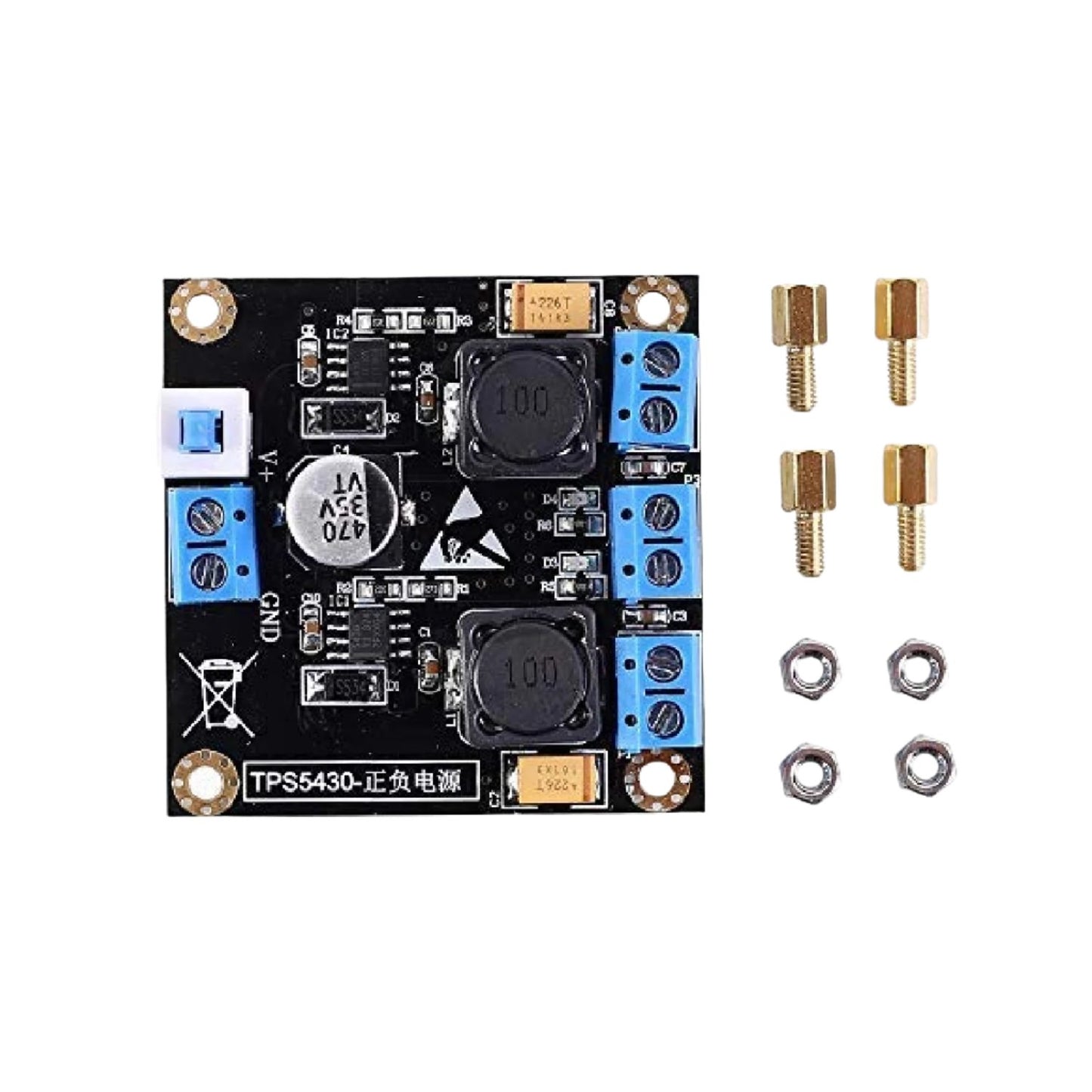

Package Included:
1 x TTPS5430 Dual Output Converter
