Description:

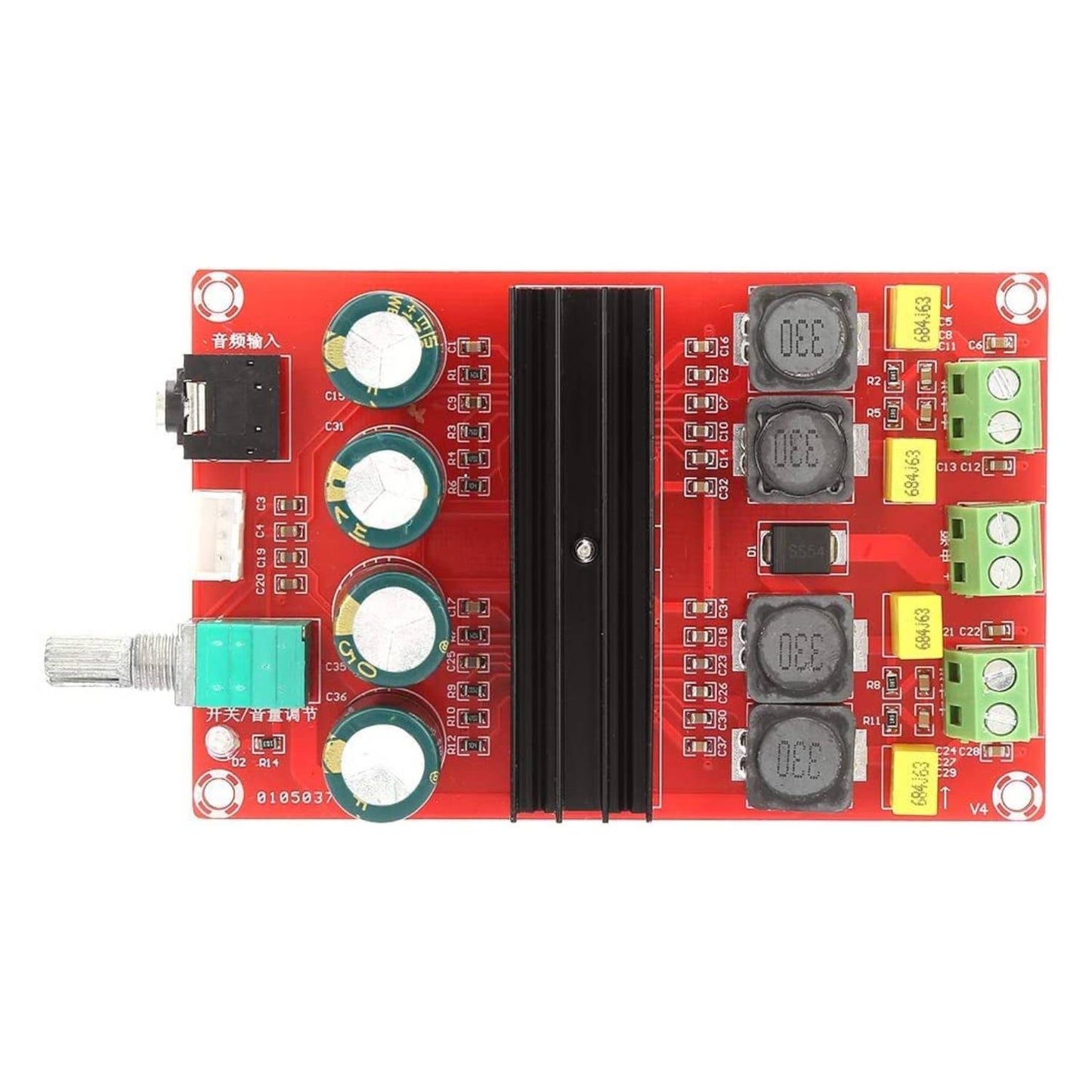

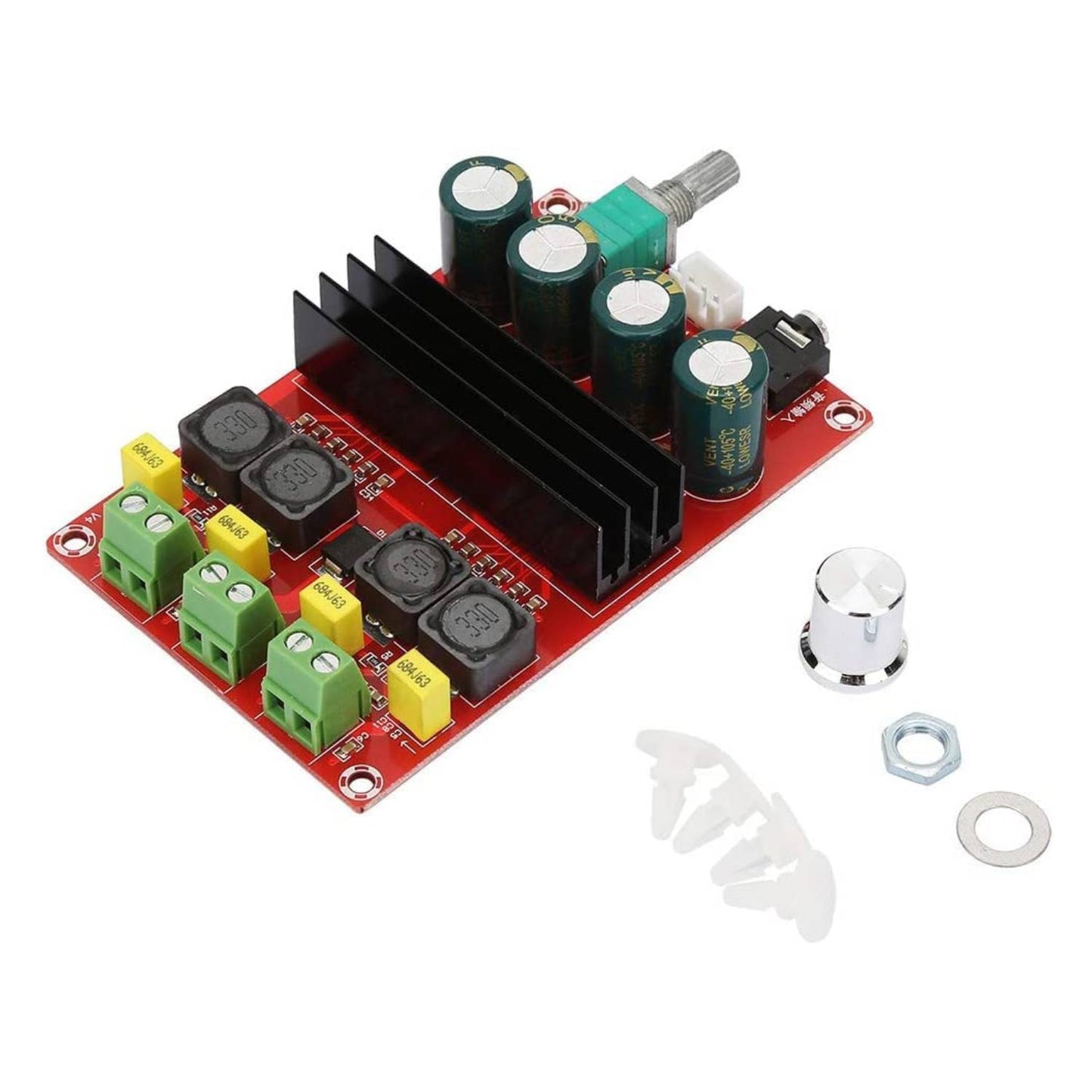

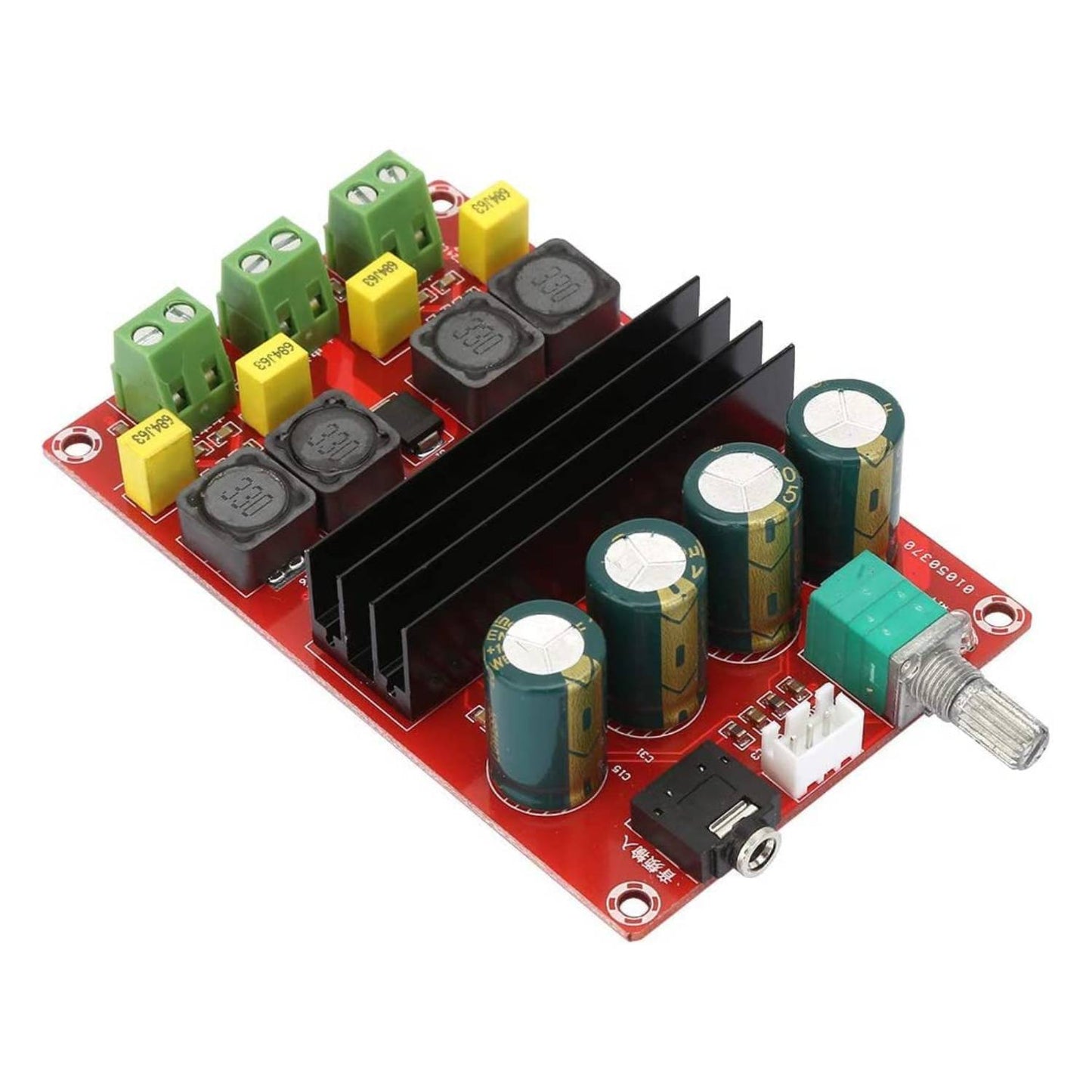

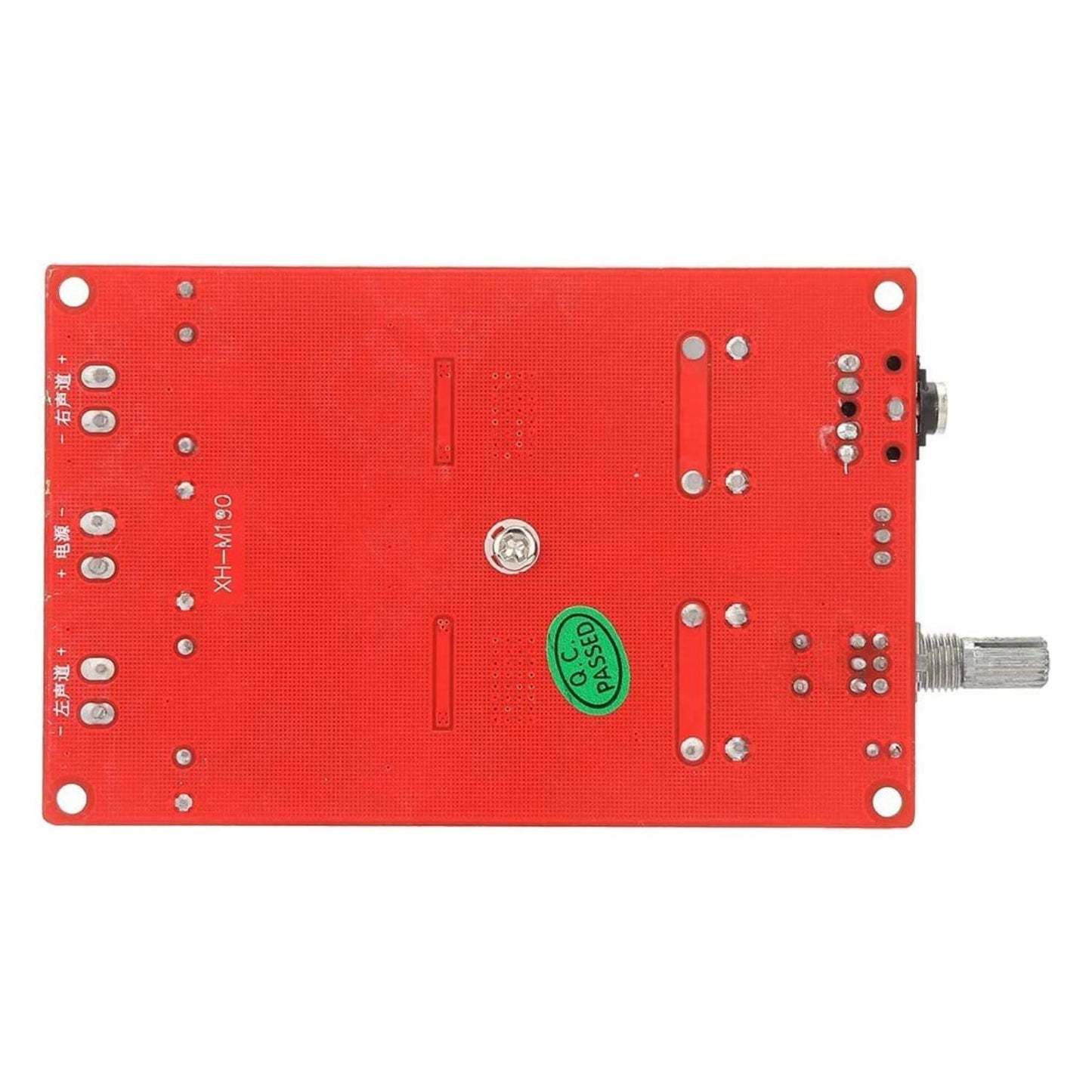

This is a TPA3116 Amplifier Board with a built-in TPA3116D2 amplifier chip. With a Dual output channel, the maximum output power can reach 2x100W. Also comes with a 3.5mm audio input jack and a 3-pin audio input port.
Specification:
- Chip: TPA3116D2
- Power Supply: DC 12 V~24 V
- Channel Type: Dual channel
- Output Power: 2 x 100W
- Input Impedance: 51K x 2
- Output Match: 4~8 Ohm
- Frequency Range: 14~100 kHz
- SNR: 100db
- Short Circuit Protection: Yes
- Over Heating Protection: Yes
- Over Voltage Protection: Yes
Features:
- Built-in TPA3116 amplifier chip
- Dual output channel, the maximum output power can reach 2x100W
- TPA3116D2 chip's compatibility is up to 90%.
- With a 3.5mm audio input jack and a 3-pin audio input port
- Easy to use- just connect with power supply and sound equipment
Package Included:
1 x TPA3116 Amplifier Board 2x100W Dual Channel Amplifier 12V-24V TPA3116D2 Amplifier Module High-Power Audio Amplifier with XH-M190 Connectors
