Description:

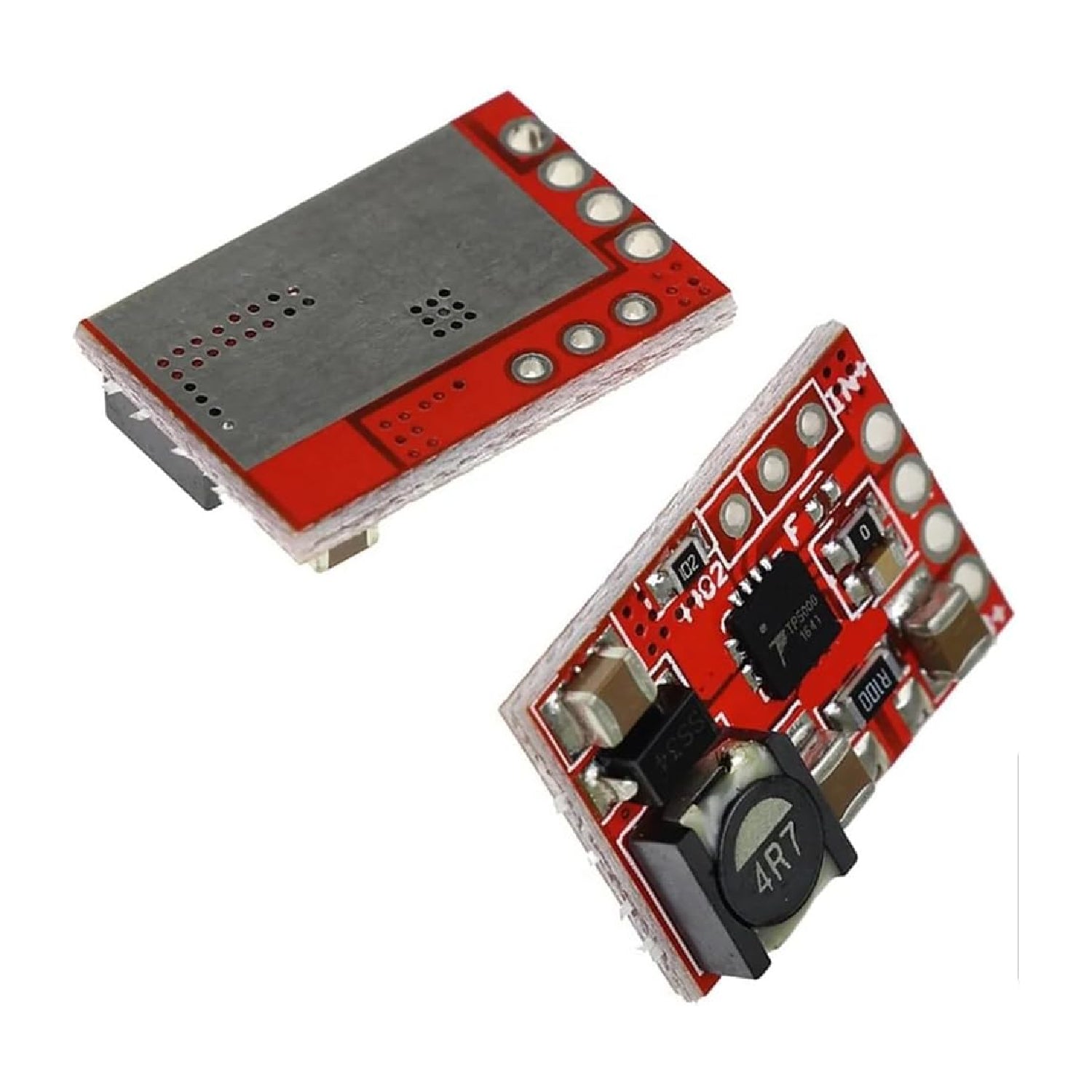

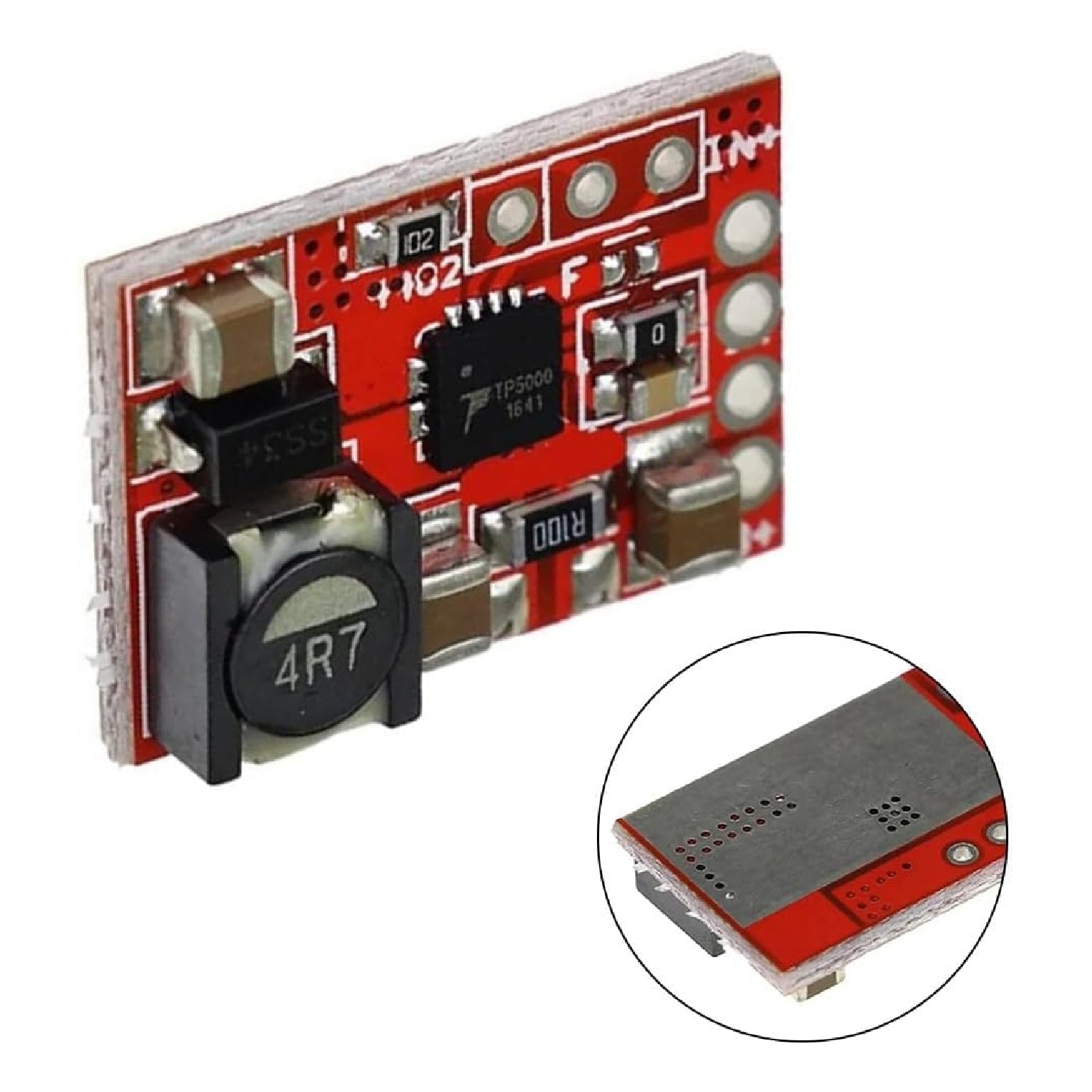

This TP5000 1A Lithium Battery Charger Module is a Charging Module for the Lithium Battery based on the TP5000 Battery Charging IC. This High-Efficiency Lithium Battery Charger with an current of up to 1A. This module has advance features like battery temperature protection, reverse battery shutdown, and short circuit protection.

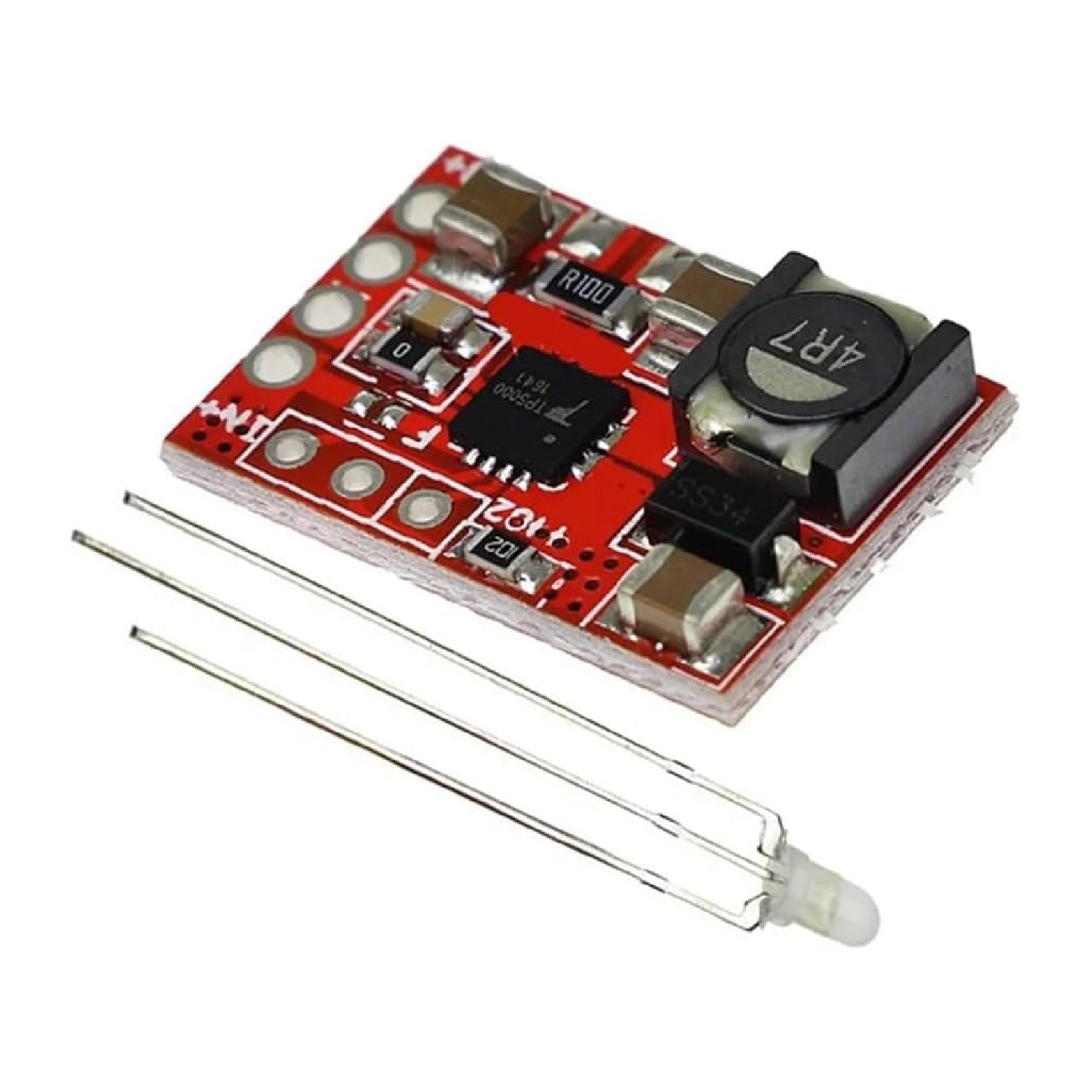

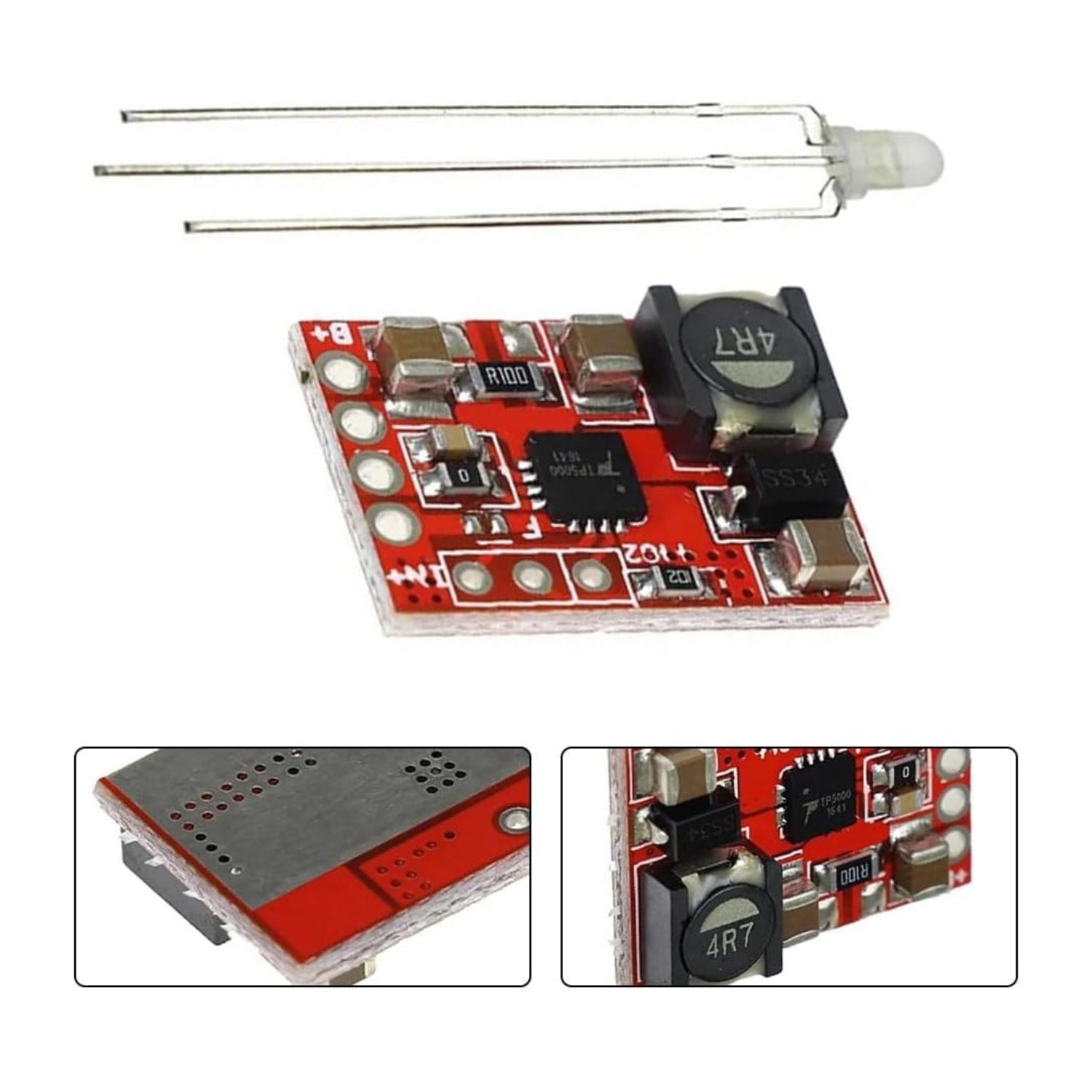

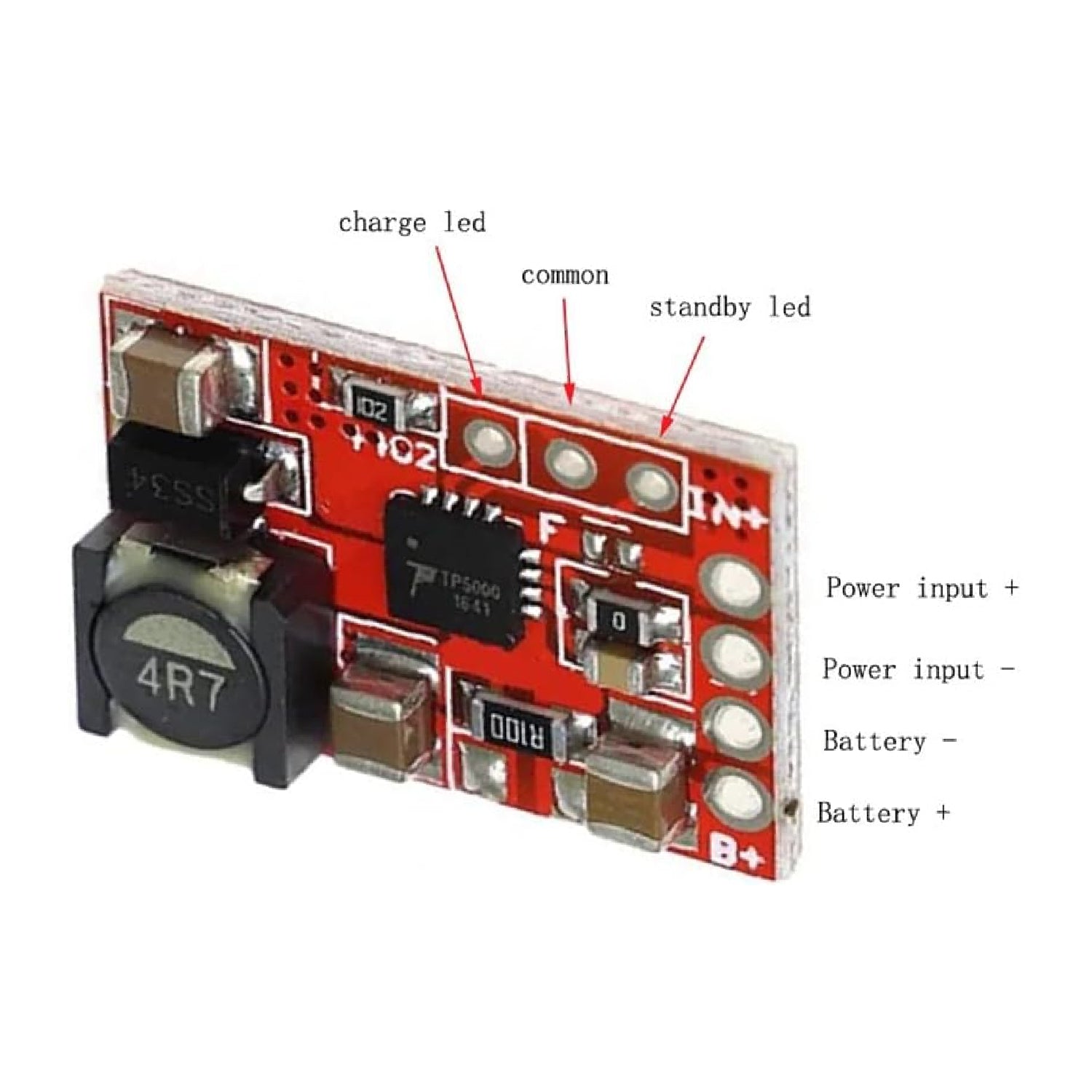

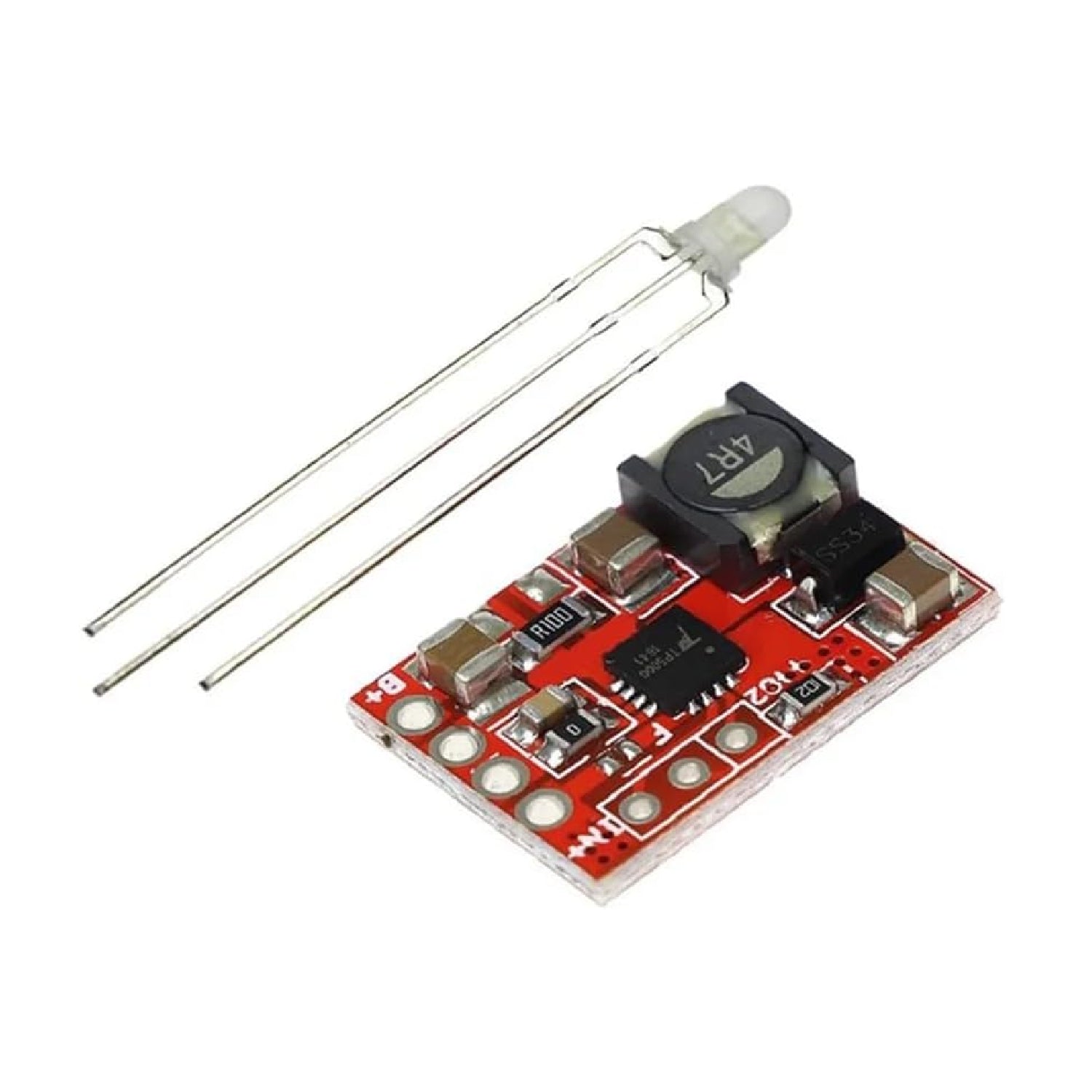

The 3.6V/4.2V Lithium Battery Charger comes with a dual colour led ,which is used to denote the charging and full status of the battery. The module also serves as an battery protection board, with built-in automatic recharge function it will automatically charge the battery when it gets fully discharged.
Specifications:
- Operating Voltage: 4.2~9V DC
- Operating Temperature: -40 to 85°C
- Charging Method: Linear
Features:
- Single Battery Charger Module
- Programmable Charge Curren Form 0.1A to 2A
- Programmable Precharge Current Form 10% to 100%
- LED
Application:
- Portable Equipment
- MP3,Mp4 Players
- Electric Tools
- LED Drivers
Package Included:
1 x TP5000 1A Lithium Battery Charger Module 3.6V/4.2V
