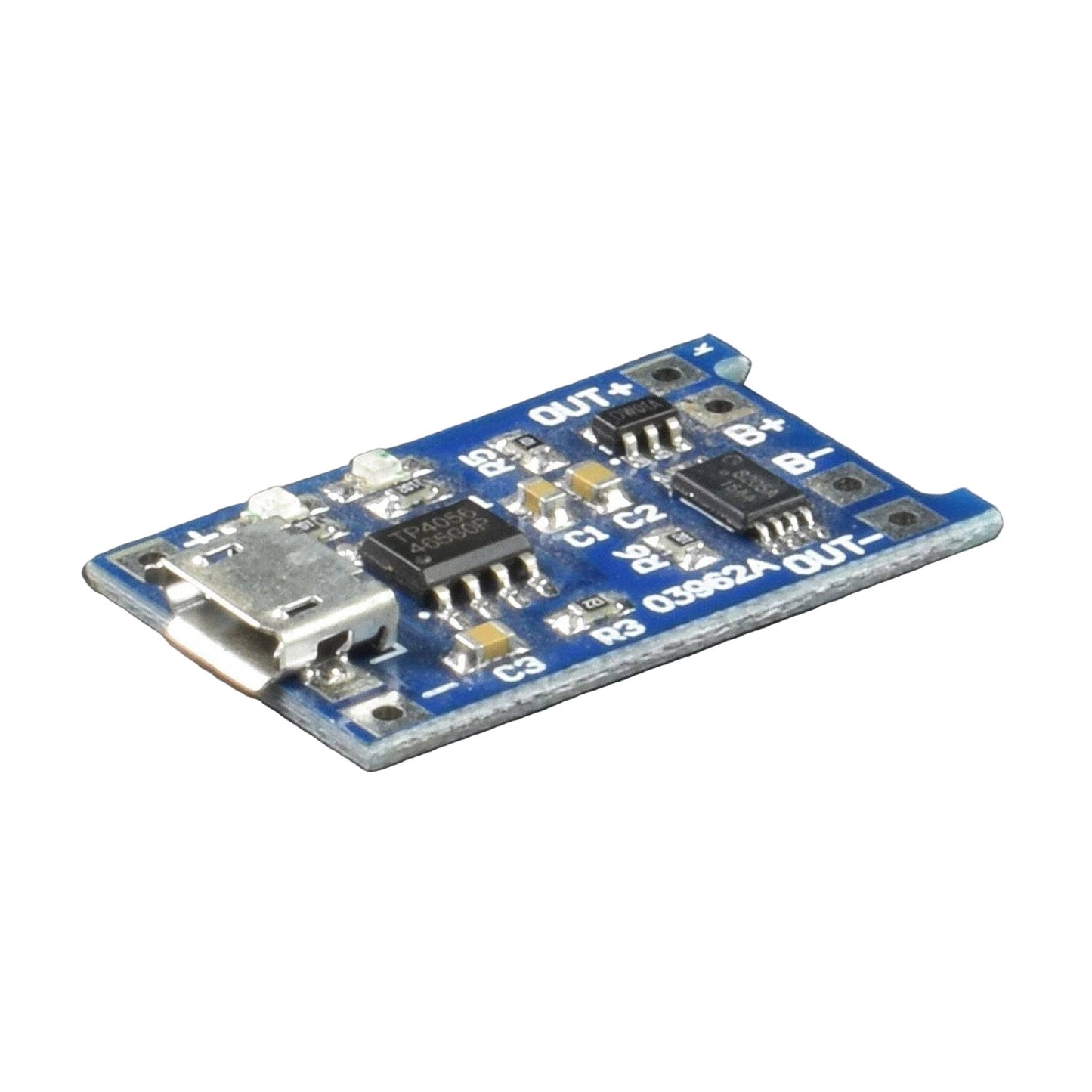

TP4056 1.2A Li-ion Battery Charging Module – Micro USB with Protection

TP4056 1.2A Li-ion Battery Charging Module – Micro USB with Protection

RS229

2061 in stock

Rs. 20.00
Rs. 20.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The TP4056 1.2A Li-ion Battery Charging Module is a compact, efficient charging board designed for safely charging 3.7V lithium-ion batteries like 18650 cells via Micro USB. With built-in overcharge, over-discharge, and short-circuit protection, it ensures safe and reliable battery management.

Specifications:

  • Input Voltage: DC5V
  • Charging Cut-off Voltage: 4.2V±1%
  • Maximum Charging Current: 1A
  • Battery Over Discharge Protection Voltage: DC2.5V
  • Battery Over Current Protection Current: 3A

Features:

  • ✅ Charging Current: 1.2A max
  • ✅ Input Interface: Micro USB or solder pads
  • ✅ Battery Type: 3.7V Li-ion/Lithium-Polymer
  • ✅ Built-in Protection: Overcharge, Over-discharge, Overcurrent, and Short-circuit
  • ✅ LED Indicators: Charging (Red), Full (Blue)
  • ✅ Self-adjusting charging control for safe battery charging

Using Method:

  • Connect micro USB cable for power, or 5V DC to pads marked IN+ and IN- on the left-hand side of the module
  • Connect cell to charge to B+/B- pads on the right-hand side of the module.
  • A load (something for the battery to power) can be connected to the OUT+/OUT- pads on the right-hand side
  • Important! Disconnect load when charging
  • The red LED indicates charging in progress, green LED indicates charging has finished.
  • Never charge your battery at a rate greater than 1C.

Note:

  • TP4056 1.2A Li-ion battery charging module with Micro USB input and built-in overcharge & short-circuit protection.
  • Ideal for safely charging 3.7V lithium-ion batteries like 18650 cells in DIY and Arduino projects.
  • NO Reverse polarity.

Package Included:

1 X TP4056 Micro USB 5V 1A 18650 Lithium Battery Charger Board
