Description:
Tower Pro MG996R Digital Metal Gear High Torque Servo Motor 11 kgcm 360 Degree Rotation has the ability to rotate continuously in 360 degrees. It makes this servo motor perfect for robotics or even the rotation of camera sliders!
MG996r is a high quality, high torque for all your robotics and RC needs. This servo is specially made for use in RC airplanes, fixed-wing airplanes, helicopters, robotics, mini robot, mini manipulator, etc. Libraries available make is easy to use this servo motor in you project.
This motor generates a massive 11kg.cm torque. We have carefully selected this servo motor for the best quality and performance among the numerous similar motors available in the market.
Specifications :
- Gear Type: Metal gear
- Operating voltage: 4.8 V - 7.2 V
- Running Current 500 mA – 900 mA (6V)
- Stall Current 2.5 A (6V)
- Temperature range: 0 ºC – 55 ºC
- Control System: Analog
- Operating Angle: 360degree
- Required Pulse: 900us-2100us
- Operating speed: 0.19 s/60º (4.8 V), 0.15 s/60º (6 V)
- Dead band width: 1 μs
- Wire length: 30cm
- Connector: 3 pin 'S' type female header
- Stall torque: 9.8 kgf·cm (4.8 V ), 11 kgf·cm (6 V)
- Stable and shockproof double ball bearing design
Features:
- Servo arms & screws included, and fit with Futaba servo arm
- It’s a universal “S” type connector that fits most receivers, including Futaba, JR, Hitec, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, and Spektrum.
- We have upgraded our servo gear set and shaft to aluminum 6061-T6. It is stronger and lighter than copper.
- CE & RoHS approved
Wire Configuration :
- RED – Positive
- Brown – Negative
- Orange – Signal (PWM)
Package Included:

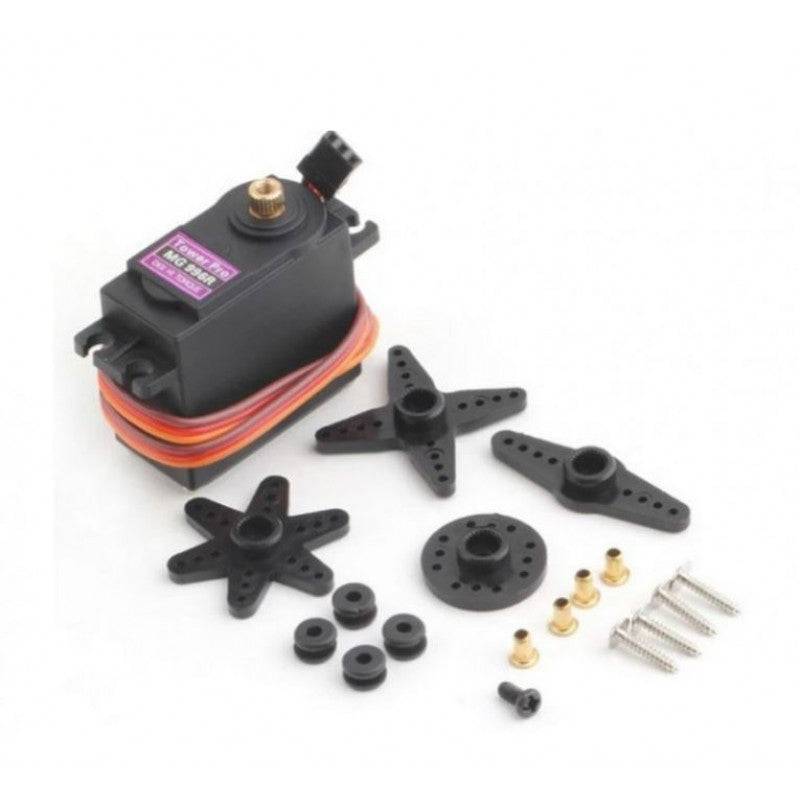

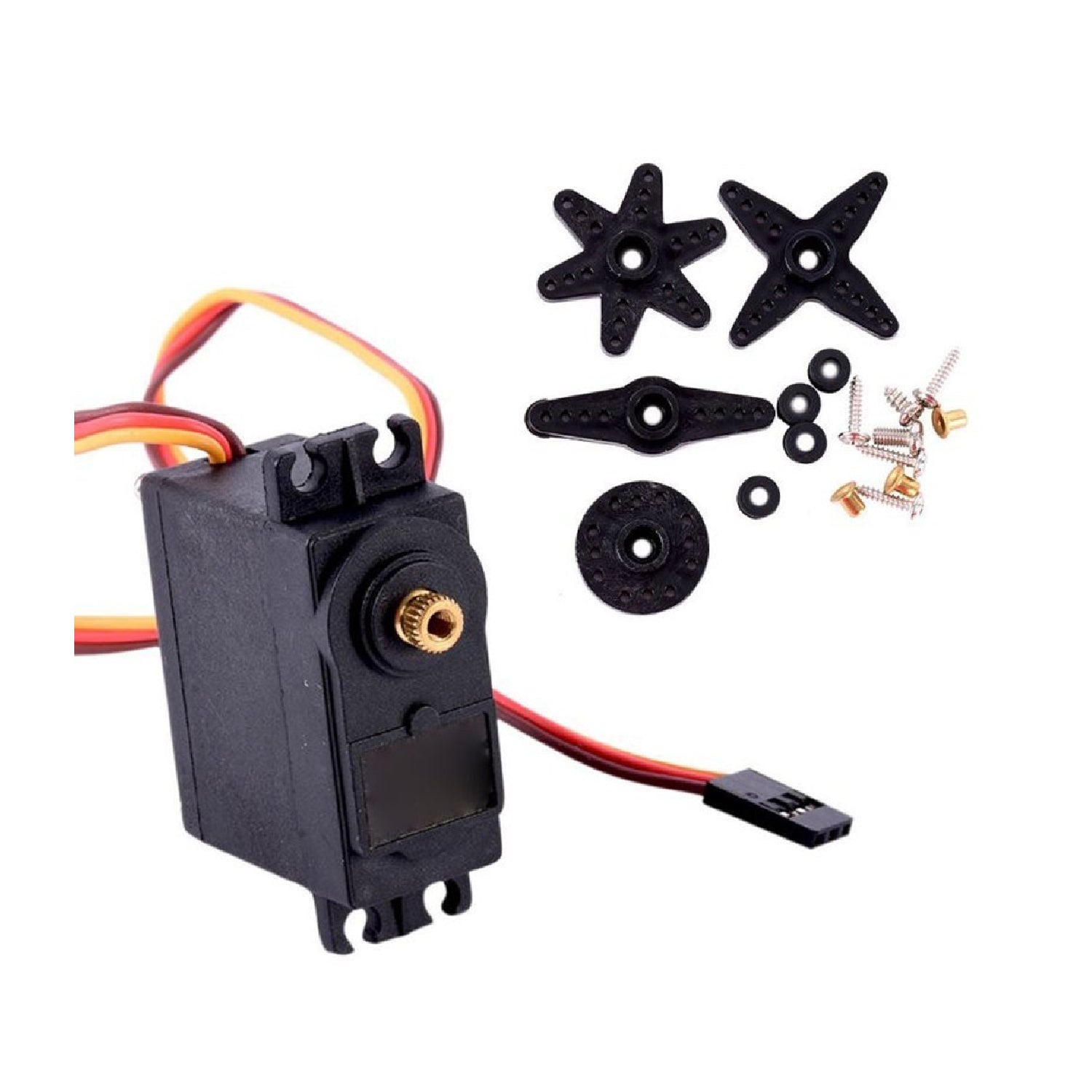

1 x Tower Pro MG996R Digital Metal Gear High Torque Servo Motor and Accessories Parts (as shown in the image)
