Description:

TOF Laser Range Sensor B is A high-performance Time of Flight (TOF) laser ranging sensor equipped with an integrated MCU and advanced ranging algorithm. Offering an impressive measuring range of up to 15 meters, the sensor provides ±2% accuracy and 1mm resolution, making it ideal for precise distance measurement in a variety of environments.

With support for both UART and I2C communication buses, this sensor provides versatile connectivity options. Its ultra-narrow Field of View (FOV) enhances its resistance to light interference, enabling reliable performance even in challenging lighting conditions, both indoors and outdoors.

The TOF Laser Range Sensor (B) is perfect for applications requiring accurate and stable distance measurement, including robotic obstacle avoidance, autonomous route planning, drone altitude detection, ceiling detection, and more. Its long-range capabilities and high resistance to external light disturbances make it an excellent choice for a wide range of applications, from industrial to consumer-grade technologies.

High Accuracy TOF Laser Range Sensor with UART/I2C

Specifications:

  • Typical Measuring Range(m): 0.10 ~ 2m ±2cm; 2 ~ 15m ±2%
  • Depth Field of View (Deg.): 1° ~ 2°
  • Power Consumption (mW): 610mw
  • Operating Temperature (°C): -10°c ~ 60°c
  • Interface Type: UART, I2C
  • Power Supply(V): 3.7 ~ 5.2V
  • Wavelength (nm): 750 ~ 830nm
  • Baud Rate (bps): UART 115.2kbps ~ 3000kbps
  • Resolution: 1 mm
High Precision TOF Laser Sensor B

Features:

  • Achieve precise distance measurements up to 15 meters, enabling applications that require long-distance sensing.
  • A short blind zone of just 10cm ensures accurate measurements even for objects very close to the sensor, minimizing missed detections.
  • A refresh rate of 15Hz provides continuous, real-time distance data, enabling rapid response and dynamic tracking in various applications.
  • Supports both UART and I2C communication interfaces for seamless integration into various systems and microcontrollers.
  • A narrow field of view (1° ~ 2°) ensures accurate distance measurements with minimal interference from surrounding objects, improving the precision of your system.

UART / I2C Bus Support:

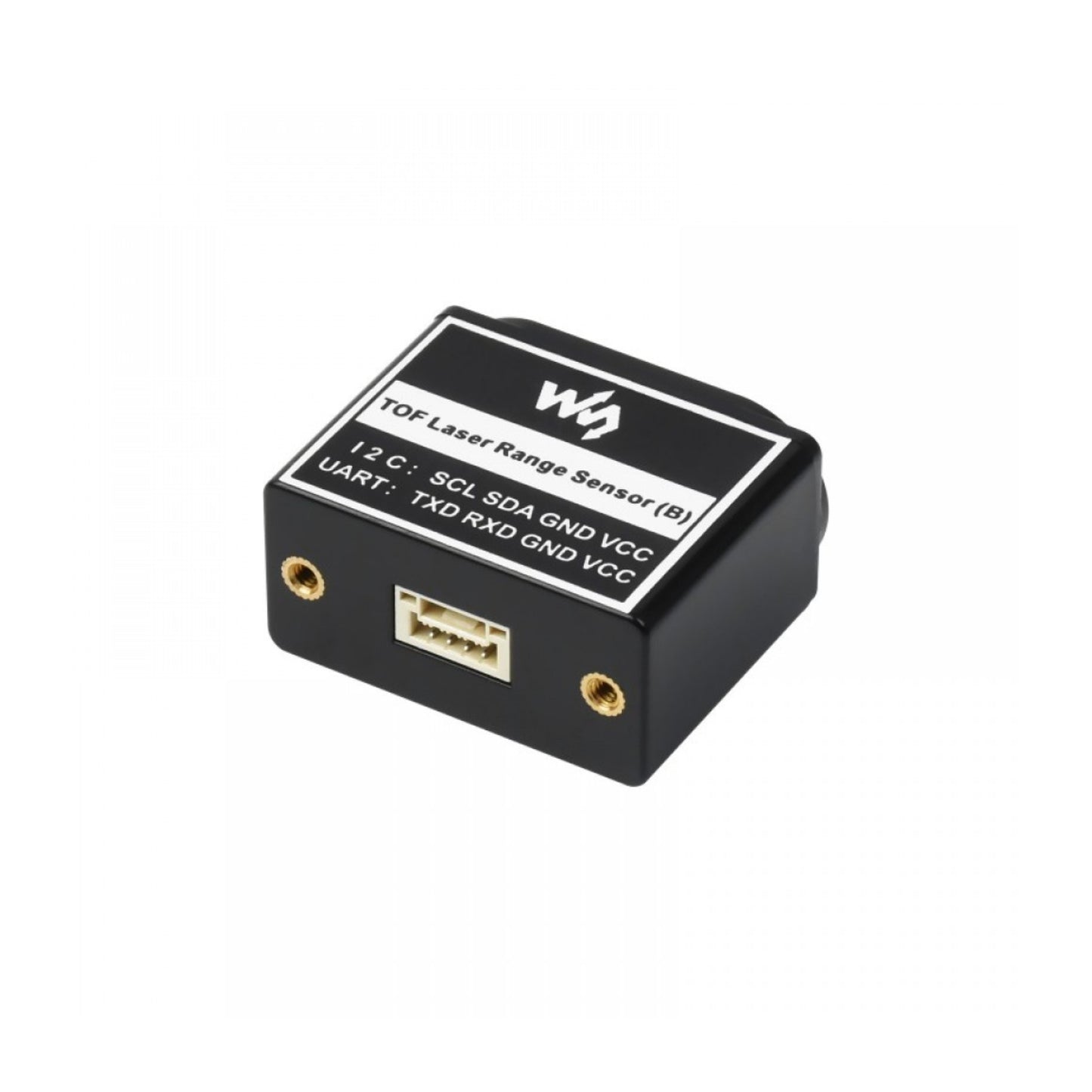

Time of Flight Laser Sensor with UART/I2C InterfaceHardware Connection:


Package Included:

1 x TOF Laser Range Sensor B TOF Laser Distance Sensor Time Of Flight Laser Sensor With Long Range High Accuracy TOF Laser Range Sensor With UART/I2C Bus Support
