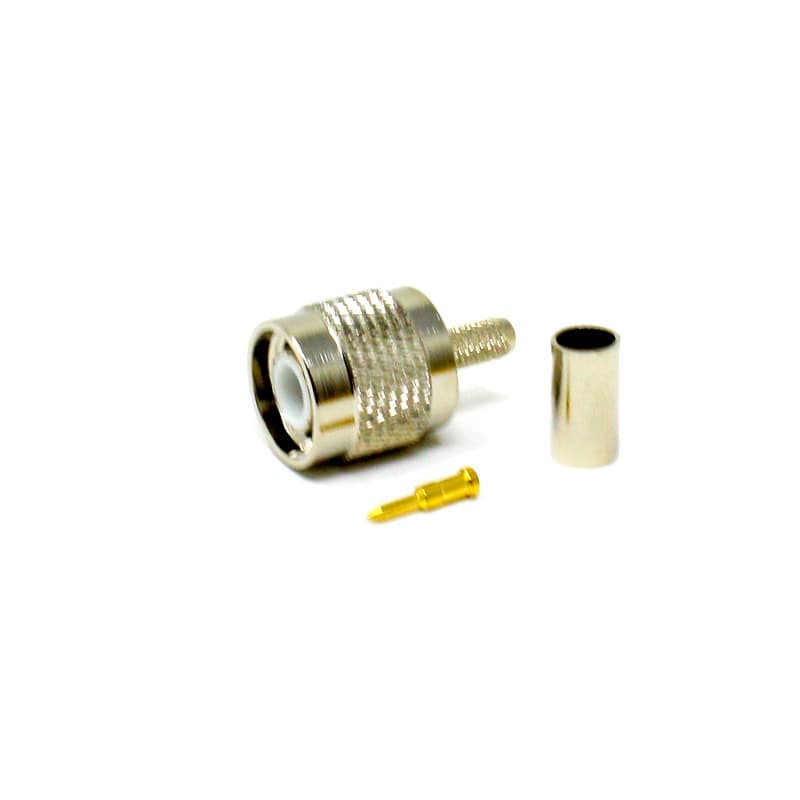

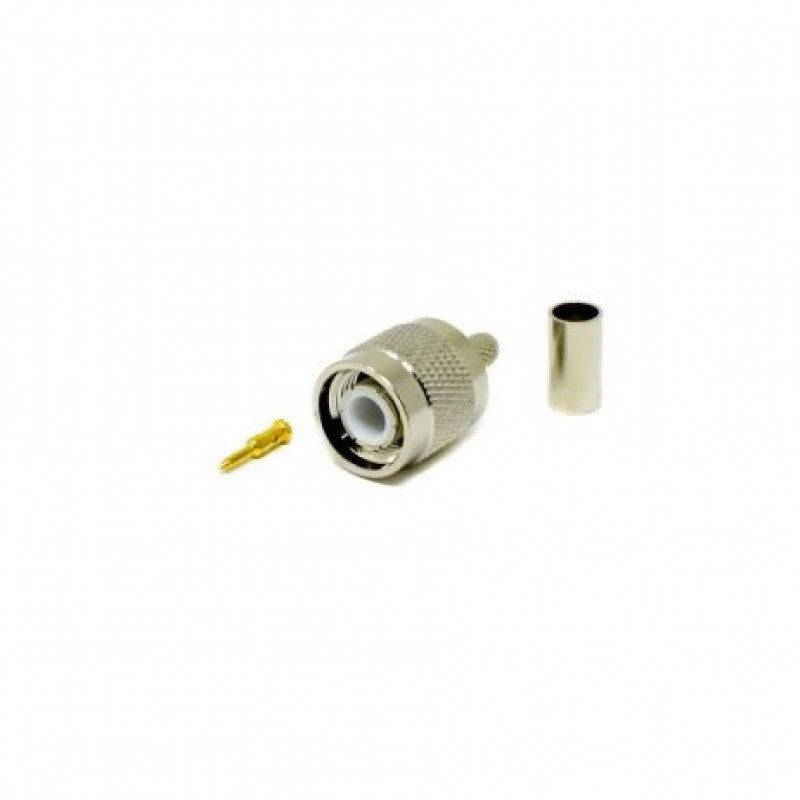

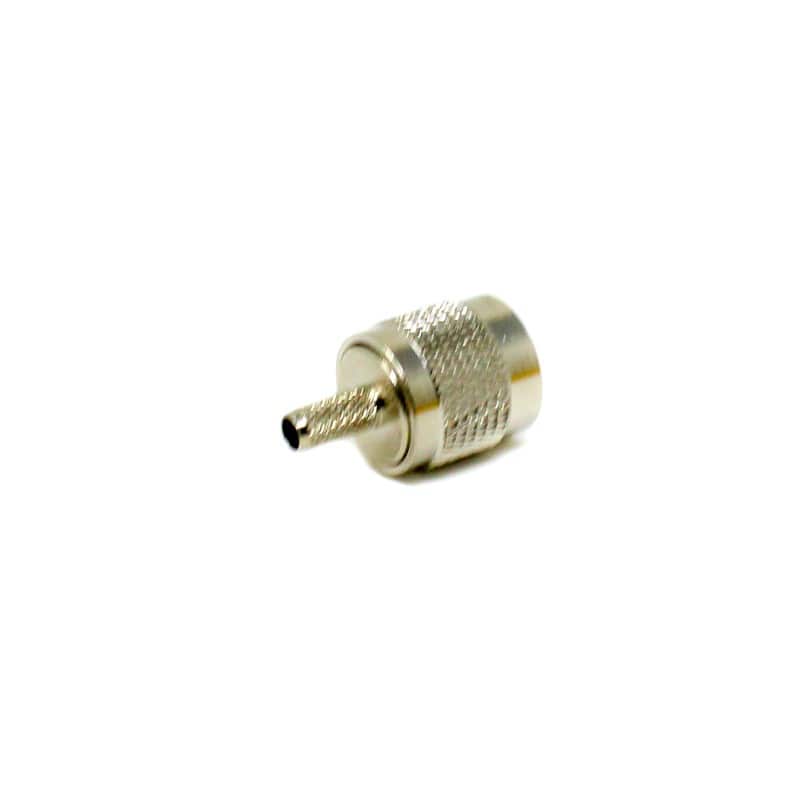

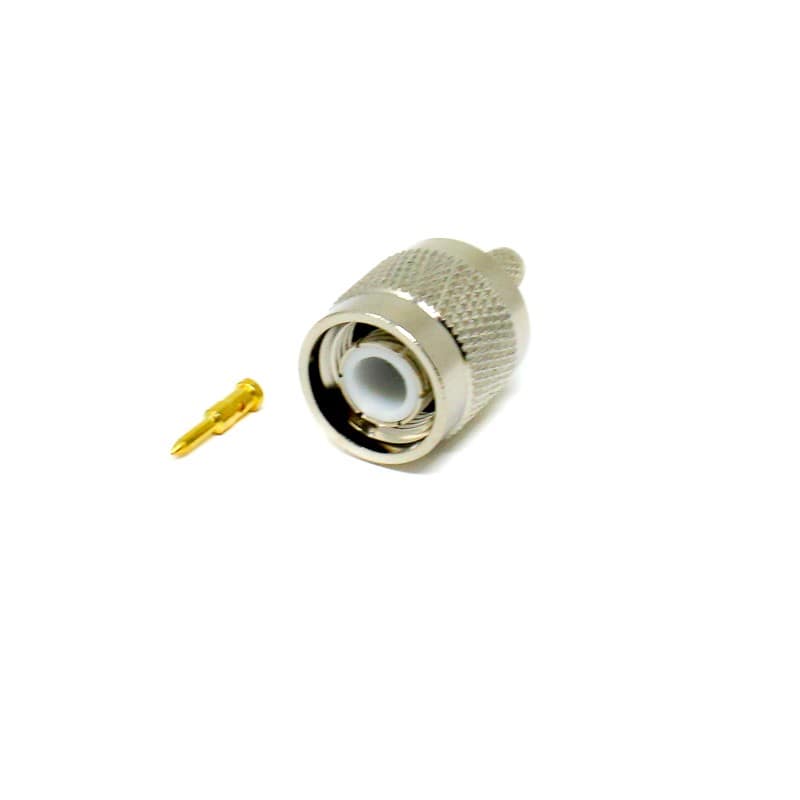

TNC Male Straight Crimped Connector for Cable - RS3660

TNC Male Straight Crimped Connector for Cable - RS3660

RS3660

15 in stock

Rs. 72.00
Rs. 72.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Impedance : 50 ohm
  • Frequency Range: 0~11 GHz for 50 ohm
  • VSWR: Straight type 1.3max / R/A type 1.5max
  • Dielectric Withstanding Voltage: 1500 V rms
  • Working Voltage: 500 V rms
  • Center Contact Resistance : 3.0m (Milliohms max.)
  • Outer Contact Resistance : 2.0 m (Milliohms max.)
  • Insulation Resistance : 5 10m (Milliohms min.)

Description :

These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.

Main Application of TNC Connector:

Cellular Mobile Phones, Aviation Controls, Telemetry, Bluetooth and GPS, Wireless Base Station, Microwave Components, Radar, Networks, Antenna Mounts, Machine to machine communications, Security Devices, Instrumentation.

Feature:

  • Plug,TNC,Male,Straight,H155,Crimped,for Cable,50ohm,75ohm,Brass,Nickel .
  • Thread Version of BNC used in Vibration-Intense application with high durability.
  • Higher Performance than BNC with 0-11 GHz Microwave frequencies and 50-ohm impedance.
  • High Quality made according to MIL-C-39012 standard.

Electrical Characteristic :

  • Impedance : 50 ohm
  • Frequency Range: 0~11 GHz for 50 ohm
  • VSWR: Straight type 1.3max / R/A type 1.5max
  • Dielectric Withstanding Voltage: 1500 V rms
  • Working Voltage: 500 V rms
  • Center Contact Resistance : 3.0m (Milliohms max.)
  • Outer Contact Resistance : 2.0 m (Milliohms max.)
  • Insulation Resistance : 5 10m (Milliohms min.)

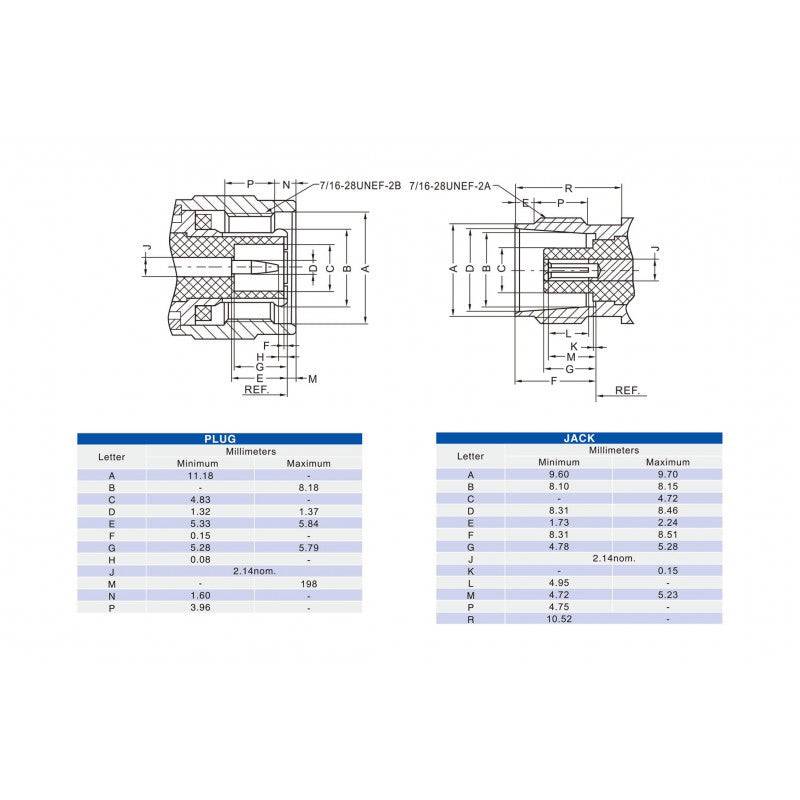

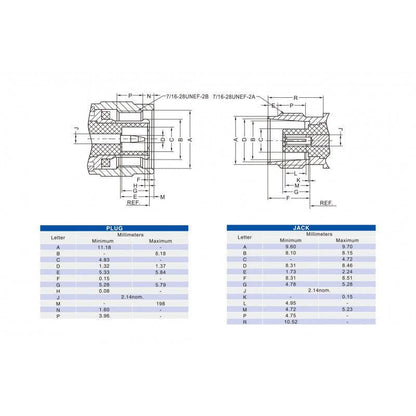

Mechanical Characteristic :

  • Coupling:7/16-28 thread
  • Contact Retention: 6 lbs min.
  • Mating Durability: 500 cycles

Environmental Characteristic:

  • Environmental Characteristics: -65oC~+145oC
  • Coupling Nut Retention: 100 lbs. min.
  • Vibration: MIL-STD-202 Meth. 204
  • Corrosion Resistance: MIL-STD-202 Meth. 101

Specification:

  • Brand : REES52
  • Orientation : Straight
  • Gender : Male
  • Mounting Type : Cable
  • Termination Style : Solder Type
  • Mounting Feature : None
  • Function : Other
  • Polarity : Standard
  • Body Material : Zinc Alloy
  • Body Plating : Nickel Plating
  • Impedance : 50 ohms
  • Shield Termination : Crimp

Package Included:

1 x TNC Male Straight Crimped Connector for Cable
