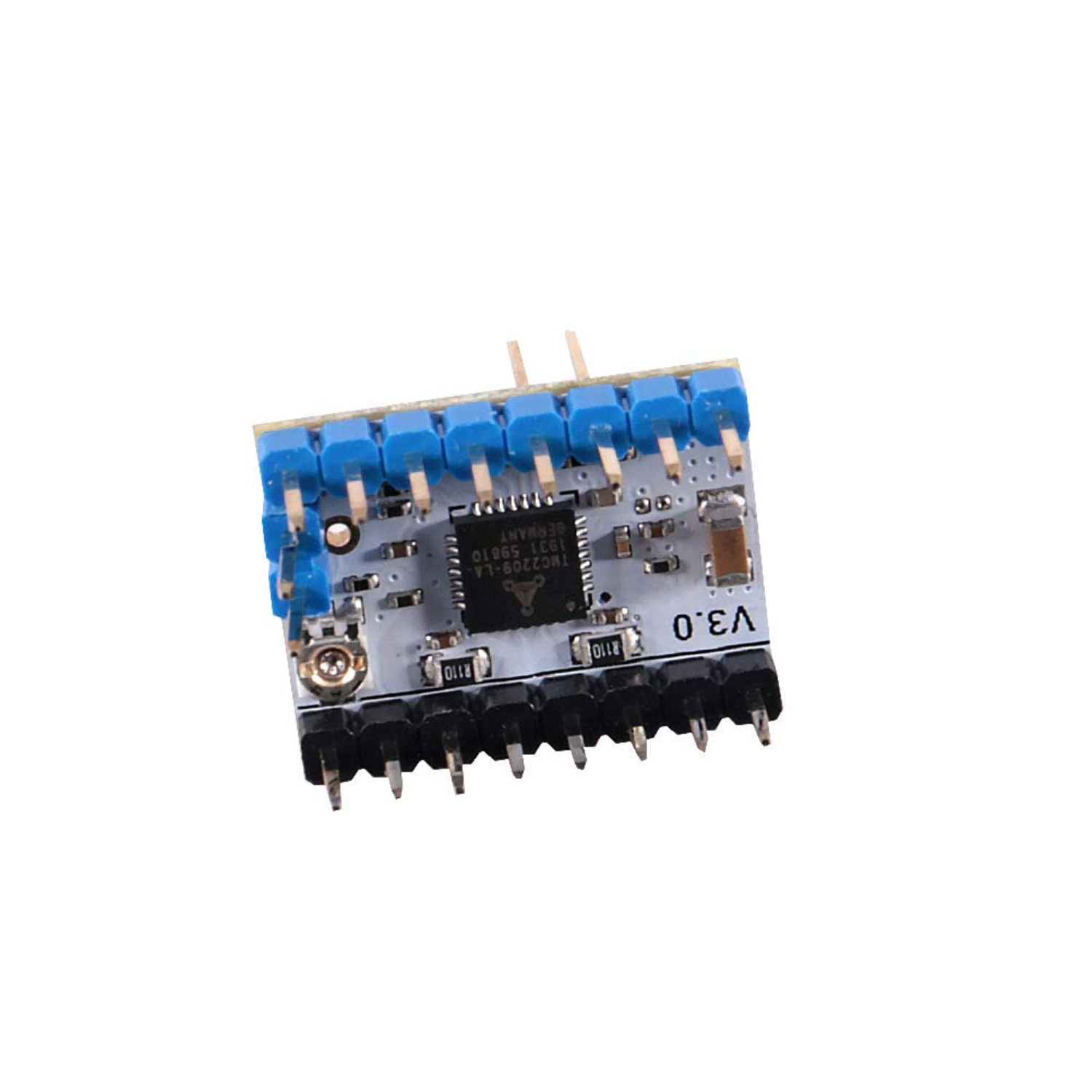

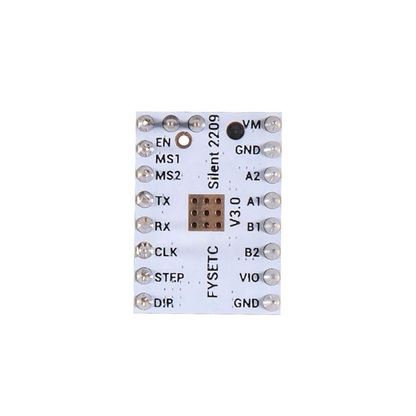

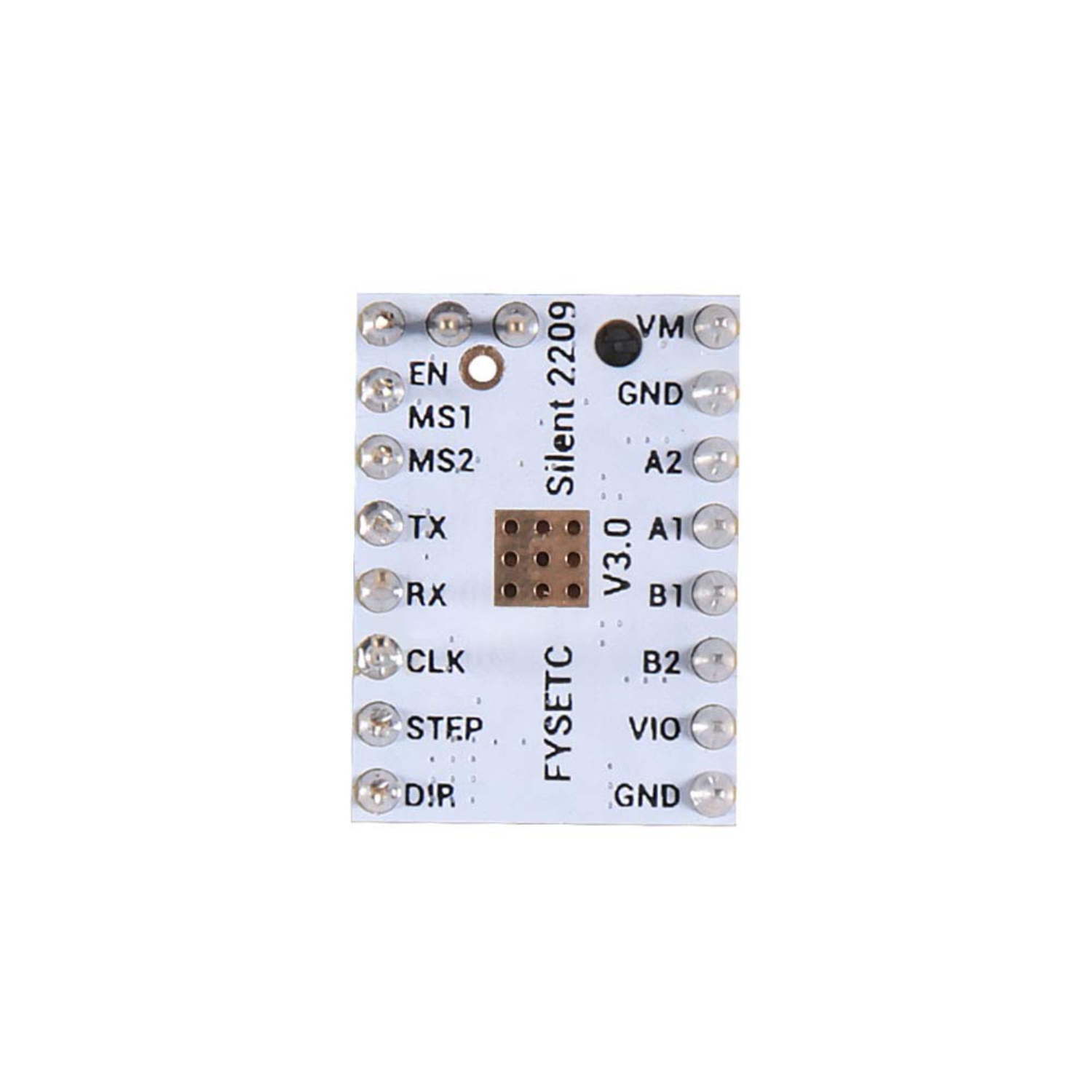

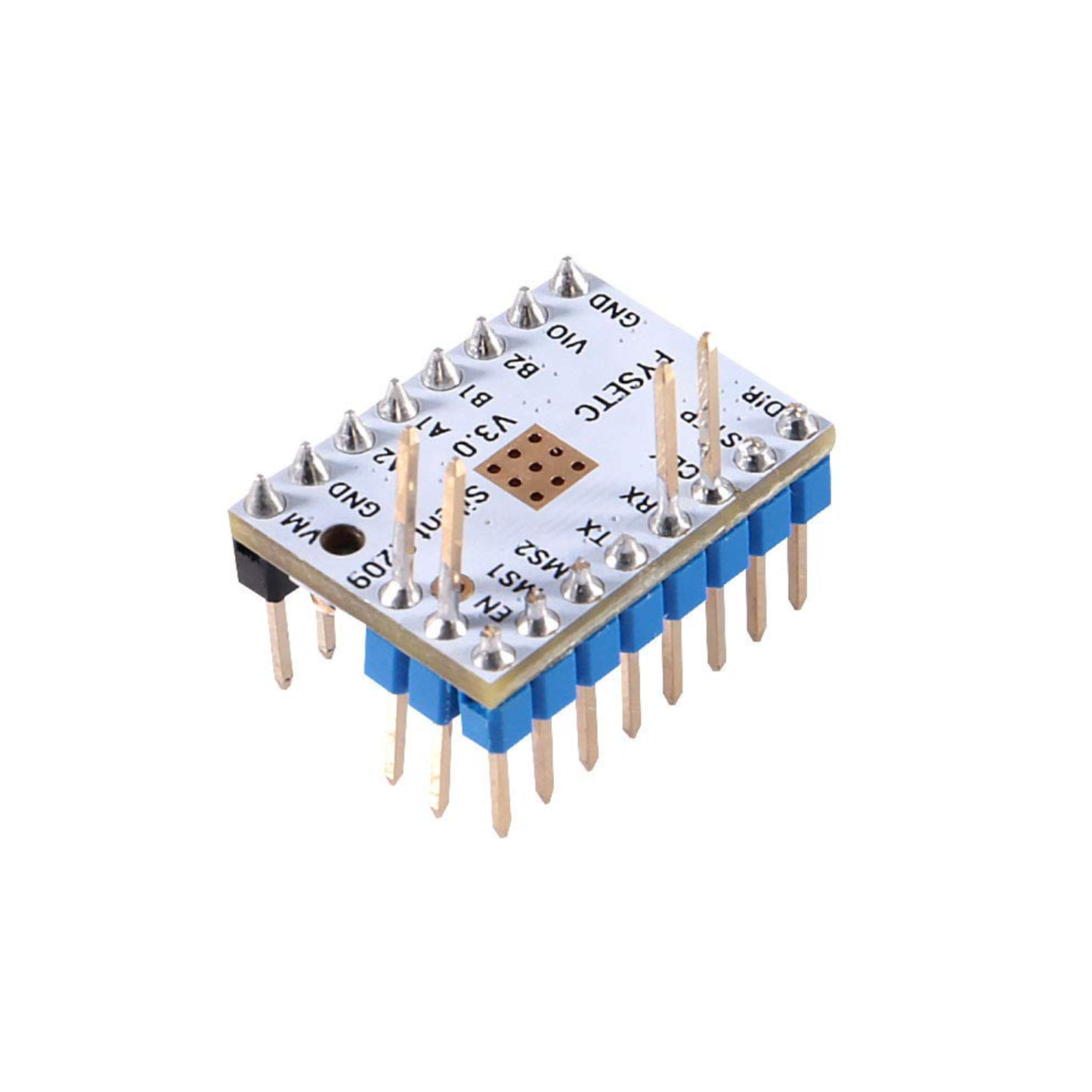

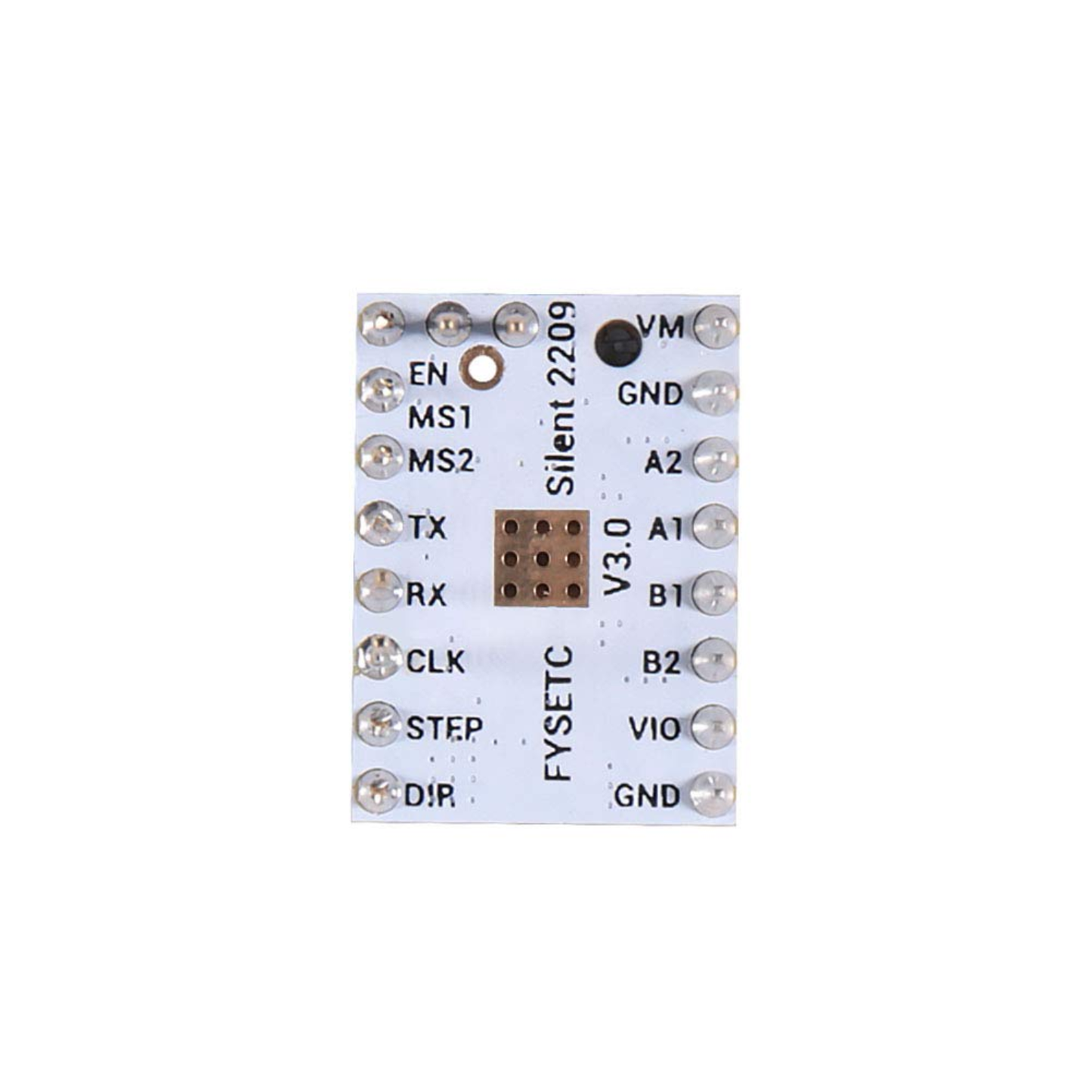

TMC2209 V3.0 Stepper Motor Driver Ultra-Silent UART Control For 3D Printer Ender 3 SKR Board - RS6865

The product is discountinued

We have TMC2209 V2.1 and V4.

Descriptions:

The TMC2209 V3.0 stepper motor driver module is engineered for precision and power, effortlessly driving stepper motors with up to 2.8A peak current (1.7A RMS). It's a top-tier choice for 3D printers, CNC machines, and other automation systems demanding flawless, highly controlled motor movement. Experience near-silent operation at lower speeds thanks to its innovative stealthChop2 technology, while spreadCycle ensures robust torque and exceptional performance even at high velocities.

Specifications:

• Model Series: TMC Series
• Voltage Rating: 4.75 to 28VDC
• Current Rating:    2.8 to 4
• Micro Step: Up to 1/256 micro stepping
• Max. Current: 2.8A RMS, 4.0A peak
• Logic Voltage: 3.3V and 5V compatible
• Interface: UART (Universal Asynchronous Receiver/Transmitter) interface

Features:

• Communication
• CoolStep
• StallGuard
• StealthChop2
• SpreadCycle
• Thermal protection

Package Included:

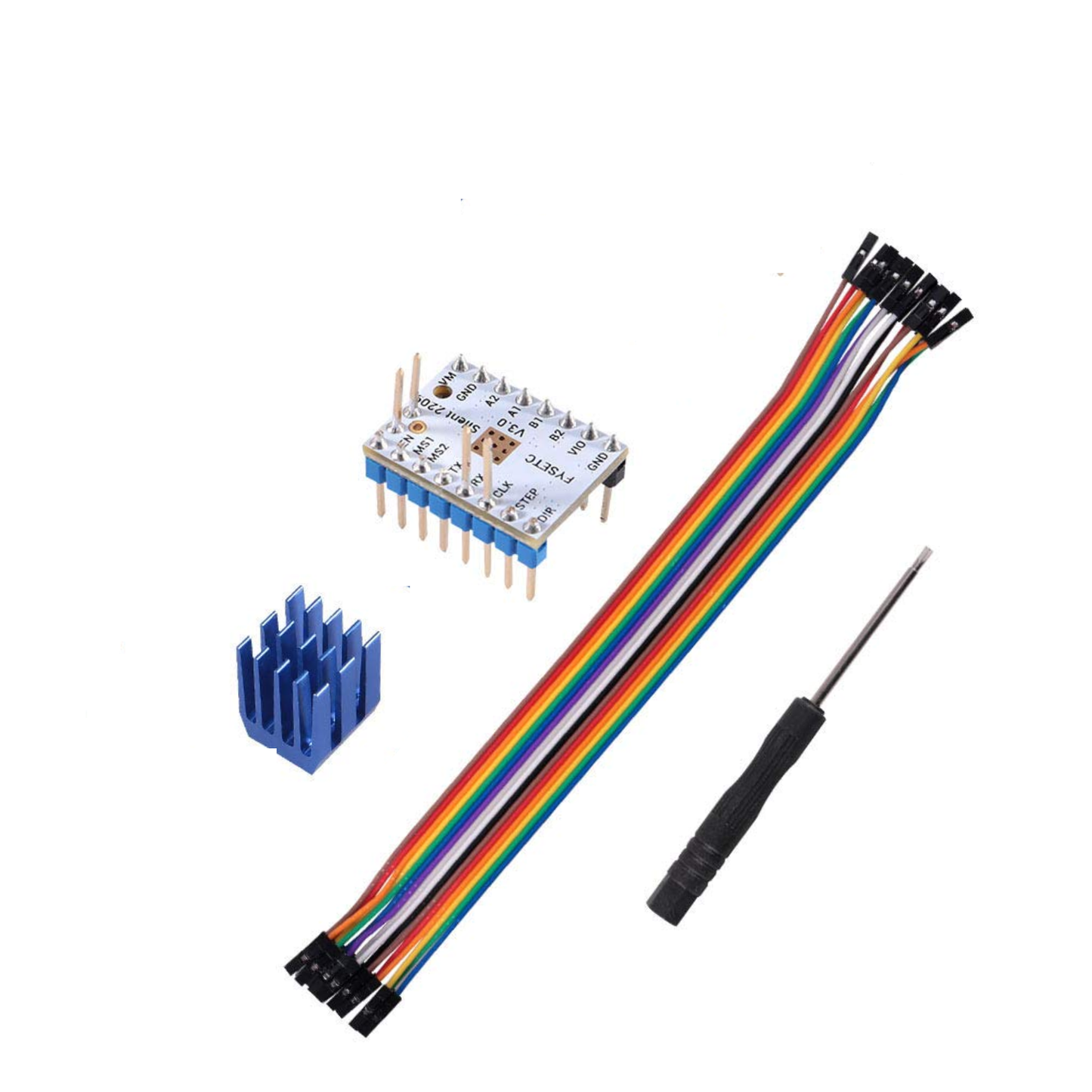

1 x TMC2209 V3.0 Stepper Motor Driver
