Description:

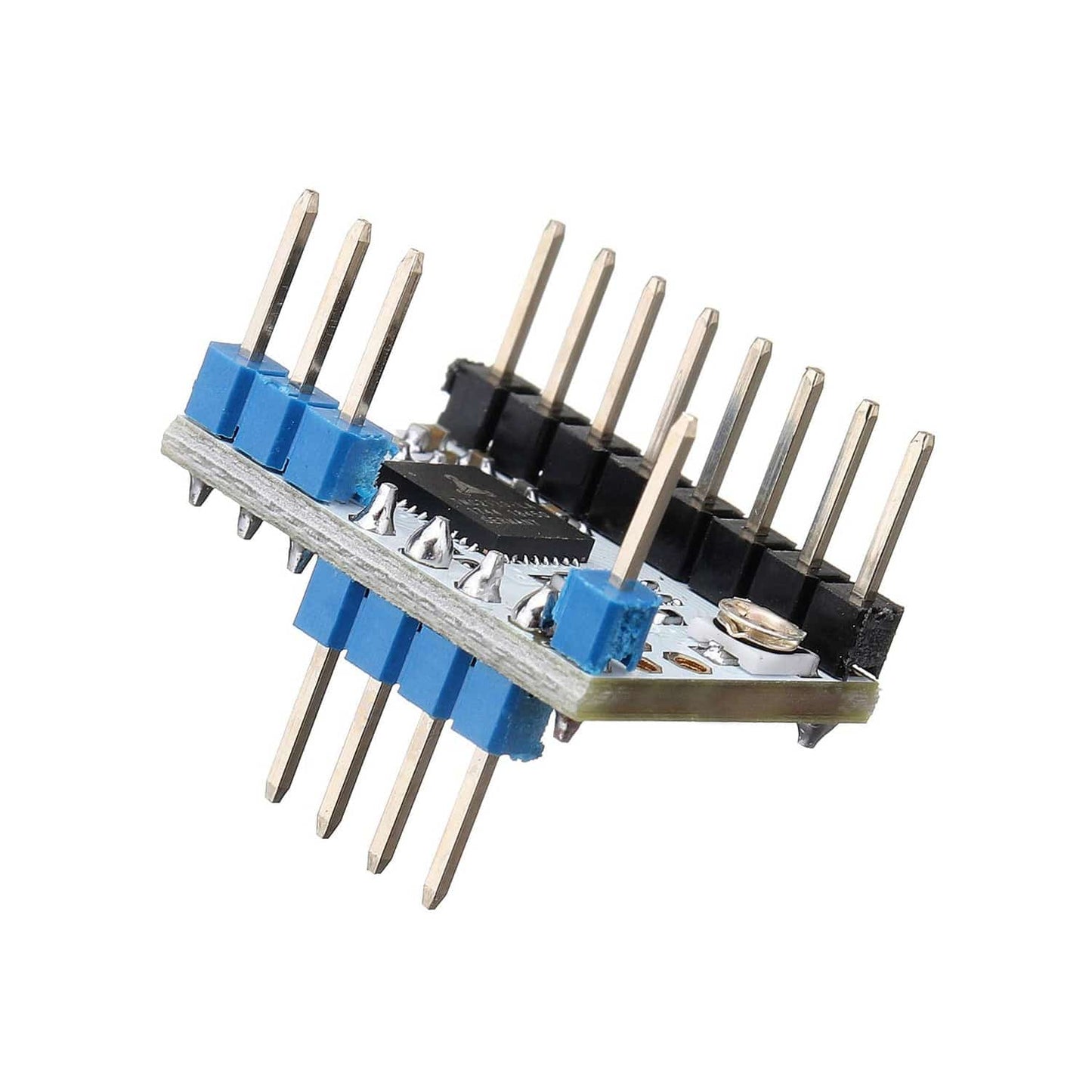

TMC2130 Stepper Motor Driver Module can be used separately or in combination with a CNC shield or 3D printer. This V1.1 has the SPI pins soldered upwards so that they are accessible from above. This TMC2130 Stepper Motor Driver offers high-efficiency noiseless operations at variable loads, with a full complement of extra features too!
Specifications:
- Voltage Rating: 5.5 to 45V DC
- Current Rating: 1.2 to 2.5A
- Logic Voltage: 3 ~ 5V
- Single Phase Current: 1.2A
- Micro Step: 1/256
Features:
- Broken down into 256
- Combines maximum efficiency and best motor torque for noiseless operation.
- High-precision sensorless motor load detection.
- Reduce energy consumption by 75%.
- High-load drive without out-of-step.

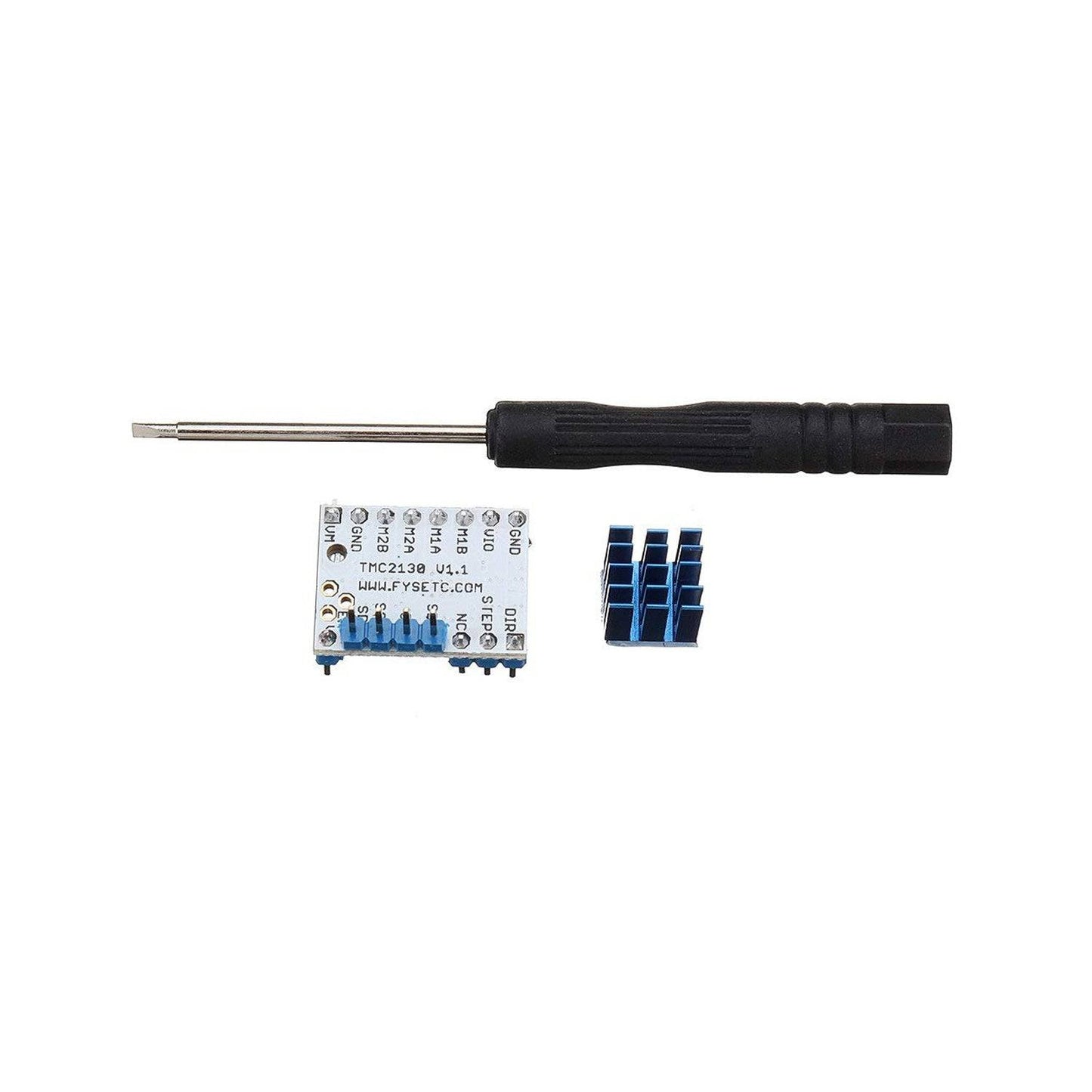

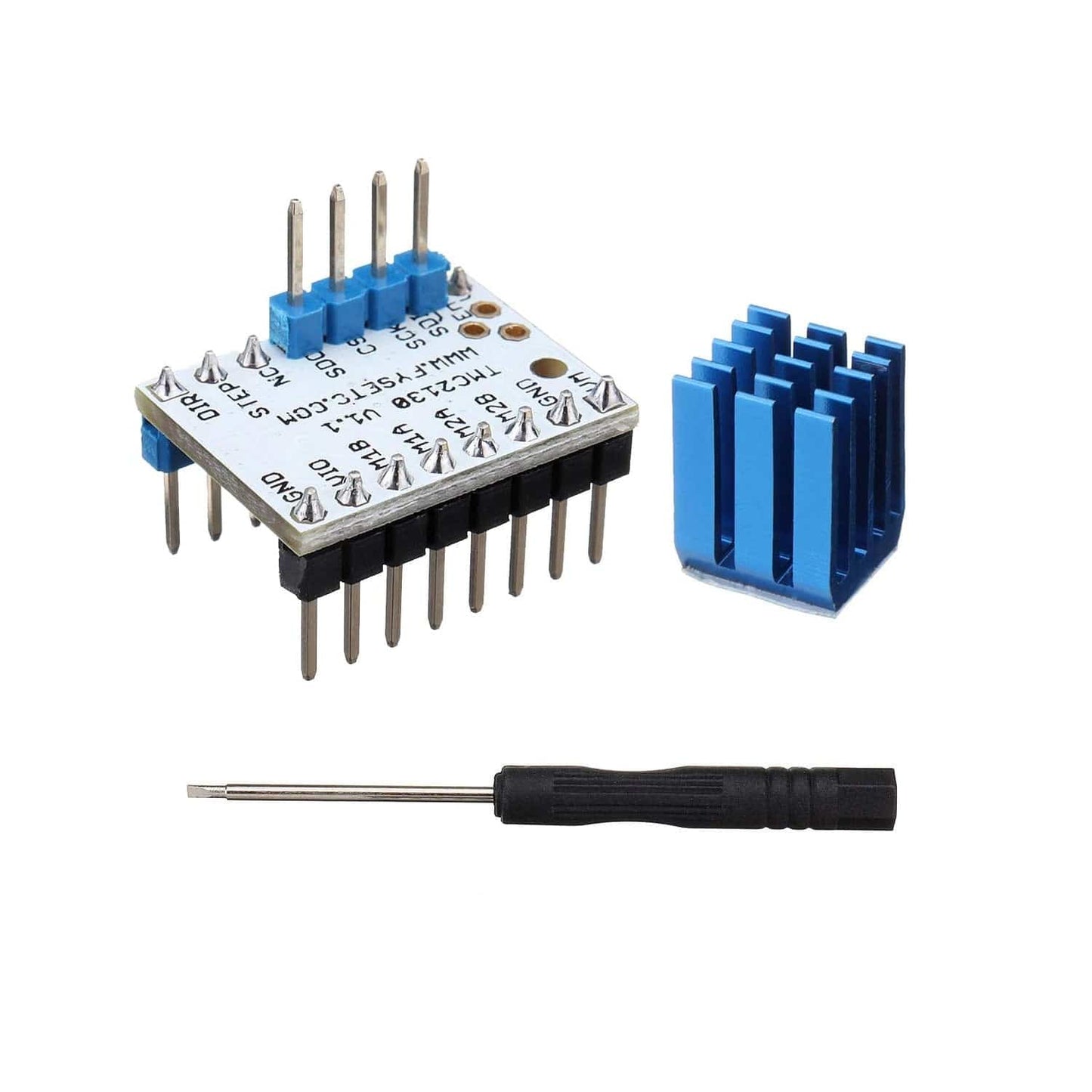

Package Included:
- 1 x TMC2130 Stepper Motor Driver
- 1 x Heatsink
-
1 x Screwdriver
