Description:

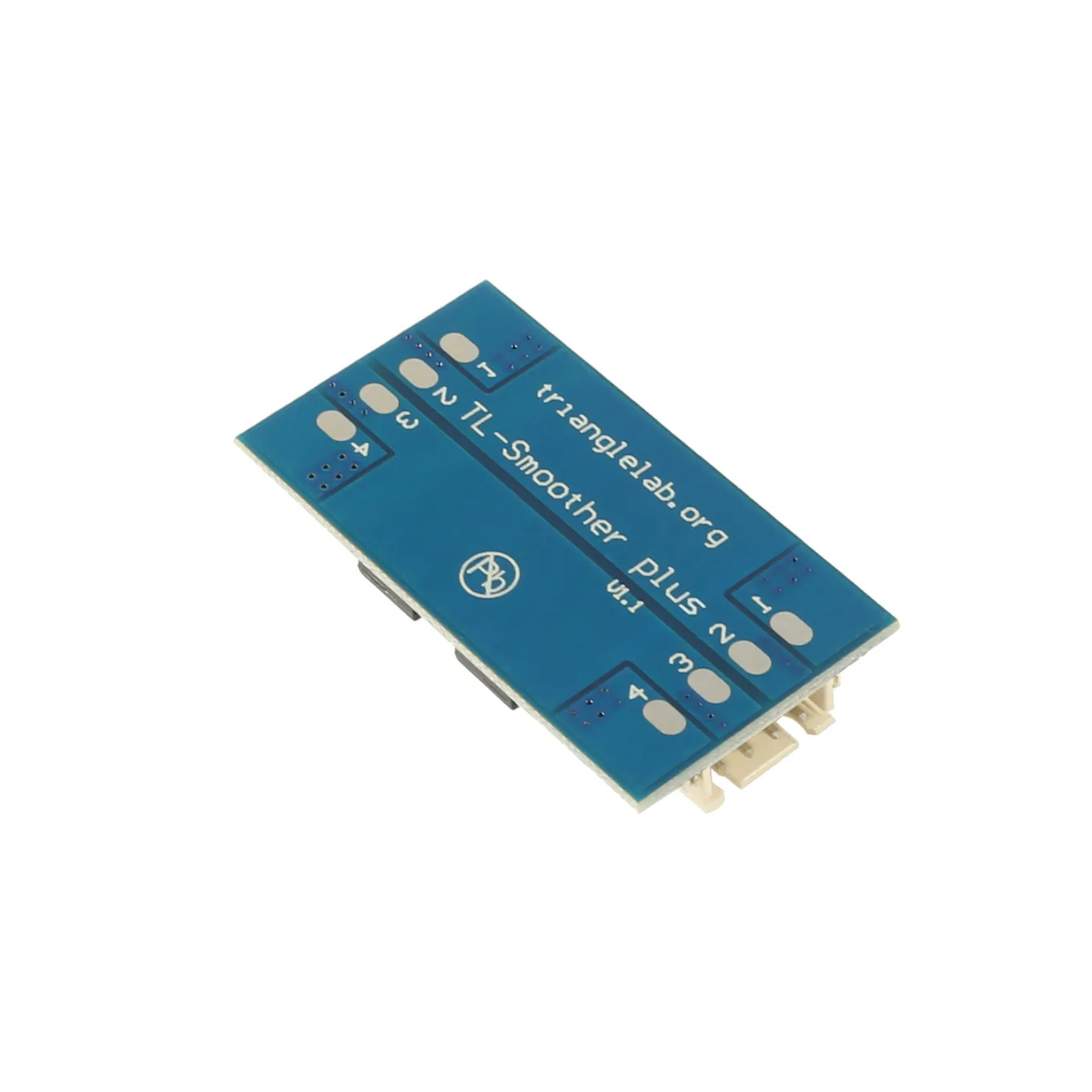

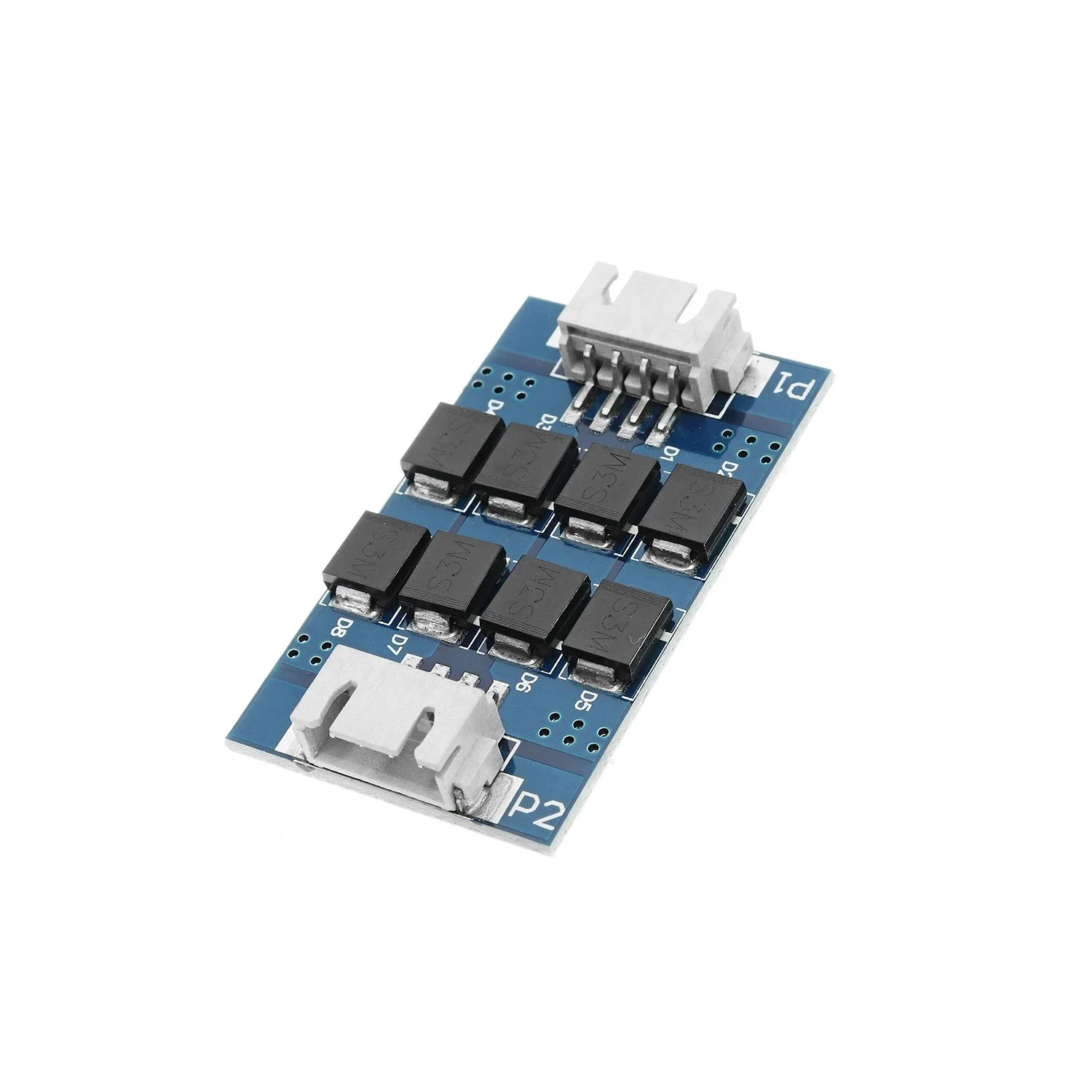

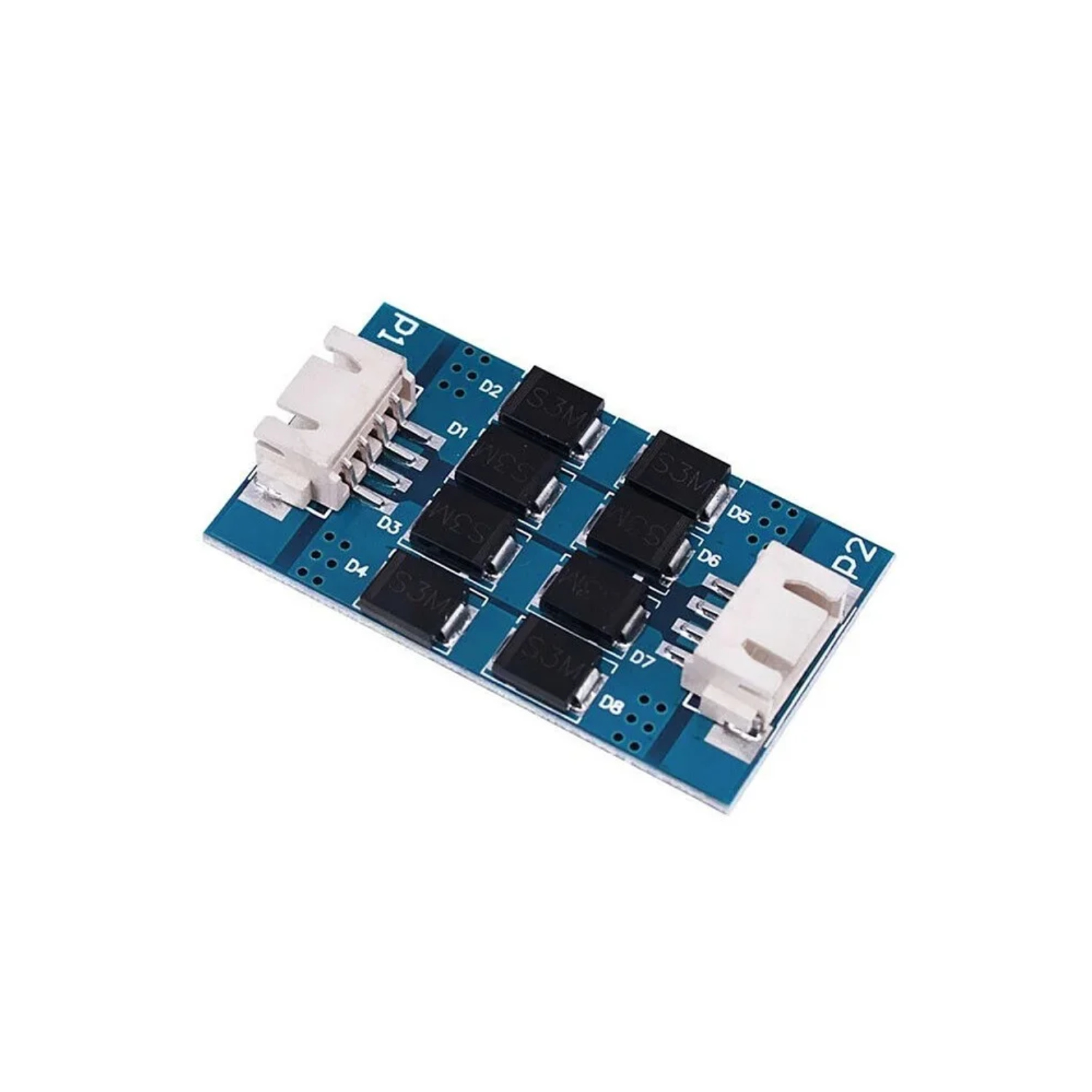

TL-Smoother Eight Chip Module Tired of unsightly ripple patterns and uneven surfaces on your 3D prints? The TL Smoother Addon Module Board Kit is your essential upgrade, specifically designed to eliminate motor clipping and smooth out signal waves, giving you noticeably better print quality.
This powerful module tackles the common issue of parallel 3D printer printing ripples, a problem often exacerbated when using DRV8825 drivers and low-resistance motors. It effectively filters out erratic signal waves, particularly at low speeds, ensuring a more consistent and reliable signal for your stepper motors. This is especially crucial for 24V power supply Delta machines, which utilize DRV8825 drivers, where precise signal integrity is paramount.
Specifications:
- Number of Flyback Diodes: 8
- Compatibility: A4988 Drivers, DRV8825 Drivers
- Cable Type: 4-Pin Female to 4-Pin Female
- Mounting Points: Ø2.3mm Hole on Each Corner
- DC Blocking Voltage: 1000V
- Reverse Voltage: 700V
- Rectified Output Current: 3A @ TT = +75°C
Features:
- Eliminates Mechanical Chatter: Effectively reduces motor-generated chatter, especially on parallel arm 3D printers.
- Smoother, Quieter Prints: Delivers lower vibration, reduced noise, and a noticeably smoother print finish.
- Stepper Motor Protection: Built-in flyback diodes protect motor outputs from damaging inductance voltages.
- Enhanced Movement: Achieves smoother motion, particularly with DRV8825 or A4988/2 drivers on Delta-style 3D printers.
- Broad Compatibility: Also compatible with i3 and UM models, offering varying clipping effect improvements.
Note:
If you are currently using Trinamic Drivers with SpreadCycle, or are considering upgrading to such drivers, then these TL-Smoothers may not offer the big benefit you’re expecting. This is because Trinamic’s patented SpreadCycle performs a very similar (albeit more efficient) smoothing/filtering process, with extra features like stealthChop that also assist in this regard.

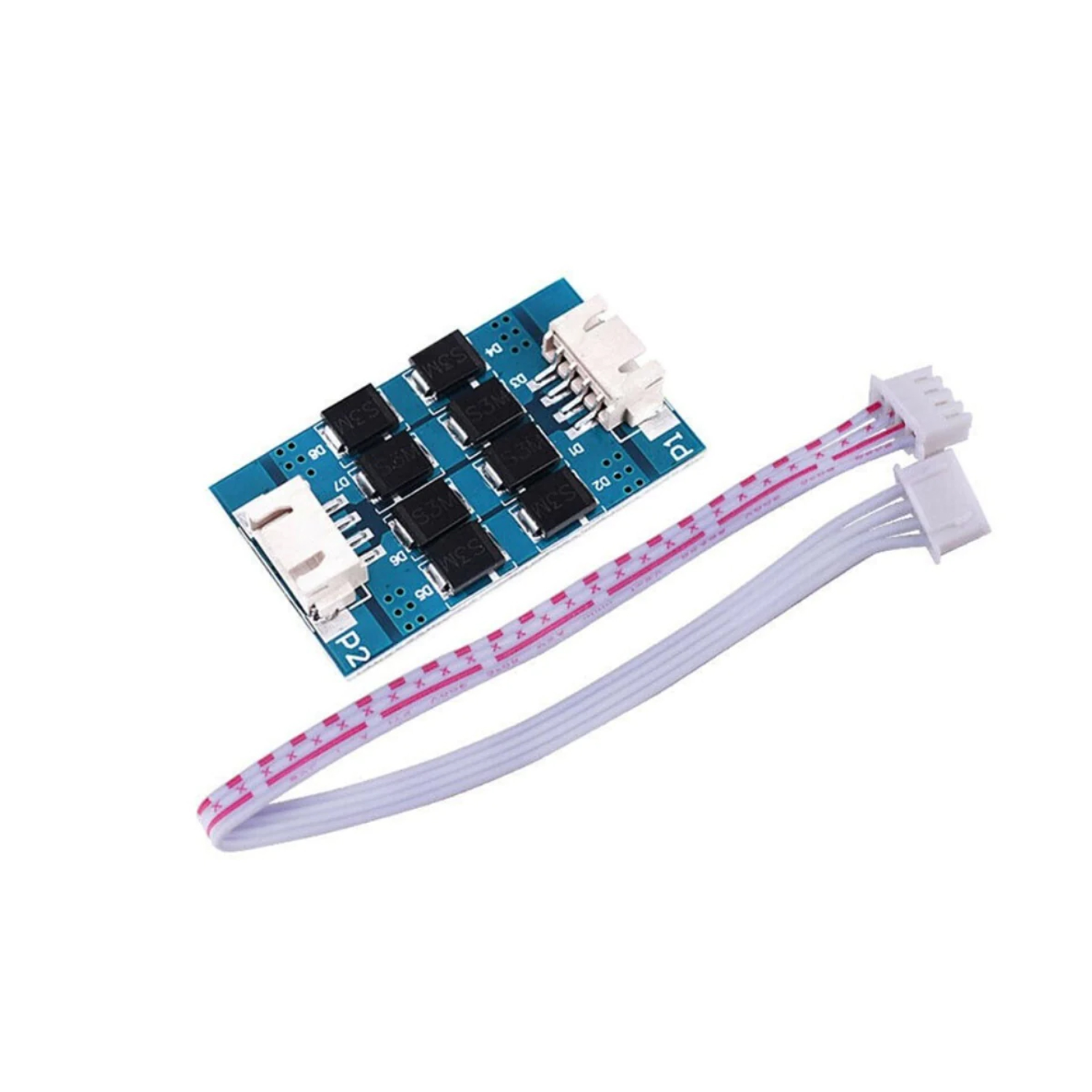

Package Included:
- 1 x TL Smoother Module
- 1 x cable
