- Operating Voltage: 3.3V~5V
- Output Format: Digital switching output (0 and 1)
- Comparator: LM393
Description:

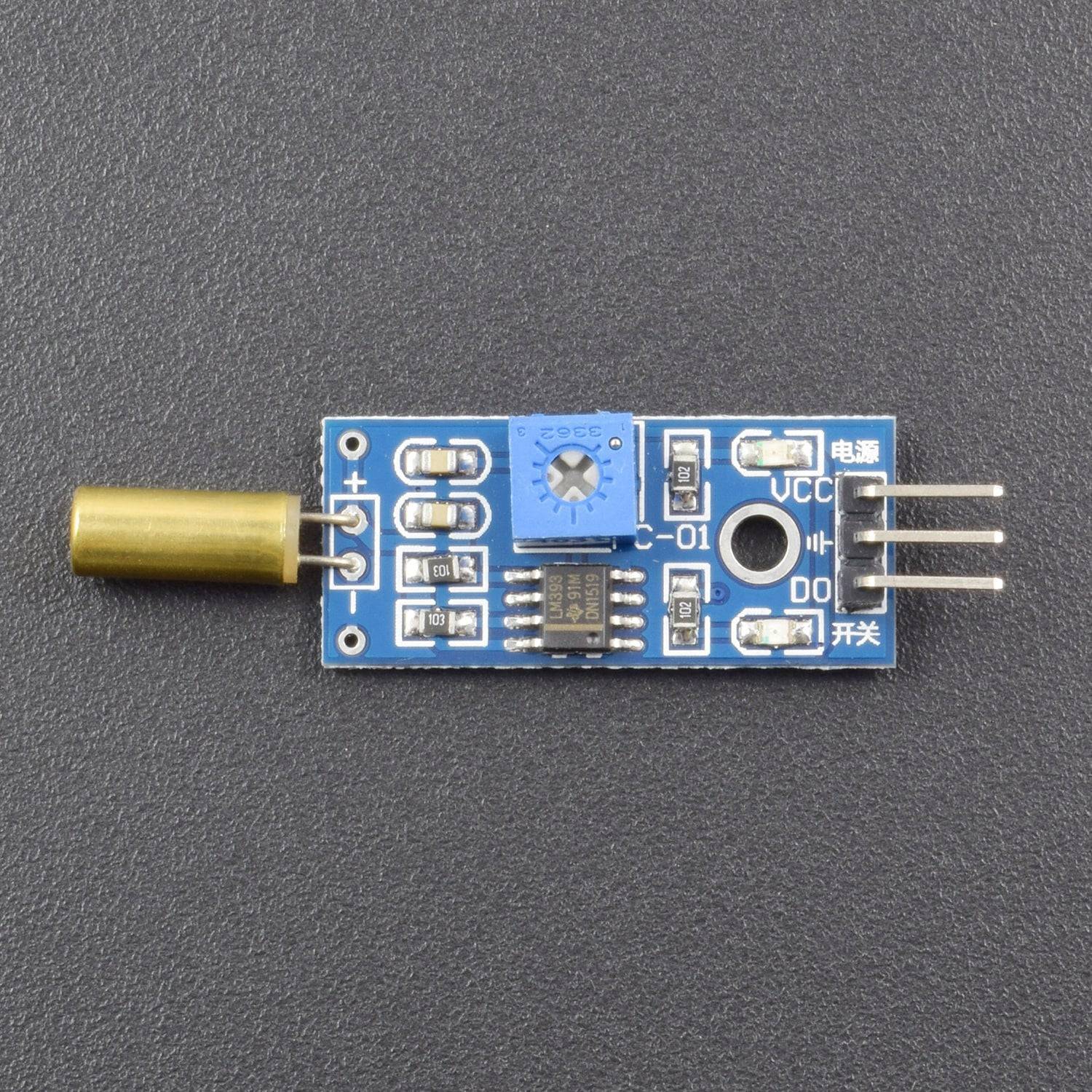

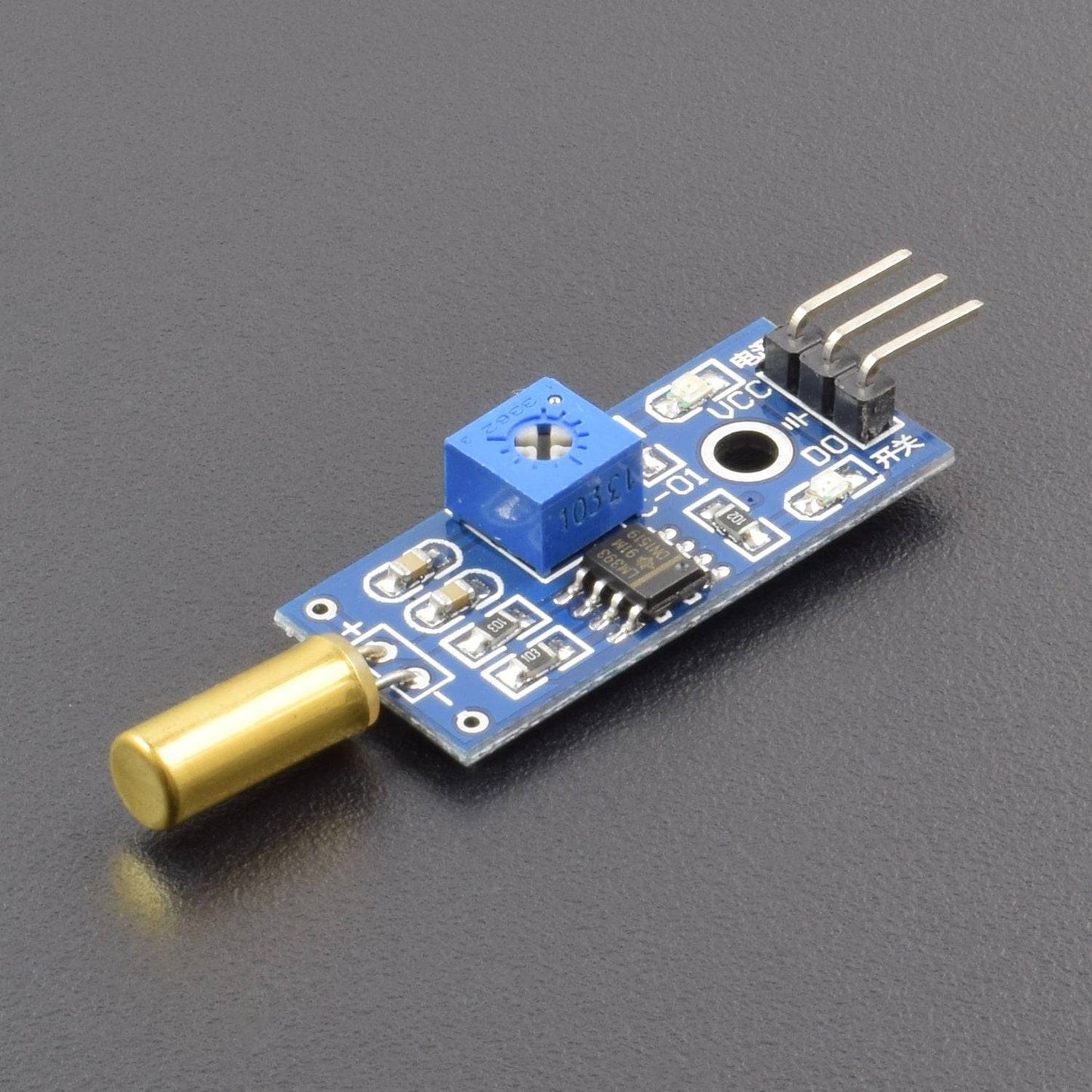

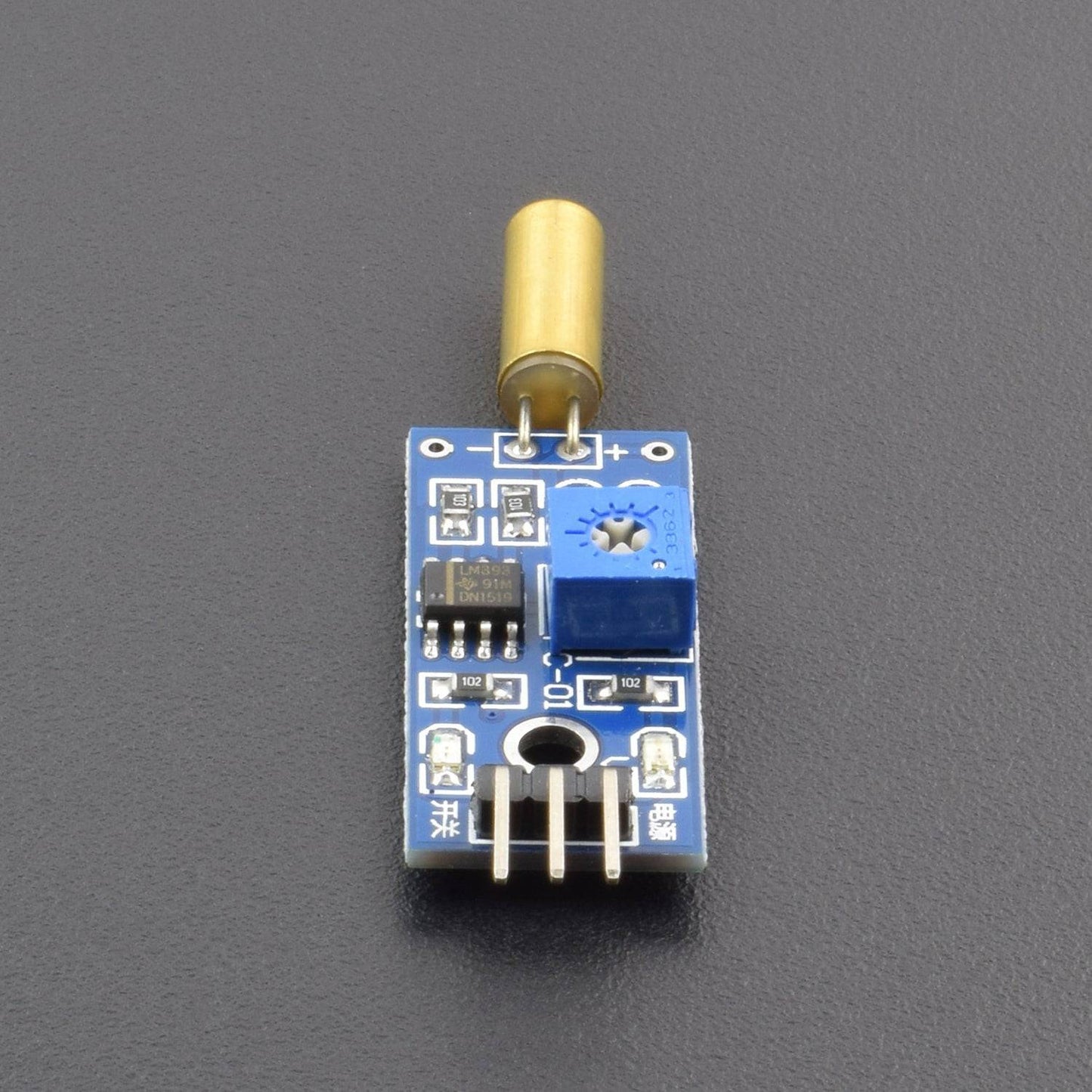

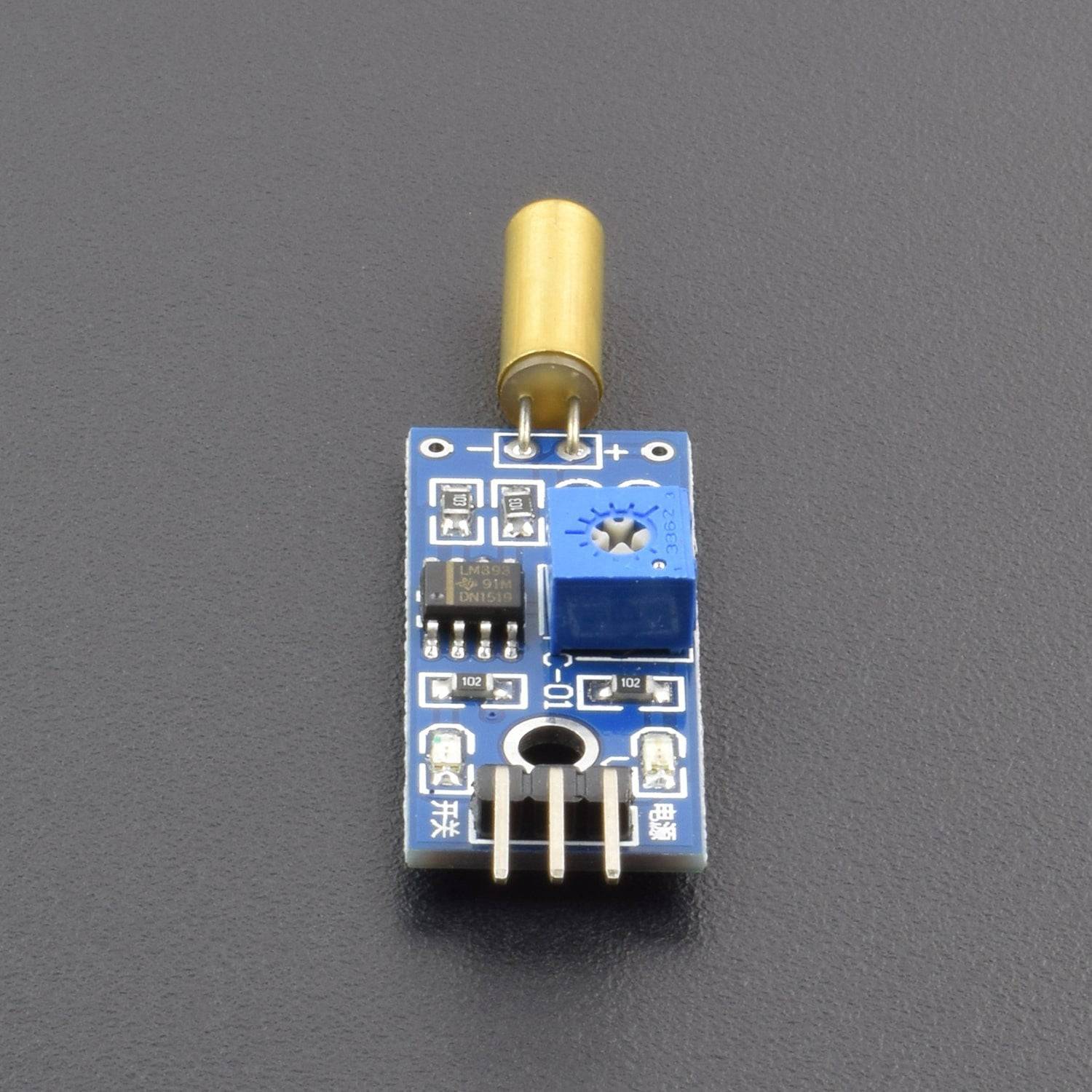

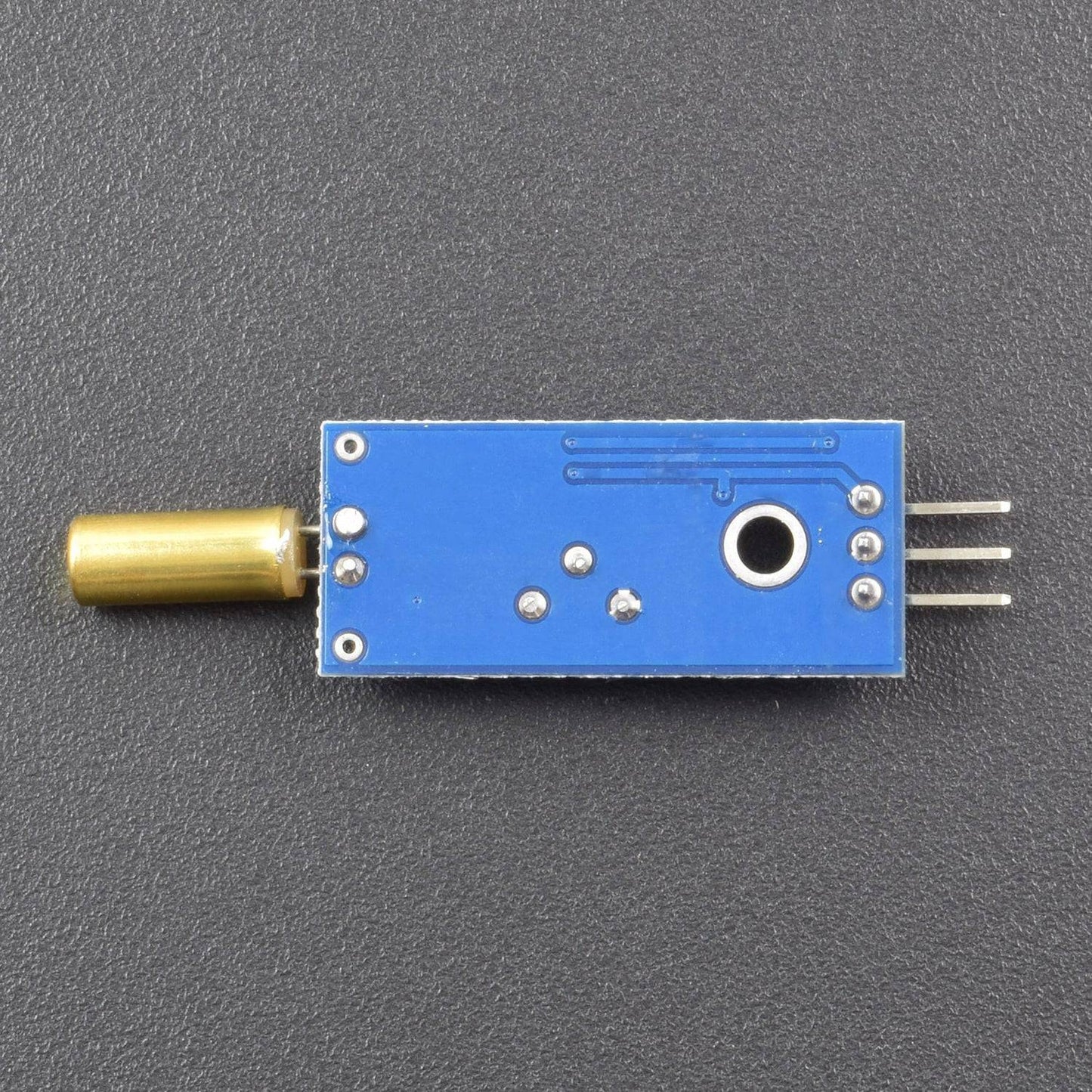

The tilt sensor module come with the basic components for operation. Supplying power and it is good to be use. Attach it to object and it will detect whether the object is tilt. Simple usage as it is digital output, so you will know the object is tilt or not by reading the output. It uses SW-460D or SW-520D tilt sensor. The tilt sensor is ball rolling type, NOT Mercury type. Comes with a M3 mounting hole for ease of attaching it to any object. On board it provide a tilt switch, high sensitivity and commonly being used for tilt detection. The module comes with power LED and status LED for visual indicator. The module will output logic LOW when the module is not tilted until the threshold angle; it will output logic HIGH when it is tilted over the threshold angle. We have tested, the tilt angle is quite big, from 45 degree to 130 degree. However it depends on the angular velocity too. It can be use as vibration sensor too.
Specification:
- Operating Voltage: 3.3V~5V
- Output Format: Digital switching output (0 and 1)
- Comparator: LM393
- Type: Angle Module
Features:
- High sensitivity angle switch SW-520D as sensor
- Comparator output, clean signal
- Good waveform, strong drive ability, more than 15mA
- With a fixed bolt hole, easy to install
- Using wide voltage LM393 comparator
Package Included:
1 x Tilt Sensor Module Tilt Switch Angle sensor Module Ball Switch Dumping Sensor
