- Temperature Measuring Range (C): 40 to 270
- Accuracy: 1%
- Length (mm) : 3
- Width (mm): 1.8 (Body Diameter)
- Weight (gm): 5
Description:

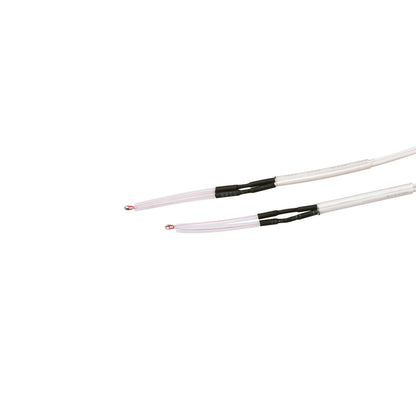

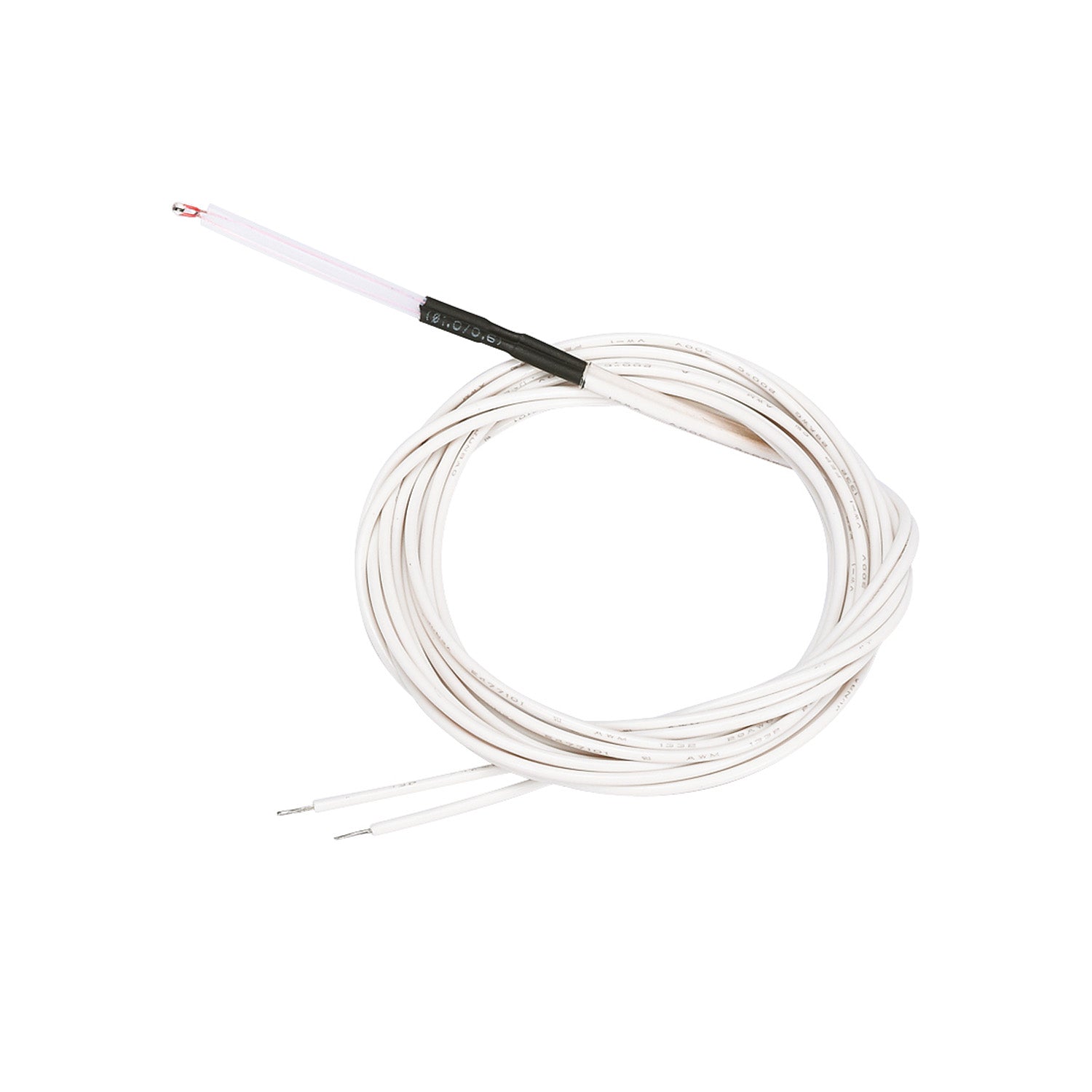

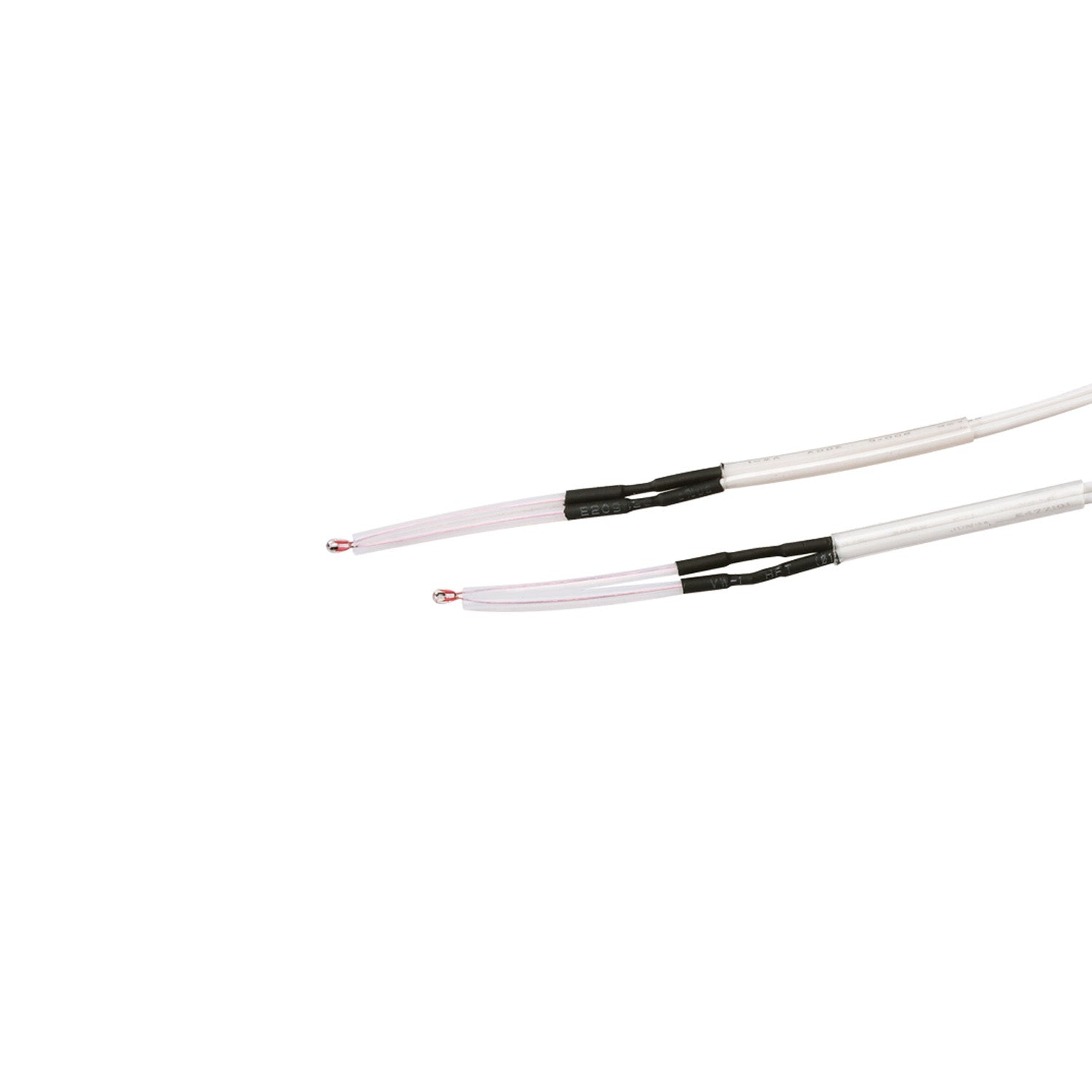

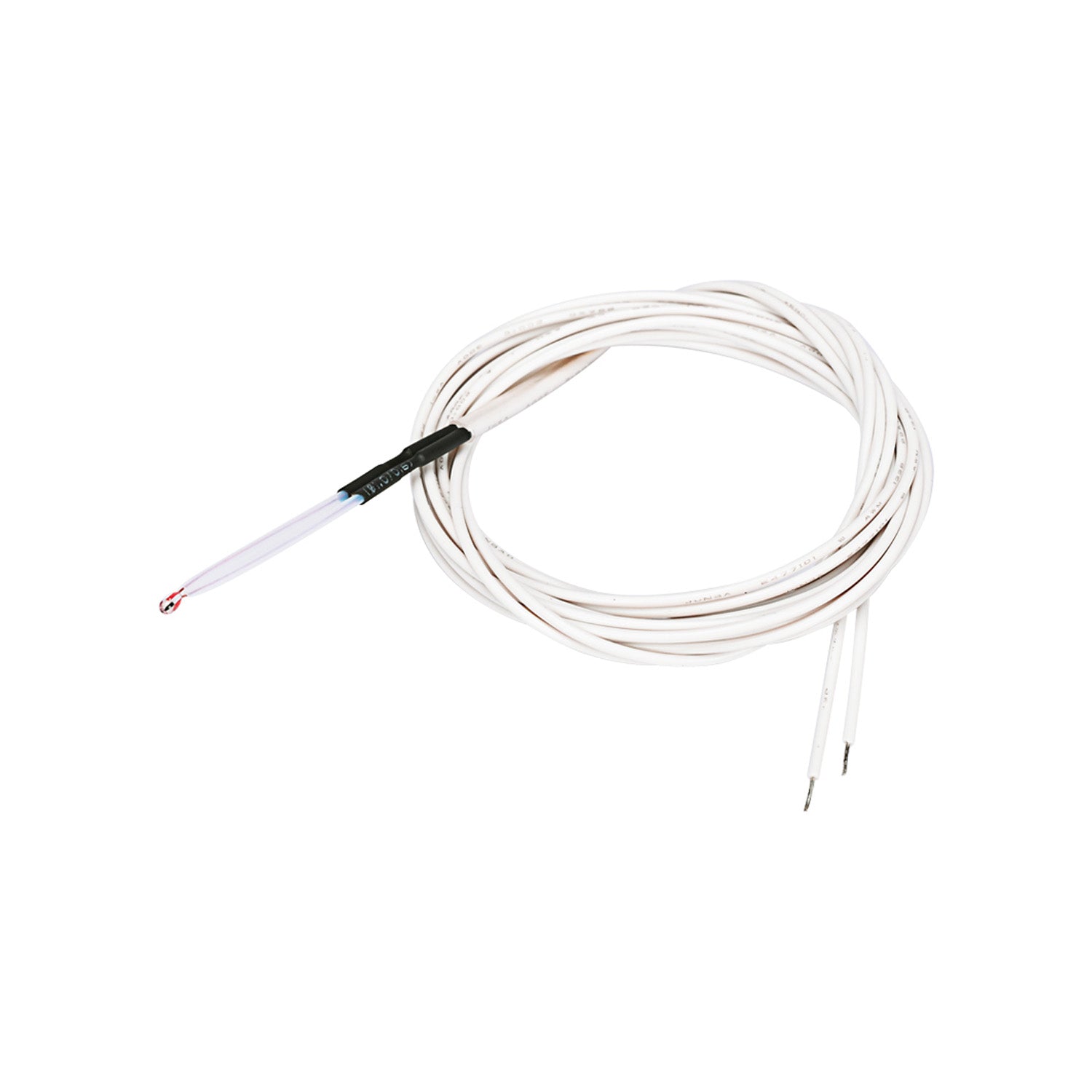

This isThermistor 100k NTC with 1 Meter Cable Temperature Sensor for 3D Printer Prep. The thermistor is a thermally sensitive resistor known for exhibiting a large change in resistance with only a small change in temperature.
It is important to note that a thermistor's change in resistance is non-linear. It follows a pre-defined curve which is provided by the thermistor manufacturer.
Positive thermal coefficient (PTC) will increase in resistance with an increase in temperature, and negative ones (NTC) will decrease. But the formula in practice is not linear, so sometimes an accurate table of measurements is better than the linear formula.
Specifications:
- Temperature Measuring Range (C): 40 to 270
- Accuracy: 1%
- Length (mm) : 3
- Width (mm): 1.8 (Body Diameter)
- Weight (gm): 5
- Cable Length (Meter): 1
Feature:
- 100k Ohm NTC Thermistor.
- NTC Thin Film Thermistor Cable.
- Nominal value: R25 (25 ) : (common) 1.5K, 2K, 5K, 10K, 20K, 30K, 47K, 50K, 100K, 200K, 500K, etc.
- Resistance precision: 1%, 2%, 3%.
- B value R25/50 (common) : 3435k, 3600k, 3950k, 3990k, 4100k, 4200k, etc.
- B value accuracy: 1%.
- Recommend the use of parameters: R25 = 100 k B25/50 = 3950 k 1%)
Specifications:
- Temperature Measuring Range (C): 40 to 270
- Accuracy: 1%
- Length (mm) : 3
- Width (mm): 1.8 (Body Diameter)
- Weight (gm): 5
- Cable Length (Meter): 1
Package Included:
1 x Thermistor 100k NTC with 1 Meter Cable Temperature Sensor
