Description:

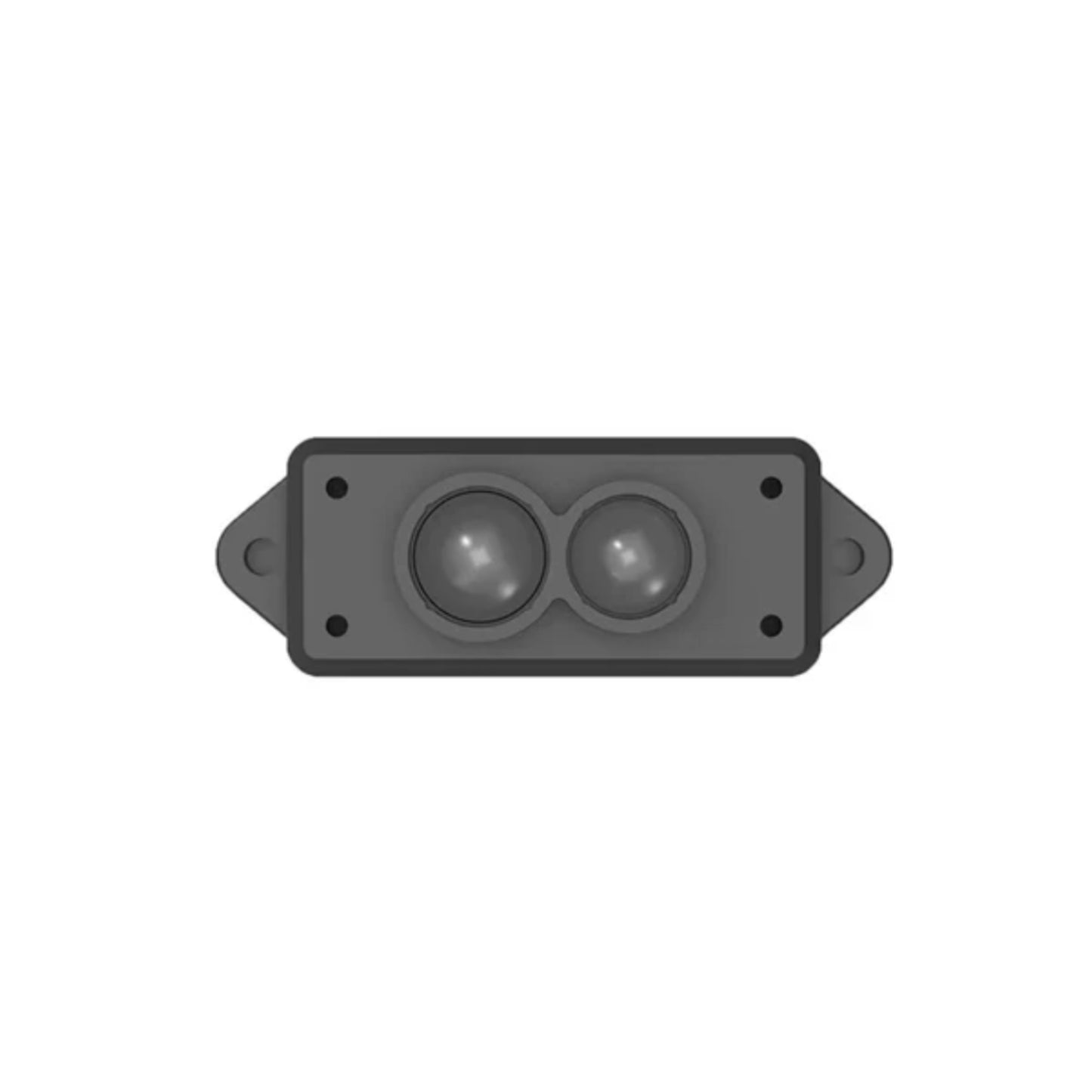

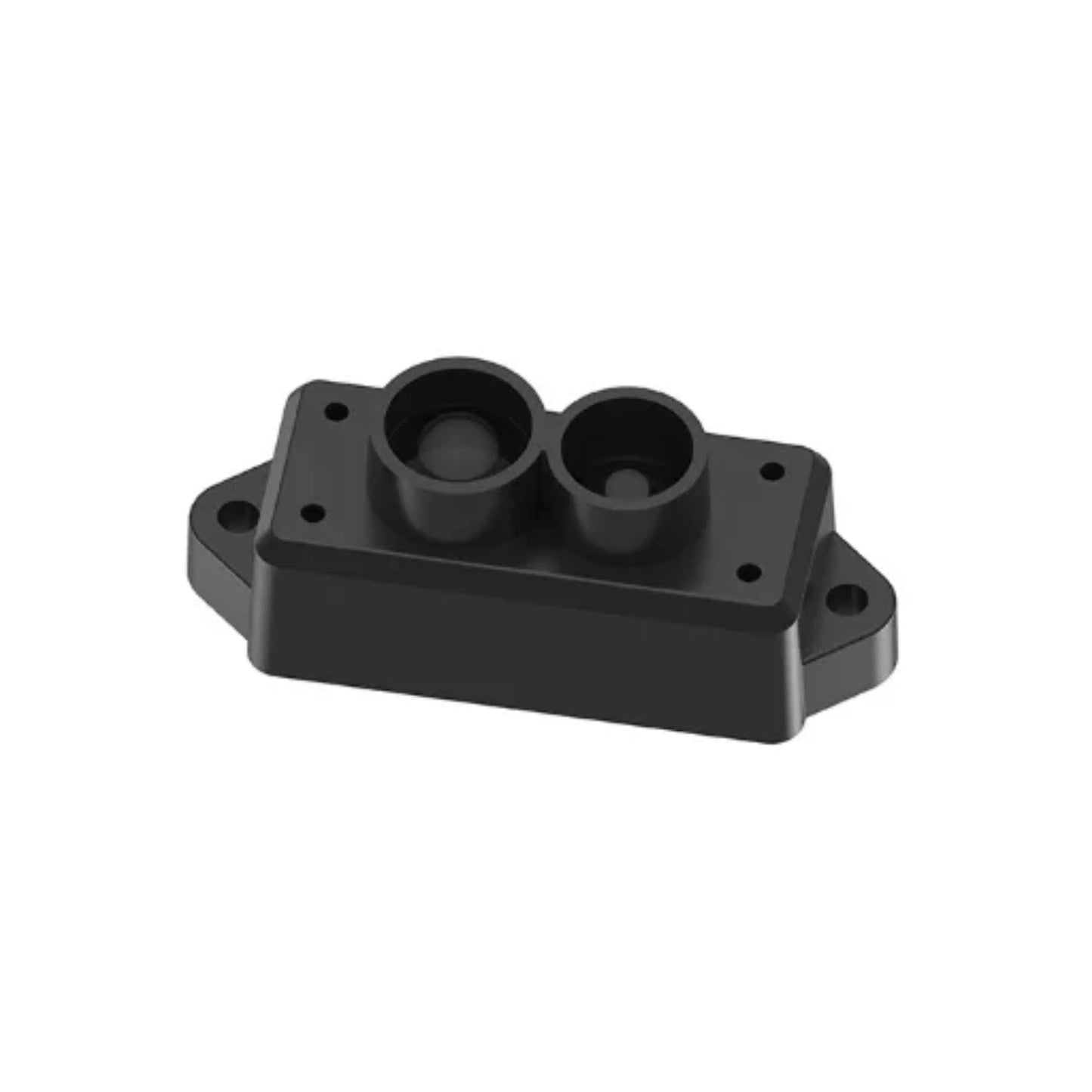

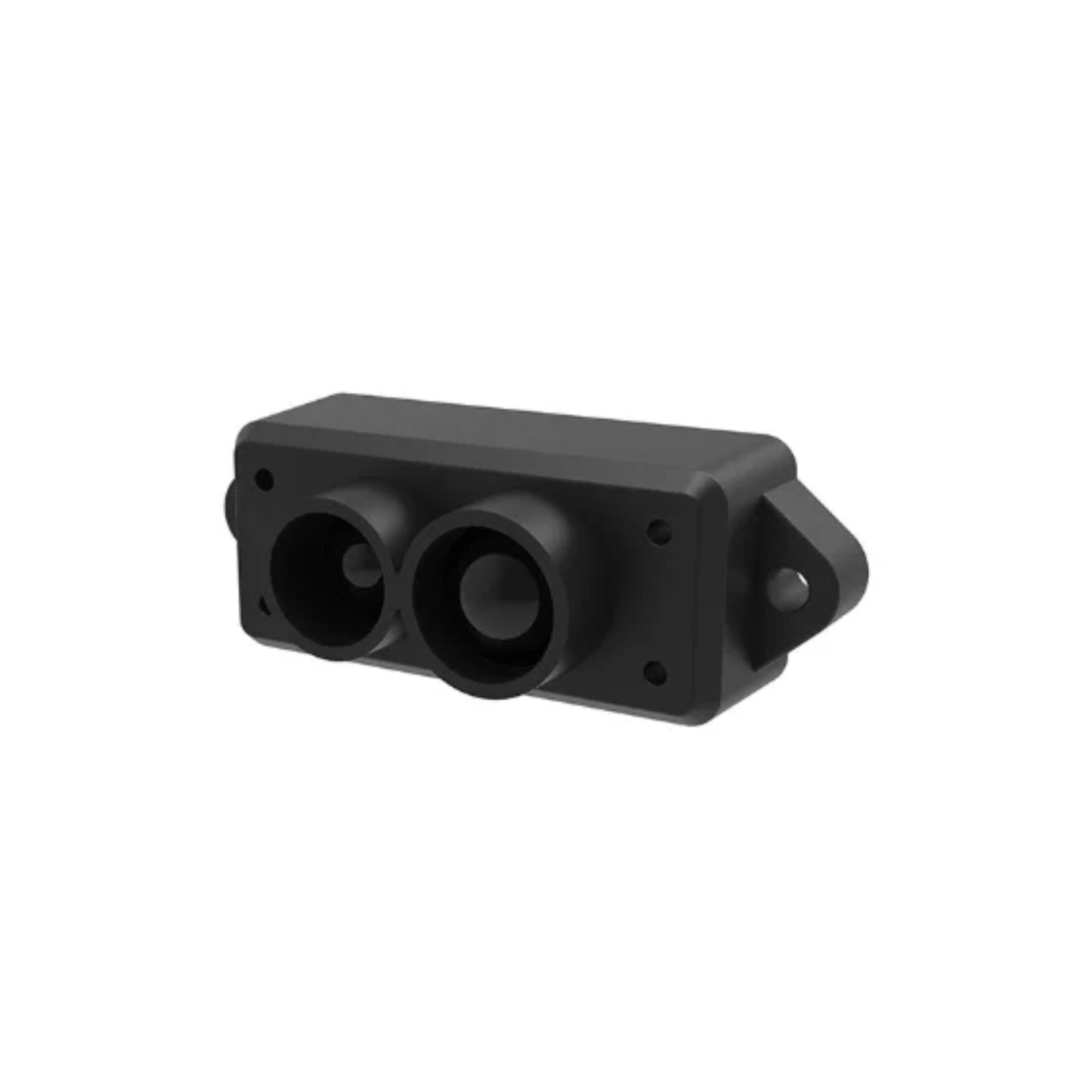

TFMini-S Micro LiDAR Distance Sensor is a single-point ranging LiDAR based on the TFmini upgrade. The blind zone is shortened from 30cm to 10cm, and the outdoor performance and accuracy of different reflectivity are improved.
The distance range is not disturbed by ambient light, which can be consistent with the indoor range and the accuracy is further optimized. The error performance at 10% reflectivity approaches the background of 90% reflectivity, and the interface supports UART and I2C switching at any time. It can achieve stable, accurate, sensitive, and high-frequency range detection.
Specifications:
- Type: LiDAR Distance Sensor
- Distance Measuring Range(M): 12
- Operating Range: 0.1m~12m@90%Reflectivity
- Accuracy: ±6cm@（0.1-6m) ±1%@（6m-12m）
- Field of View (FOV): 2Deg.
- Distance Resolution: 1cm
- Frame Rate(Hz): 100
- Ambient Light Immunity(Klux): 70klux
- Operating Temperature (°C): 0°C~60°C
- Supply Voltage (V): 5V±0.1V
- Average Current(mA): ≤140mA
- Power Consumption (W): ≤0.7W
- Peak Current(mA): 200

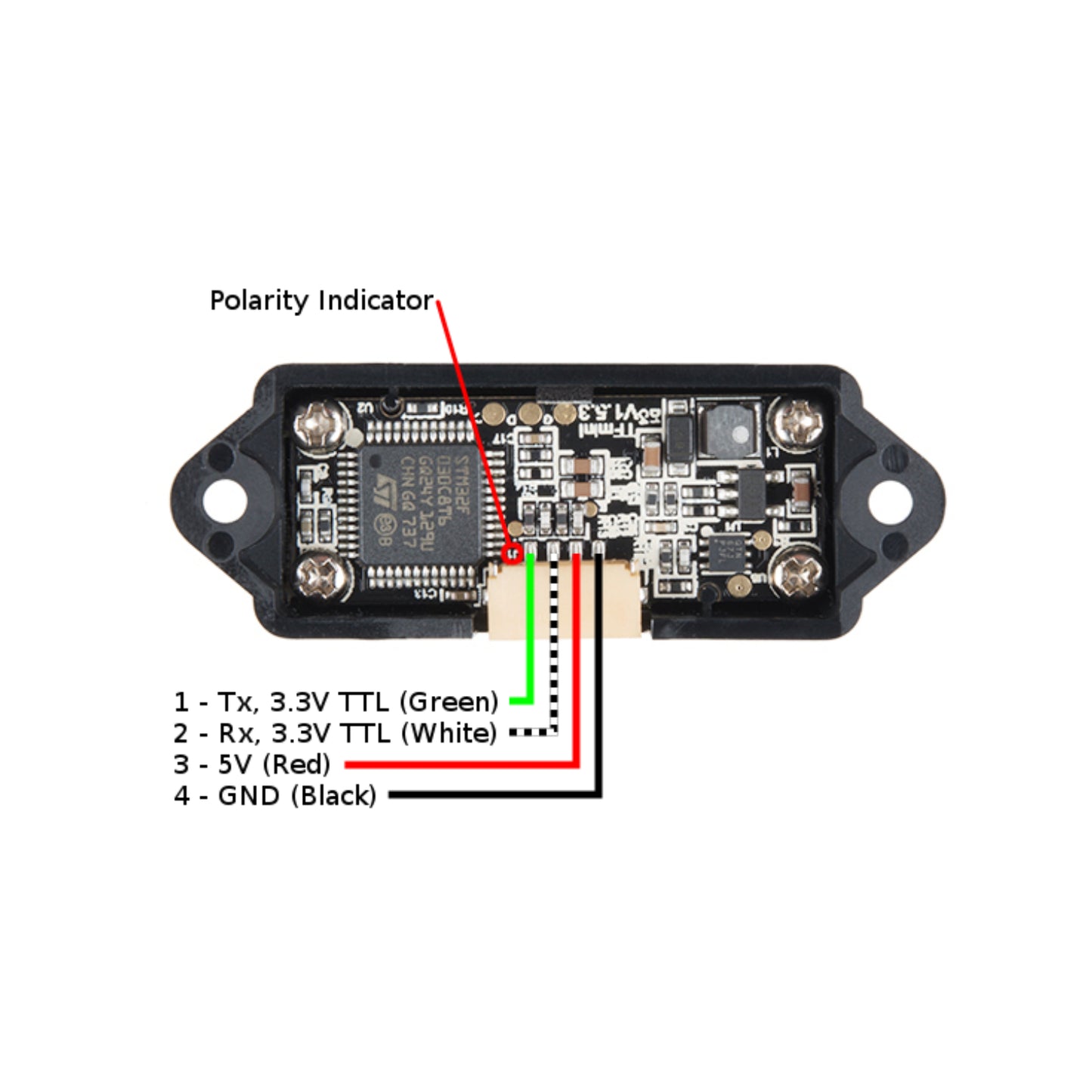

- Communication Interface: UART / I2C
Features:
- High frame rate(up to 1000Hz).
- Low power consumption.
- Small size.
- Lightweight.
Applications:
- Unidirectional ranging LiDAR.
- Obstacle avoidance.
- Assisted landing.
- Terrain following.
- Robots' outdoor obstacle avoidance.
- Intelligent parking. Crane operations.
- Vehicle position sensing.
- Vehicle detection for barrier gate control.
- High-precision & High-speed measurement.
- Eye-safe infrared LED light.
- Compact size, lightweight.
- Good performance for height fixing and terrain-following drones.
Package Included:

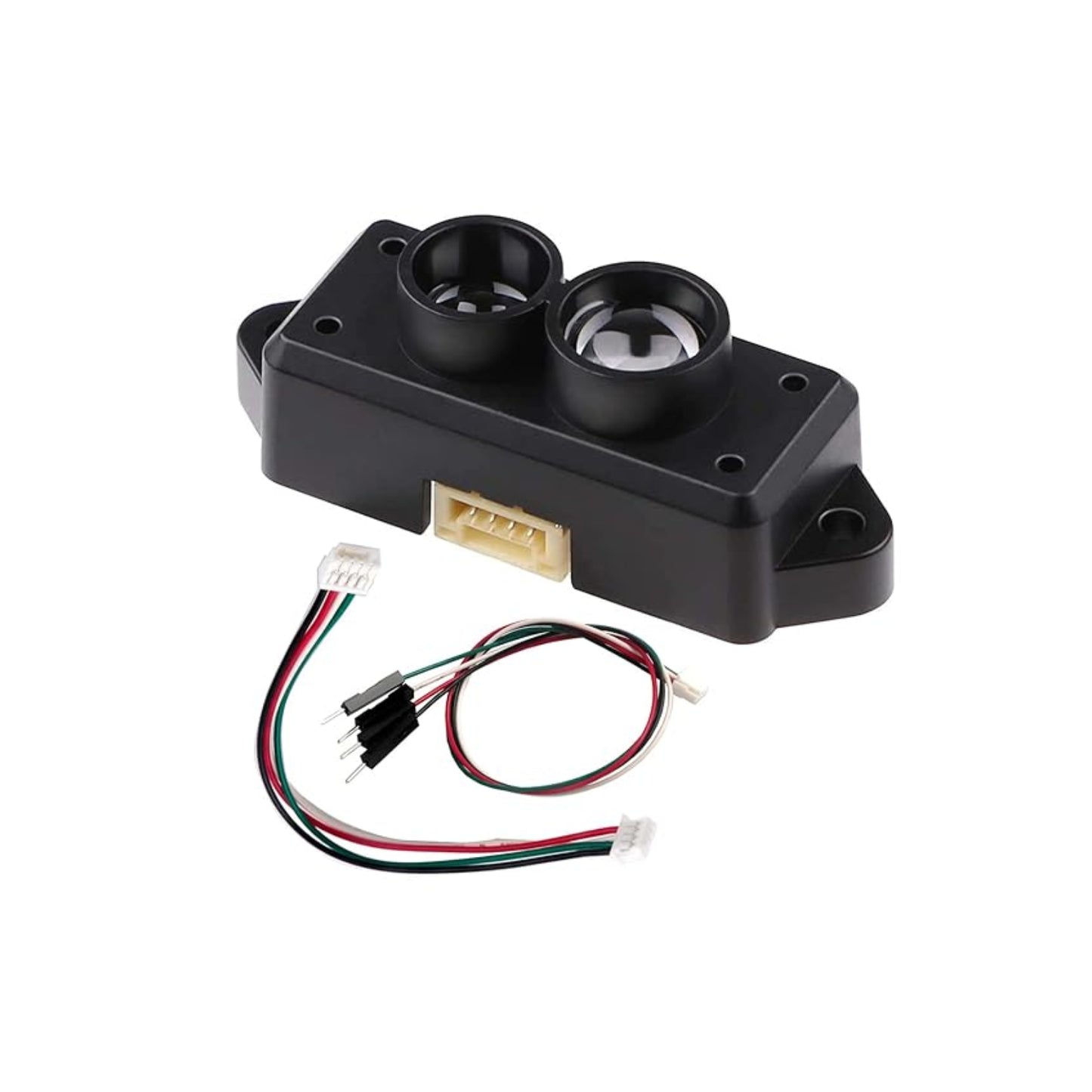

1 x TFMini-S Micro LiDAR Distance Sensor UART LiDAR Sensor High Accuracy TFMini-S 12m LiDAR Module For Drones, UAV, UAS, and Robotics
