Description:

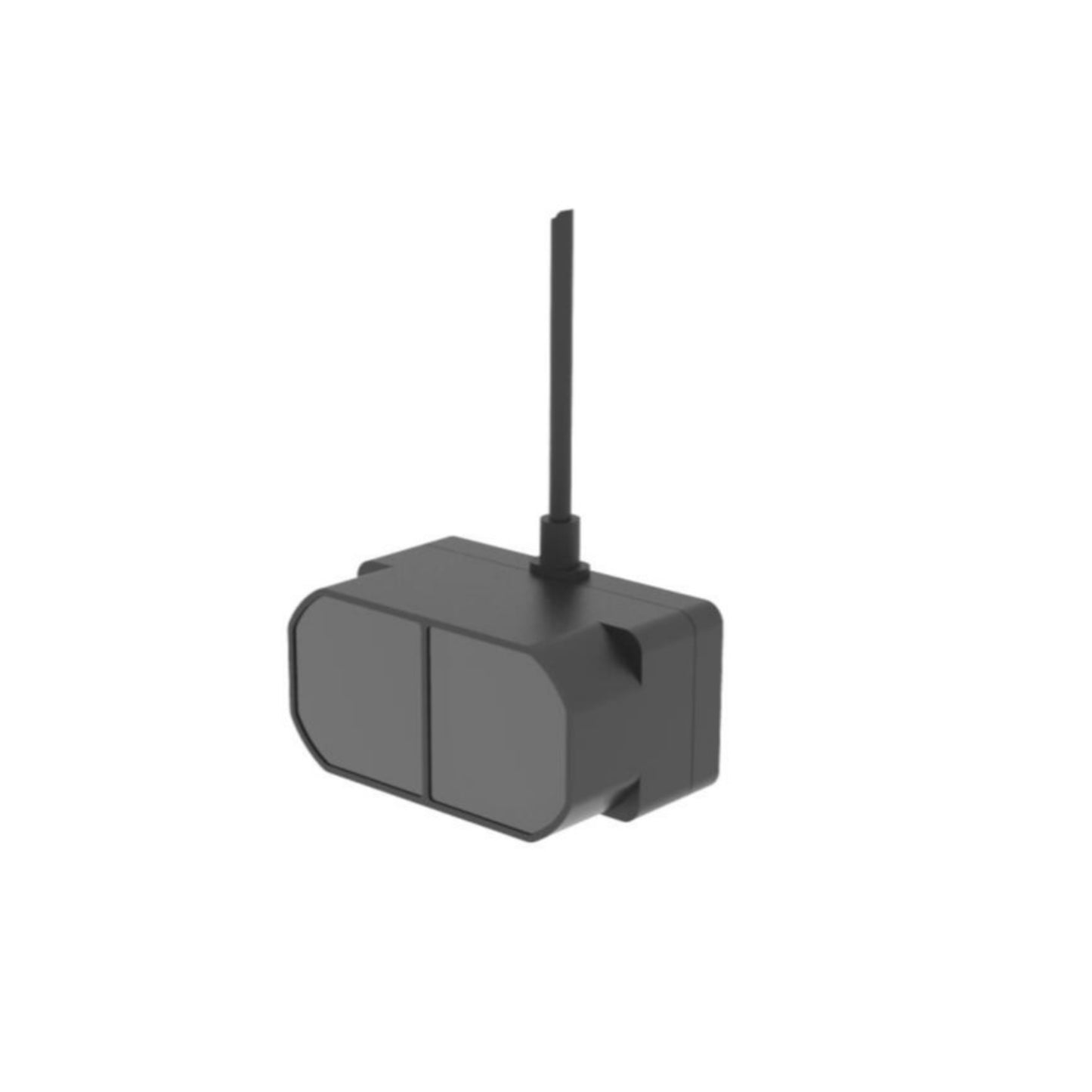

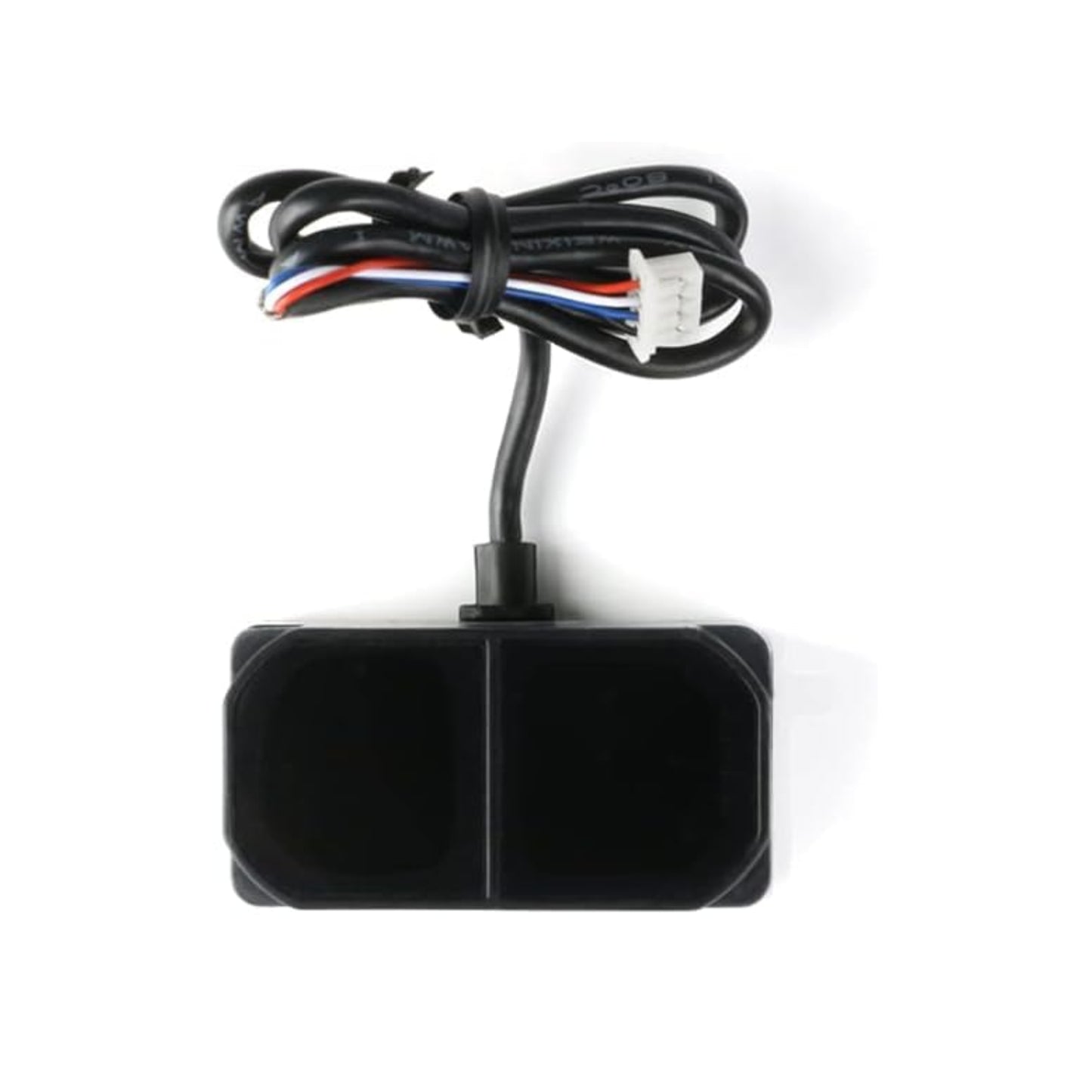

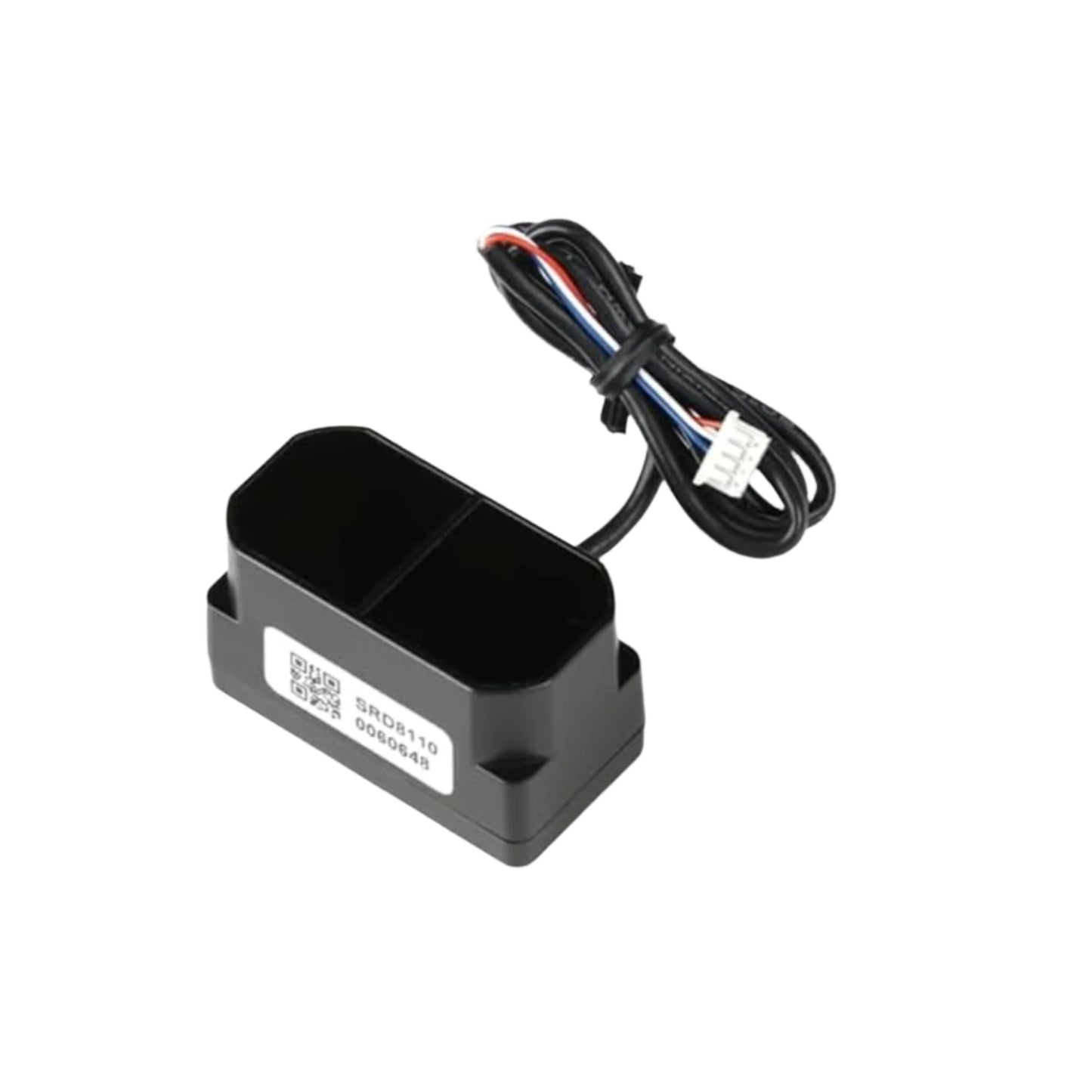

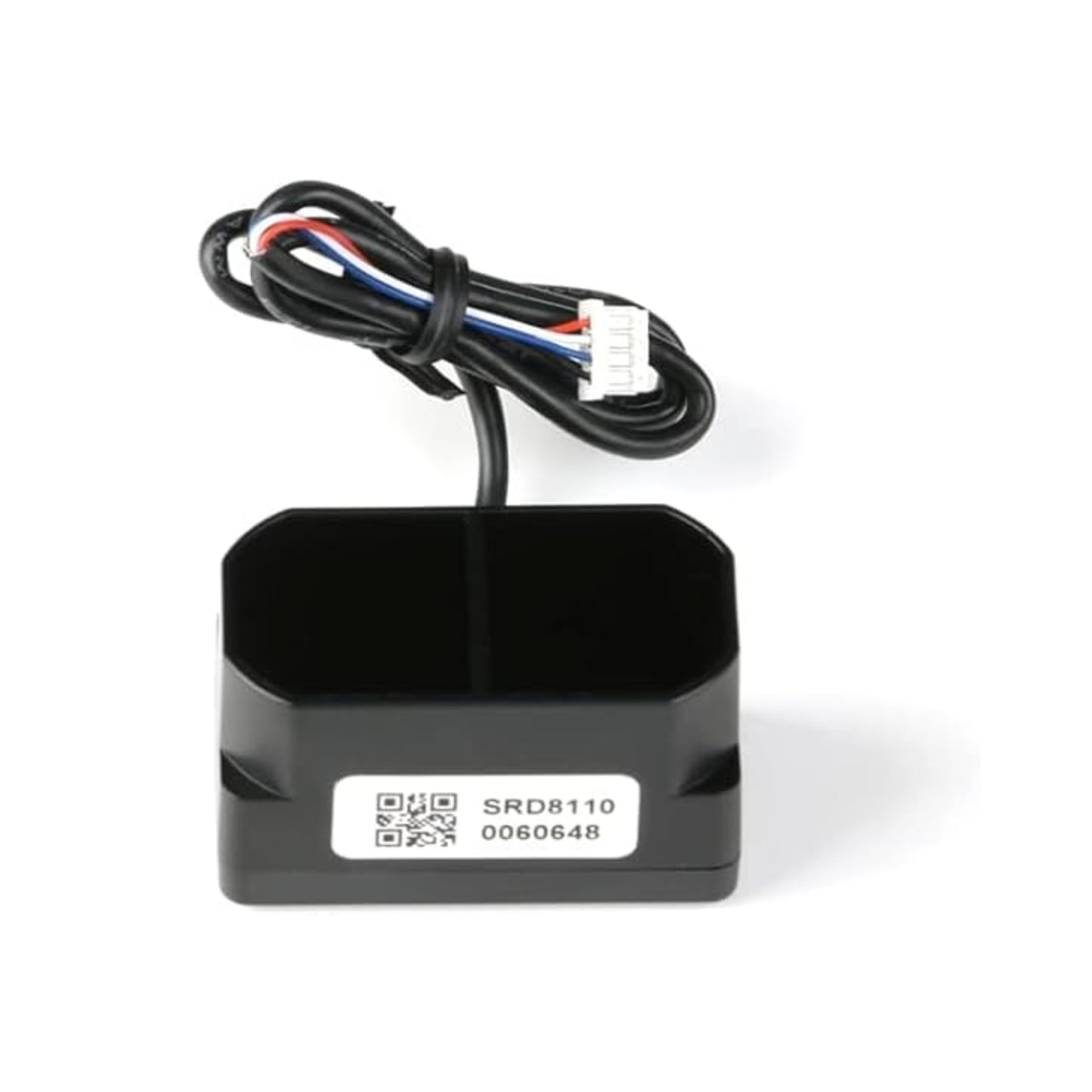

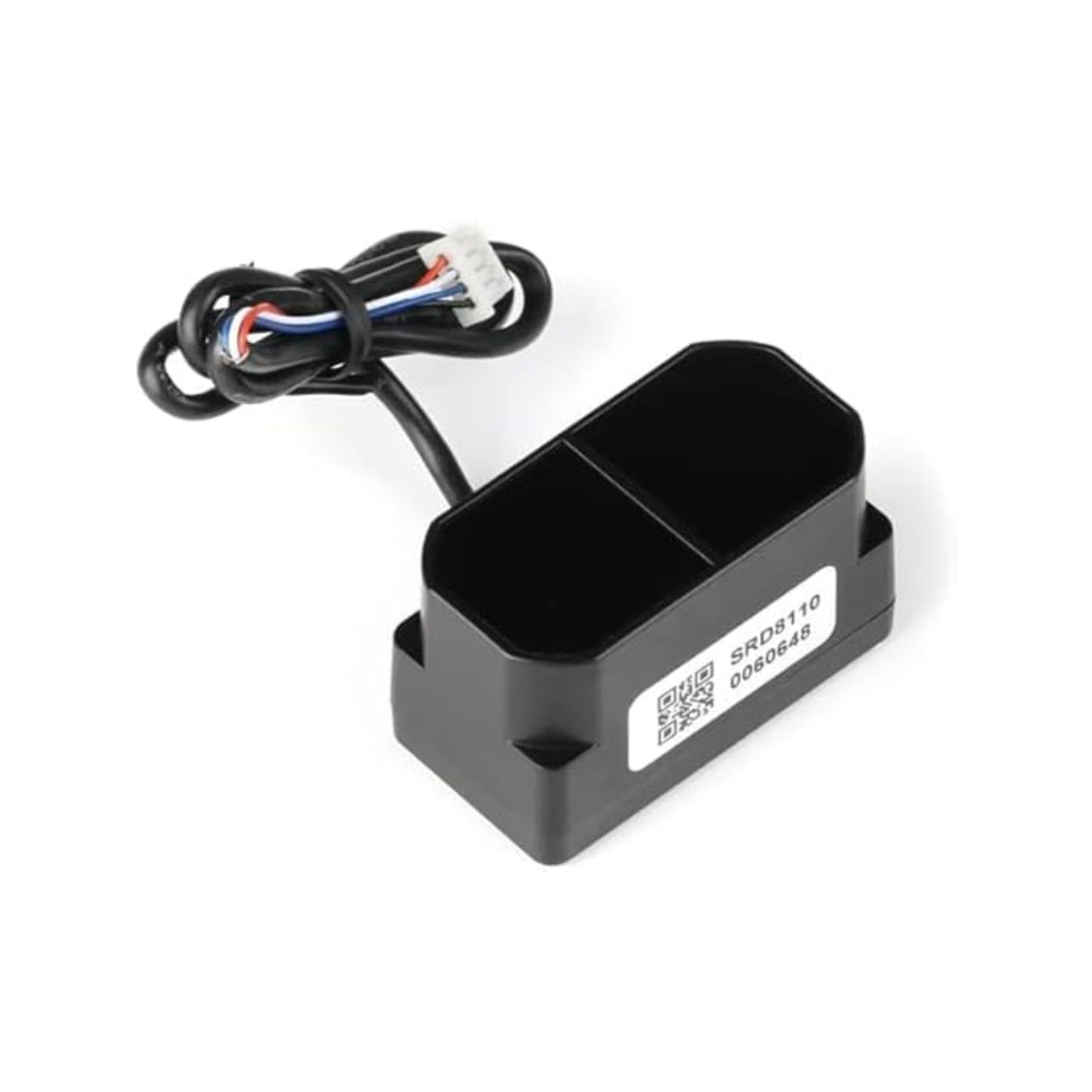

TFmini Plus LiDAR Sensor is an upgraded product based on TFmini, based on the TOF (Time of Flight) principle, with unique optical, electrical, and algorithm design, mainly to achieve stable, accurate, high-sensitivity, and high-speed distance measurement functions. The product has the characteristics of low cost, small size, low power consumption, etc., and the power consumption is 550m, with a UART interface for Arduino Raspberry Pi.
With IP65 protection, it is more adaptable to different environments such as outdoor strong light, different temperatures, and different reflectivity. TFmini Plus has stable performance, easy integration, and a wide range of application fields and scenarios. Suitable for unmanned aerial vehicles, industrial measurement, robots, and smart homes.
Specifications:
- Type: LiDAR Distance Sensor
- Supply Voltage: 5V±0.5V; ≤110mA
- Power Consumption: 550mW
-
Operating Range: 0.1m ~ 12m
- Frame Rate: 1-1000Hz(adjustable)
- Ambient Light Immunity: 70klux
- Operating Temperature: -20°C ~ +60°C
- Communication Port: UART
- Distance Resolution: 5mm
- Peak Current: 500mA
- Protection: IP65
- FOV: 3.6°
Features:
- Distance range up to 12 meters
- Has a higher Accuracy of up to 1cm resolution
- High frame rate of 1000Hz (up to 1000 readings every second)
- A narrow FoV of 3.6° suitable for point detection
- Wide range of temperature adaptation and voltage input.
- TFMini Plus LiDAR Sensor has higher Accuracy and frequency
- Wide operating range 0.1-12m
- Small size 35mm*18.5mm*21mm easy to install and integrate
Applications:
- Robots Obstacle avoidance.
- Drones Anti-collision.
- UAV Terrain Following.
- UAV Height Fixing / Distance Keeping.
- Level Measurement.
- Tank / Bins Status Detection.
- Intelligent Parking.
- Crane Operations.
- Wheel Ahead Detection/Alert.
- Vehicle Position Sensing.
- Vehicle Detection for Barrier Gate Control.
- Glasses for Blind Person.
- Counting.
- Portable Ruler.
- Triggering Switch.
- Part of Rotating LiDAR.
- Pro-light.
Package Included:
1 x TFMini Plus LiDAR Sensor TFMini Plus LiDAR Distance Sensor With 12m Range For Robotics, Drones and Smart IoT Detection
