Description:

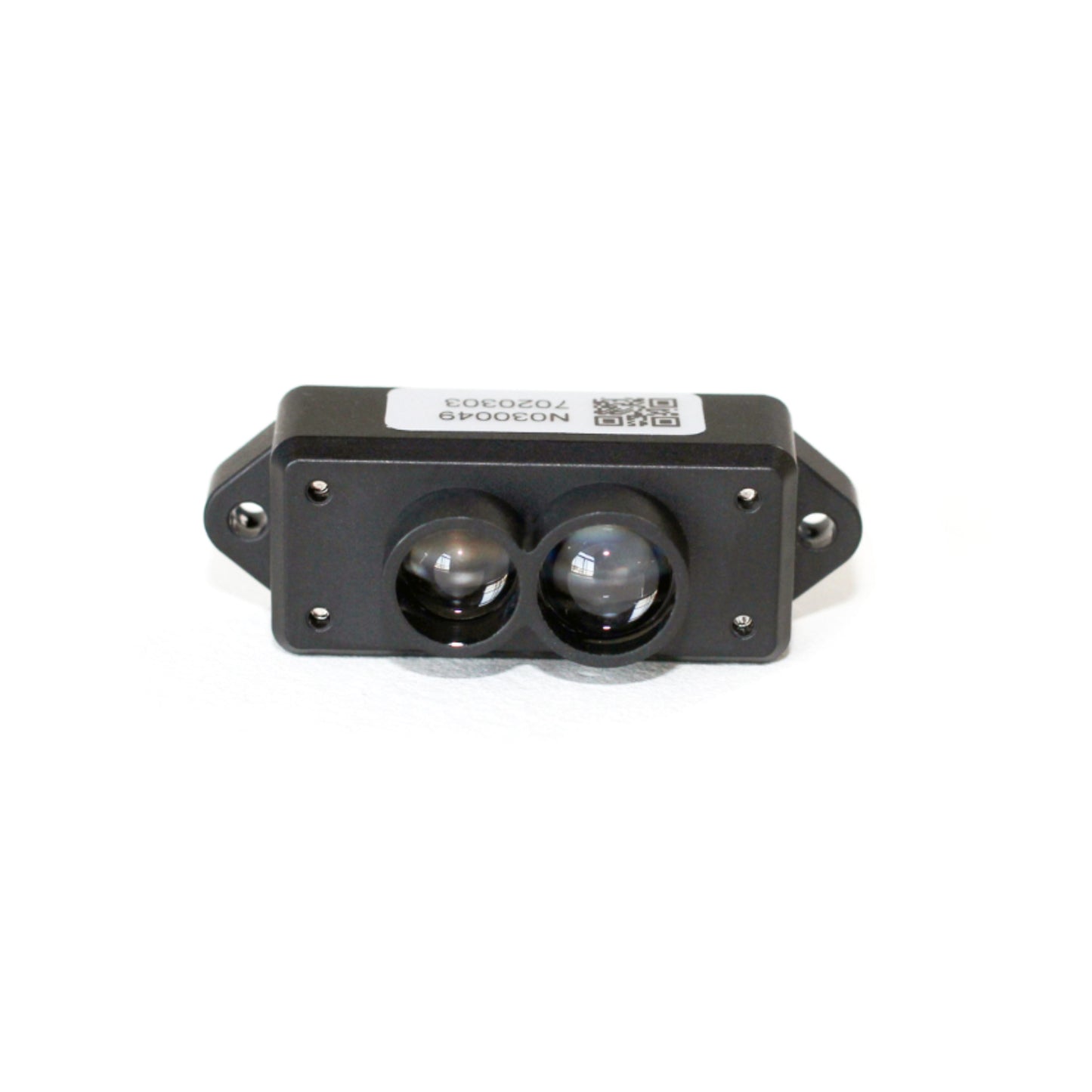

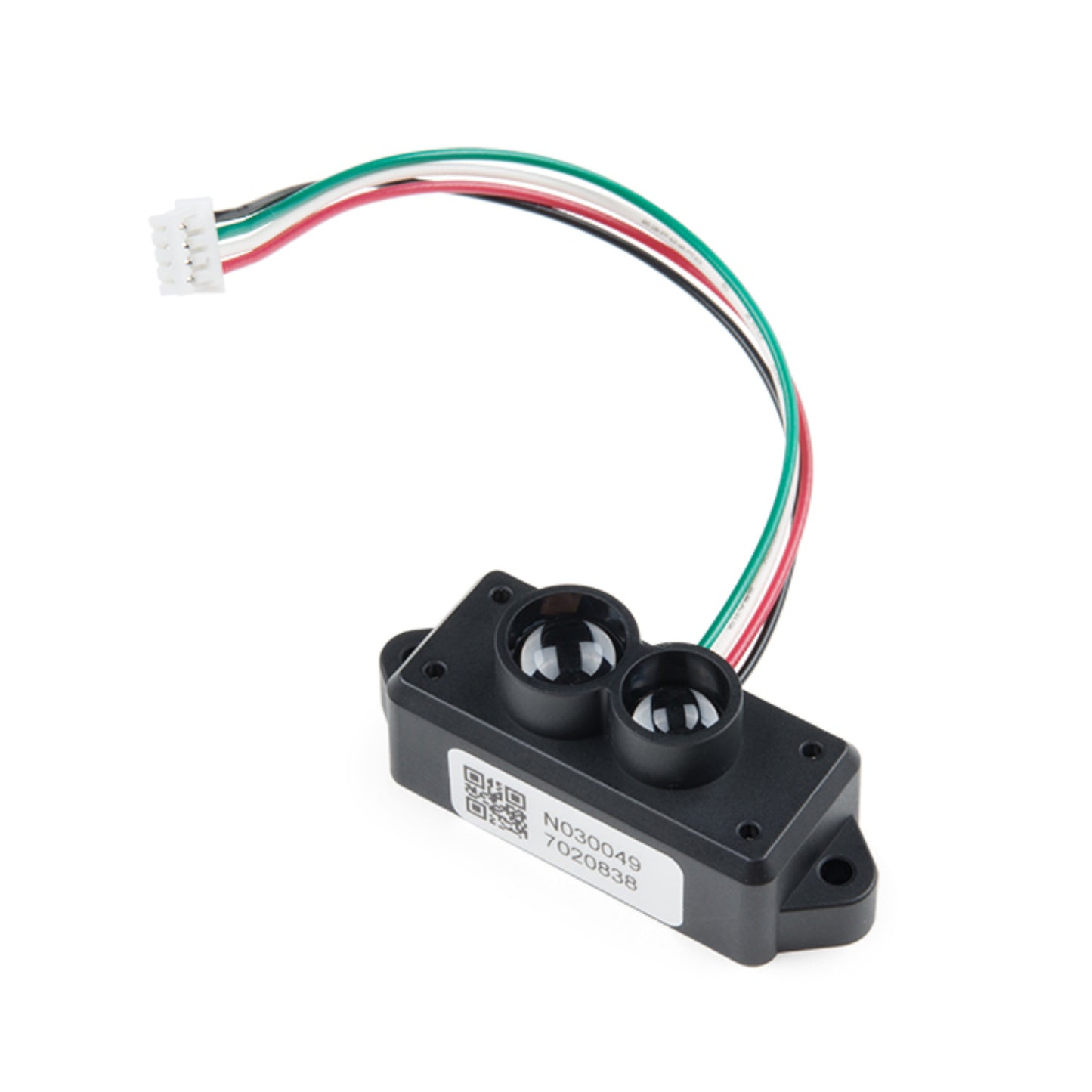

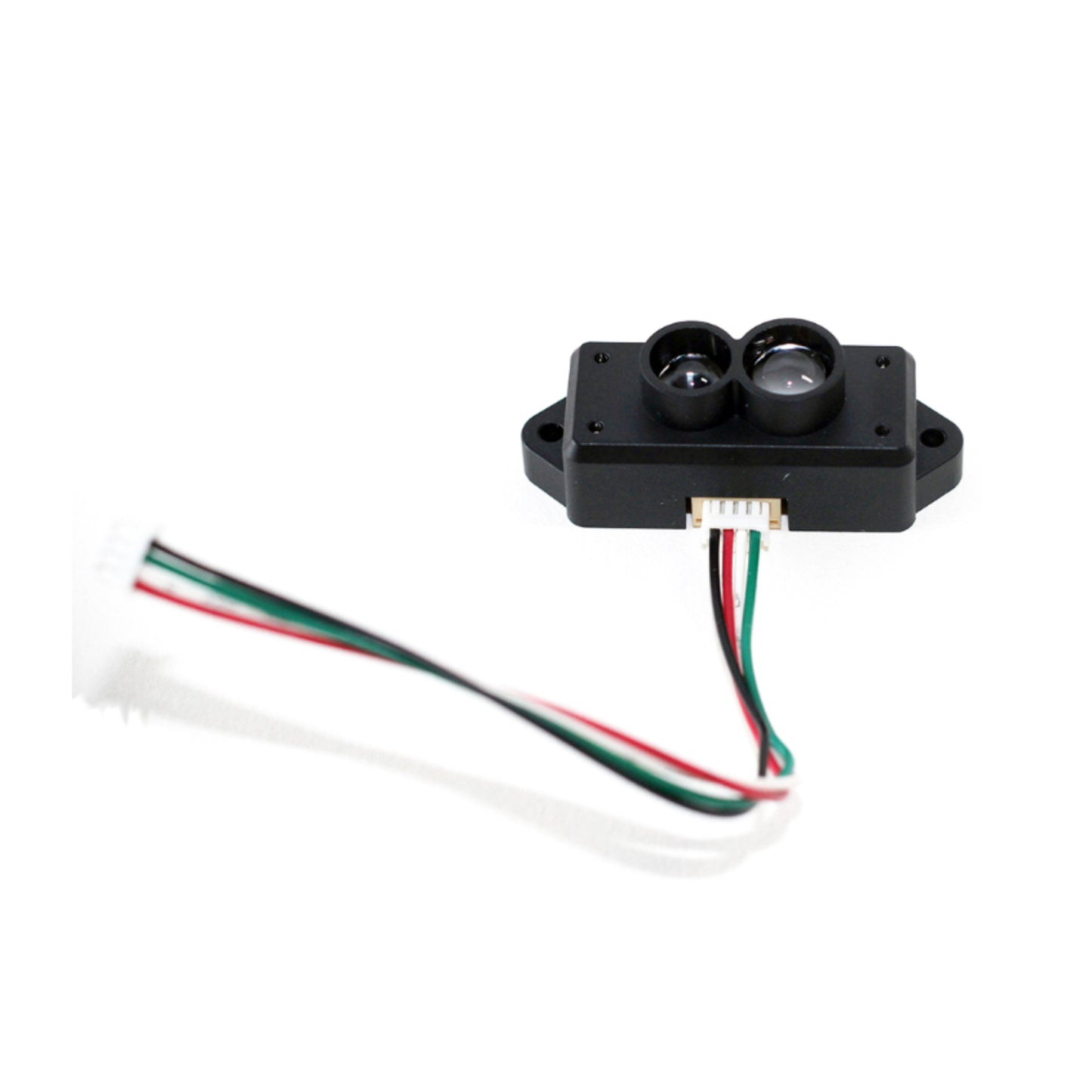

The TFMini Micro LiDAR Distance Sensor (12m) is a compact, low-cost, and energy-efficient solution for drones, UAVs, UAS, and robots. Built on the Time of Flight (TOF) principle, it delivers precise, high-speed distance detection with exceptional accuracy.
Its unique optical, structural, and electronic designs make it ideal for both indoor and outdoor environments. With low power consumption and a small form factor, the TFMini expands the application potential of LiDAR technology in autonomous systems, offering a solid foundation for future smart solutions. Perfect for a wide range of industrial and robotic applications.
Specifications:
- Model: TFMini Micro LiDAR
- Type: LiDAR Distance Sensor
- Operating Distance (M): 0.3 ~ 12
- Avg. Power Consumption (W): 0.12
- Operating Voltage (VDC): 4.5 ~ 6
- Acceptance Angle: 2.3°
- Accuracy: 1% (less than 6m), 2% (6m-12m).
- Communication Mode: UART
- Lense Viewing Angle (FOV): 4°
- Frequency (Hz): 100Hz.
- Light Sensitivity: 70,000Lux.
- Resolution Ratio: 5 mm
- Wavelength (nm): 850
Features:
- Small size
- Lightweight
- Low power consumption
- High frame rate(up to 1000Hz)
Applications:
- Unidirectional ranging LiDAR.
- Obstacle avoidance.
- Assisted landing.
- Terrain following.
- Robots' outdoor obstacle avoidance.
- Intelligent parking. Crane operations.
- Vehicle position sensing.
- Vehicle detection for barrier gate control.
- High-precision & High-speed measurement.
- Eye-safe infrared LED light.
- Compact size, lightweight.
- Good performance for height fixing and terrain-following drones.
Wiring Information:
Package Included:
1 x TFMini Micro LiDAR Distance Sensor TFMini 12m LiDAR Sensor For Drones UAV UAS Robots, 3D Mapping, and Obstacle Avoidance
