Description:

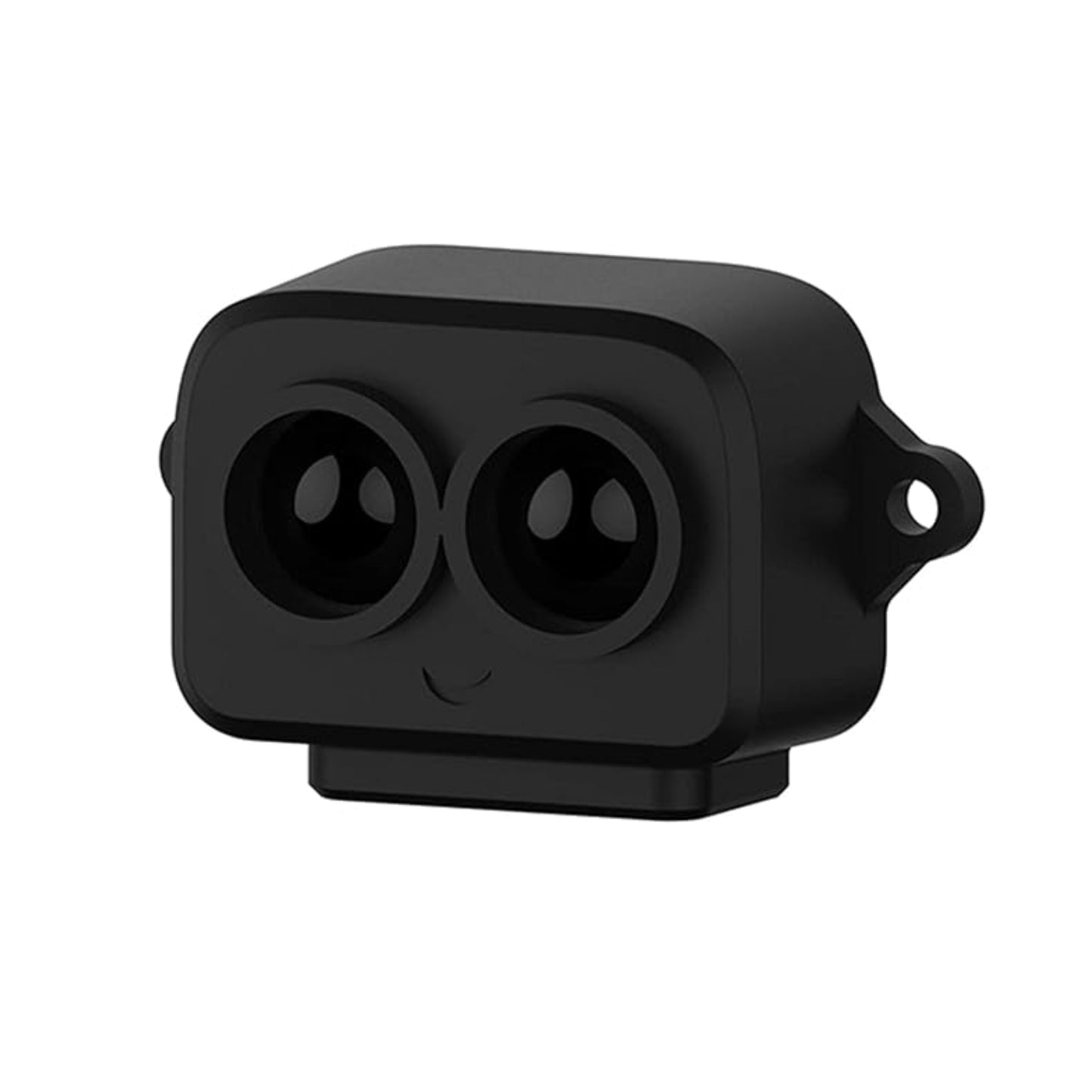

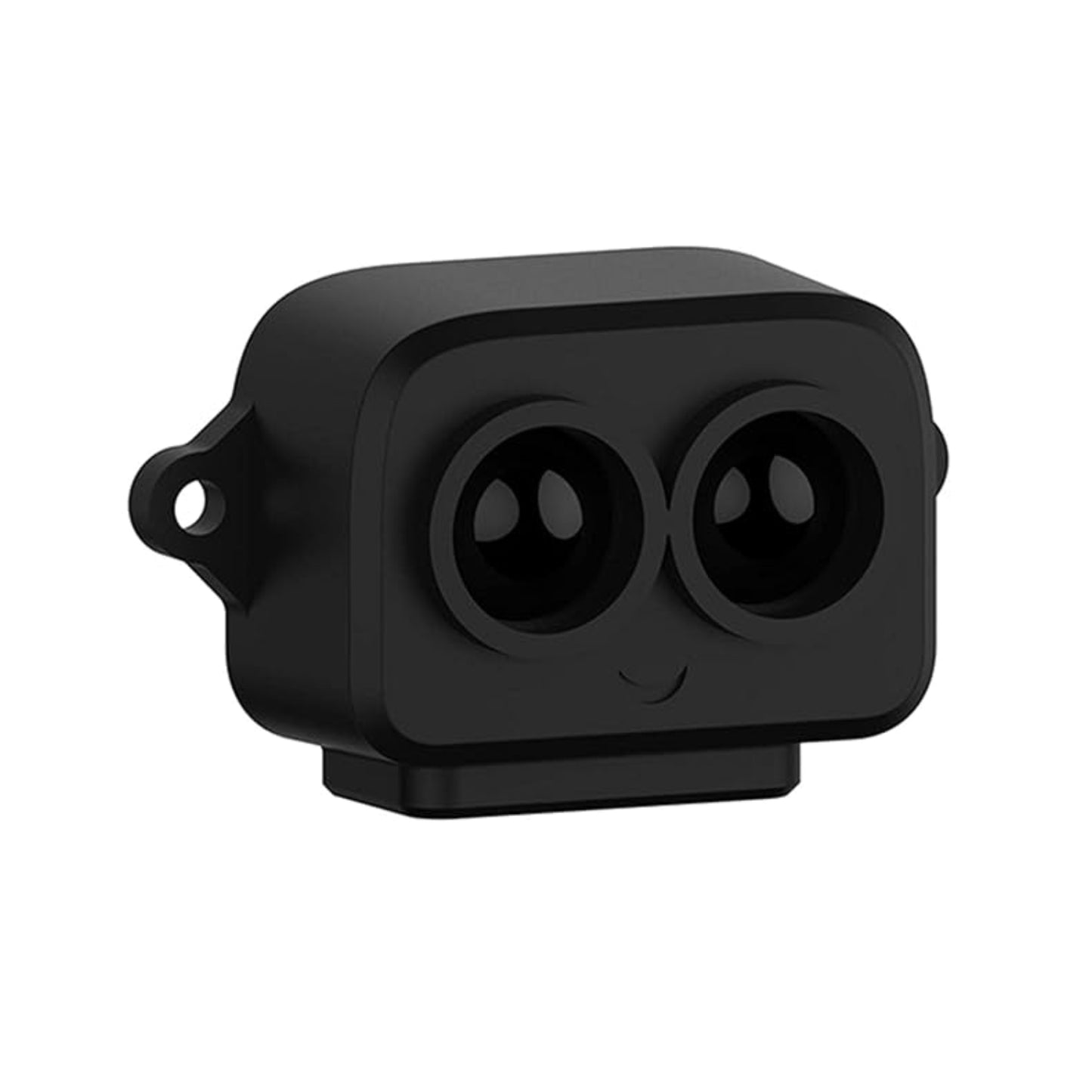

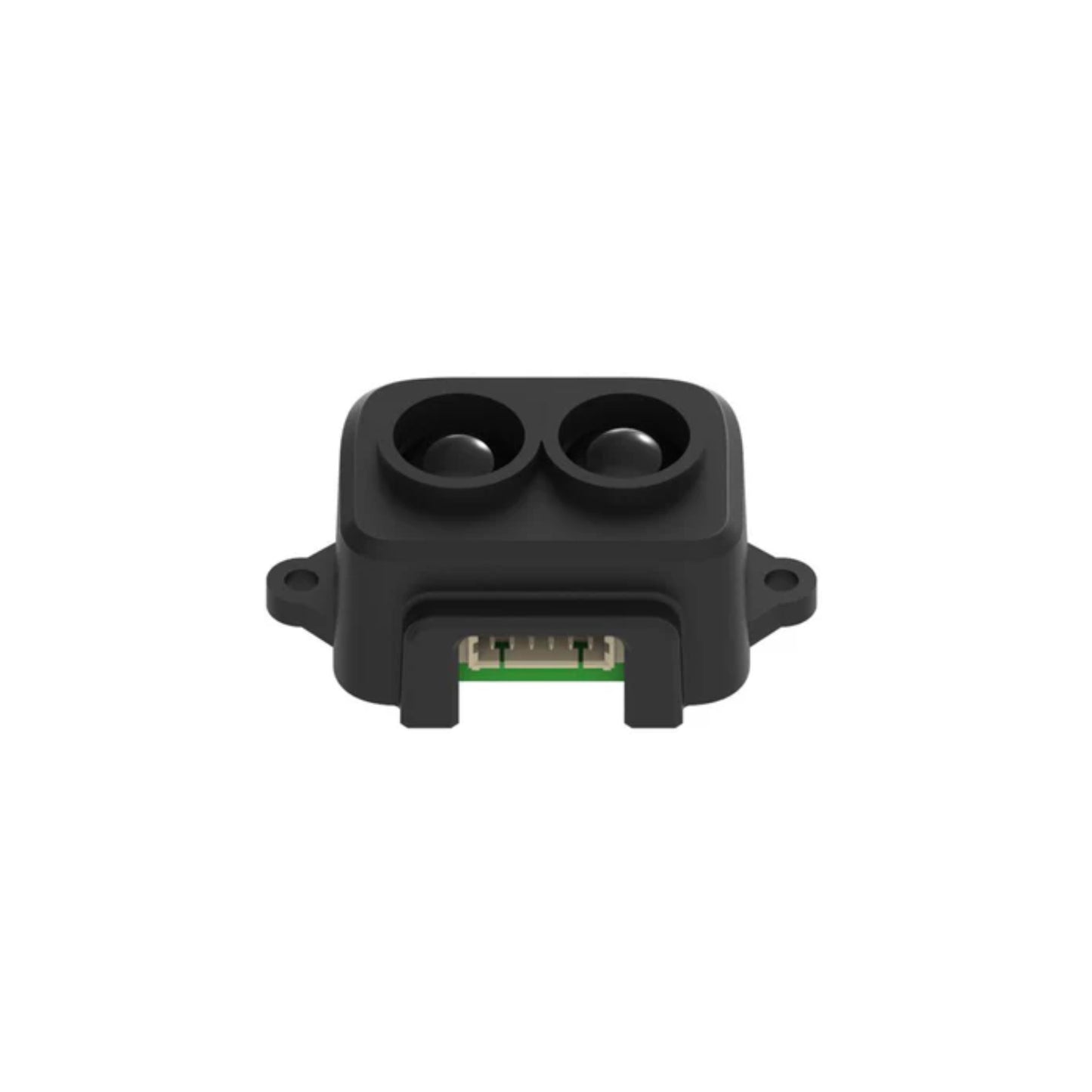

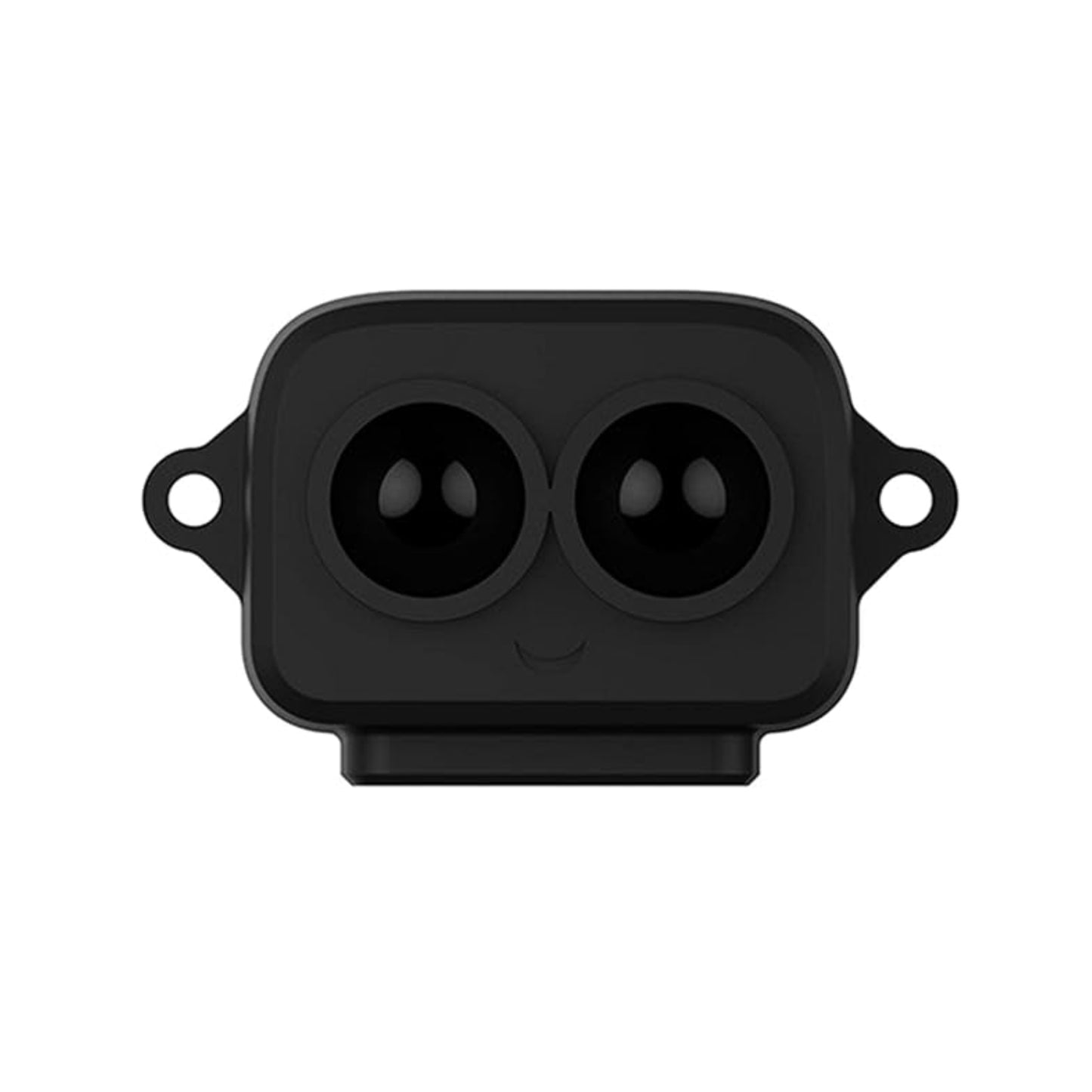

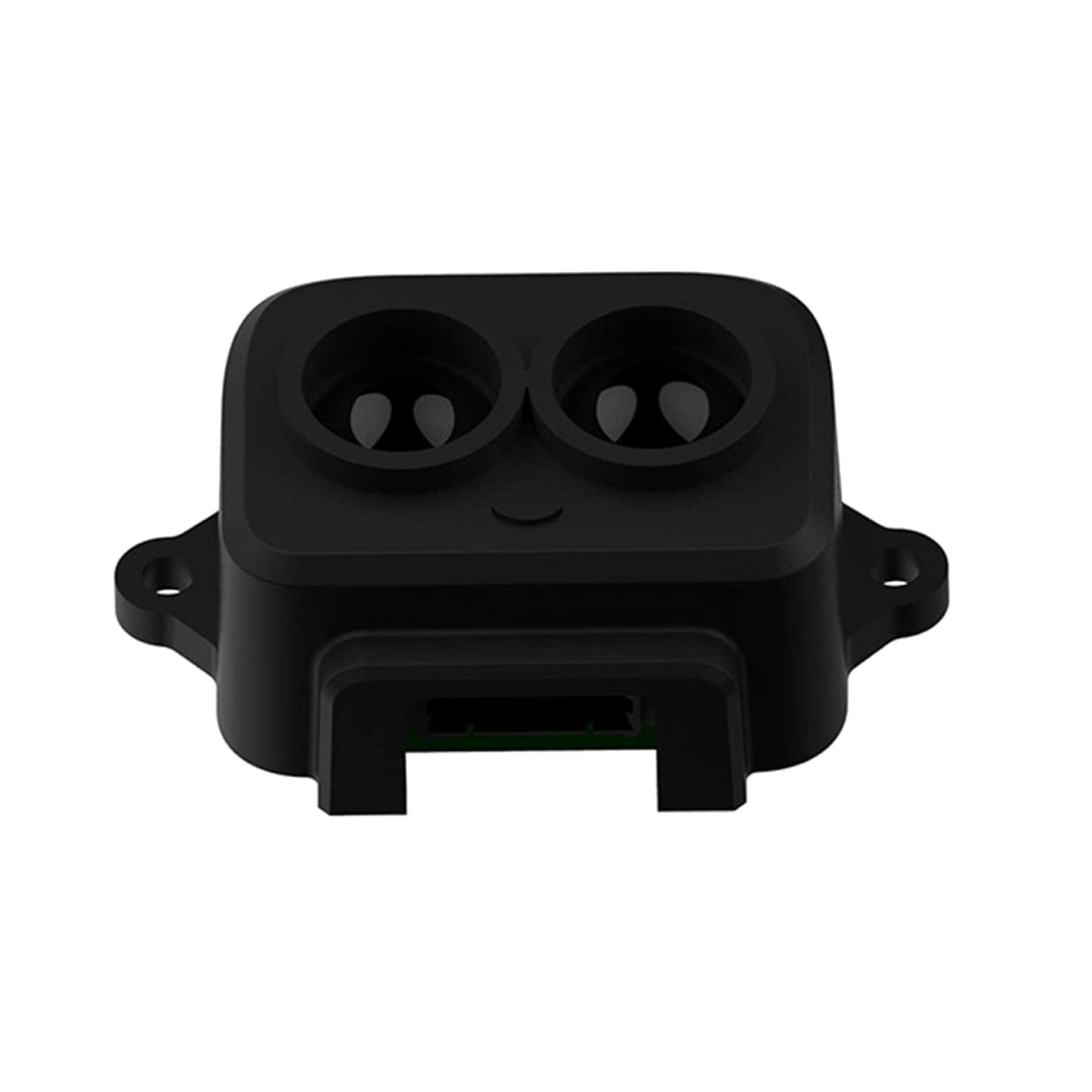

TF-Luna LiDAR Ranging Sensor has highly stable accurate and sensitive ranging detection. it is suitable for scenarios with strict load requirements. Low-cost ranging LiDAR module with 0.2-8m operating range. Micro LiDAR Distance Sensor is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters to offer excellent distance measurement performances in complex application fields and scenarios.
Specifications:
- Type: TF-Luna LiDAR Sensor
- Supply Voltage: 3.7-5.2V
- Data Interface: UART and I2C
- Operating Range: 0.7-86m
- Distance Resolution: 1.1cm
- Power Consumption: no more than 0.35W
- Frame Rate: 1-250Hz,
- Frequency: 100Hz
- FOV: 2 Degree
- Range: 8M
- Color: Black

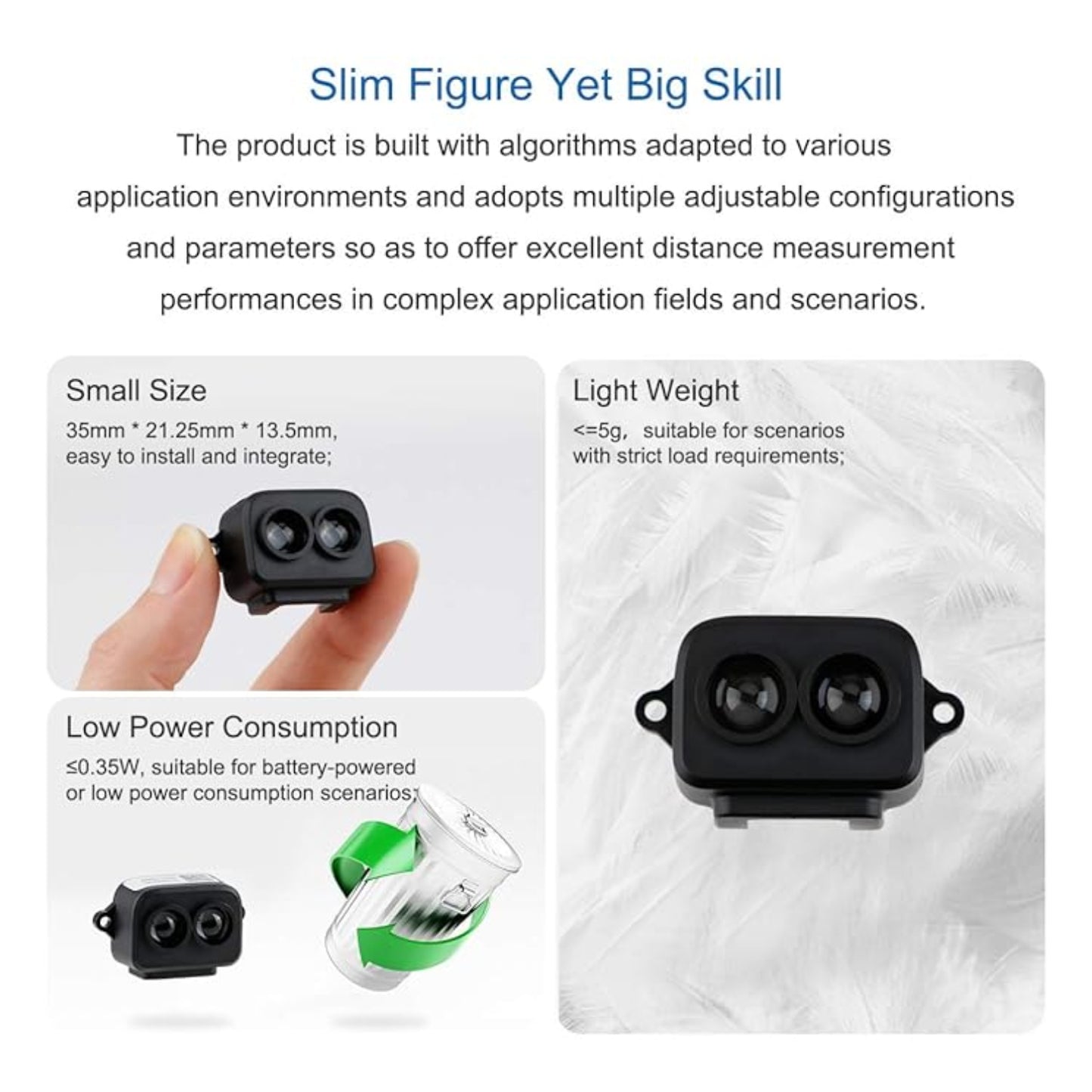

Features:
- Wide range of temperature adaptation and voltage input.
- It has high accuracy and frequency.
- The range is up to 8 meters.
- Low power consumption.
- Lightweight.
- Small size.
Application:
- Auxiliary focus
- Elevator projection
- Intrusion detection
- Level measurement
- UAV/UAS Robots
Package Included:

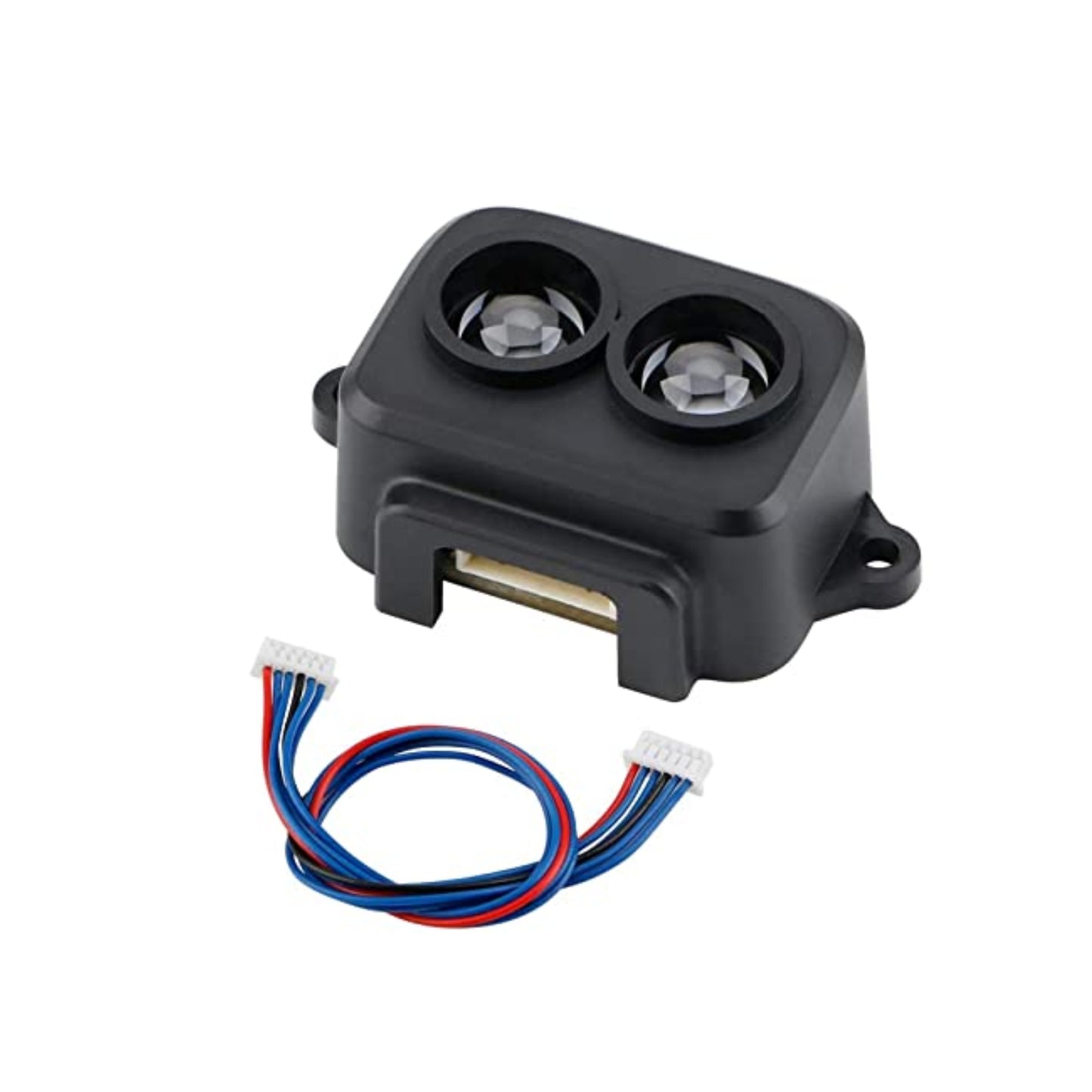

1 x TF-LUNA LiDAR Distance Sensor with Cable
