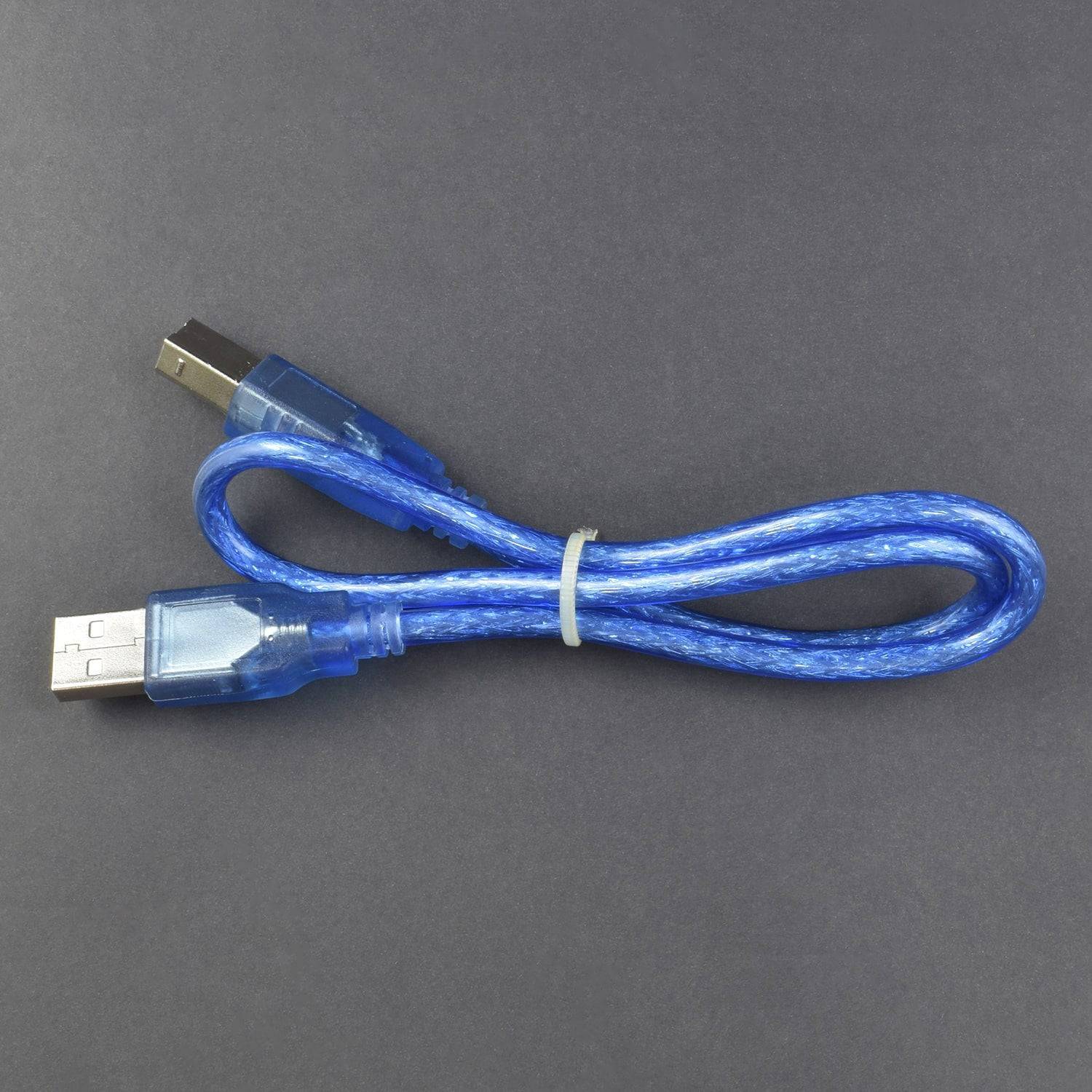

• Arduino uno with usb cable- 1
• Arduino Leonardo with USB cable- 1

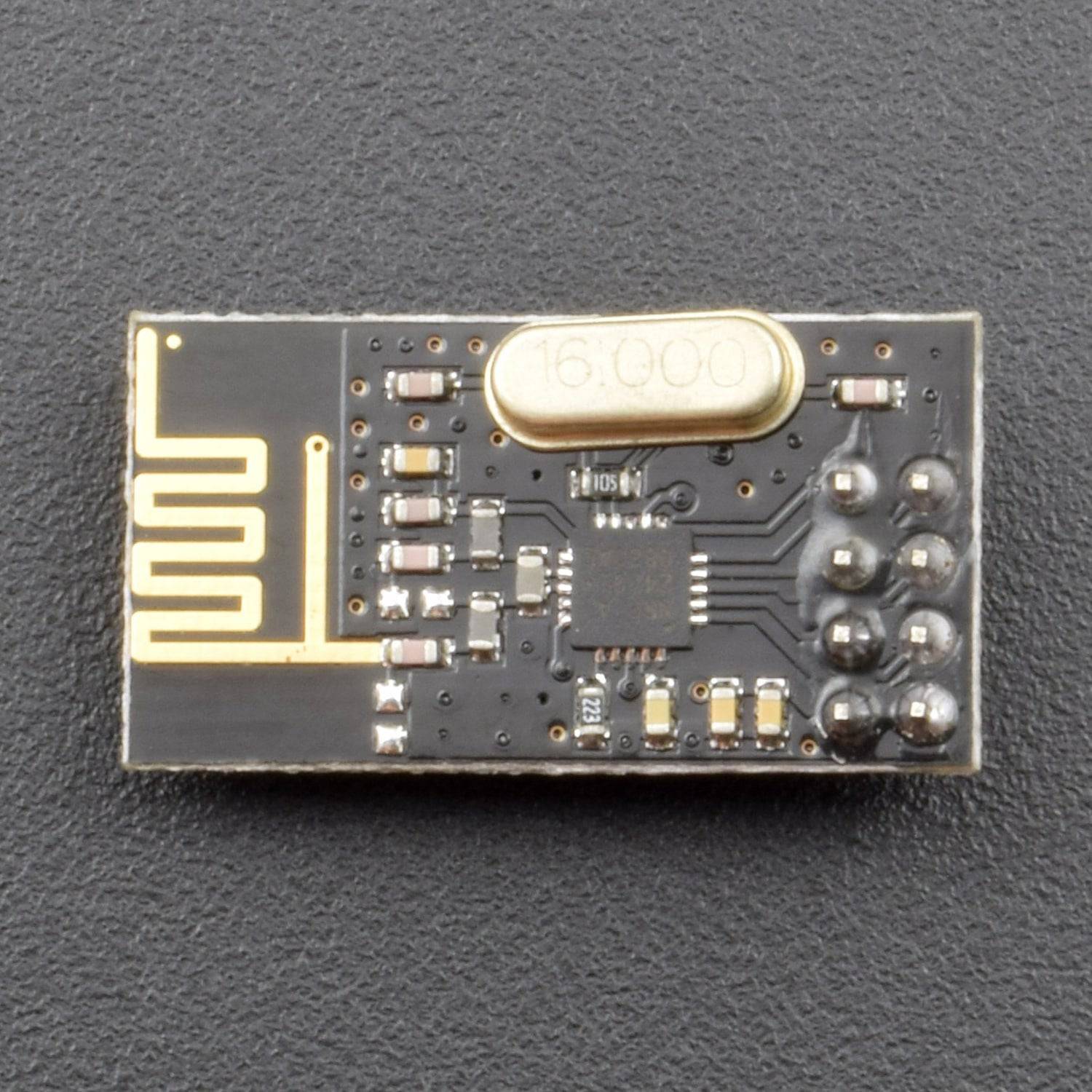

• NRF24lo1 - 2

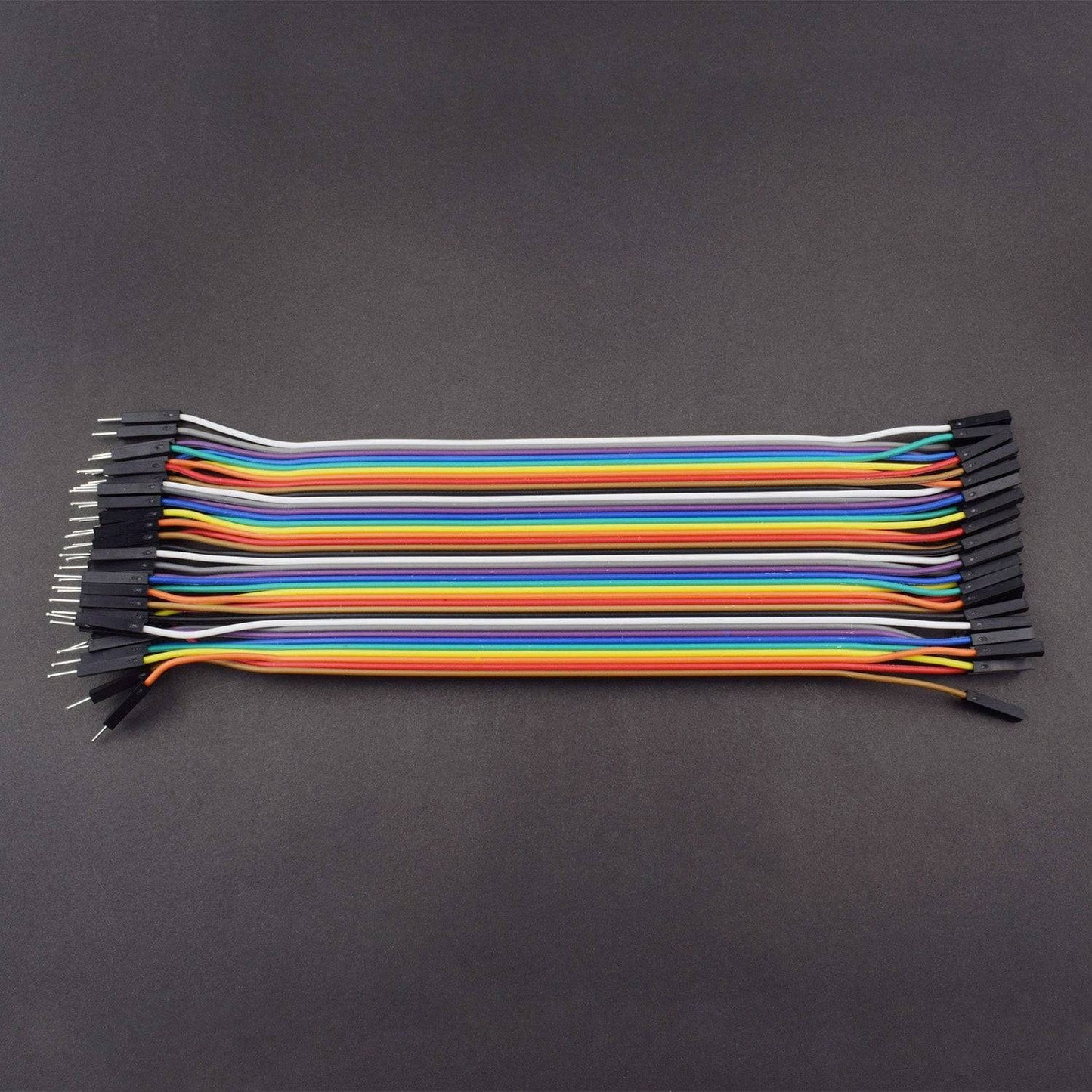

• Jumper wires MALE TO FEMALE – 40 piece

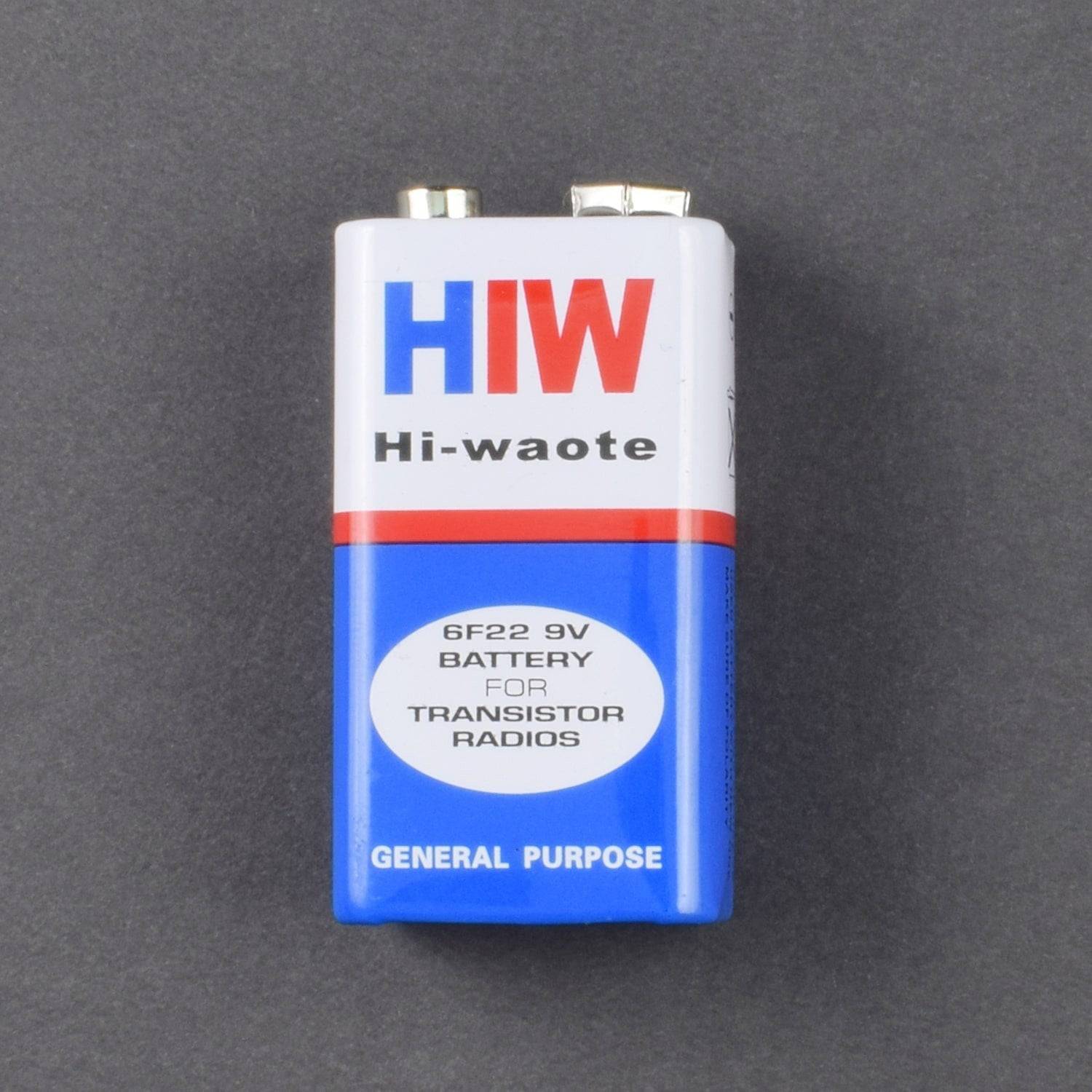

• 9v battery - 2

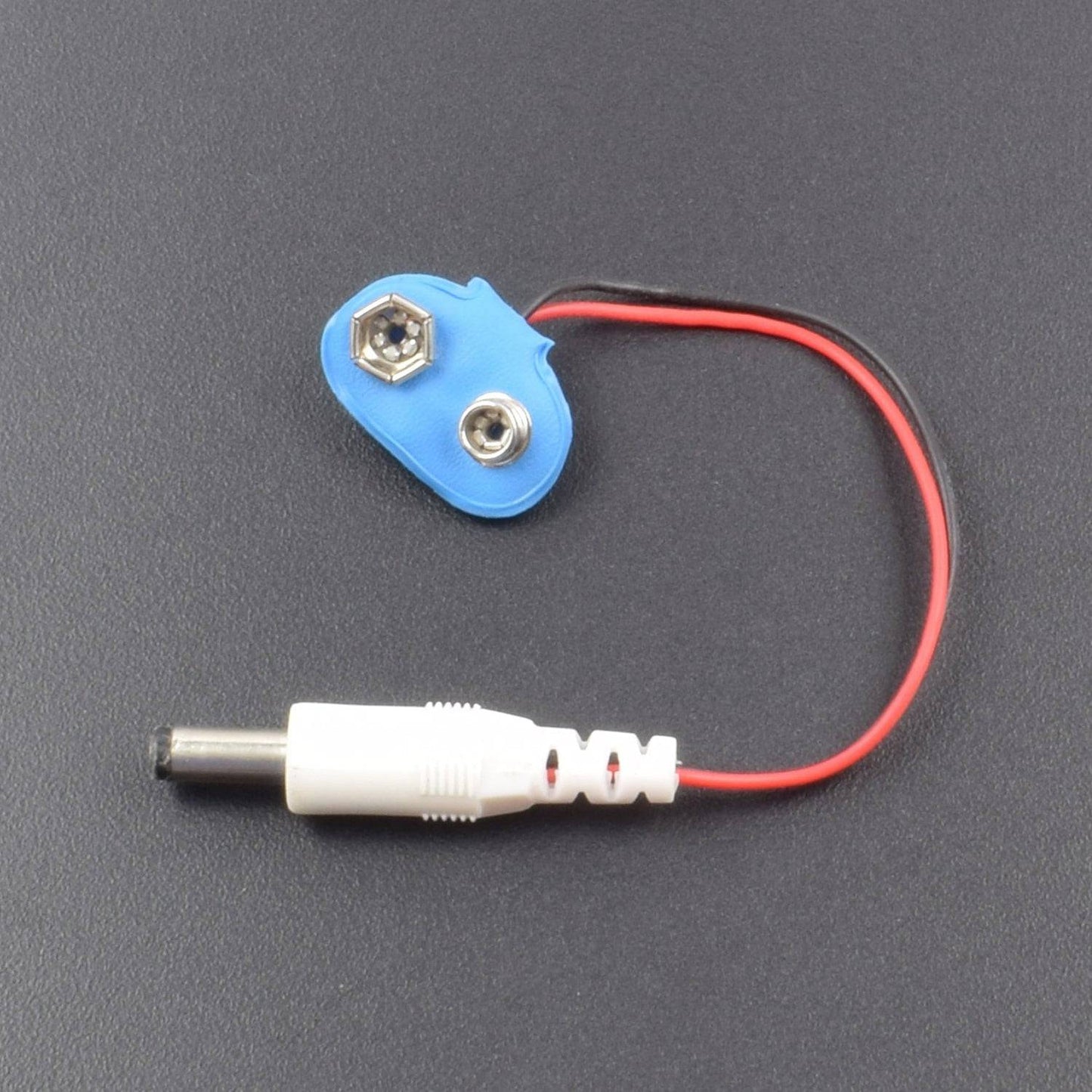

• Battery snapper with DC jack - 2

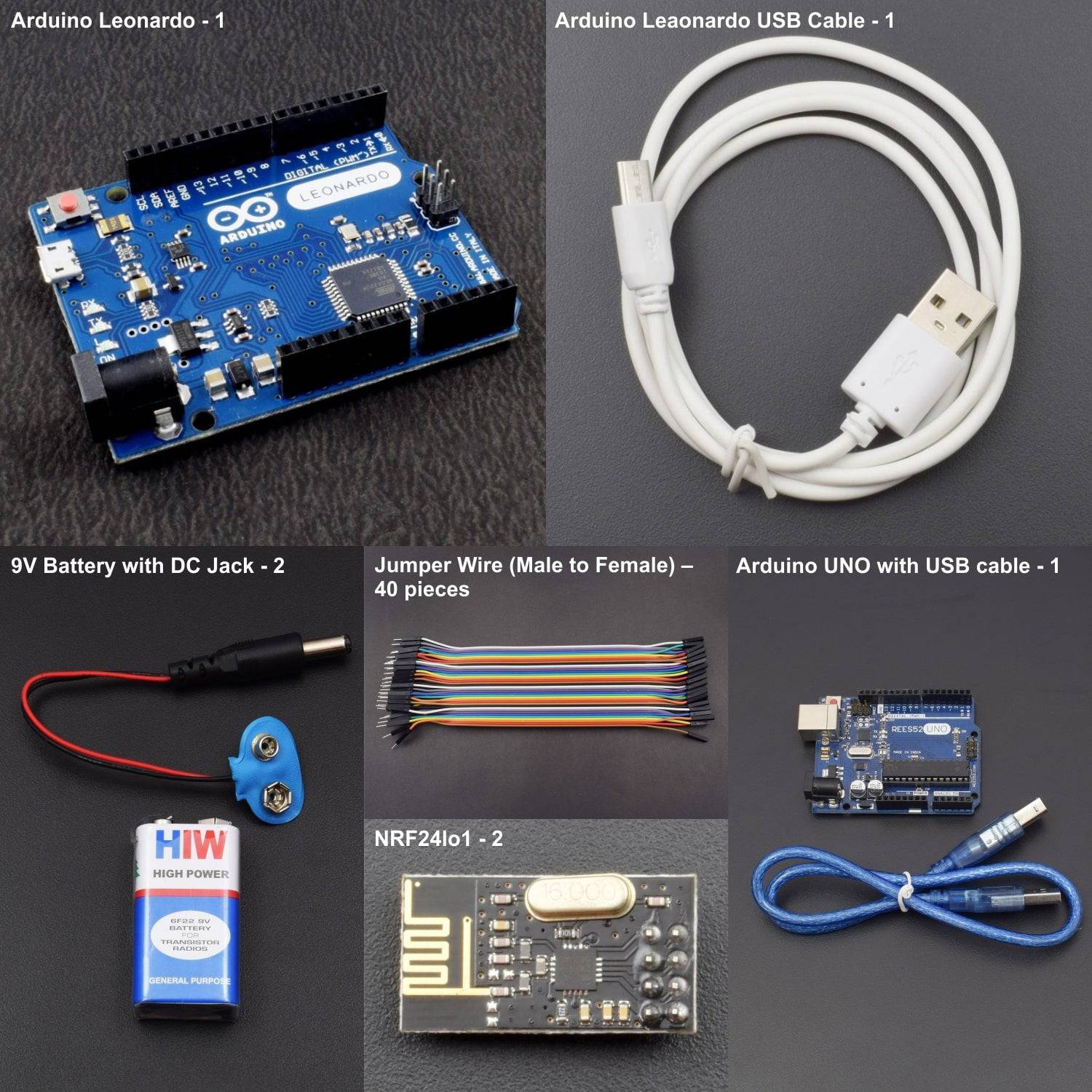

HARDWARE REQUIRED

• Arduino uno with usb cable- 1
• Arduino Leonardo - 1
• NRF24lo1 - 2
• Jumper wires MALE TO FEMALE – 40 piece

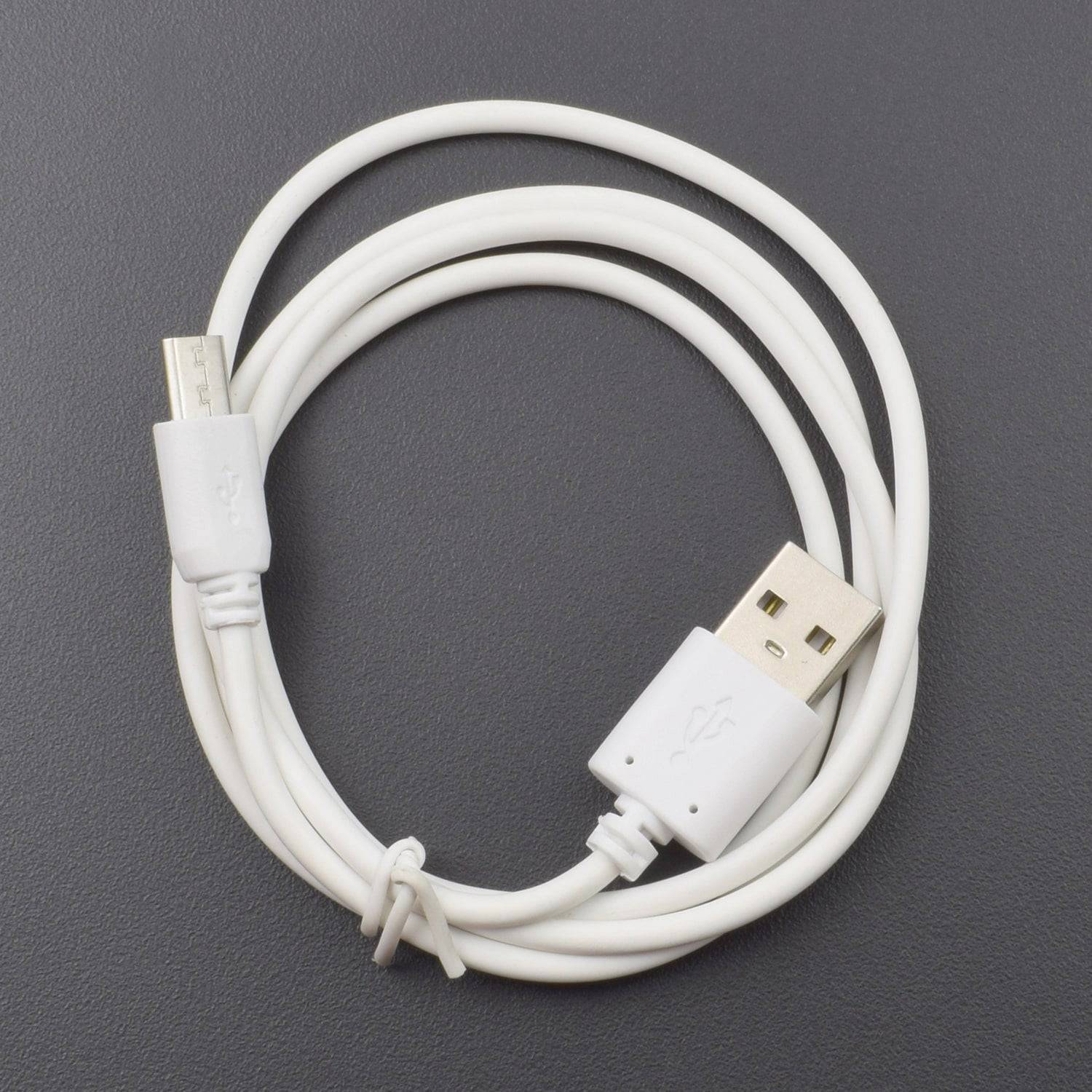

• Arduino cable - 1
• 9v battery - 2
• Battery snapper with DC jack - 2

NRF24L01 Module with ARDUINO LEONARDO

The Arduino Leonardo is a microcontroller board based on the ATmega32u4. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.The Leonardo differs from all preceding boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.

PIN DESCRIPTION

Arduino Leonardo

1. Microcontroller: ATmega32u4
2. Operating Voltage: 5V
3. Input Voltage (recommended): 7-12V
4. Input Voltage (limits): 6-20V
5. Digital I/O Pins: 20
6. PWM Channels: 7
7. Analog Input Channels: 12
8. DC Current per I/O Pin: 40 mA
9. DC Current for 3.3V Pin: 50 mA
10. Flash Memory: 32 KB (ATmega32u4) of which 4 KB used by bootloader
11. SRAM: 2.5 KB (ATmega32u4)
12. EEPROM: 1 KB (ATmega32u4)
13. Clock Speed: 16 MHz

NRF24L01 Module

• Voltage: 3-3.6V (recommended 3.3V) V
• Maximum output power: +20dBm
• Emission mode current(peak): 115mA
• Receive Mode Current(peak): 45mA
• Power-down mode current: 4.2uA

SOFTWARE REQUIRED

Arduino IDE ( programmable software for Arduino boards )

You can download the software from this link : https://www.arduino.cc/en/Main/Software

LIBRARY REQUIRED

To download the SPI library

Sketch --> Include Library --> SPI

IF it is pre downloaded otherwise click on manage libraries to download the libraries

PIN DIAGRAM

• NRF24L01 Module

CIRCUIT DESCRIPTION

CODE

Before uploading code select the appropriate board , here you choose Leonardo board .

https://docs.google.com/document/d/e/2PACX-1vTbym3uXOMrbsmyogQB0VTjwYdh4h-kCE-9OqsNz-cmXz8rgounsqkPpuo9XC9vHXMQU-Nc82zWHwWT/pub

NRF24L01 Module with ARDUINO UNO

SPECIFICATION

1. Microcontroller- ATmega328
2. Operating Voltage- 5V
3. Input Voltage (recommended) - 7to12V
4. Input Voltage(limit) - 6to20V
5. Digital I/O Pins-14 (of which 6 provide PWM output)
6. Analog Input Pins-6
7. DC Current per I/O Pin-40 mA
8. DC Current for 3.3V Pin-50 mA
9. Flash Memory-32 KB (ATmega328) of which 0.5 KB used by boot loader
10. SRAM-2 KB (ATmega328)
11. EEPROM-1 KB (ATmega328)
12. Clock Speed-16 MHz

CIRCUIT DESCRIPTION

CODE

Before uploading code select the appropriate board , here you choose UNO board .

https://docs.google.com/document/d/e/2PACX-1vTnfTiFIb5eCBi5kSvSY21DN0O1U3vO9SdKDhymWpRNQ0-hVj9_6Xnnn30ICdaUdtVfCA87IAirfsbS/pub

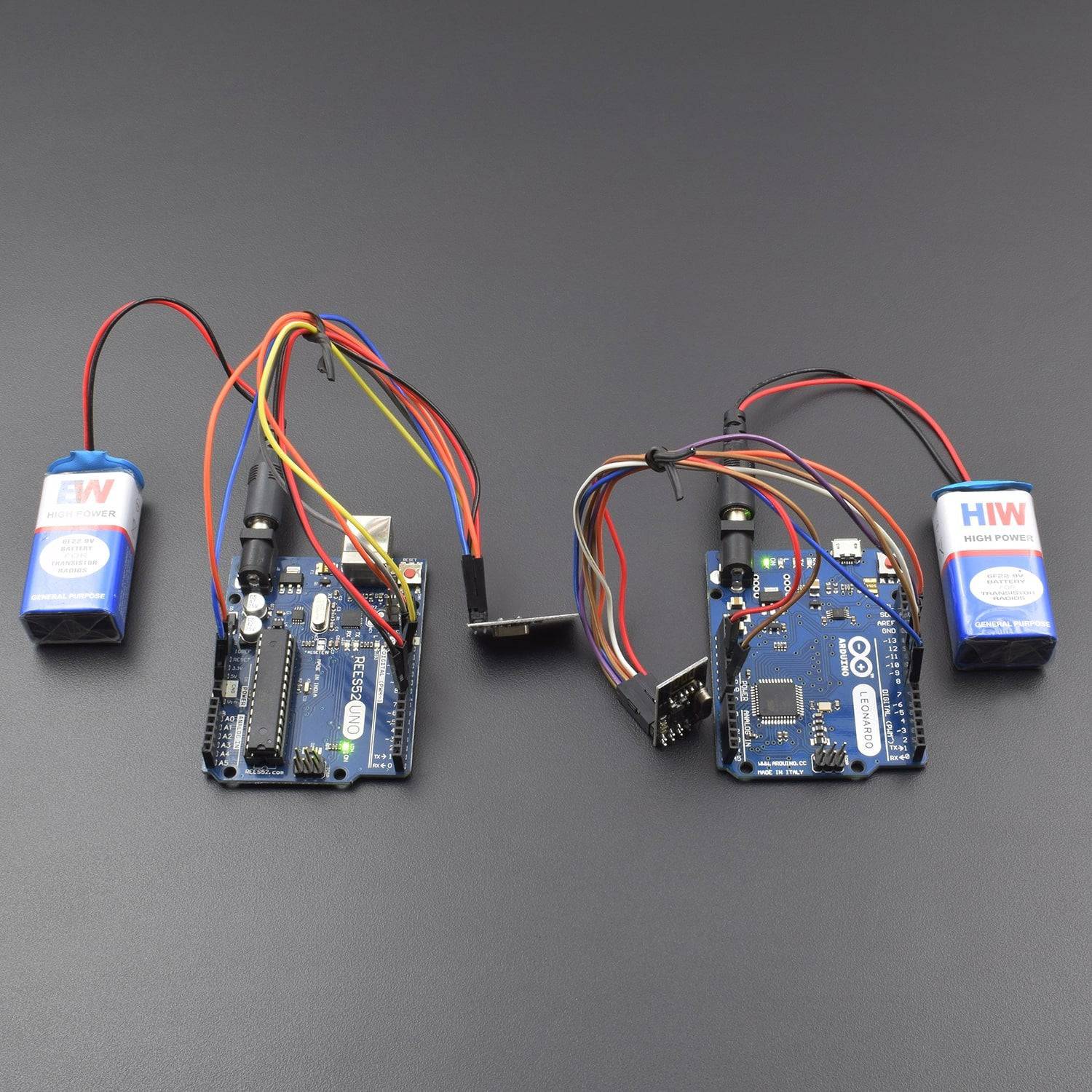

WORKING

The nrf24lo1 is a trans receiver module. In this one nrf24lo1 is transmitting and other one is receiving the data. We see the

Data transmission in the serial monitor.
