- Resistance: 3.3-4.3oh
- Temperature: -40~300 degree
-
Wiring:
- red wire for positive
- black for negative
Description:

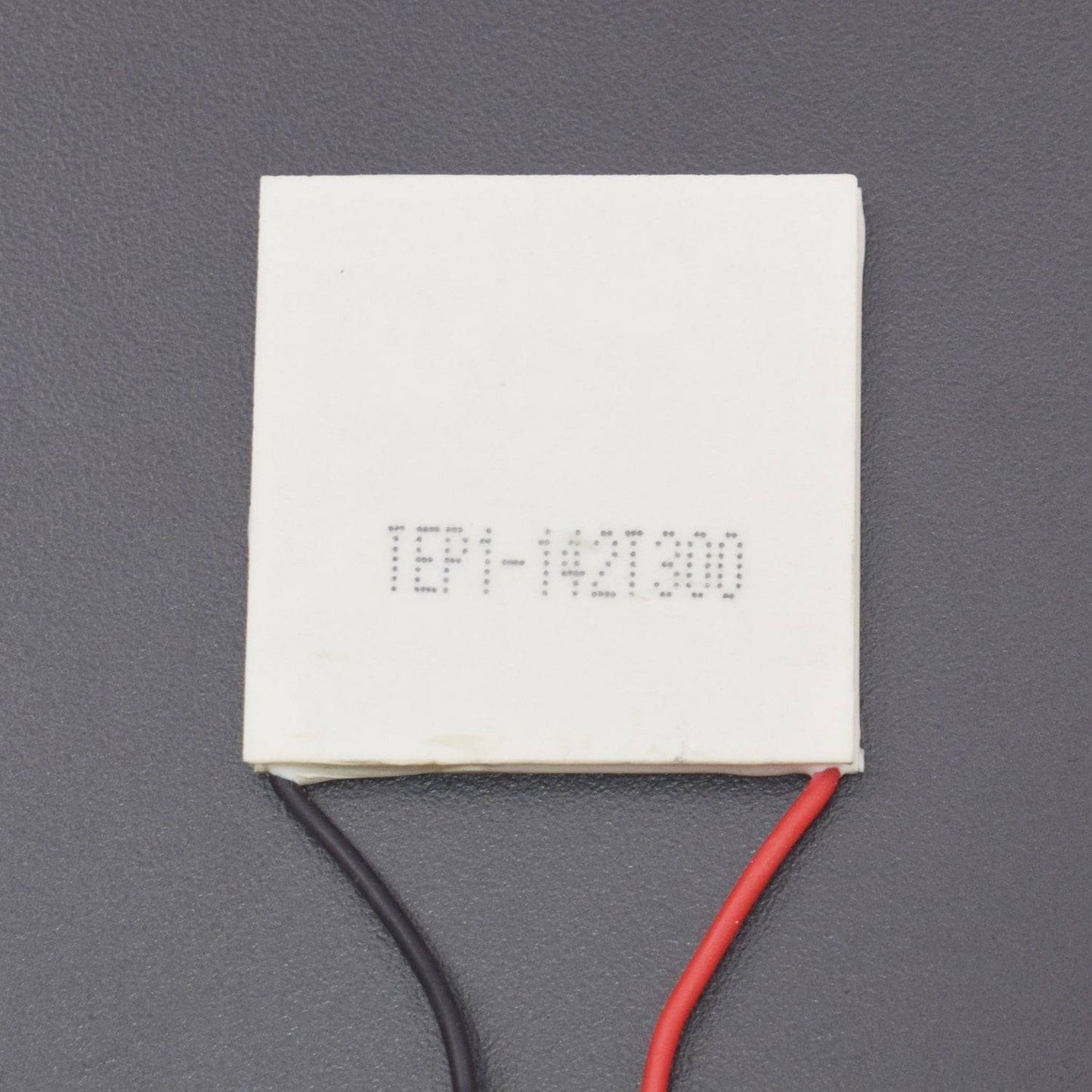

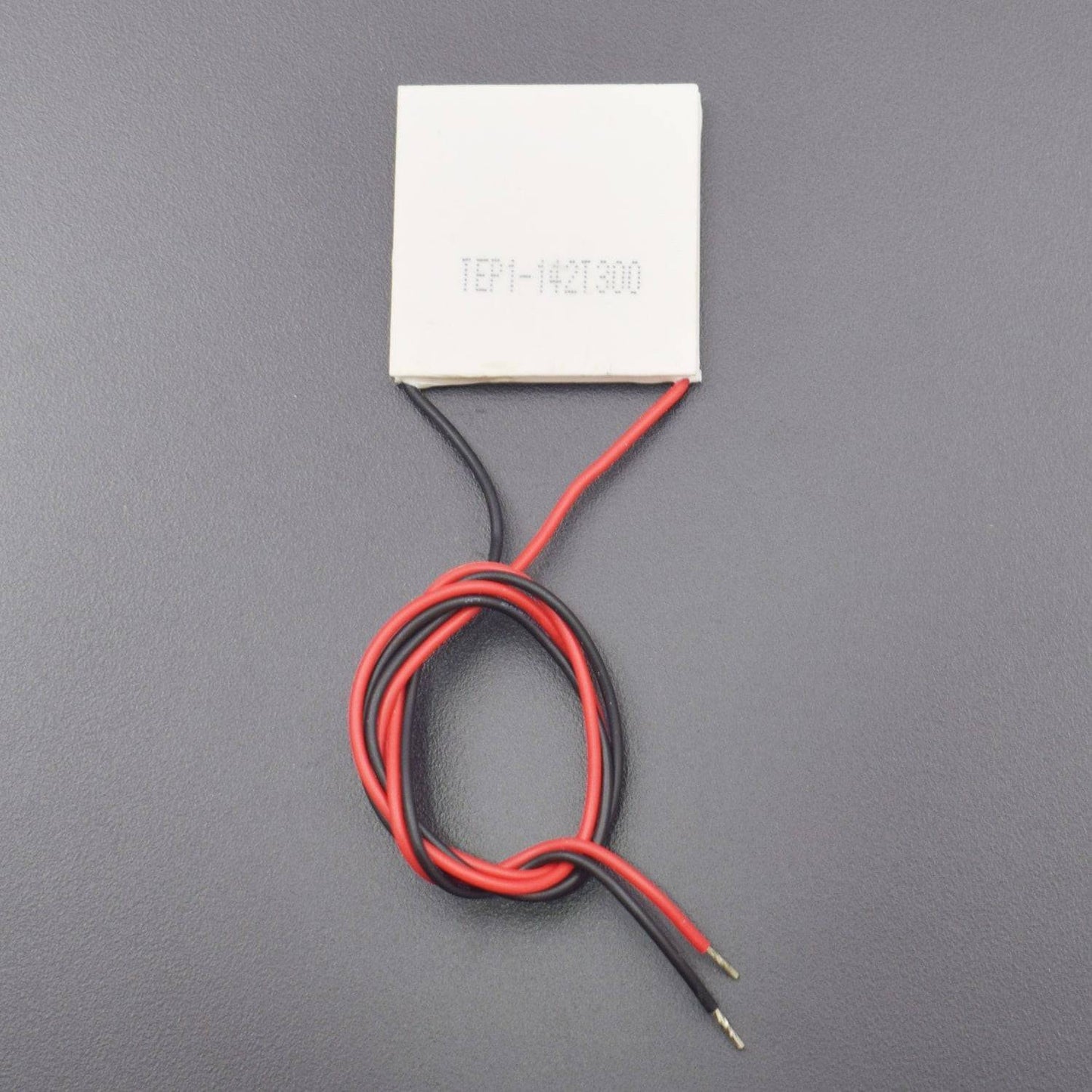

This is the 300 Degree High Temperature Power Generation TEP1-142T300 Thermoelectric Peltier Module. This is lightweight and durable. It has fast and dynamic response. It can provide cooling below ambient temperature.It enables reduced, low-noises operation of cooling fans, while providing greater cooling power. It is suitable for manufacture in small size. This is nicely sealed at the edges with silicone to prevent dust and contaminants from entering the unit, ensuring an efficient and long life span.
Specification:
- Resistance: 3.3-4.3oh
- Temperature: -40~300 degree

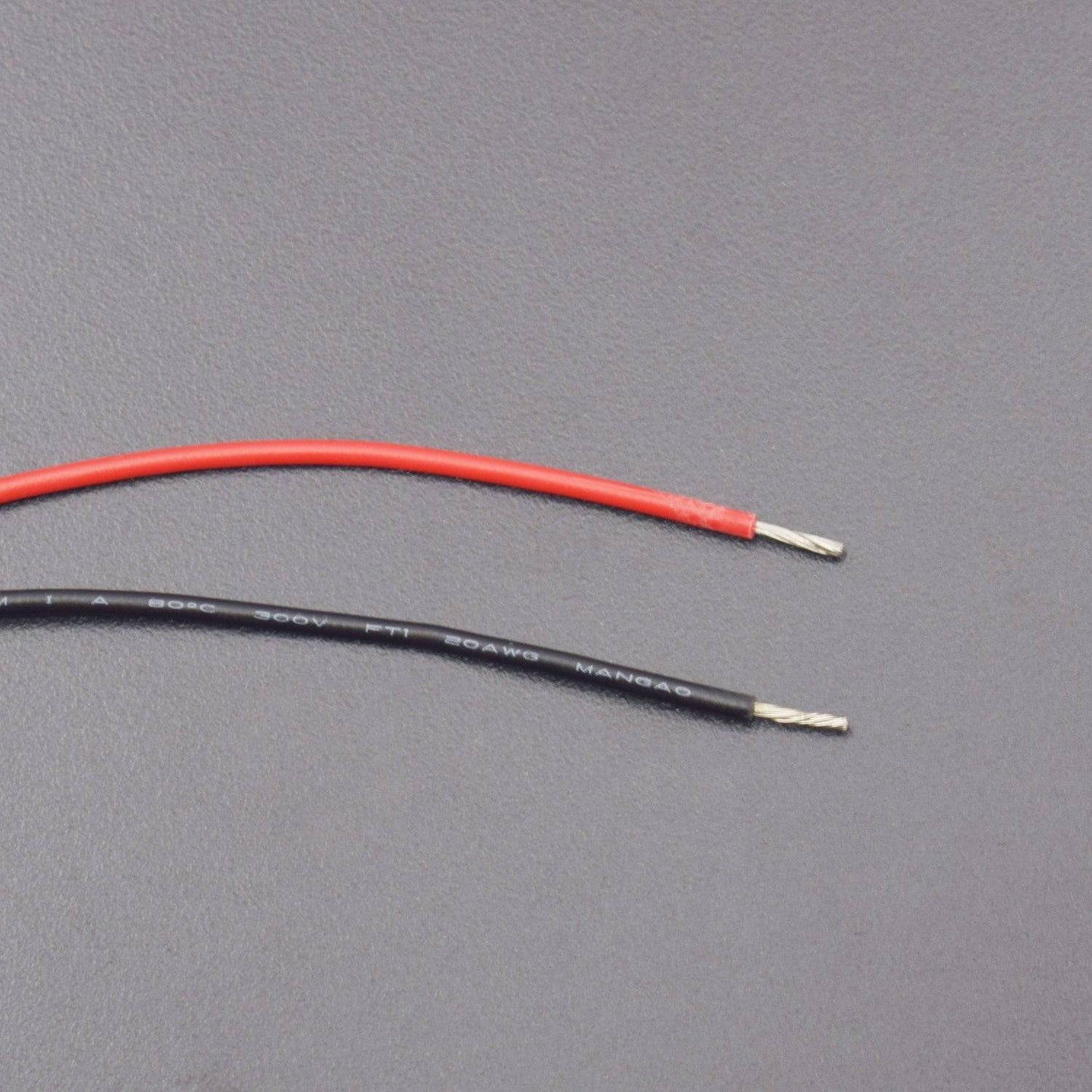

- Wiring:
- red wire for positive
- black for negative
Using temperature in -50 degrees to 300 degrees:
- Temperature 40 degrees: open circuit voltage 2.2V, power generation current: 390MA
- Temperature 60 degrees: open circuit voltage 3.6V, power generation current: 489MA
- Temperature 80 degrees: open circuit voltage 4.8V, power generation current: 569MA
- Temperature 100 degrees: open circuit voltage 6.0V, power generation current: 658MA
- Temperature 120 degrees: open circuit voltage 7.2, power generation current: 759MA
- Temperature 140 degrees: open circuit voltage 8.4, power generation current: 969MA
- Best match resistance: between 3.3-4.3
Installation Notes:
- Power film must be installed on a flat surface (especially cold). The installation surface height error shall not exceed 20 micron.
- The heating surface temperature shall not exceed 300 Heat radiating surface to maintain 100C Following.
Package Included:
1 x TEP1-142T300 Power Generation 300 Degree high Temperature Thermoelectric Peltier Module
