Description:

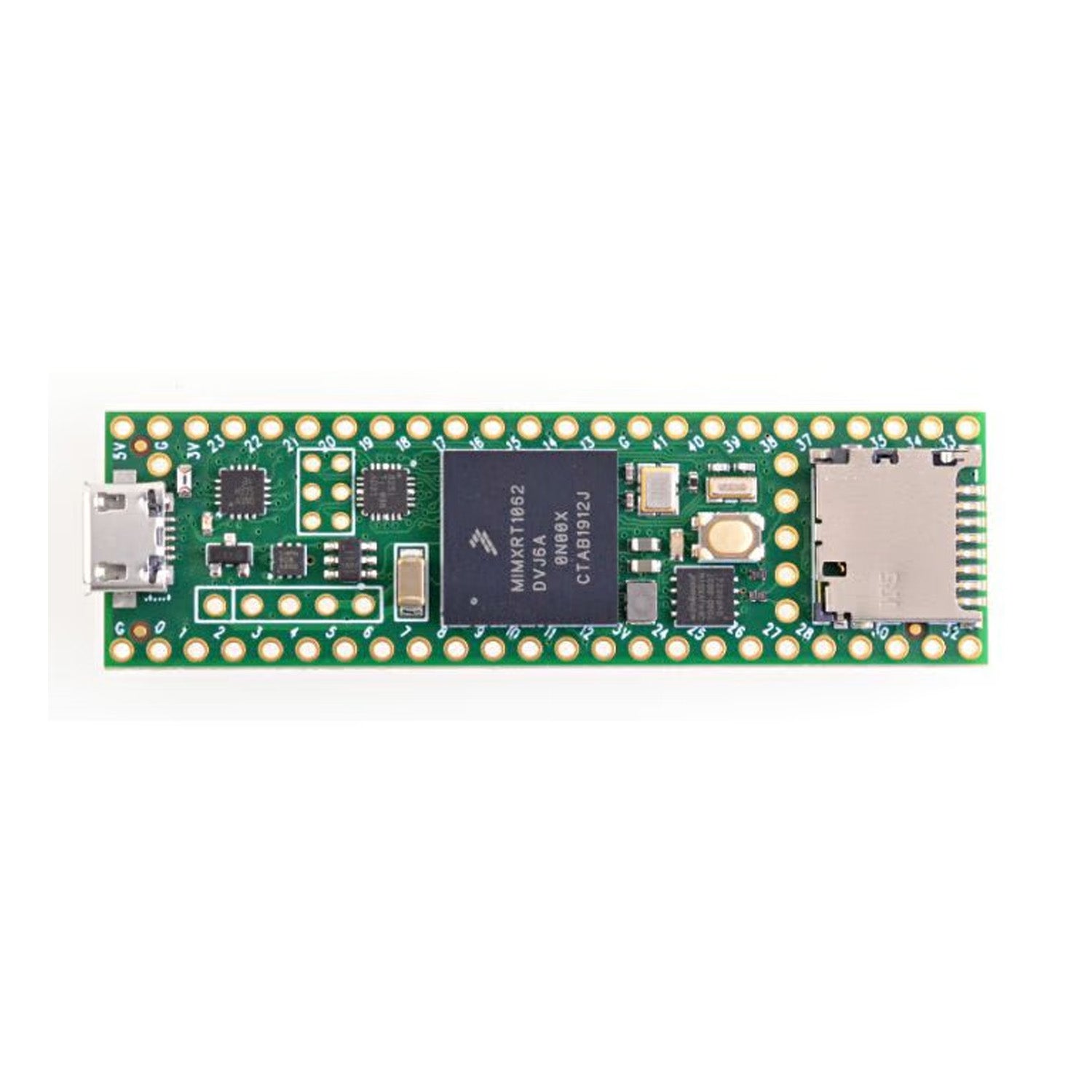

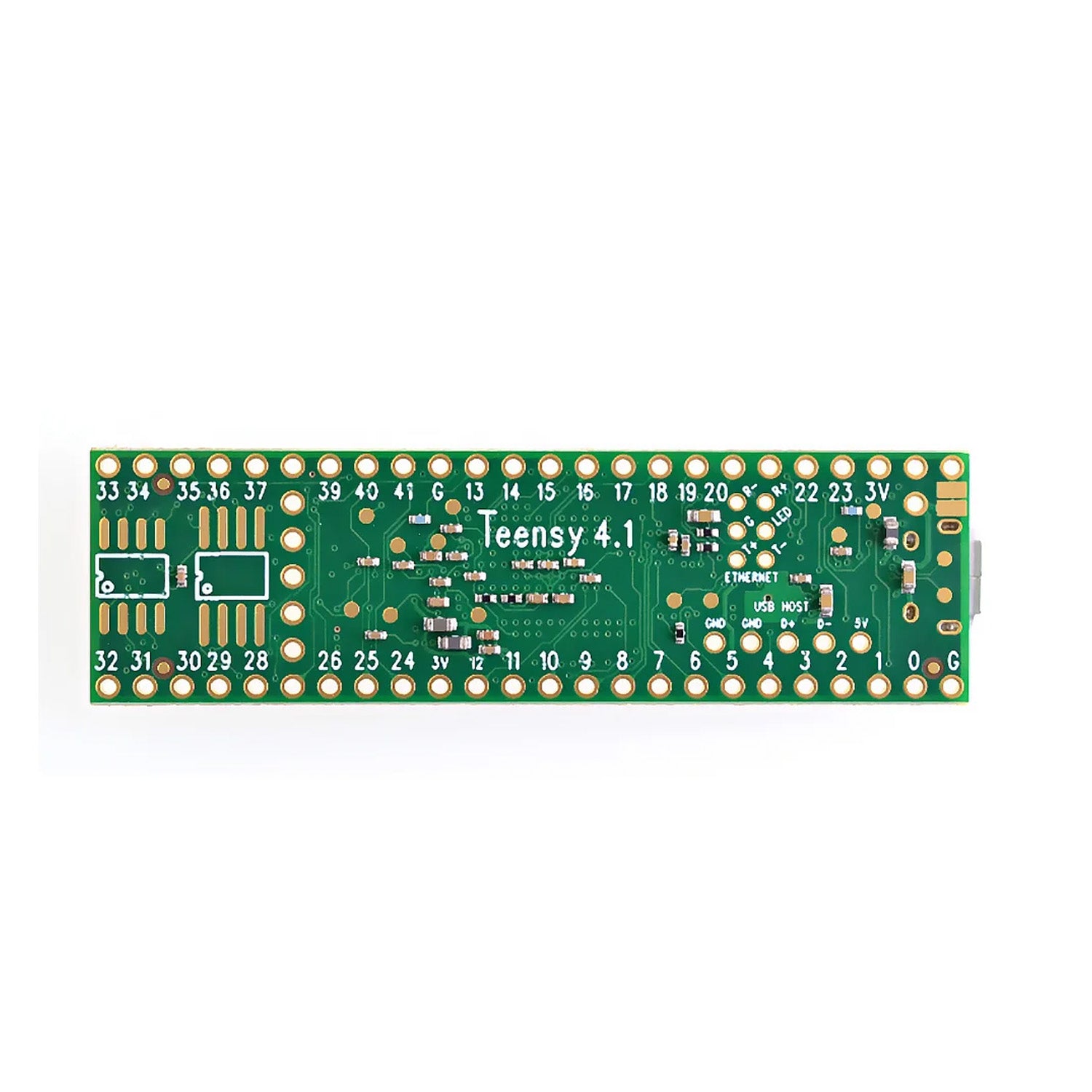

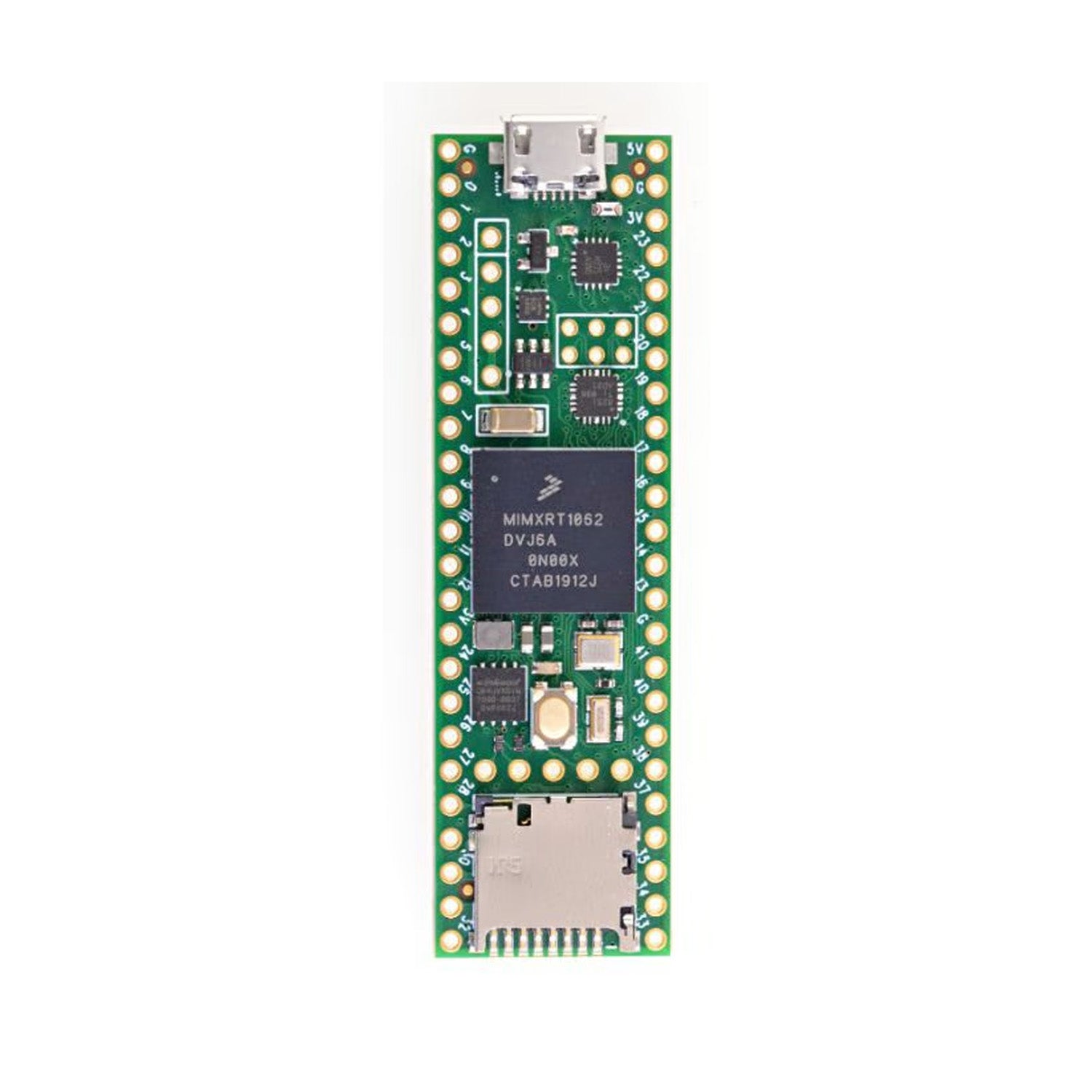

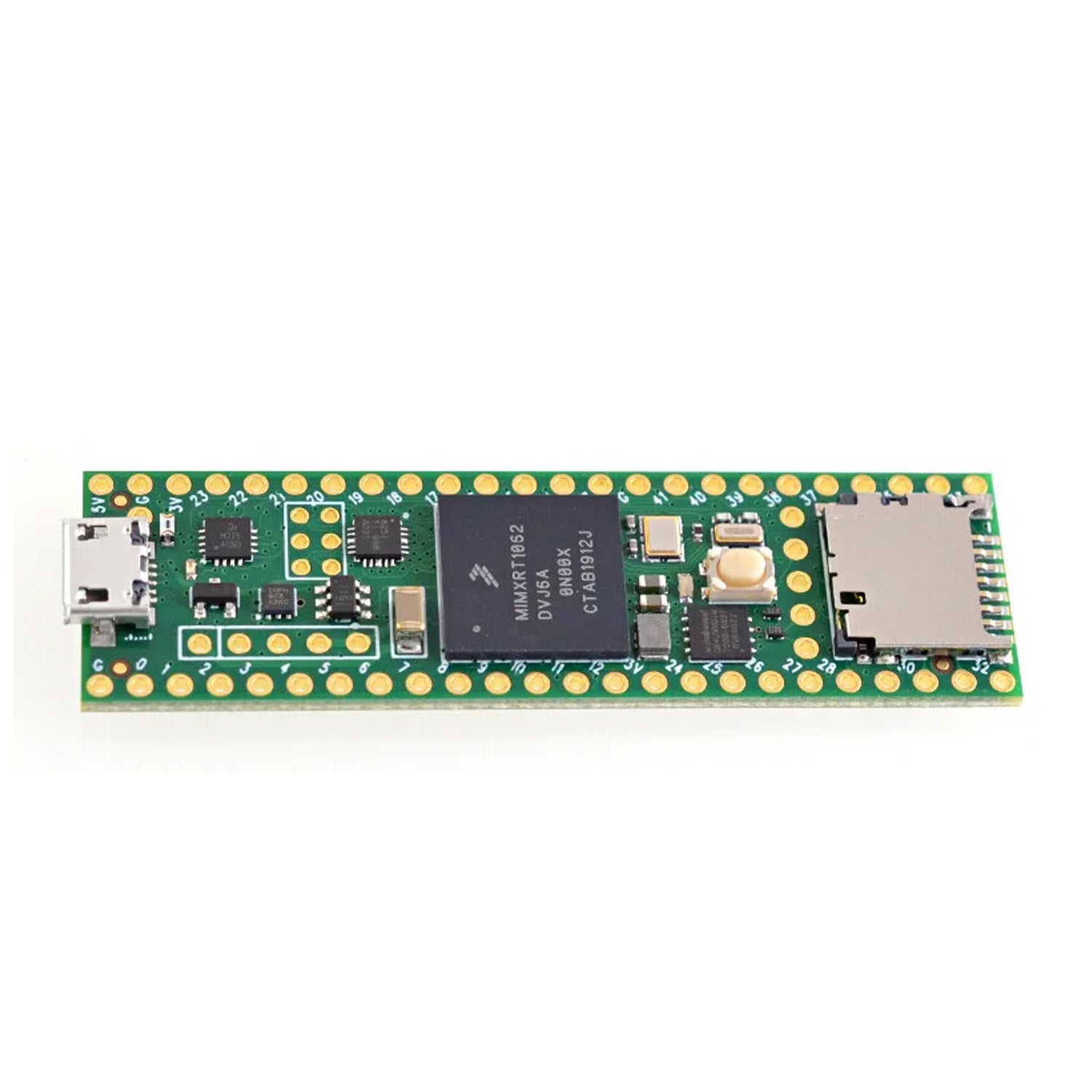

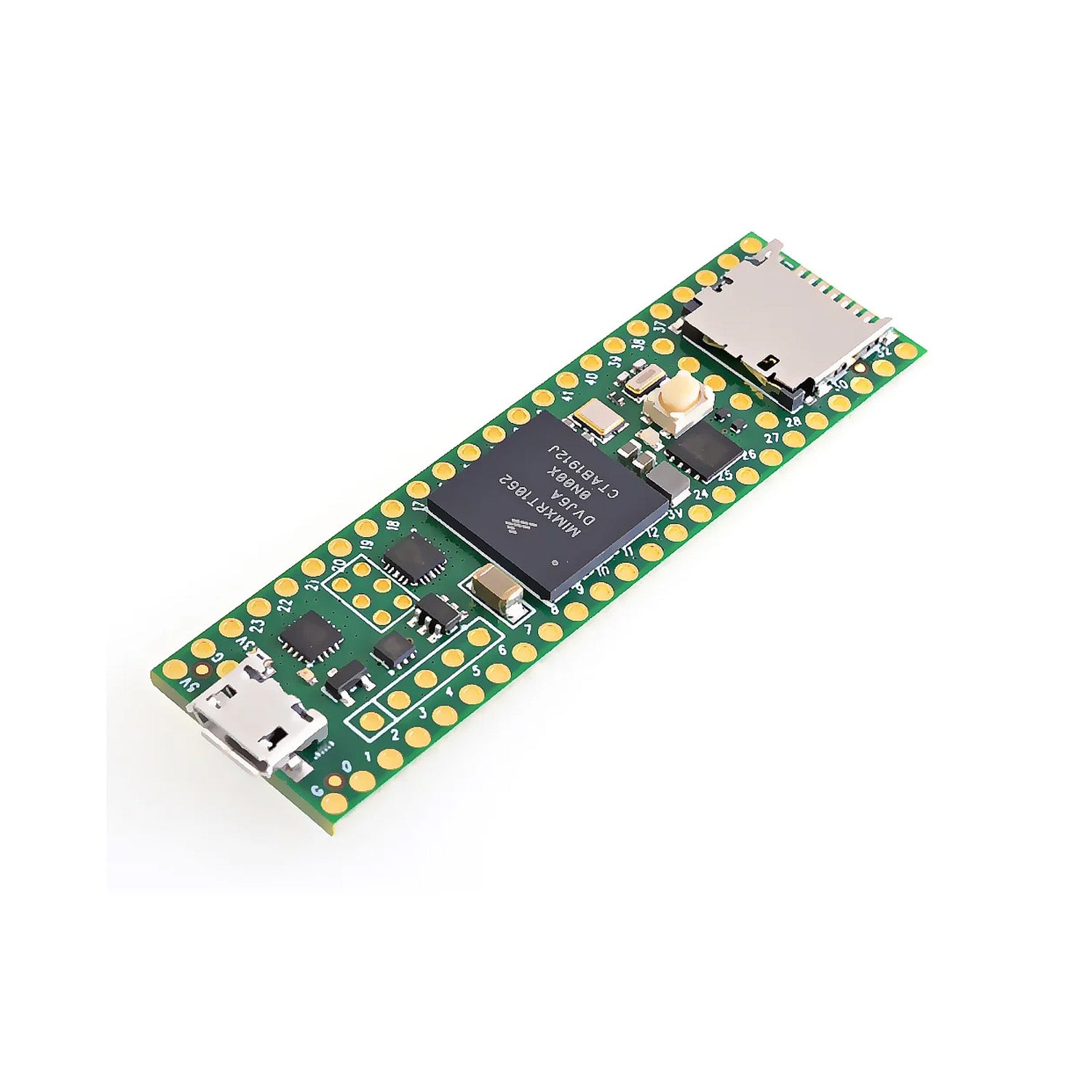

The Teensy 4.1 Microcontroller Board is equipped with a 600MHz ARM Cortex-M7 processor and the NXP iMXRT1062 chip is an advanced platform for enthusiasts and professionals seeking high processing power. With four times larger flash memory than the Teensy 4.0, dynamic clock scaling, and tightly coupled memory architecture, this board offers an optimized solution for real-time processing, memory-intensive applications, and rapid development. Its enhanced I/O capabilities, including an SD card socket and USB host port, provide flexible design options, making it a versatile choice for various projects.
Specifications:
- Core: ARM Cortex-M7
- Flash Memory: 8 MB
- RAM: 1 MB
- Rated Speed (MHz): 600
- Analog Input: 14
- Digital I/O Pins: 33
- Processor: MiMXRT1062
- Ethernet: 10 / 100 Mbit DP83825 PHY (6 pins)
- USB Host: 5 Pins with power management
- SDIO (4 bit data): Micro SD Socket
- PWM Pins: 35
- Serial Ports: 8
- QSPI Memory: 2 chips Plus Program Memory
- Bottom SMT Pad Signals: 7
- SD Card Signals: 6
Features:
- 32 general-purpose DMA channels
- Cryptographic Acceleration
- Random Number Generator
- RTC for date/time
- Programmable FlexIO
- Pixel Processing Pipeline
- Peripheral cross triggering
- microSD Card Socket
- Power On/Off management
- 10 / 100 Mbit DP83825 PHY (6 pins)
- ARM Cortex-M7 at 600MHz
- 1024K RAM (512K is tightly coupled)
- CAN Bus (1 with CAN FD)
- 2 I2S Digital Audio
- 1 S/PDIF Digital Audio
- 3 SPI, all with 16 word FIFO
- 7 Bottom SMT Pad Signals
- 8 Serial ports
Package Included:
1 x Teensy 4.1 Microcontroller Board Teensy 4.1 Development Board USB-Powered Development Board for Embedded Systems Compact and Versatile Development Board For DIY Projects Arduino-Compatible Development Board With Powerful Microcontroller
