Description:

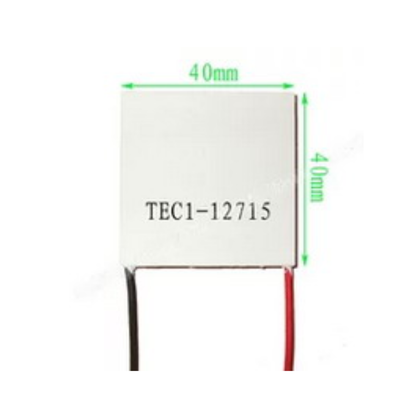

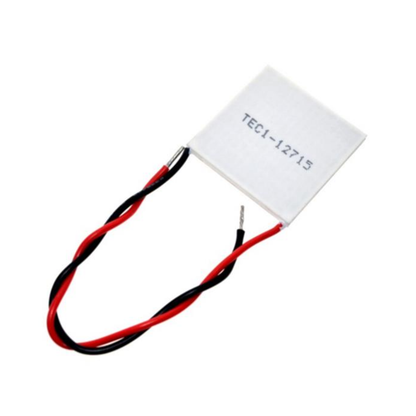

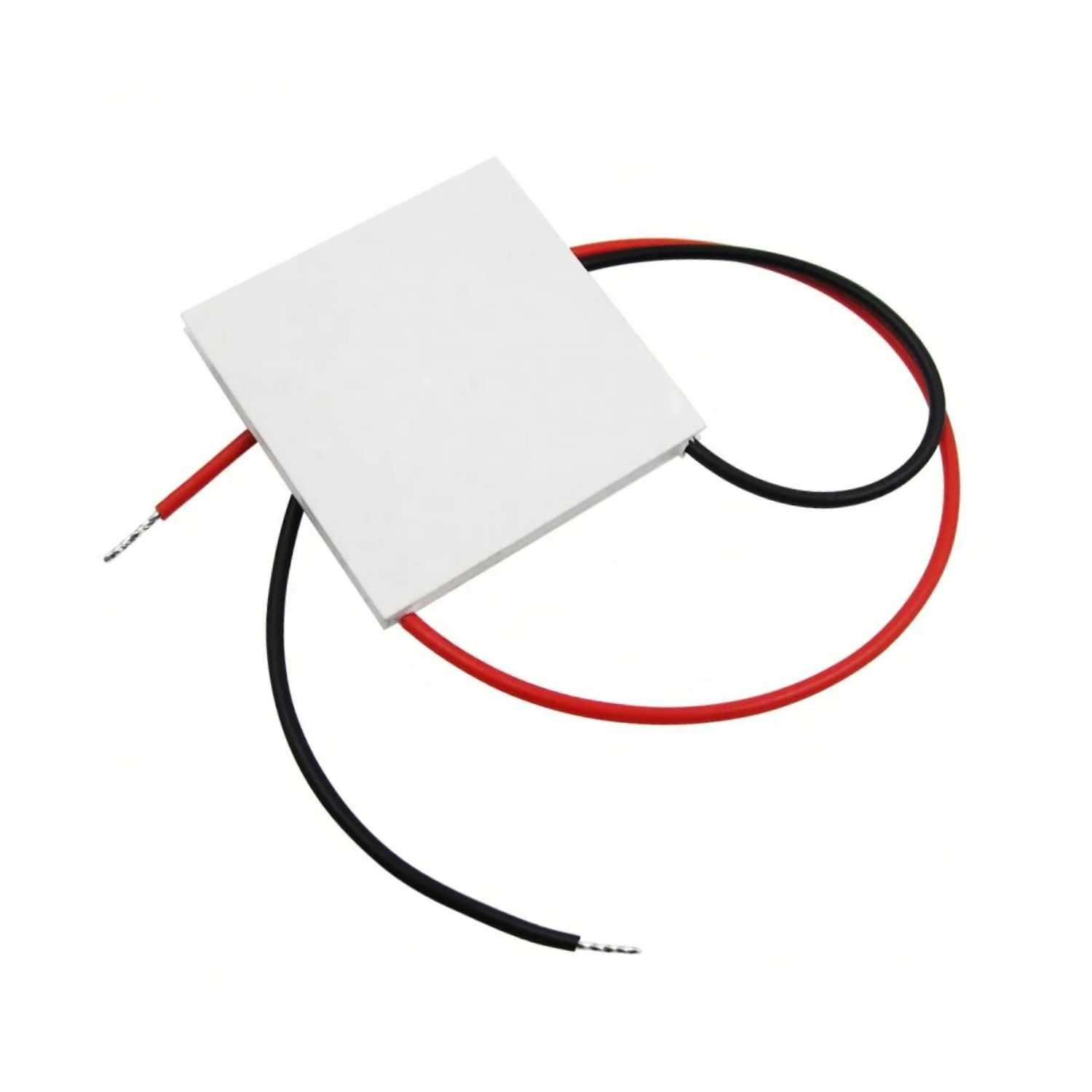

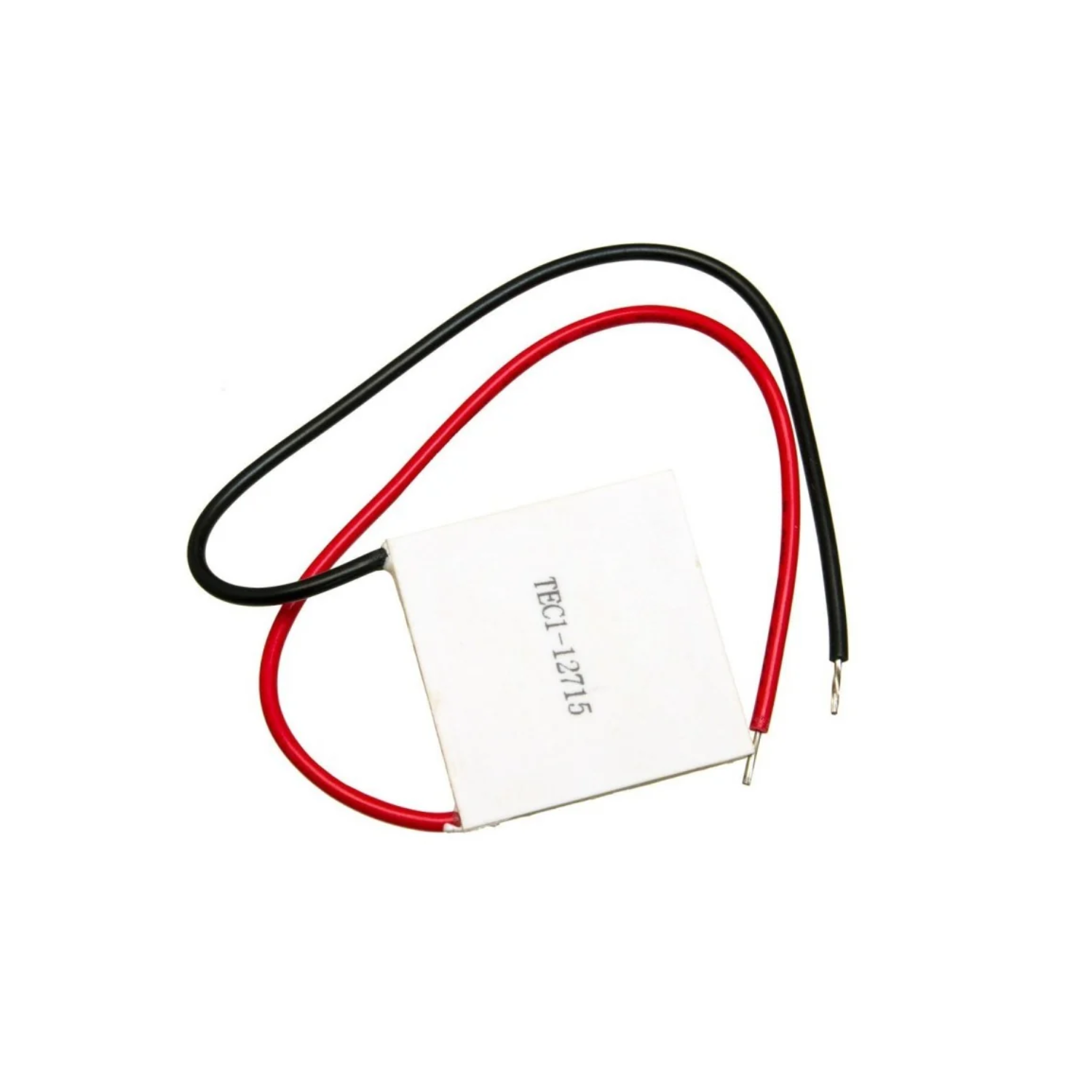

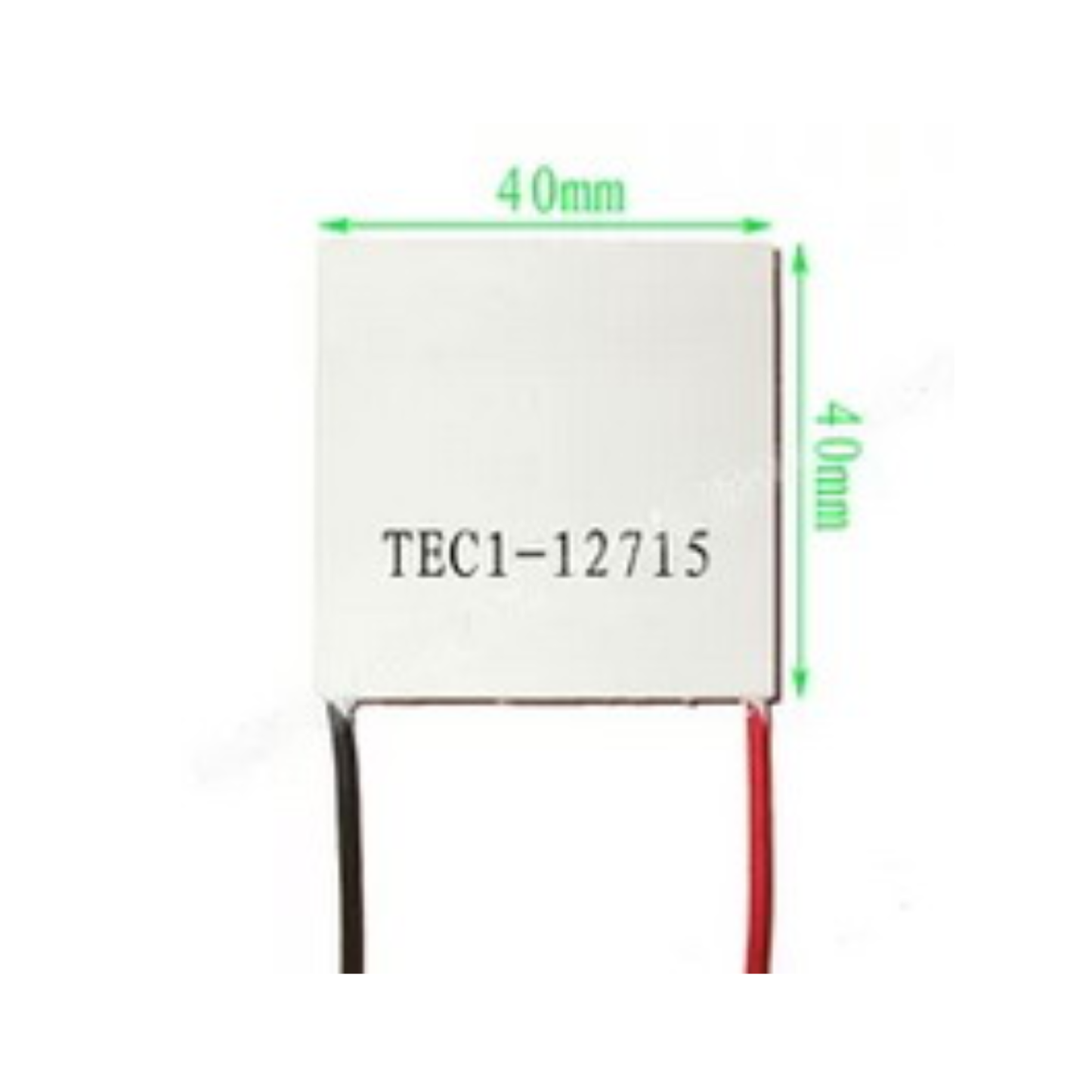

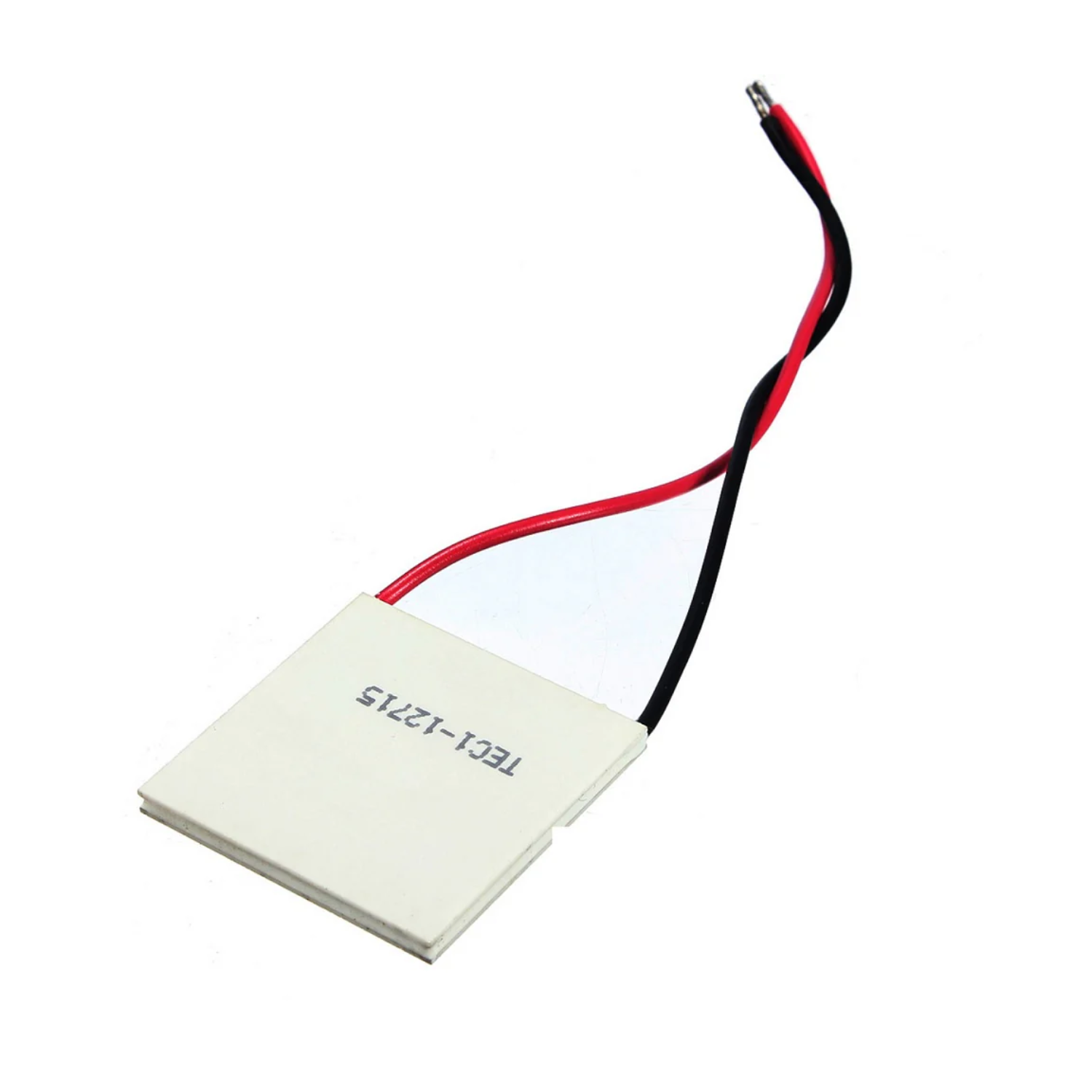

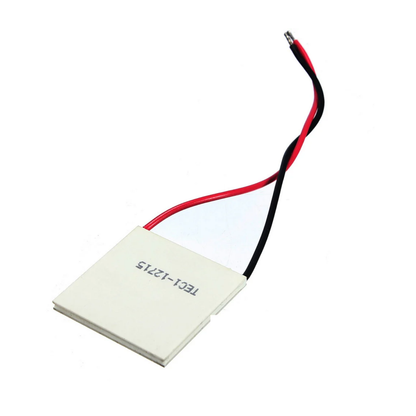

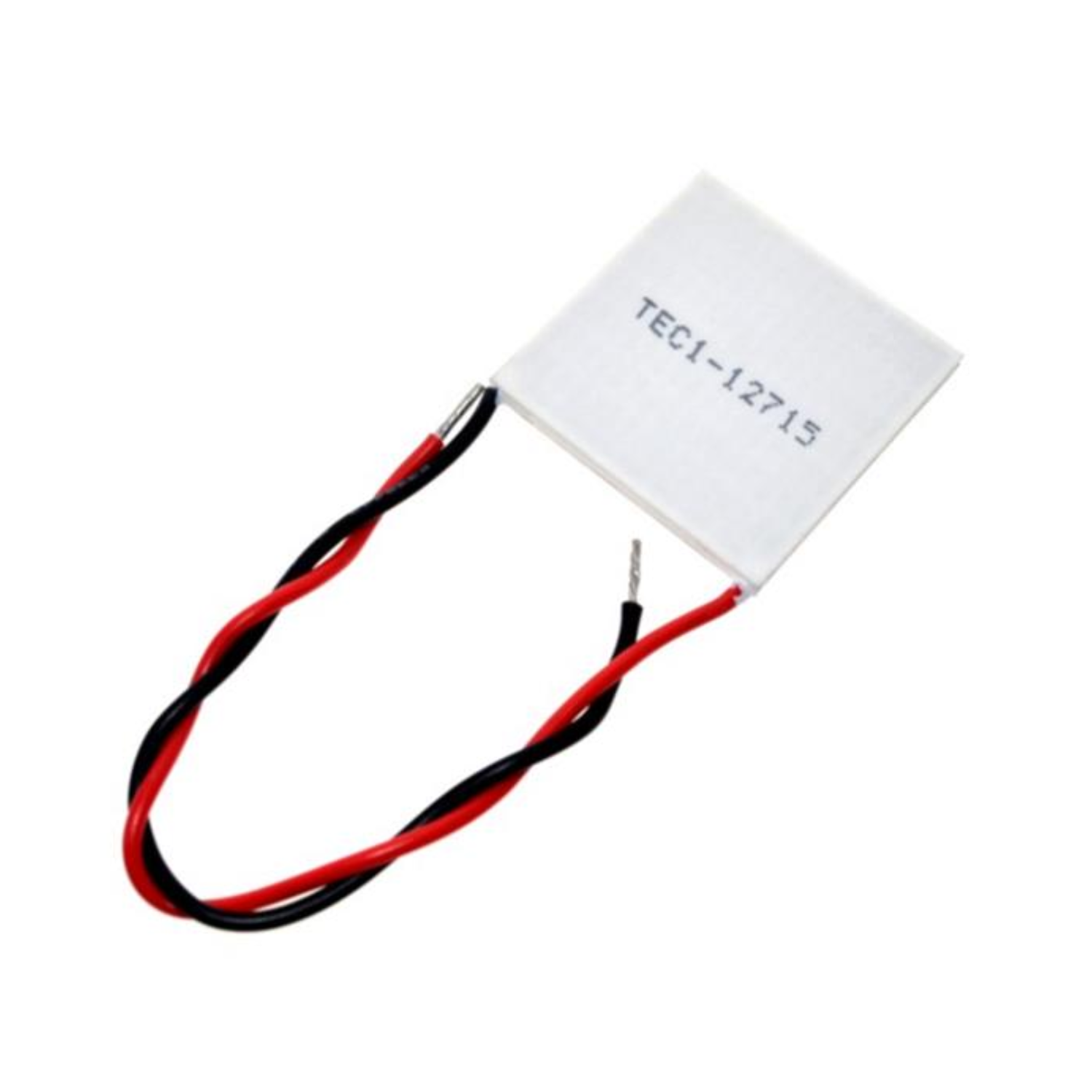

The TEC1-12715 40x40mm Thermoelectric Cooler 15A Peltier Module is a compact and efficient device that leverages the Peltier-Seebeck effect to create a temperature differential. This module, measuring 40mm x 40mm, houses 127 meticulously arranged semiconductor couples, forming the core of its thermoelectric operation. Essentially, the TEC1-12715 functions as a solid-state heat pump, transferring heat from one side of the module to the other when a DC voltage is applied. This process results in one side becoming noticeably cooler while the opposite side heats up.
Specifications:
- Model number: TEC1-12715
- Operating Voltage: 12V
- Maximum Voltage- Umax: 15V
- Maximum Current- Imax: 15A
- Maximum Power: 230 W
- Power Cord: 25cm.
Features:
- Small module.
- Easy transition between the hot side to the cool side and vice versa, just by reversing the polarity of the supply.
- Quality-tested cooling cells.
- Solid-state, vibration-free, noise-free.
- Simple to install and operate.
- Should use it with a heat sink.
Operating Tips:
- Do not exceed Imax or Vmax when operating a module.
- Please carry out moisture protection options (sealing) in the final application use.
- Life expectancy: 200,000 hours.
- Failure rate based on long-term testing: 0.2%.
Package Included:
1 x TEC1-12715 40x40mm Thermoelectric Cooler 15A Peltier Module
