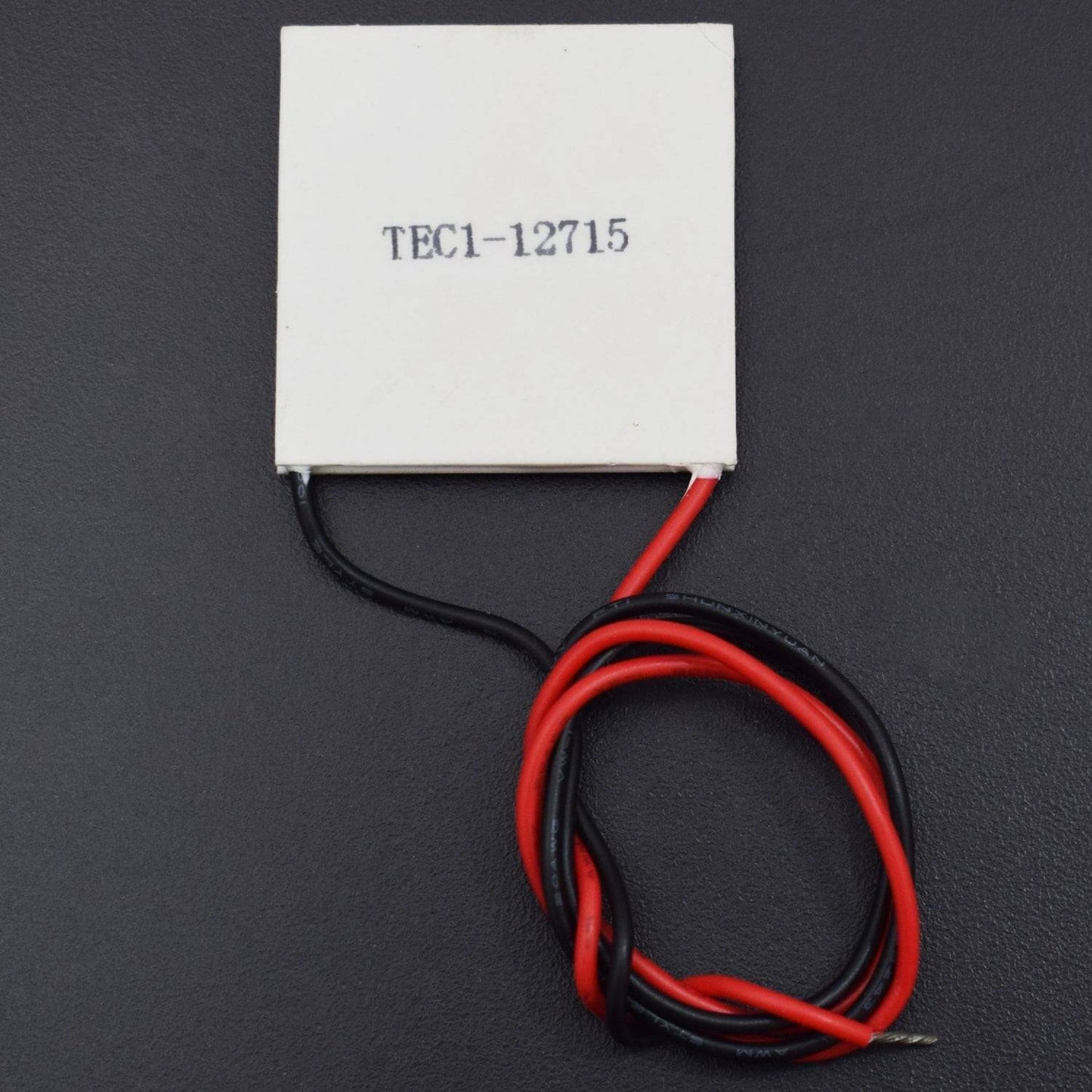

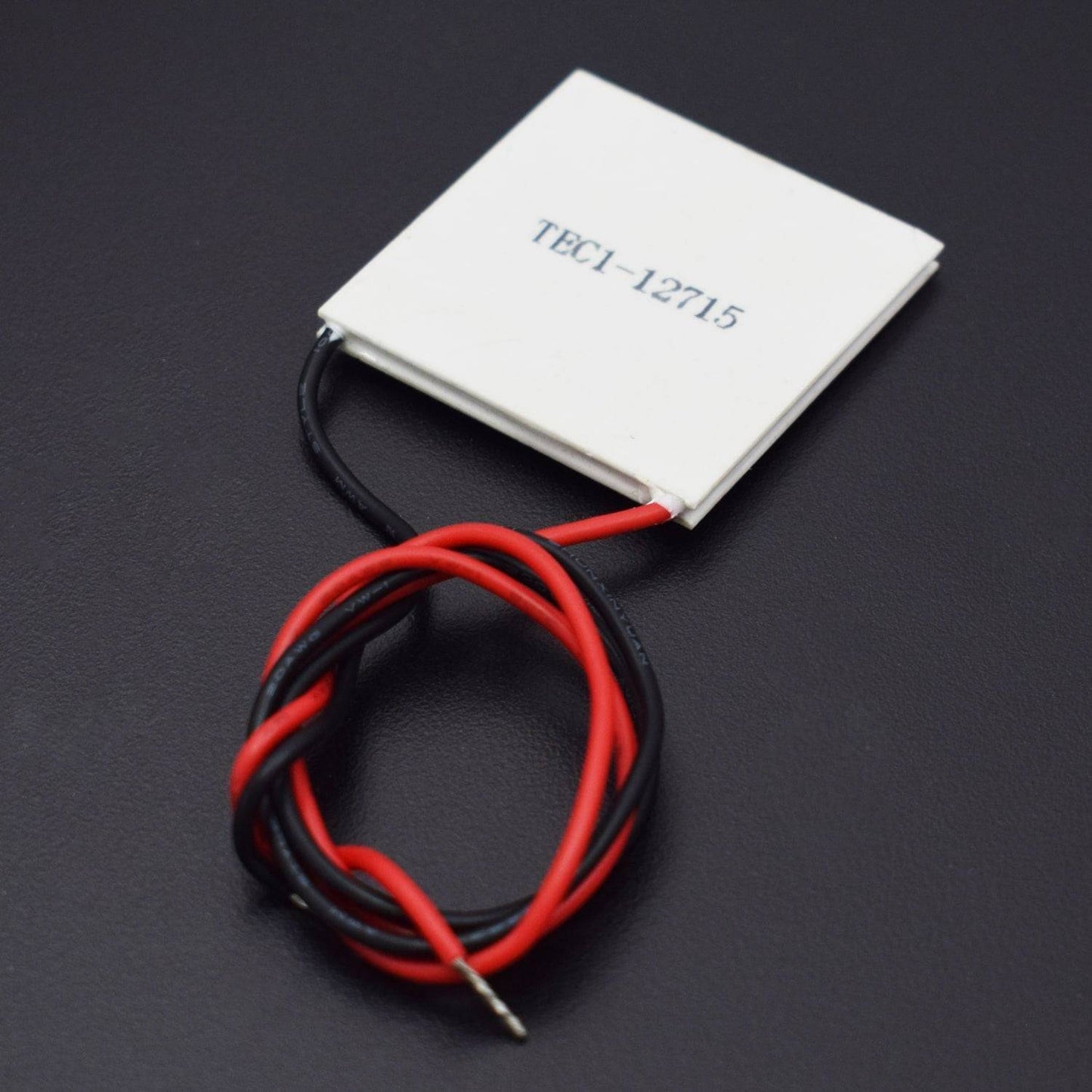

TEC1-12715 12V Heatsink Thermoelectric Cooler Peltier Plate Module - NA181

TEC1-12715 12V Heatsink Thermoelectric Cooler Peltier Plate Module - NA181

NA181

Low stock: 10 left

Rs. 449.00
Rs. 449.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Maximum temperature difference: 62 ℃ above
  • Wire specification: lead long 2008mm RV standard conductor single head 5mm tin plating
  • Internal resistance: 0.8~0.9ω (ambient temperature 231℃, 1kHZ AC test)
  • Rated Voltage: literal (maximum voltage: 5V)

Description

  • Wire specification: lead long 2008mm RV standard conductor single head 5mm tin plating
  • Internal resistance: 0.8~0.9ω (ambient temperature 231℃, 1kHZ AC test)
  • Maximum temperature difference: 62 ℃ above
  • Working current: imax=11.8A (max voltage. 5V start 15A)
  • Rated Voltage: literal (maximum voltage: 5V)
  • Cooling power: 142W (high cooling surface temperature will reduce cooling power)
  • Assembling pressure: 85n/cm2
  • Working environment: Temperature range -55℃~83℃ (high ambient temperature will directly affect refrigeration efficiency)
  • Packaging process: Ambient standard 704 Silicone rubber seal
  • Packaging standards: Foam box packaging, storage conditions ambient temperature -10℃~40℃
  • Storage conditions:-40~60℃
  • Power Requirements: Single voltage 12V, current 15A above the working power supply (series and parallel use)
  • Device characteristics: Redline positive, black line negative (there is literally refrigeration surface, no literal heat dissipation surface)

Features

  • Solid state, vibration free, noise-free.
  • Simple to install and operate.
  • The hot surface needs to be a good heat sink.

Package Included :

1 x TEC1-12715 12V Heatsink Thermoelectric Cooler Peltier Plate Module
