Description:
Thermoelectric coolers, also known as TECs or Peltier modules, operate on a fascinating principle: the Peltier effect. These devices create a temperature differential between their two sides when an electrical current is applied. One side becomes noticeably hot, while the other side simultaneously cools down. This unique characteristic allows TECs to be used for both heating and cooling applications, simply by utilizing the appropriate side. Whether you need to warm something up or cool it down, a thermoelectric cooler can achieve the desired temperature change.
Specifications:
- Model No.: TEC1 12706
- Design: Without silicone seal
- Max. Temperature: 138°C
- Max. Voltage: 15V
- Max. Current: 6A
- Resistance: 27 ohms
- Qmax. @ Delta T=0: 63W
- Delta T max.: 68°C
Features:
- Small module.
- Easy transition between the hot side to the cool side and vice versa just by reversing the polarity of the supply.
- Quality-tested cooling cells.
- Solid-state, vibration-free, noise-free.
- Simple to install and operate.
- Should use it with a heat sink.
Operating Tips:
- Max. Operating Temperature: 138 Degrees C
- Do not exceed Imax or Vmax when operating a module.
- Please carry out moisture protection options (sealing) in the final application use.
Package Included:

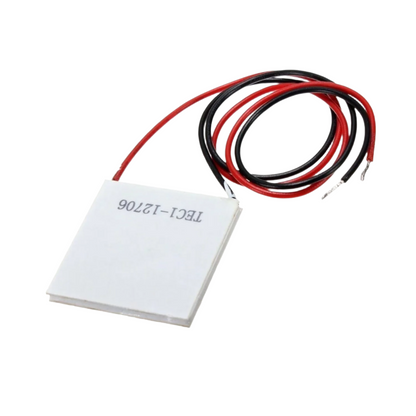

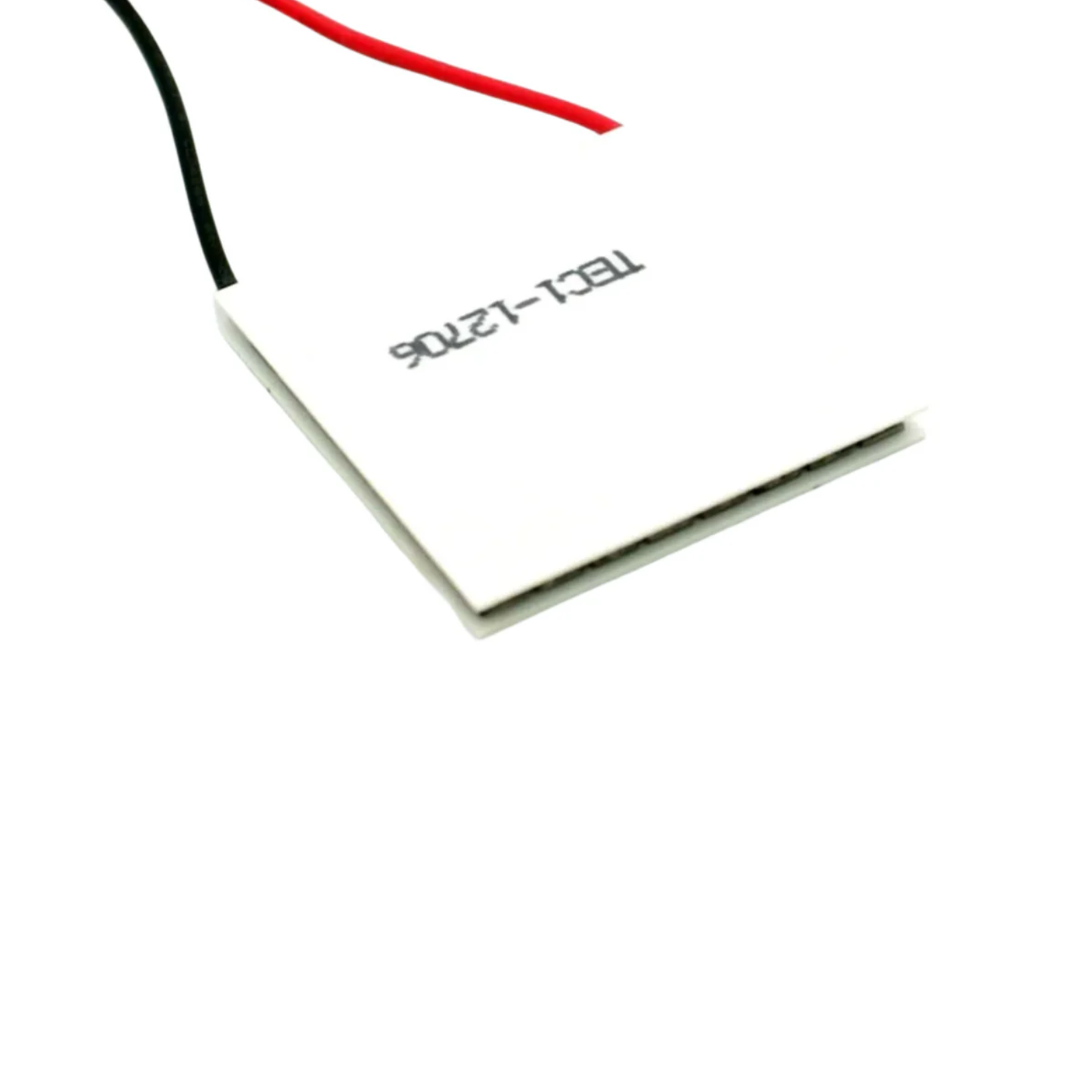

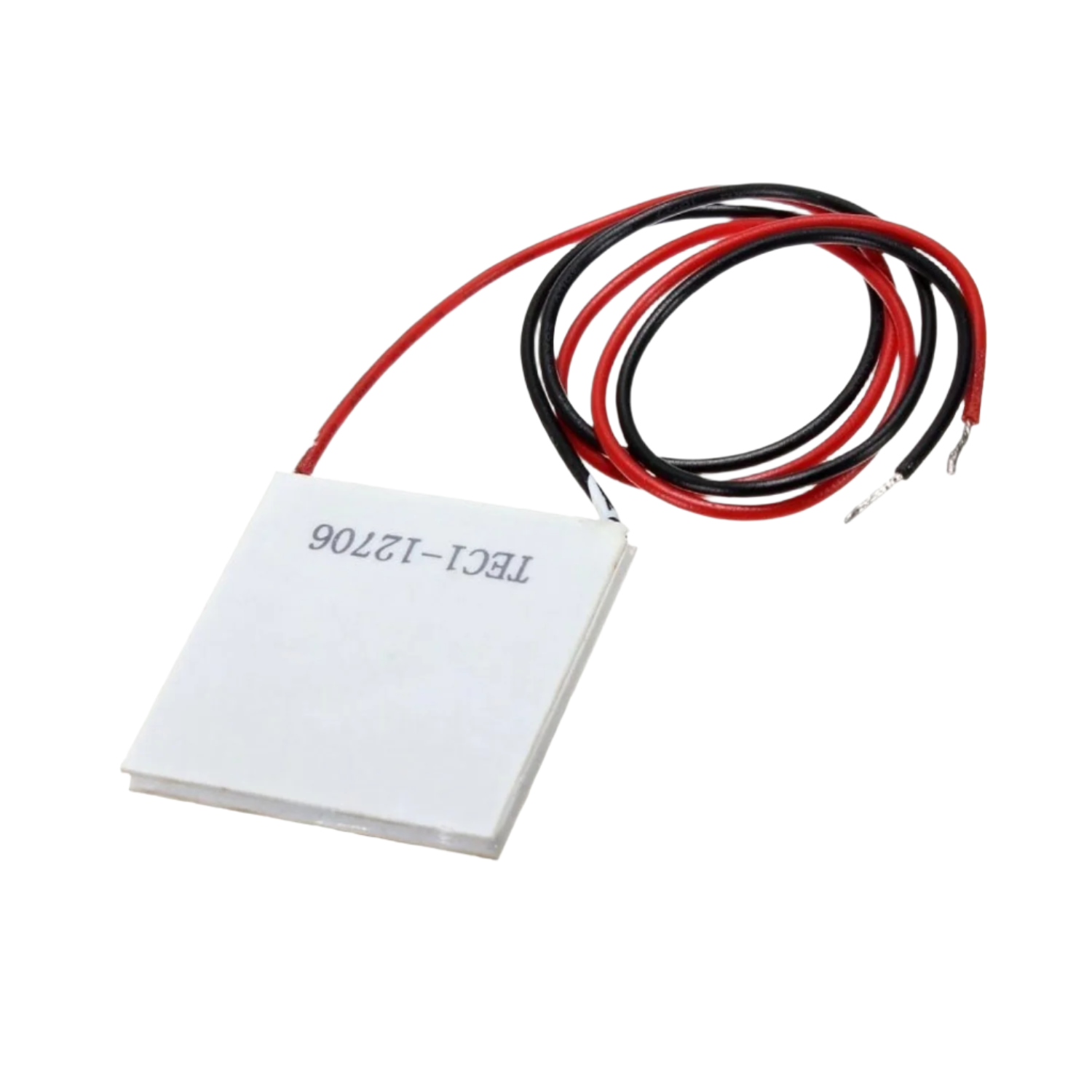

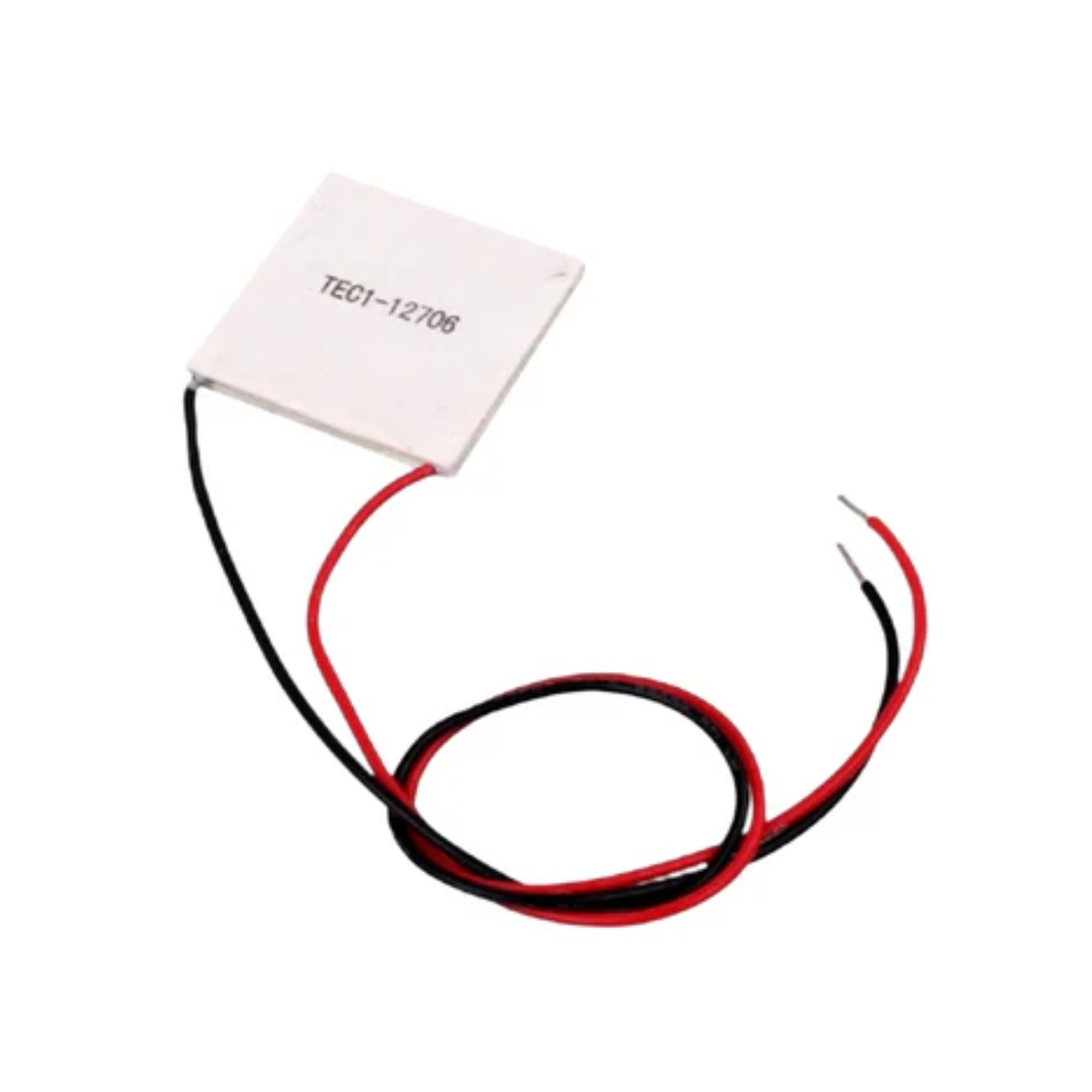

1 x TEC1 12706 30x30mm Thermoelectric Cooler 6A Peltier Module
