Description:

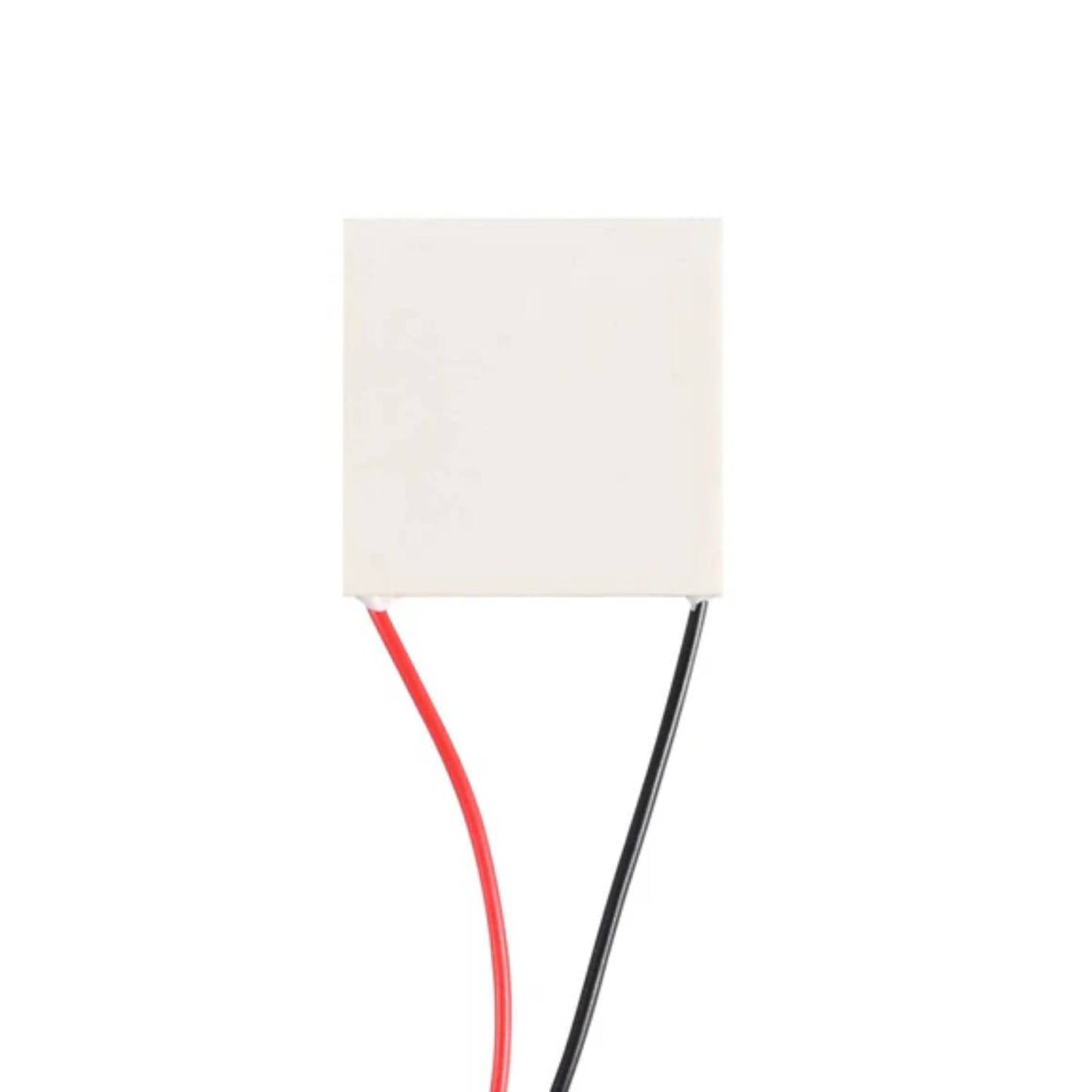

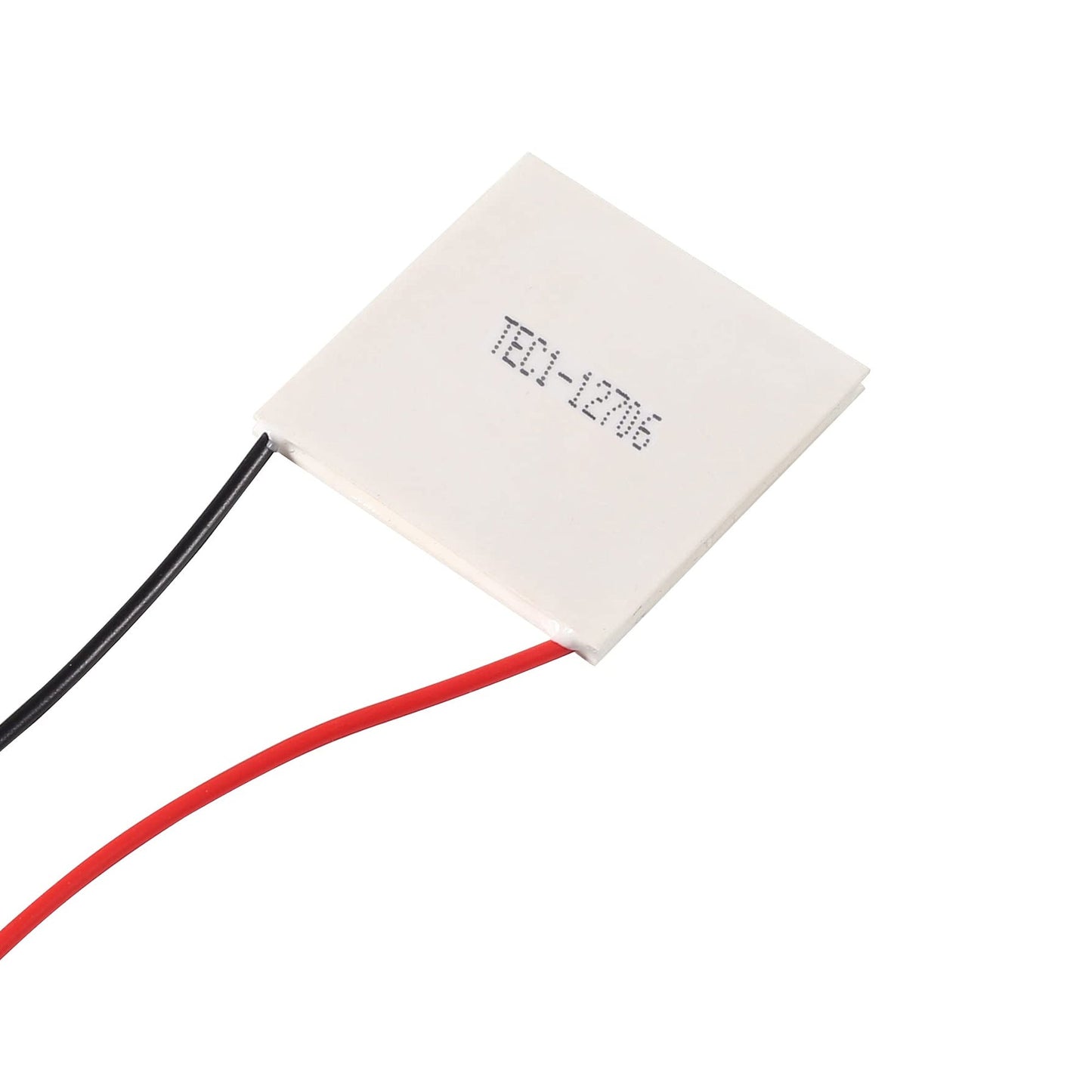

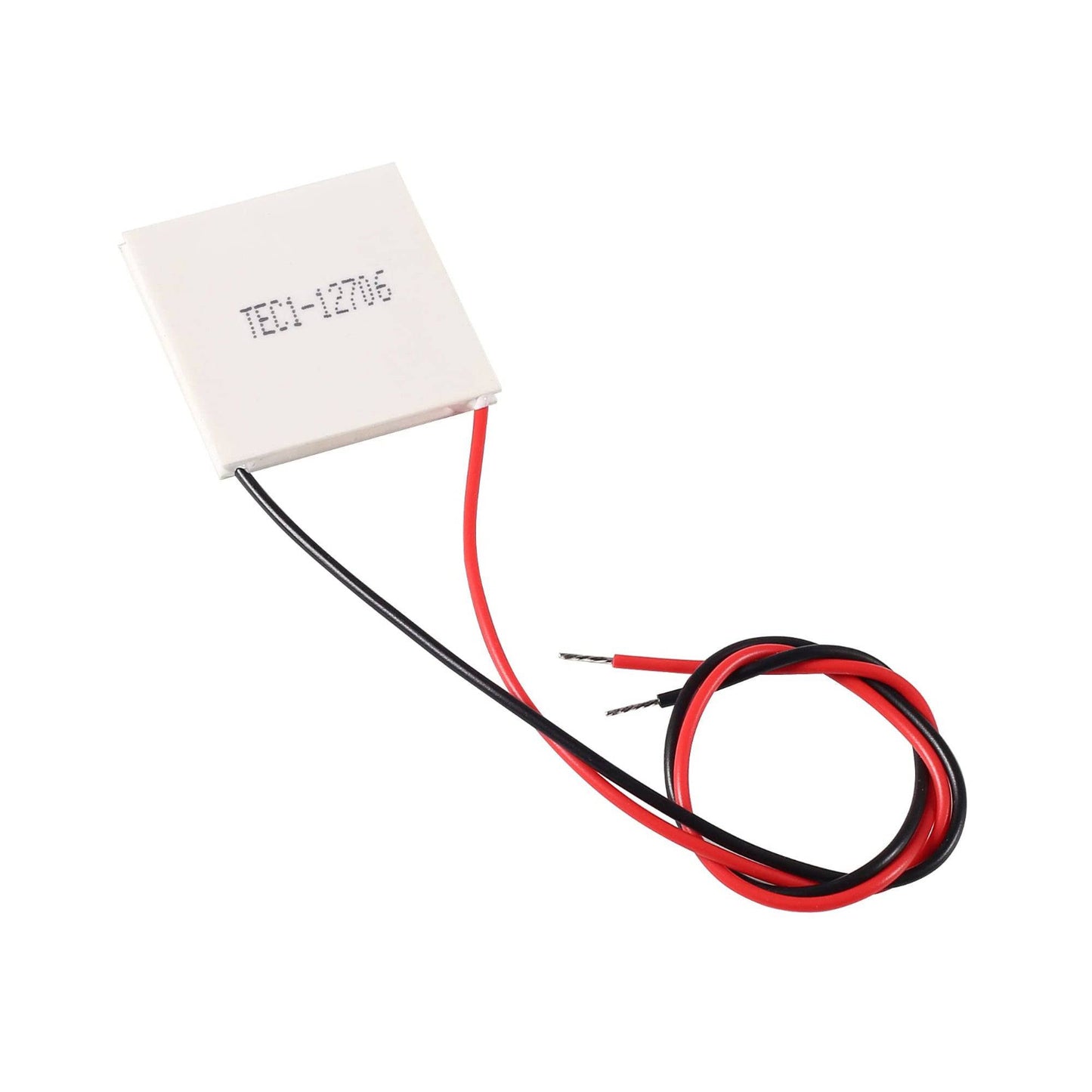

TEC1-12706 Peltier Module also known as TEC or Peltier Module converts electric power to a temperature differential. When powered with 12V DC one side gets hot and the other side gets cold compared to the ambient temperature. Therefore, they can be used to either warm something up or cool something down. You can also take advantage of a temperature differential to generate electricity.
Thermoelectric Cooler Peltier Module works only as long as you remove the heat from the hot side. After turning on the device, the hot side will heat up quickly, the cold side will cool below ambient temperature slightly. If you do not remove the heat from the hot side (with a heat sink or another mechanism), the Peltier will quickly reach stasis and do nothing(finally getting damaged internally). We recommend using a large computer CPU heatsink or another block of metal to pull heat from the hot side. This ensures the cold side gets cooler.
Specifications:
- Model number: TEC1-12706
- Operating Voltage: 12V
- Maximum Voltage Umax (V) : 15.4V
- Maximum Current Imax (A) : 6A
- Maximum Power: 92 W
- Maximum Temperature: 138°C
- Power Cord: 200mm
Features:
- Small module.
- Operable up to 138°C.
- Easy transition between the hot side to the cool side and vice-versa just by reversing the polarity of the supply.
- Quality-tested cooling cells.
- Solid-state, vibration-free, noise-free.
- Simple to install and operate.
- Should use it with a heat sink.
Operating Tips:
- Max. Operating Temperature: 138°C
- Do not exceed Imax or Vmax when operating the module.
- Please carry out moisture protection options (sealing) in final application use.
- Life expectancy: 200,000 hours
- Failure rate based on longtime testings: 0.2%.
Package Included:

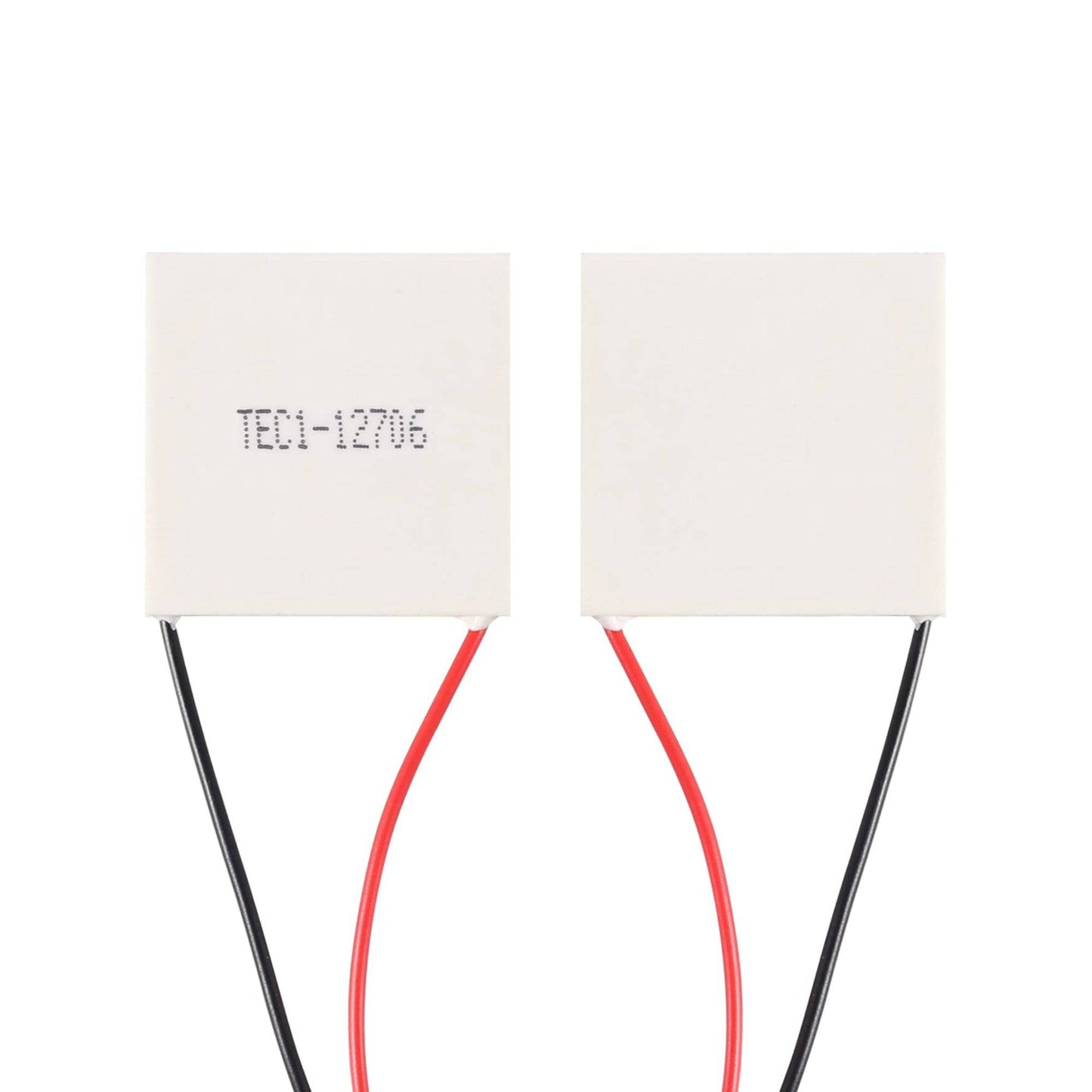

1 x 12706 Peltier Module TEC1 12706 40x40mm Thermoelectric Cooler 6A Peltier Module
