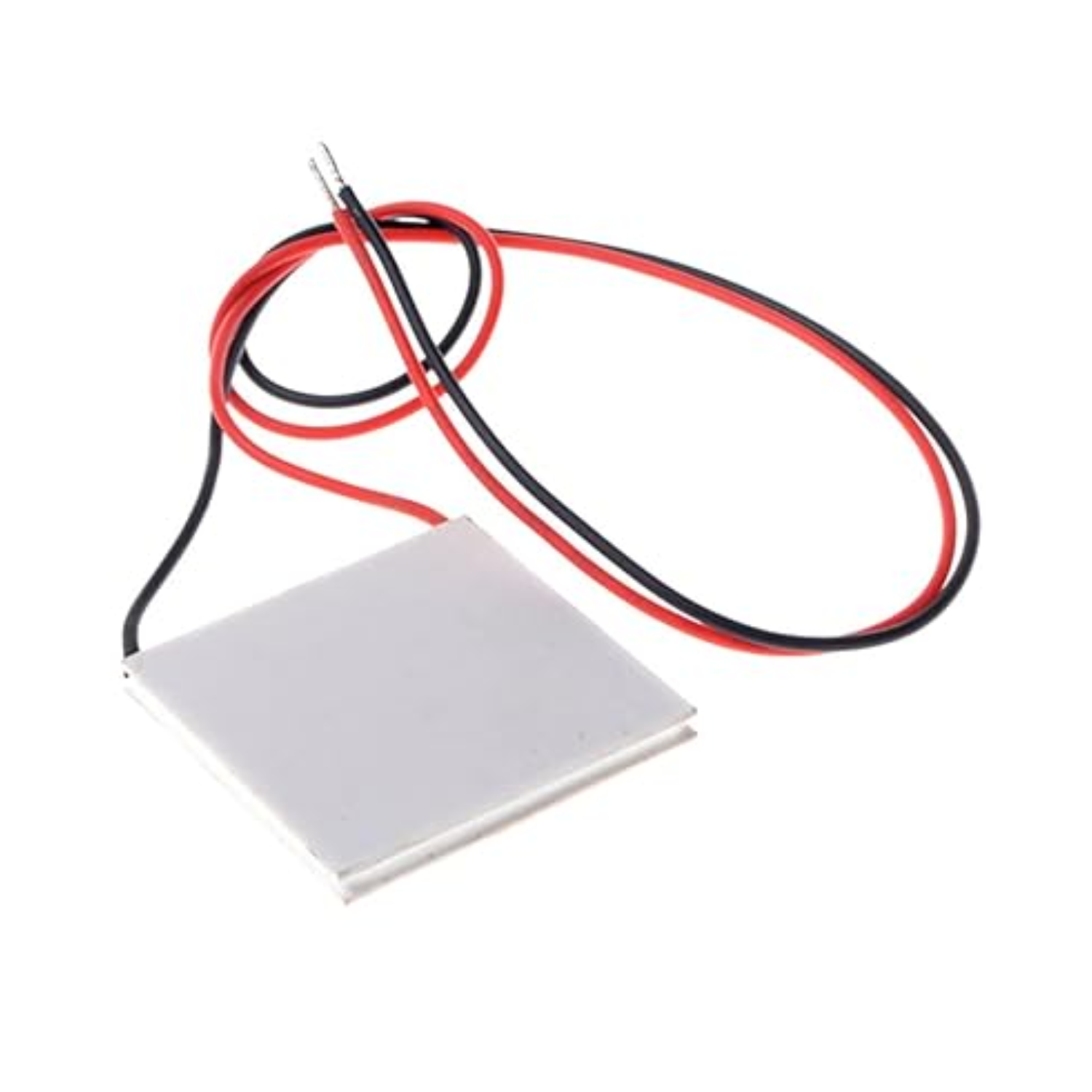

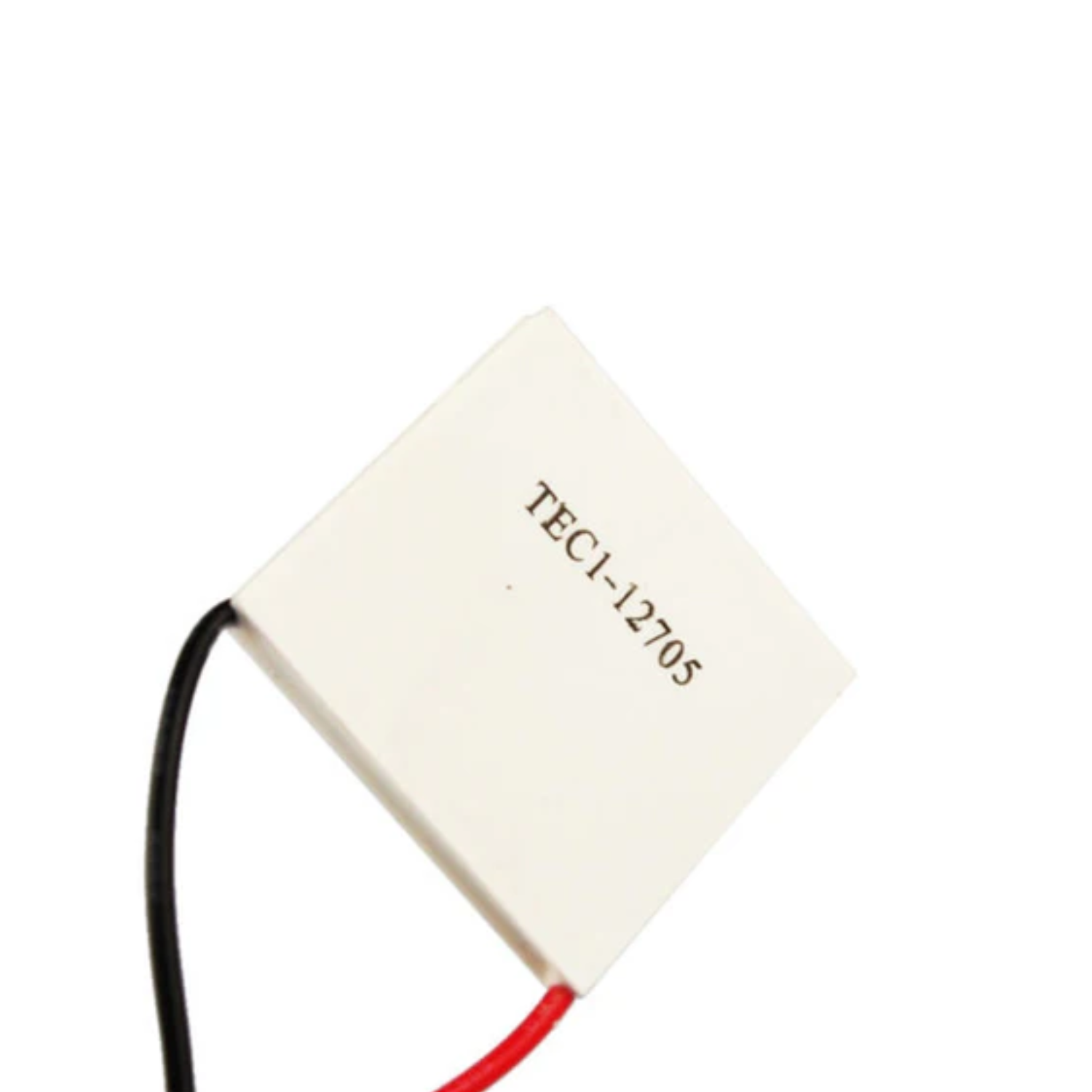

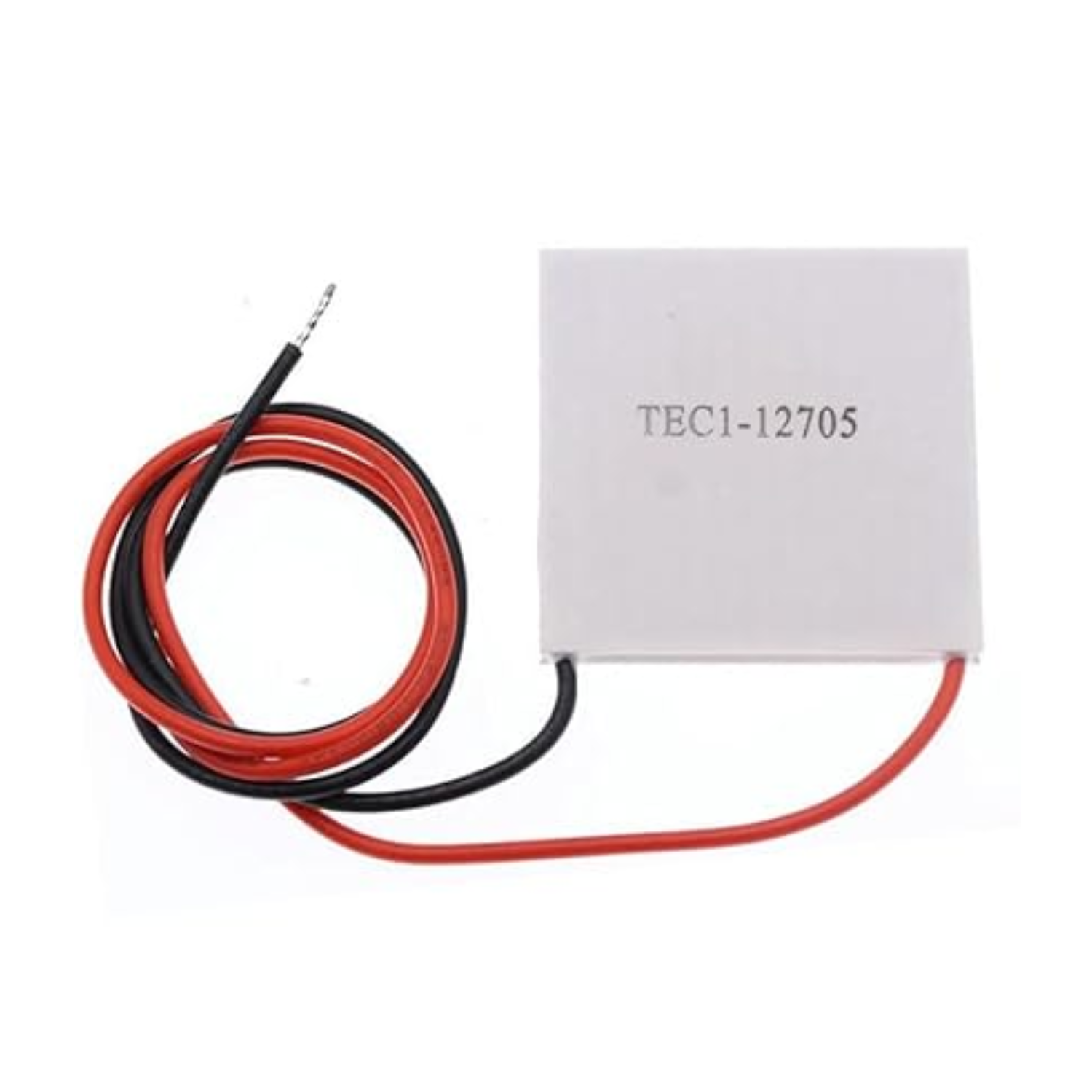

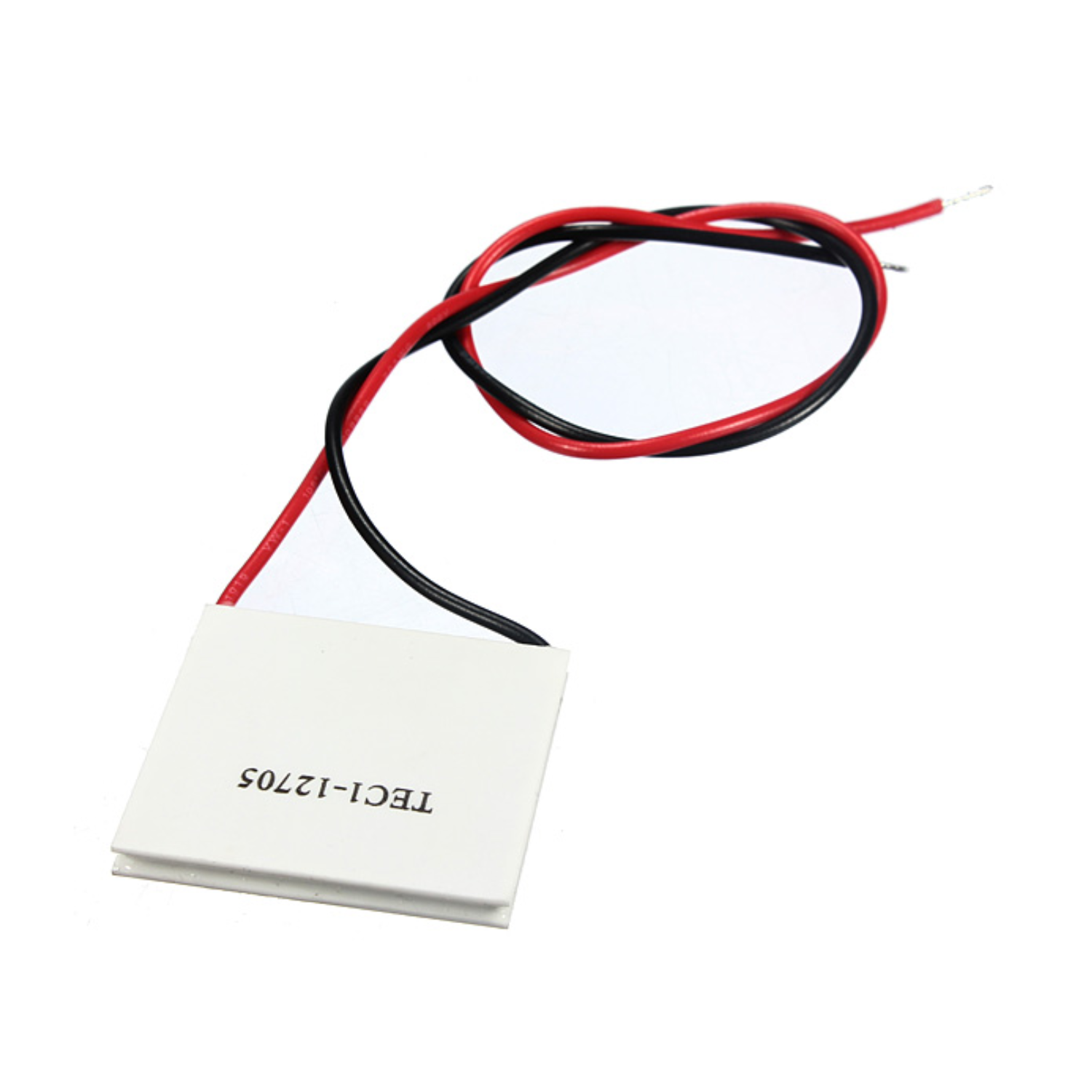

TEC1-12705 40x40mm Peltier Module 5A Thermoelectric Cooler For Precision Temperature Control

Description:

Thermoelectric coolers, also known as TECs or Peltier modules, operate by creating a temperature difference between their two sides. This characteristic makes TECs incredibly versatile, as they can be used for both heating and cooling applications, depending on which side is utilized.

The TEC1-12705 40x40mm Thermoelectric Cooler 5A Peltier Module is a compact and efficient device that harnesses the Peltier-Seebeck effect to create a temperature differential. This module, with its dimensions of 40mm x 40mm, houses 127 meticulously arranged semiconductor couples. These couples form the heart of the thermoelectric operation, enabling the module to effectively cool and heat, reaching temperatures up to 80°C.

Specifications:

• Model number: TEC1-12705
• Operating Voltage: 12V
• Maximum Voltage- Umax: 15V
• Maximum Current- Imax: 5.2A
• Maximum Power: 54 W
• Power Cord: 25cm

Features:

• Small module.
• Easy transition between the hot side to the cool side and vice versa, just by reversing the polarity of the supply.
• Quality-tested cooling cells.
• Solid-state, vibration-free, noise-free.
• Simple to install and operate.
• Should use it with a heat sink.

Operating Tips:

• Do not exceed Imax or Vmax when operating a module.
• Please carry out moisture protection options (sealing) in the final application use.
• Life expectancy: 200,000 hours
• Failure rate based on long-term testing: 0.2%.

Package Included:

1 x TEC1-12705 40x40mm Peltier Module 5A Thermoelectric Cooler
