Description:
Thermoelectric coolers, also known as TECs or Peltier modules, function by creating a temperature differential across their two sides. When an electrical current is applied, one side of the module becomes cold while the opposite side becomes hot. This inherent characteristic makes TECs incredibly versatile, as they can be used for both heating and cooling purposes, simply by selecting which side to utilize. Furthermore, this temperature difference can even be harnessed to generate a small electrical current, opening up possibilities for energy recovery.

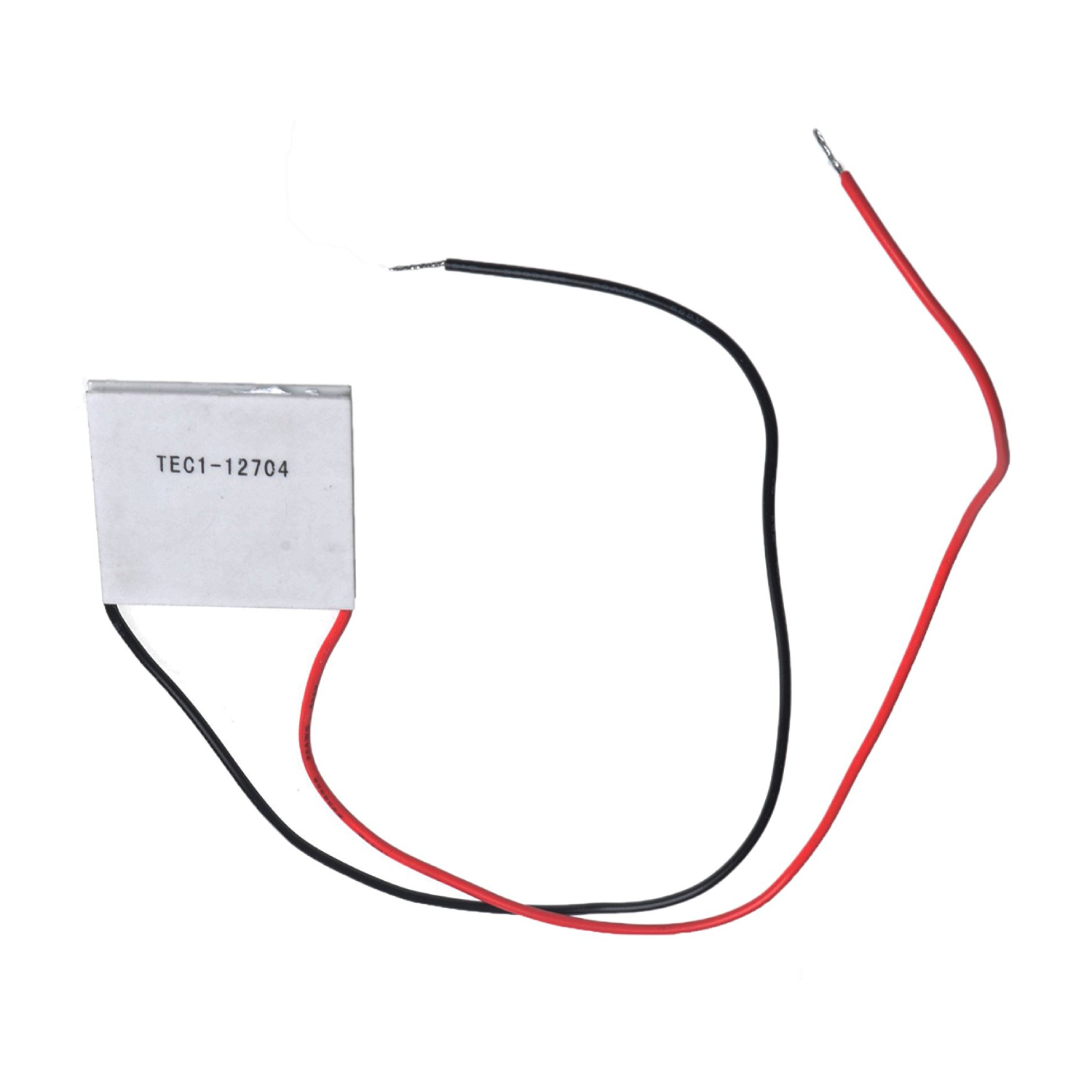

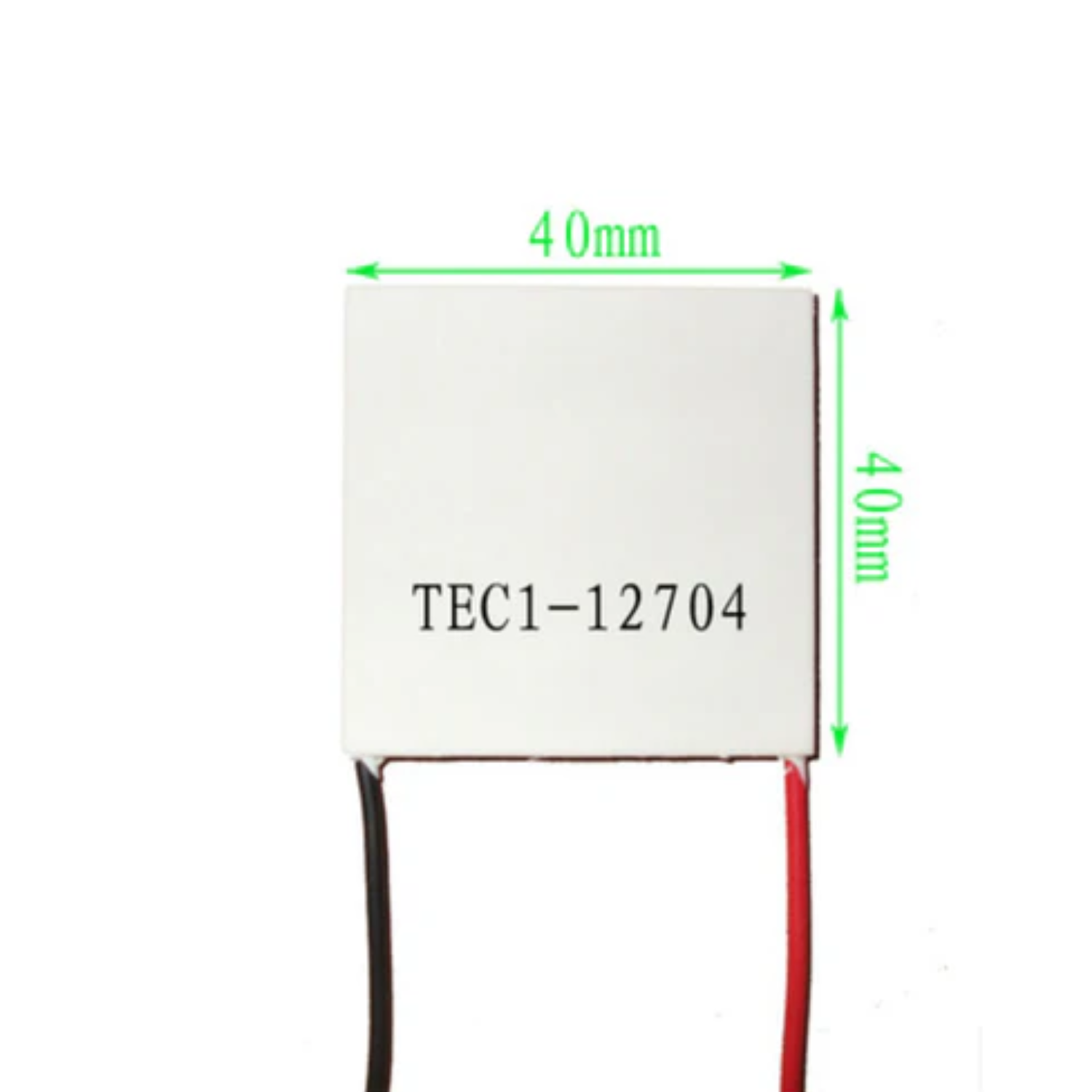

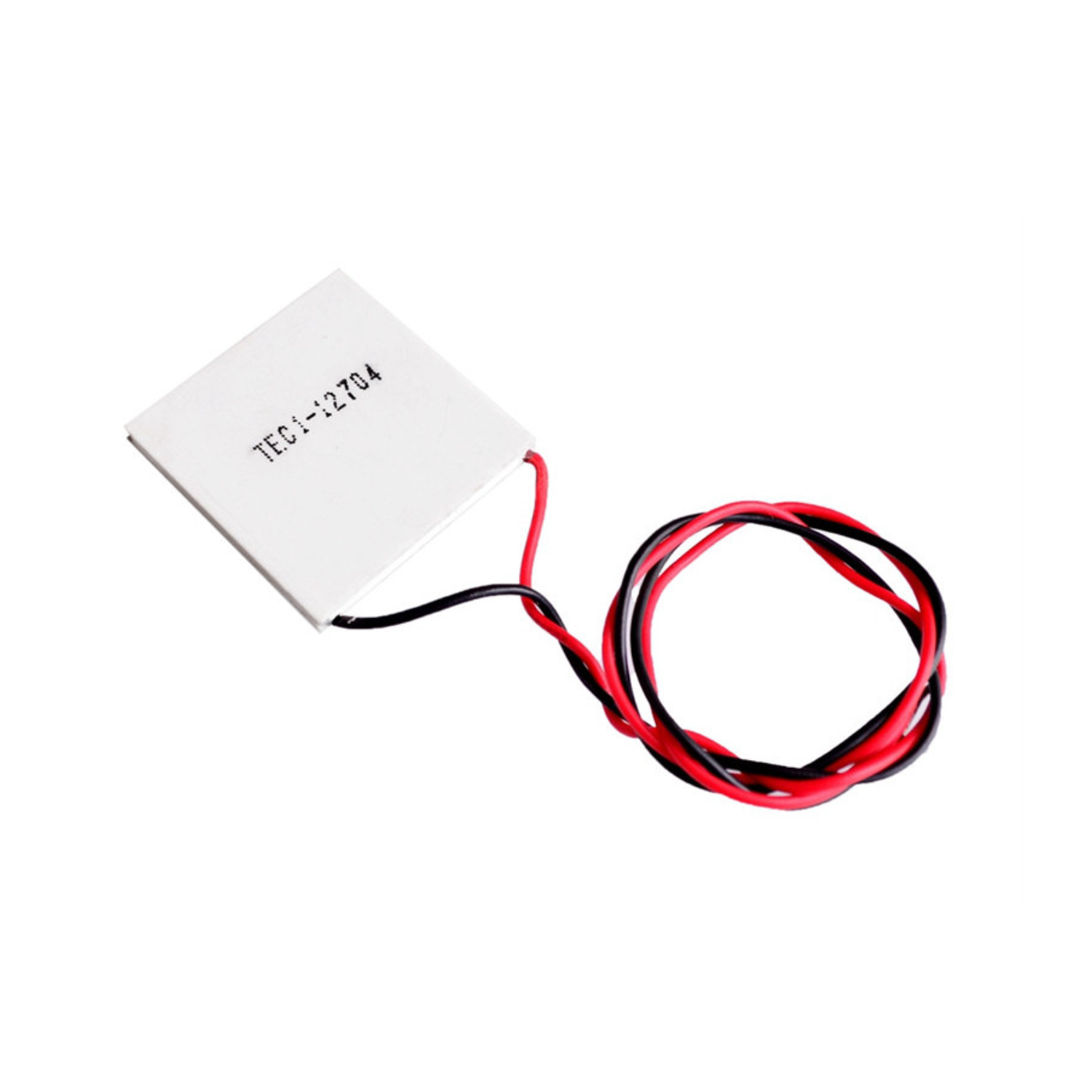

The TEC1-12704 40x40mm Thermoelectric Cooler 4A Peltier Module is a compact and efficient device that utilizes the Peltier-Seebeck effect to generate a temperature difference. This module, measuring 40mm x 40mm, contains 127 precisely arranged semiconductor couples. These couples are the core components that enable the module to effectively cool and heat, reaching temperatures up to 70°C.
Specifications:
- Model number: TEC1-12704
- Operating Voltage: 12V
- Maximum Voltage- Umax: 15V
- Maximum Current- Imax: 4A
- Maximum Power: 36 W
- Power Cord: 25cm
Features:
- Small module.
- Easy transition between the hot side to the cool side and vice versa, just by reversing the polarity of the supply.
- Quality-tested cooling cells.
- Solid-state, vibration-free, noise-free.
- Simple to install and operate.
- Should use it with a heat sink.
Operating Tips:
- Do not exceed Imax or Vmax when operating the module.
- Please carry out moisture protection options (sealing) in the final application use.
- Life expectancy: 200,000 hours
- Failure rate based on long-time testing: 0.2%.
Package Included:
1 x TEC1-12704 40x40mm Peltier Module 4A Thermoelectric Cooler
