Description:
Thermoelectric coolers, also commonly known as TECs or Peltier Modules, operate on the principle of creating a temperature differential between their two sides. This characteristic allows them to be used for targeted heating or cooling, simply by utilizing the appropriate side. Furthermore, the temperature differential can even be harnessed to generate small amounts of electricity, opening up possibilities for energy harvesting in specific scenarios.

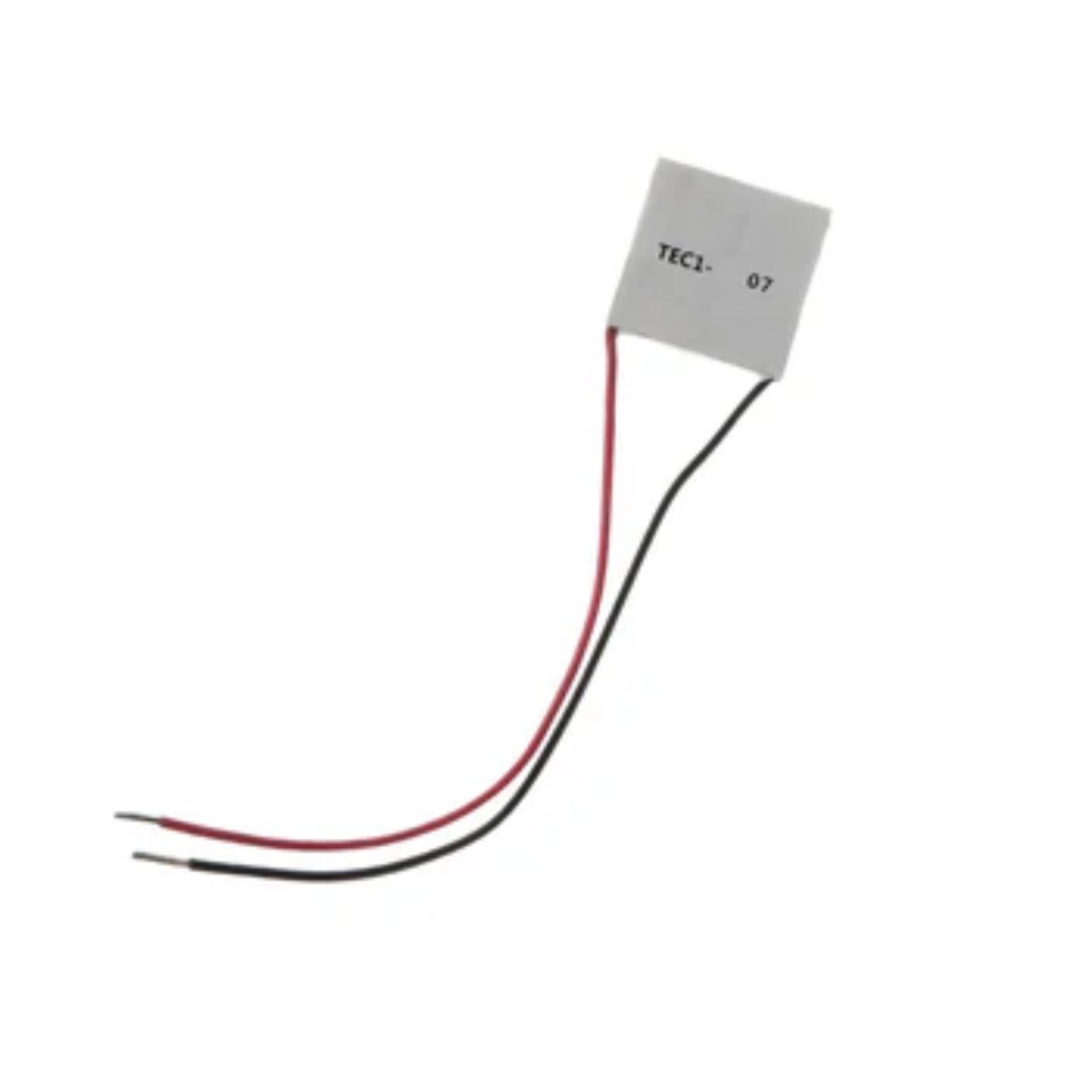

The TEC1-07107 30x30mm Thermoelectric Cooler 7A Peltier Module elegantly demonstrates the Peltier Thermoelectric Effect in a compact and versatile package. This module, measuring 30mm x 30mm, houses 71 meticulously arranged semiconductor couples, enabling it to efficiently cool or heat objects up to a substantial 80°C. This dual functionality makes it suitable for a wide range of applications, from small-scale cooling projects to experimental setups.
Specifications:
- Model number: TEC1-07107
- Item Type: Thermoelectric Cooler
- Operating Voltage: 15V
- Maximum Current- Imax: 7A
- Maximum Power: 83W
- Power Cord: 25cm
- Color: As per the Image
- Dimensional Accuracy: 30x30mm
Features:
- Small module.
- Easy transition between the hot side to the cool side and vice versa, just by reversing the polarity of the supply.
- Quality-tested cooling cells.
- Solid-state, vibration-free, noise-free.
- Simple to install and operate.
- Should use it with a heat sink.
Operating Tips:
- Do not exceed Imax or Vmax when operating a module.
- Please carry out moisture protection options (sealing) in the final application use.
- Life expectancy: 200,000 hours
- Failure rate based on long-time testing: 0.2%.
Package Included:
1 x TEC1-07107 30x30mm Thermoelectric Cooler 8.4A Peltier Module
