TE DT1-028K Piezo Film Sensor TE Connectivity Piezo Film Vibration Sensor High-Sensitivity Piezo Vibration Sensor DT Series Piezo Film Vibration Sensor

TE DT1-028K Piezo Film Sensor TE Connectivity Piezo Film Vibration Sensor High-Sensitivity Piezo Vibration Sensor DT Series Piezo Film Vibration Sensor

SKU:

In stock

Regular price Rs. 639.00
Regular price Sale price Rs. 639.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

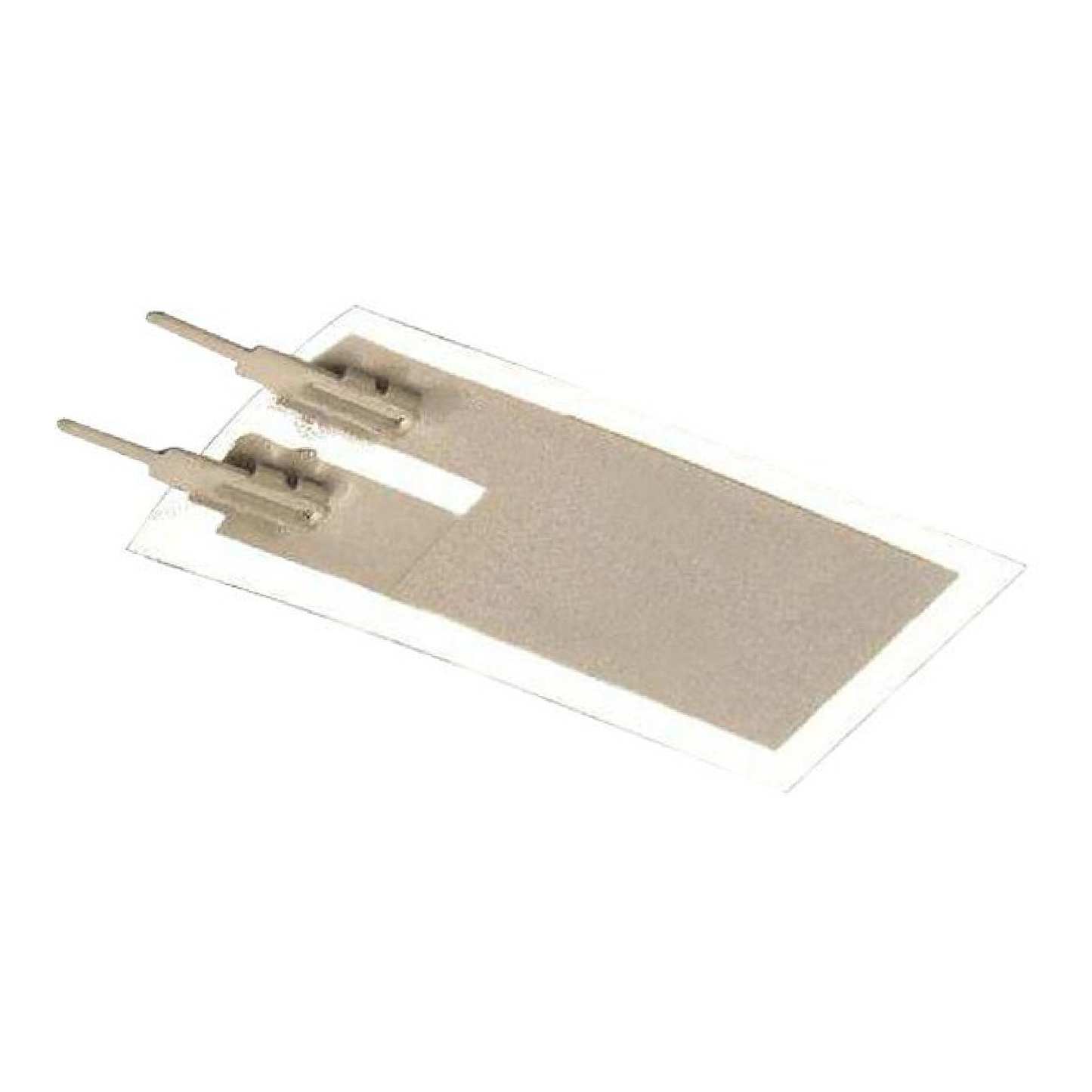

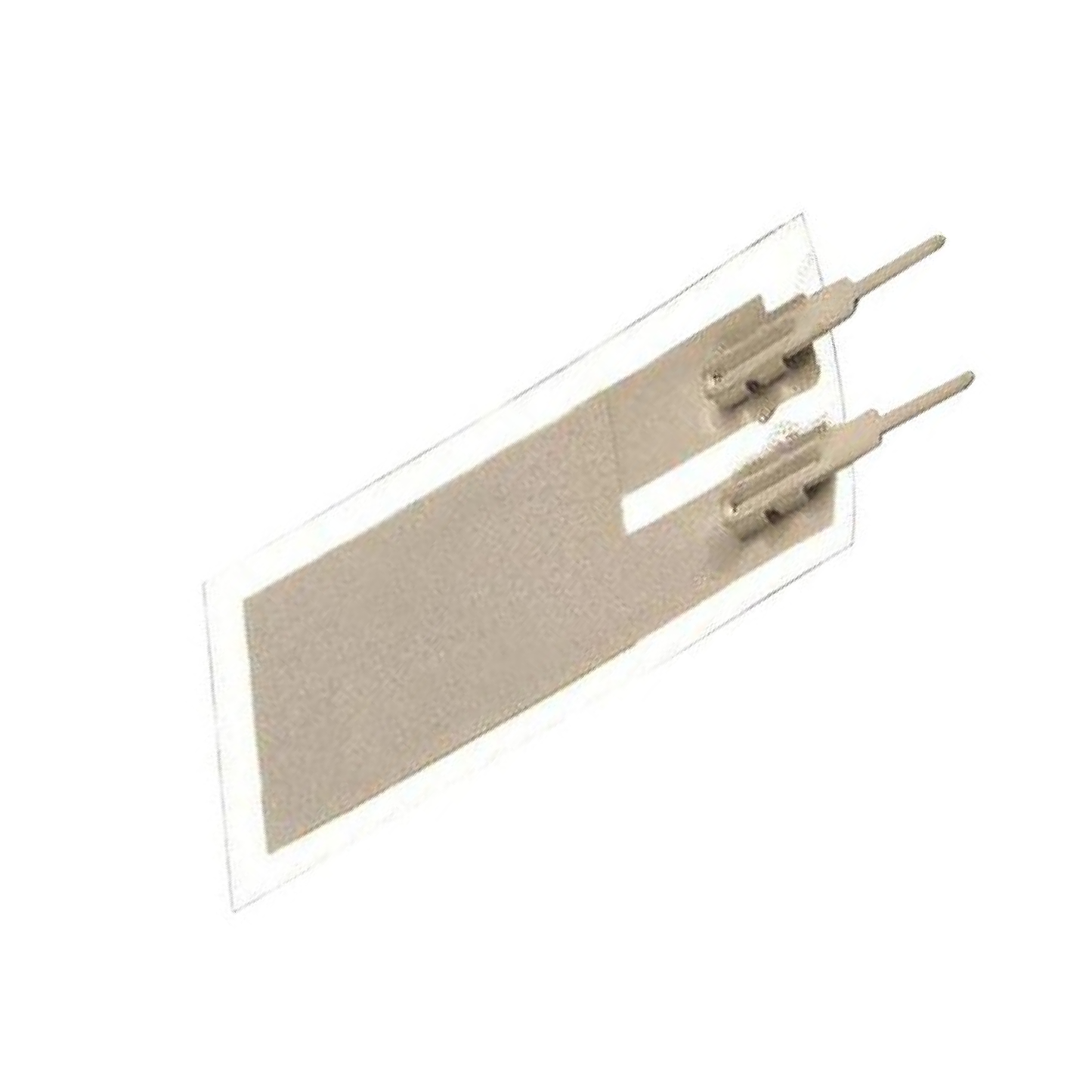

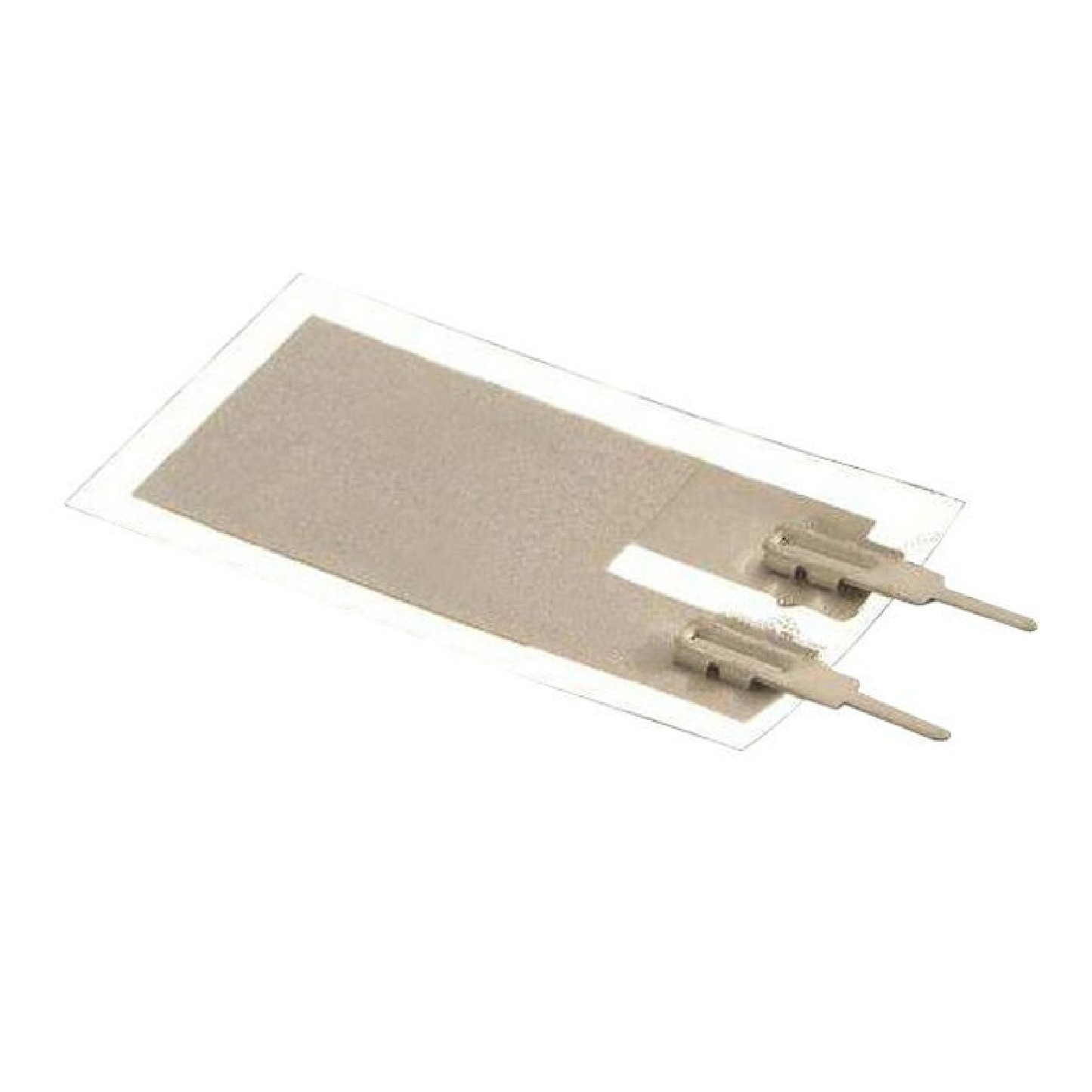

TE Connectivity's DT series piezo film sensor elements are versatile and customizable solutions for dynamic strain measurement and vibration/impact detection. These rectangular elements feature screen-printed silver ink electrodes and come in a range of sizes and thicknesses.

Their high sensitivity (over 10 mV/microstrain) makes them ideal for applications requiring precise measurement of dynamic strain.  Supplied without leads, the DT series allows for user-defined lead attachment using various methods, including clamping, crimps, conductive epoxy, or low-temperature soldering.  Simple mounting with double-sided tape or epoxy ensures easy integration into your project.

Specifications:

  • Model No.: DT1-028K
  • Input Impedance: 1 MΩ, recommended: 10 MΩ
  • Output Voltage (mV): mV to 100s of volts
  • Operating Temperature (°C): -40 to 60°C

Features:

  • Thin & flexible piezo film for easy integration.
  • Reliable silver ink electrodes for simple connection.
  • User-friendly design for quick installation.
  • High-quality materials for dependable operation.

Package Included:

1 x TE DT1-028K Piezo Film Sensor
