TDA7498 Amplifier Board XH-A105 Bluetooth 5.0 TDA7498 2x100W Stereo Audio AMP Digital Amplifier Board Module Support TF Card AUX - RS2552

TDA7498 Amplifier Board XH-A105 Bluetooth 5.0 TDA7498 2x100W Stereo Audio AMP Digital Amplifier Board Module Support TF Card AUX - RS2552

SKU:RS2552

In stock

Regular price Rs. 899.00
Regular price Sale price Rs. 899.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This TDA7498 Amplifier Board with high fidelity and two-channel stereo sound quality, the input voltage is DC 12~30V, the audio input supports Bluetooth, TF card, AUX 3.5mm audio line input, and can be directly connected to mobile phone, MP3, etc. TDA7498 Amplifier Board also comes with a volume adjustment function, which rotates the chirp potentiometer clockwise to zoom in and counterclockwise to decrease.

Specifications:

  • Input Voltage: DC12-30V
  • Amp Chip: TDA7498
  • Output Impedance: 4~8 ohm Speaker
  • Support Format: FLAC/APE/MP3/WMA/WAV
  • Current: ≥3A
  • Output Power: 100W*2
  • Audio Input: Bluetooth, TF card, AUX
  • Number of Channels: Two channels

Features:

  • TDA7498 Amplifier Board audio input supports Bluetooth, TF card
  • TDA7498 Amplifier Board has two-channel stereo sound quality

Bluetooth Operation Instructions:

When the power amplifier board is connected to the power supply and the Bluetooth is not connected, the Bluetooth indicator will flash rapidly. When the Bluetooth connection is successful, the Bluetooth indicator will stop flashing. When the song is played, the Bluetooth indicator will flash slowly.

Alert:

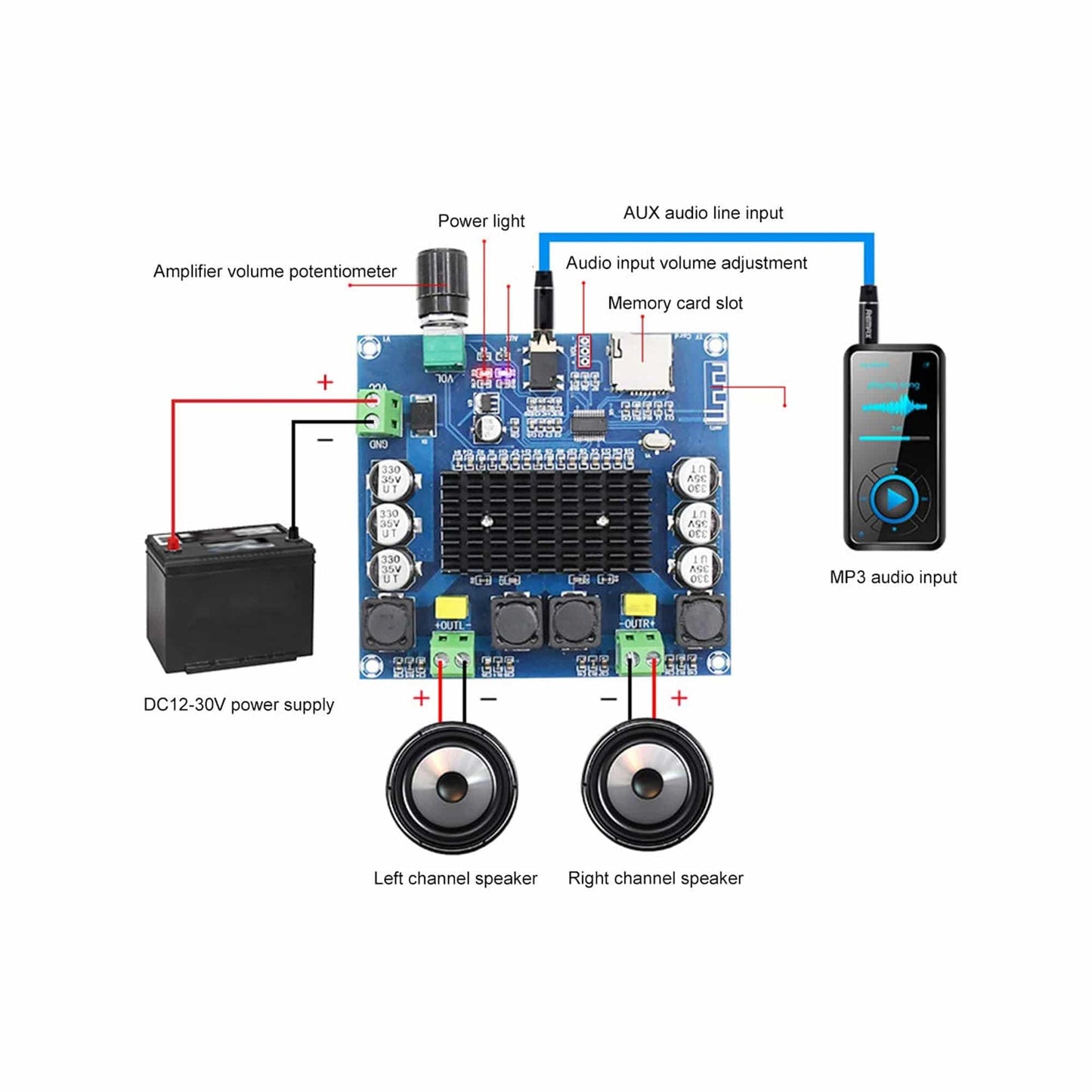

  • Connect the power input to the DC12-30V power supply. When the power is on, the power indicator will light red and the blue light will flash blue.
  • Connect the audio input to the audio source, such as MP3, mobile phone, computer, TF card, etc.
  • Connect the audio output to the speaker, paying attention to the positive and negative.

Package Included:

1 x TDA7498 Amplifier Board XH-A105 Bluetooth 5.0 TDA7498 2x100W Stereo Audio AMP Digital Amplifier Board Module Support TF Card AUX
