Description:

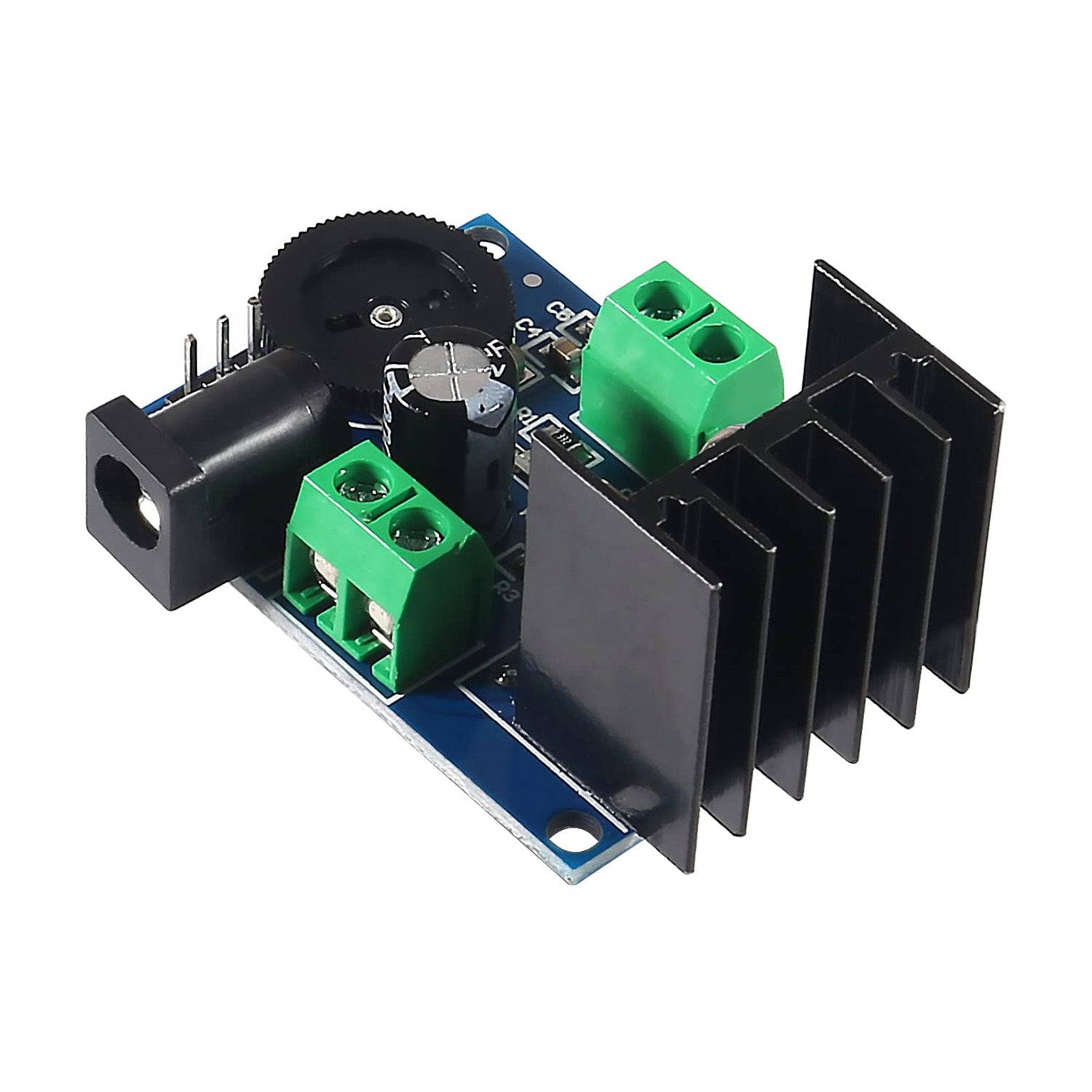

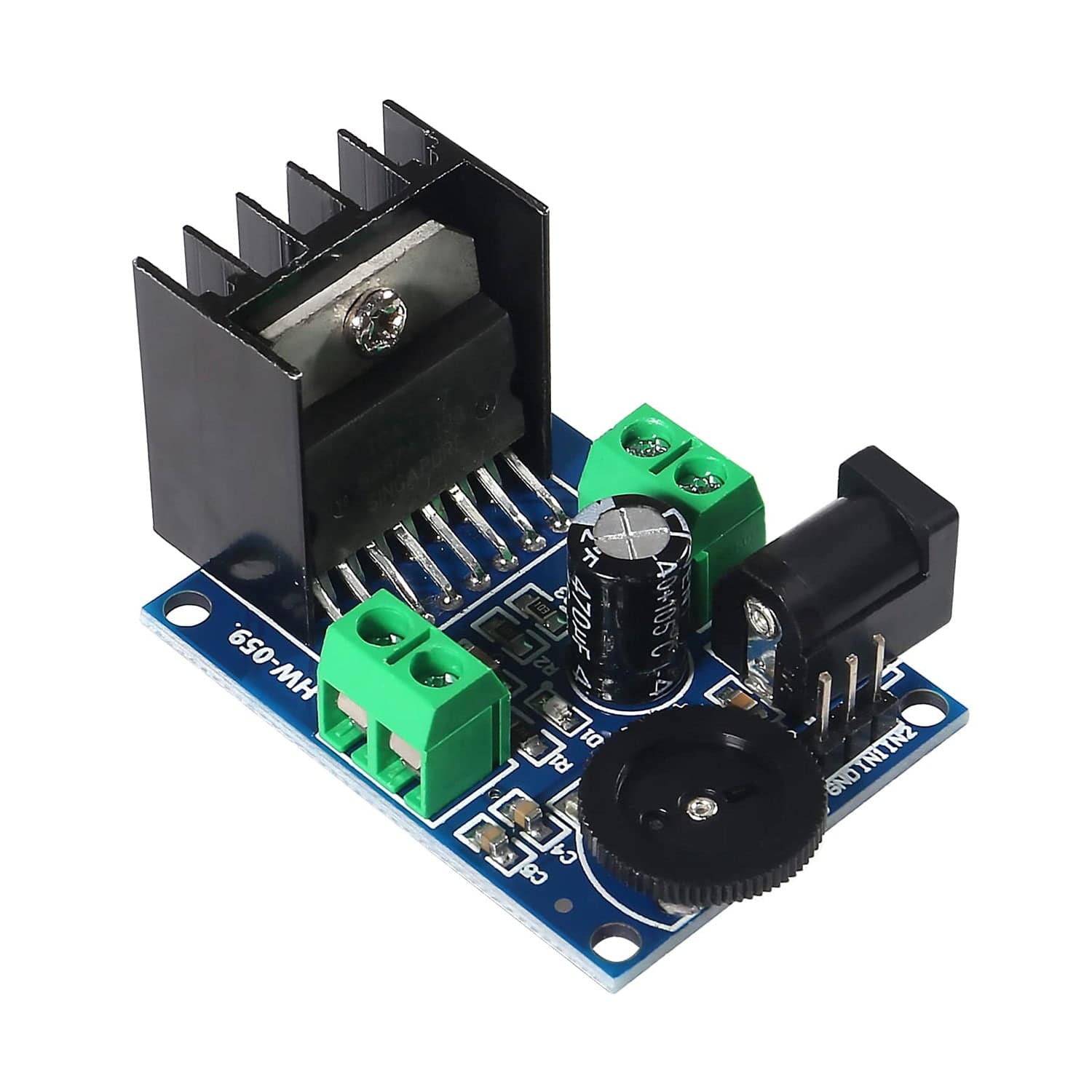

Build your music system with TDA7297 Audio Amplifier Board a newly designed digital audio amplifier board with fine quality that is practical to install and use and also has good performance. TDA7297 Audio Amplifier Board features a high-efficiency class D audio power amplifier with the latest and original TDA7297 core technology the BTL bridge circuit is more efficient than before. TDA7297 Audio Amplifier Board uses the double power supply transformer with a dynamic power supply range from 6V to 18V with high efficiency small quiescent current. Additionally, it is equipped with Perfect protection functions like overvoltage protection and output current limit.
Specification:
- Model: TDA7297
- Operating Voltage Range: 6 to 18VDC
- Output Power: 02*15W
Features:
- A strong TDA7297 chip is a digital power amplifier chip, with low idle loss characteristics, which makes it work well and quickly.
- Onboard, front-facing IC to improve the input sensitivity and high-definition sound quality.
- TDA7297 Audio Amplifier Board can be used for car vehicle computer speakers, family audio and video, and empty square.
- This product has the characteristics of loud sound, the capacitance is large, excellent sound quality.

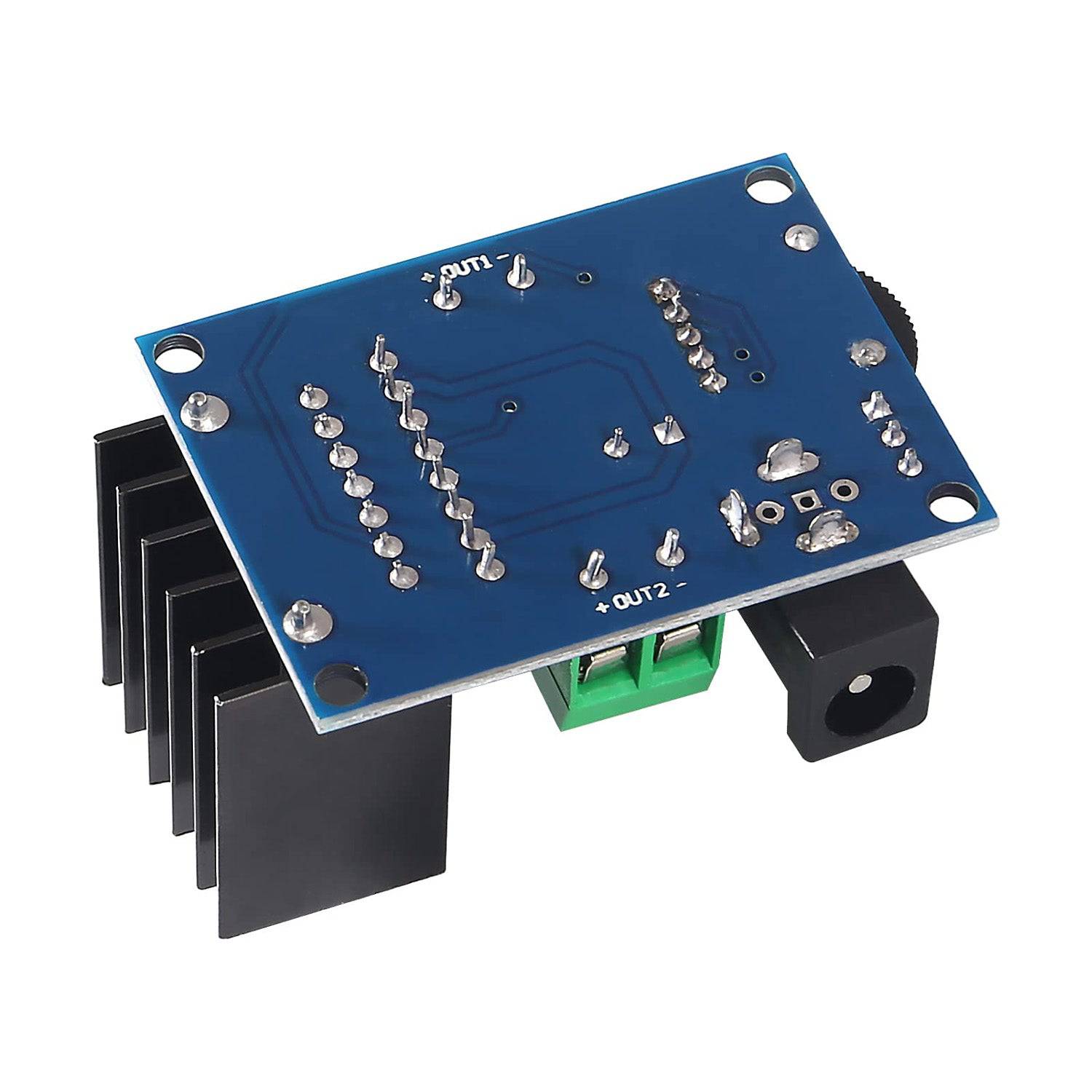

- There is no solder joint on the back of the circuit board, the chip capacitors, and the solder board together, so there is no possibility of a short circuit.
Package Included:
1 x TDA7297 Audio Amplifier Board Module DC 6-18V Dual-Channel Stereo Amplifier Board 4-8 Ohms 10-50W for Sound System DIY Speakers
