Description:

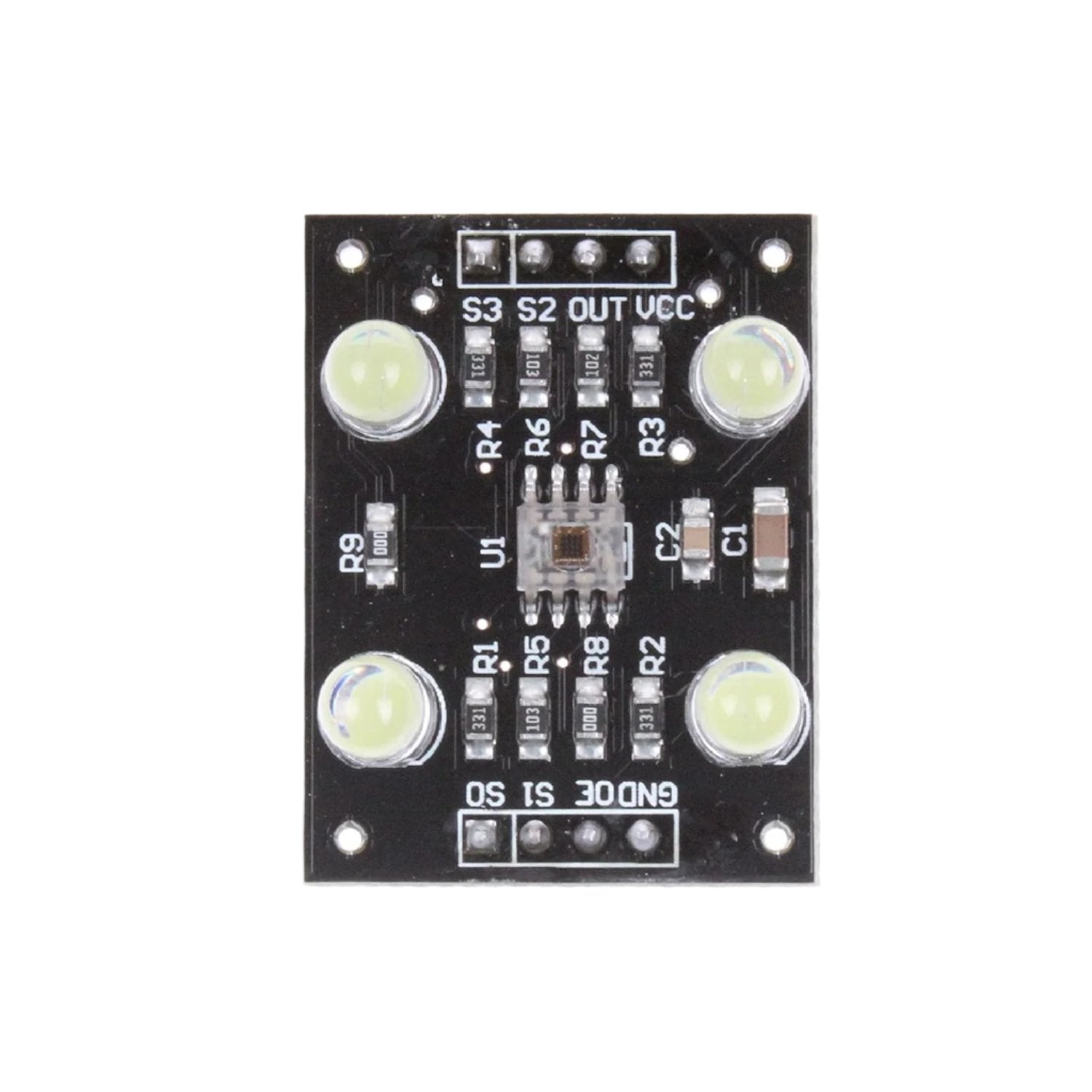

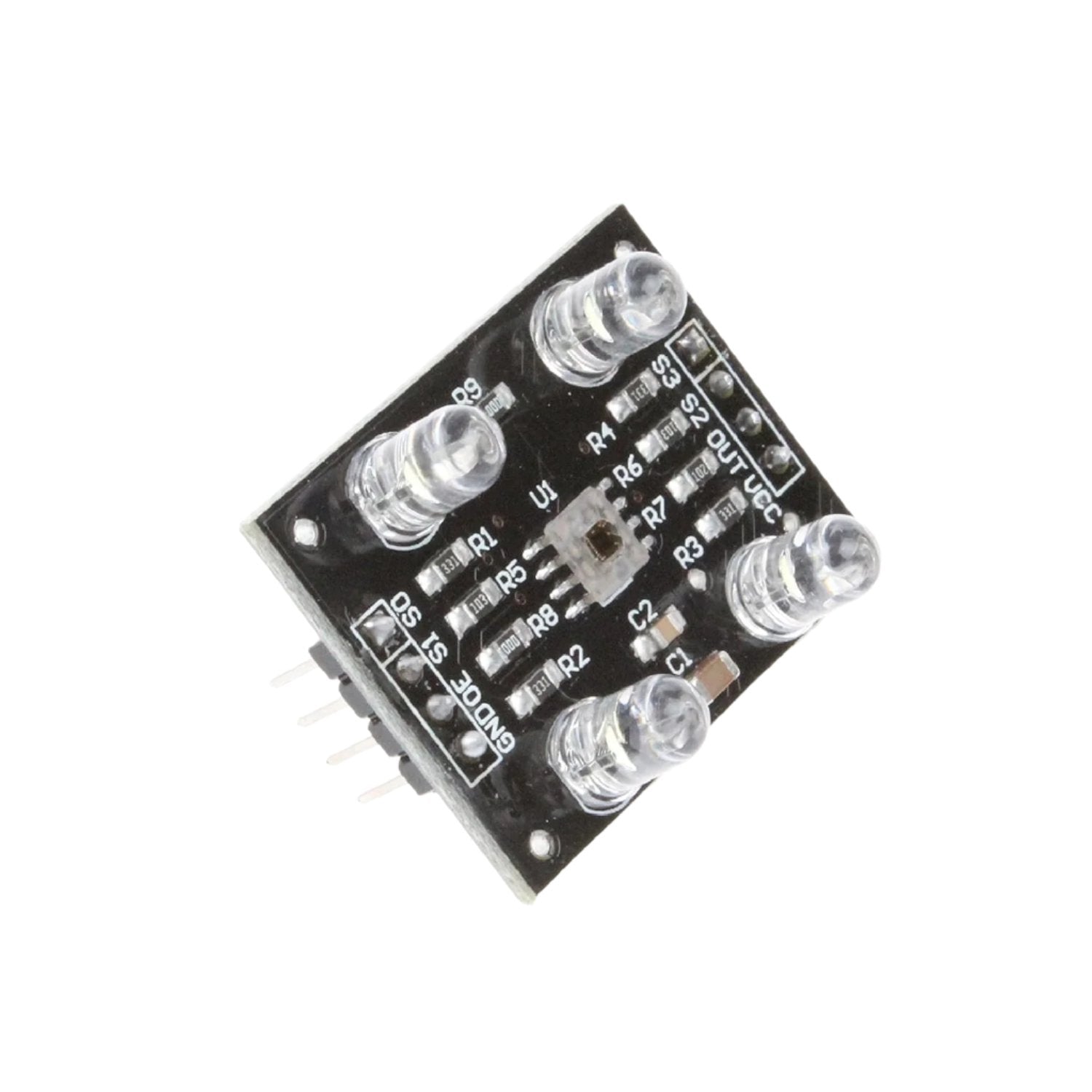

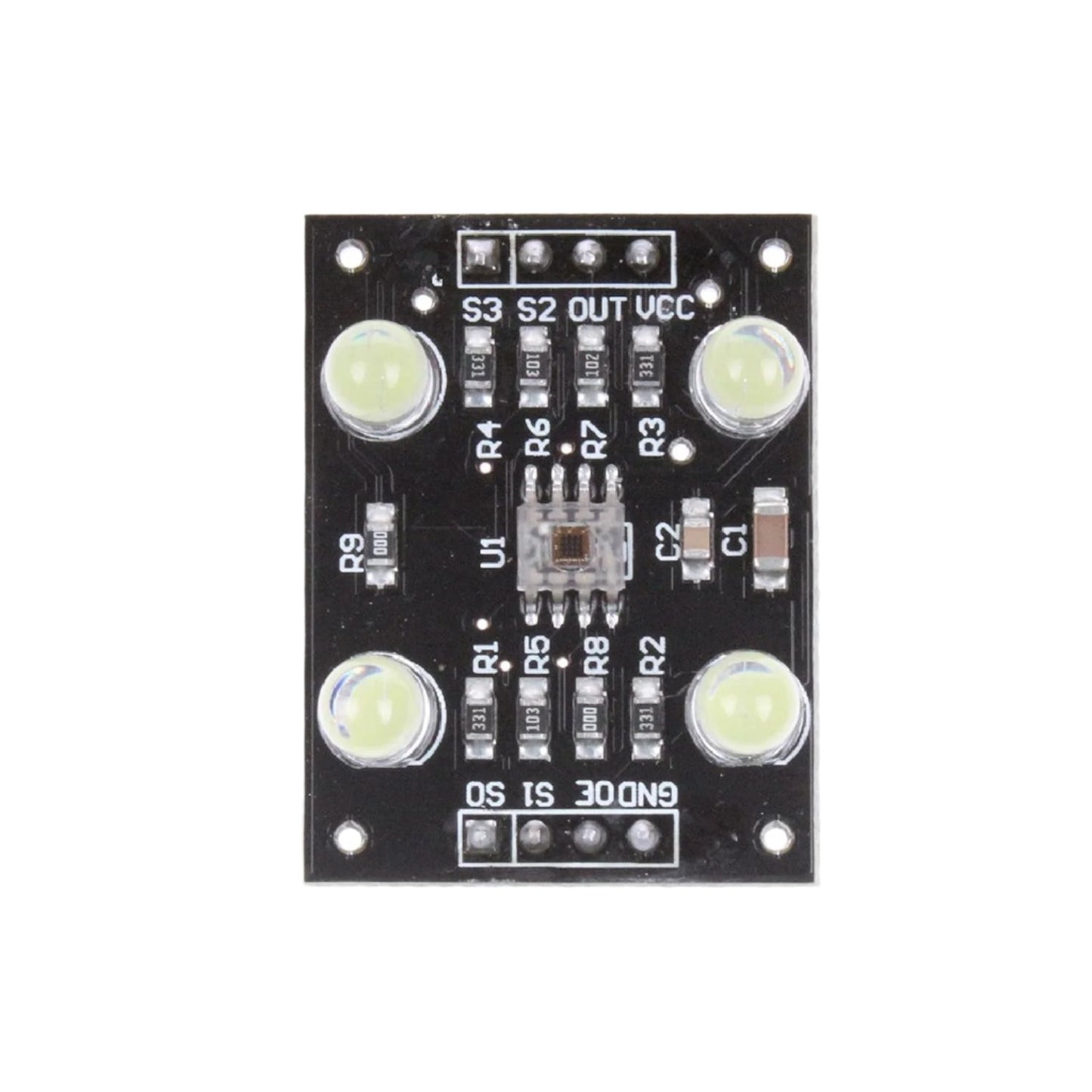

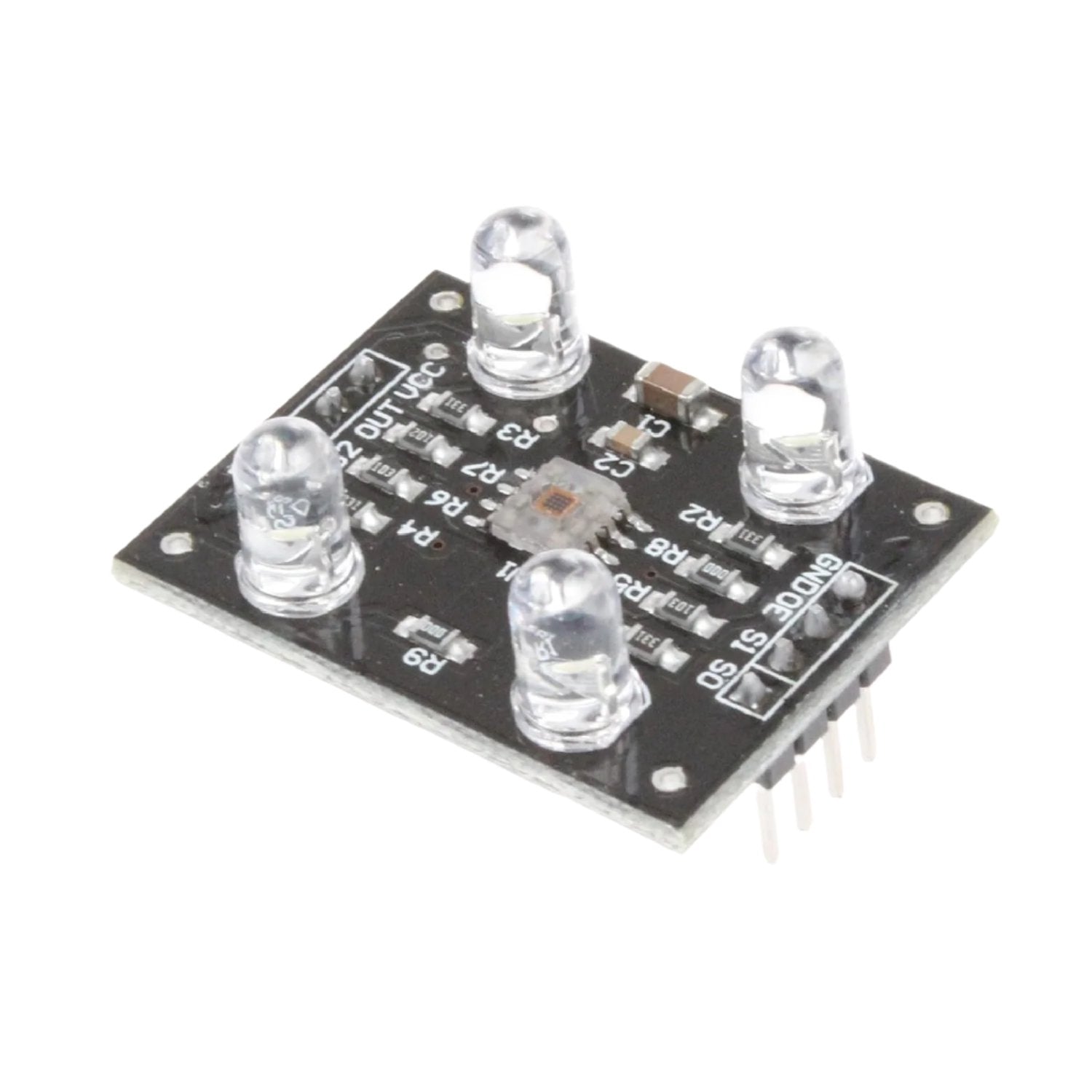

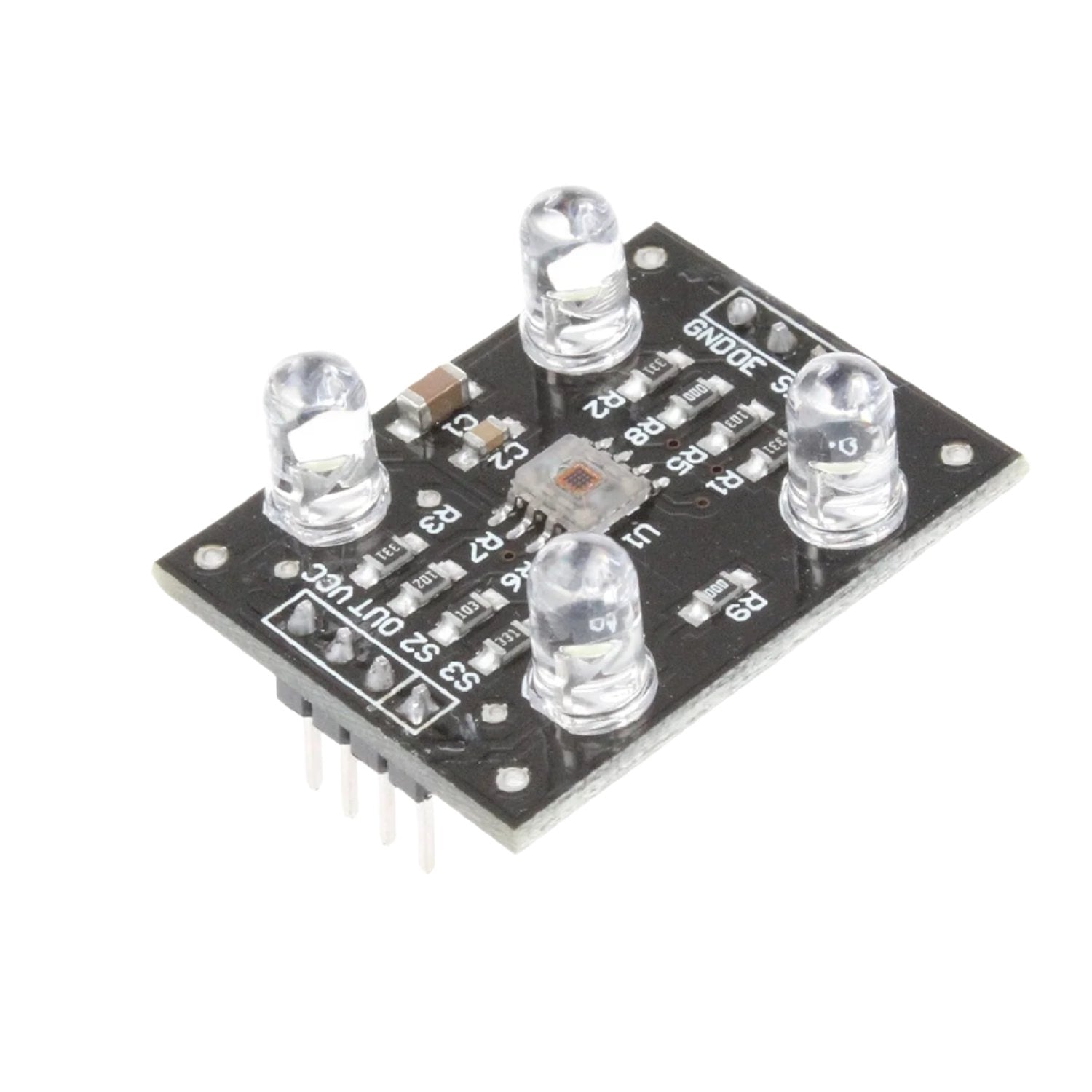

The TCS3200 Color Detection Sensor Module is a programmable RGB sensor designed for accurate color recognition. It converts light intensity into a square-wave output frequency, readable by most microcontrollers. Compatible with Arduino, Raspberry Pi, STM32, and ESP boards, this module is ideal for color-sorting robots, line followers, and environmental sensing projects.
Specifications:
| Model | TCS3200 RGB Color Sensor Module |
| Sensor IC | TAOS / AMS TCS3200 |
| Operating Voltage | 3V – 5V DC |
| Output Type | Square wave (frequency proportional to color intensity) |
| Detection Colors | Red, Green, Blue |
| Interface | Digital frequency output |
| Working Principle | Converts light intensity (RGB) into frequency |
| Output Enable (OE) | Active LOW |
| Communication | Direct to microcontroller (no ADC required) |
| PCB Size | Approx. 31mm × 24mm |
| Mounting Type | Through-hole with 2.54mm pin headers |
| Operating Temperature | -40°C to +85°C |
Features:
- ✅ High-resolution conversion of light intensity to frequency output.
- ✅ Integrated TCS3200 sensor chip with built-in photodiodes and filters for red, green, blue, and clear light.
- ✅ Standard 2.54 mm header pins – easy to mount on breadboards or perfboards.
- ✅ Programmable color and full-scale output frequency control.
- ✅ Direct microcontroller interface – easy to use with Arduino or Raspberry Pi via digital input pins.
- ✅ Compact, low-profile surface mount package.
- ✅ Stable and reliable color measurement under varied lighting conditions
Applications:
- 🎨 Color recognition and sorting robots
- 🧠 Line-following and color-tracking systems
- 📦 Industrial color quality control
- 🌈 RGB LED color calibration projects
- 📷 Ambient light and color measurement
- 🔬 Educational and DIY electronics experiments
Package Included:
- 1 × TCS3200 RGB Color Sensor Module
- (Optional: Jumper wires
