- Single-Supply Operation (2.7V to 5.5V)
- High-Resolution Conversion of Light Intensity to Frequency
- Programmable Color and Full-Scale Output Frequency
- Power Down Feature
Description:
TCS230 8-pin SOIC surface-mount package, on a single chip, has 64 photodiodes. These diodes are divided into four types. Of which 16 photodiodes with a red filter; 16 photodiodes with a green filter; 16 photodiodes with a blue filter; the remaining 16 without any filter, you can all the optical information through. These photodiodes in the chip are arranged in the cross, so it is possible to minimize the unevenness of the incident radiation, thereby increasing the accuracy of the colour recognition; on the other hand, the same colour of the photodiode 16 is connected in parallel, uniformly distributed In the diode array, the position error can be eliminated colour. In operation, the pins through two programmable dynamically select the desired filter. The typical output frequency range of the sensor is from 2 Hz ~ 500 kHz, users can also select two programmable pins to 100%, 20%, or 2% of the output scale factor, or power off mode. Output scale factor so that the output of the sensor can be adapted to different measuring ranges improved its ability to adapt. For example, when using a low-frequency counter, you can choose a small scaling value so the TCS230 output frequency and counter matches
Feature:
- Single-Supply Operation (2.7V to 5.5V)
- High-Resolution Conversion of Light Intensity to Frequency
- Programmable Color and Full-Scale Output Frequency
- Power Down Feature
- Communicates Directly to 5V Microcontroller
- S0~S1: Output frequency scaling selection inputs
- S2~S3: Photodiode type selection inputs
- OUT Pin: Output frequency
- OE Pin: Output frequency enable pin (active low), can be impending when using
- Support LED lamp light supplement control
Package Included:

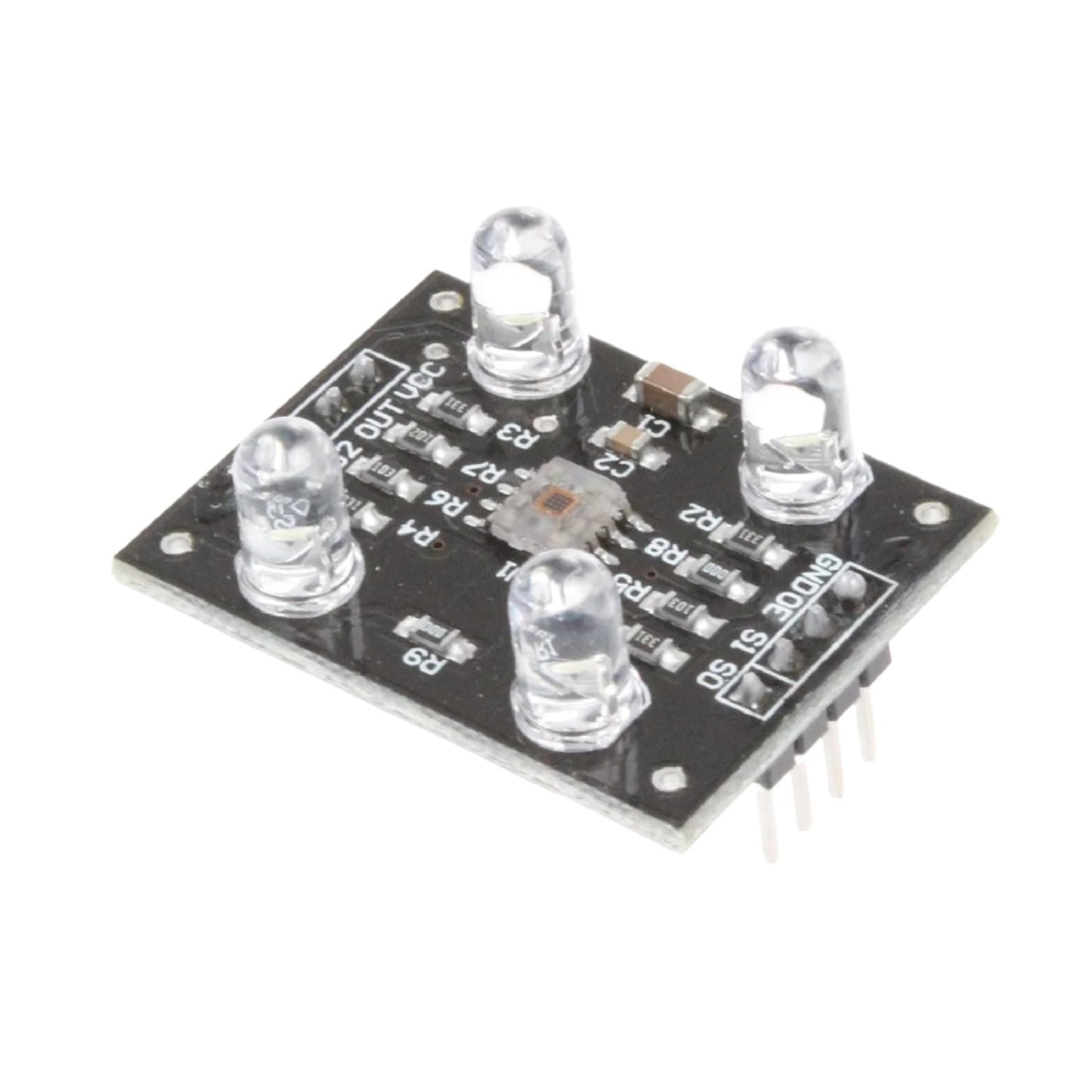

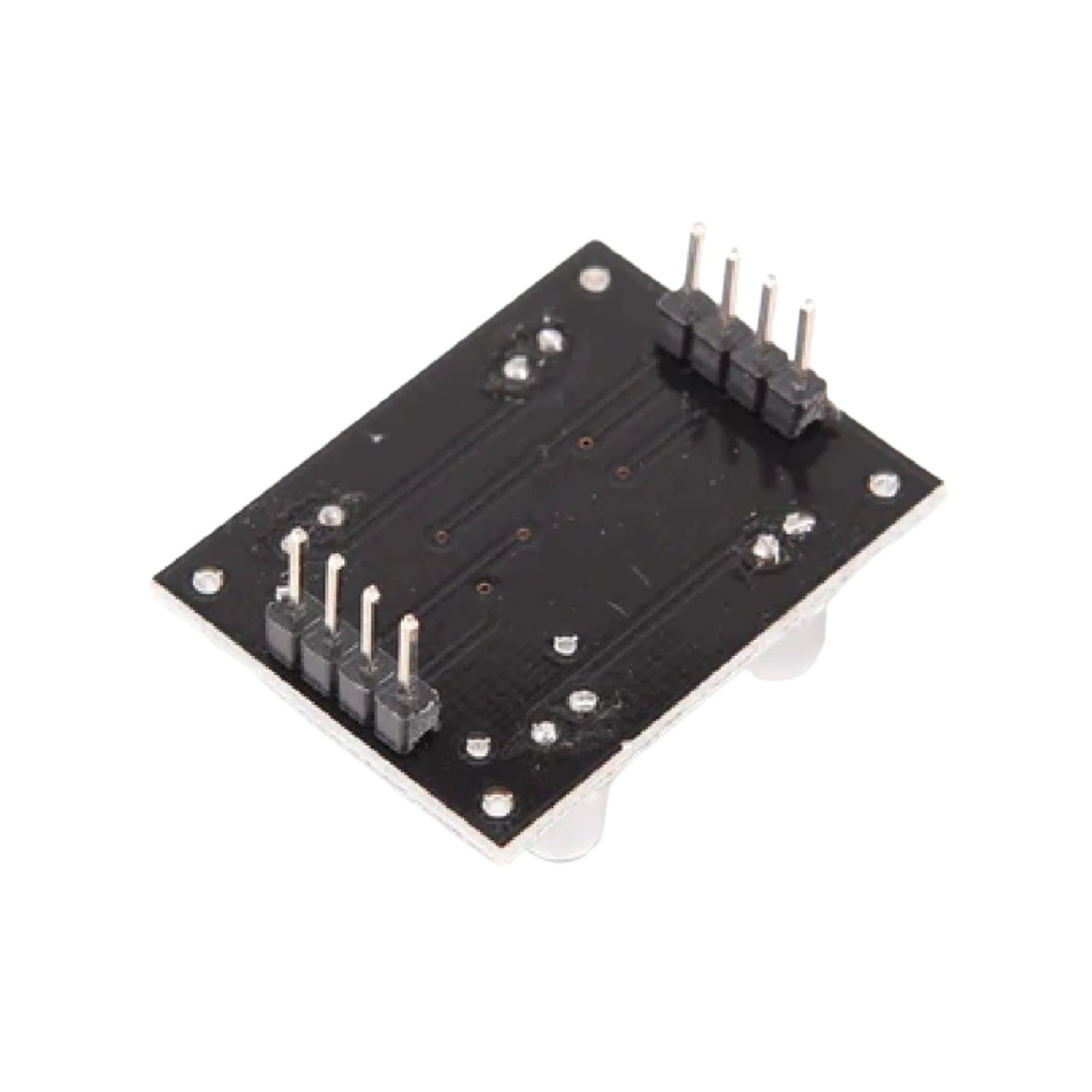

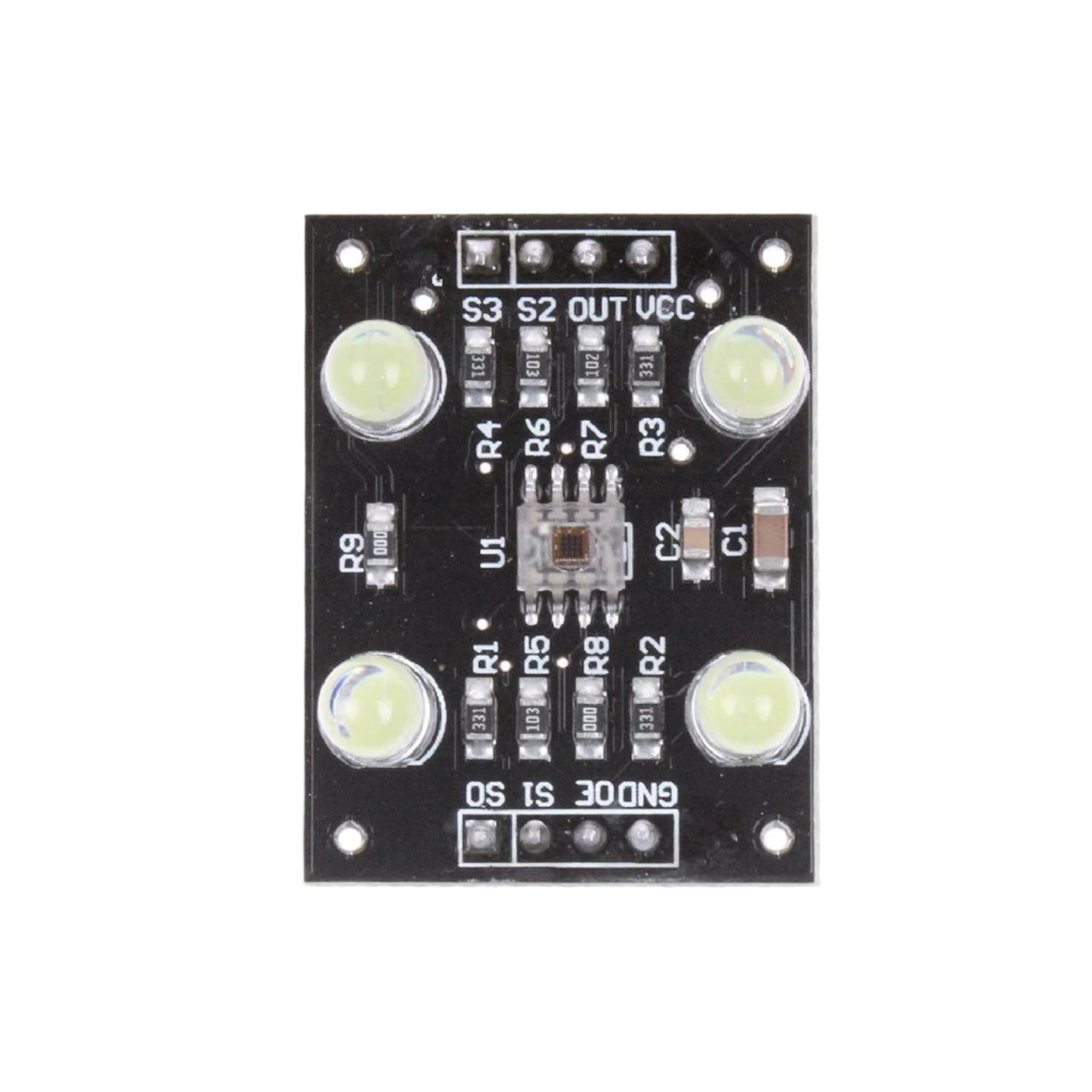

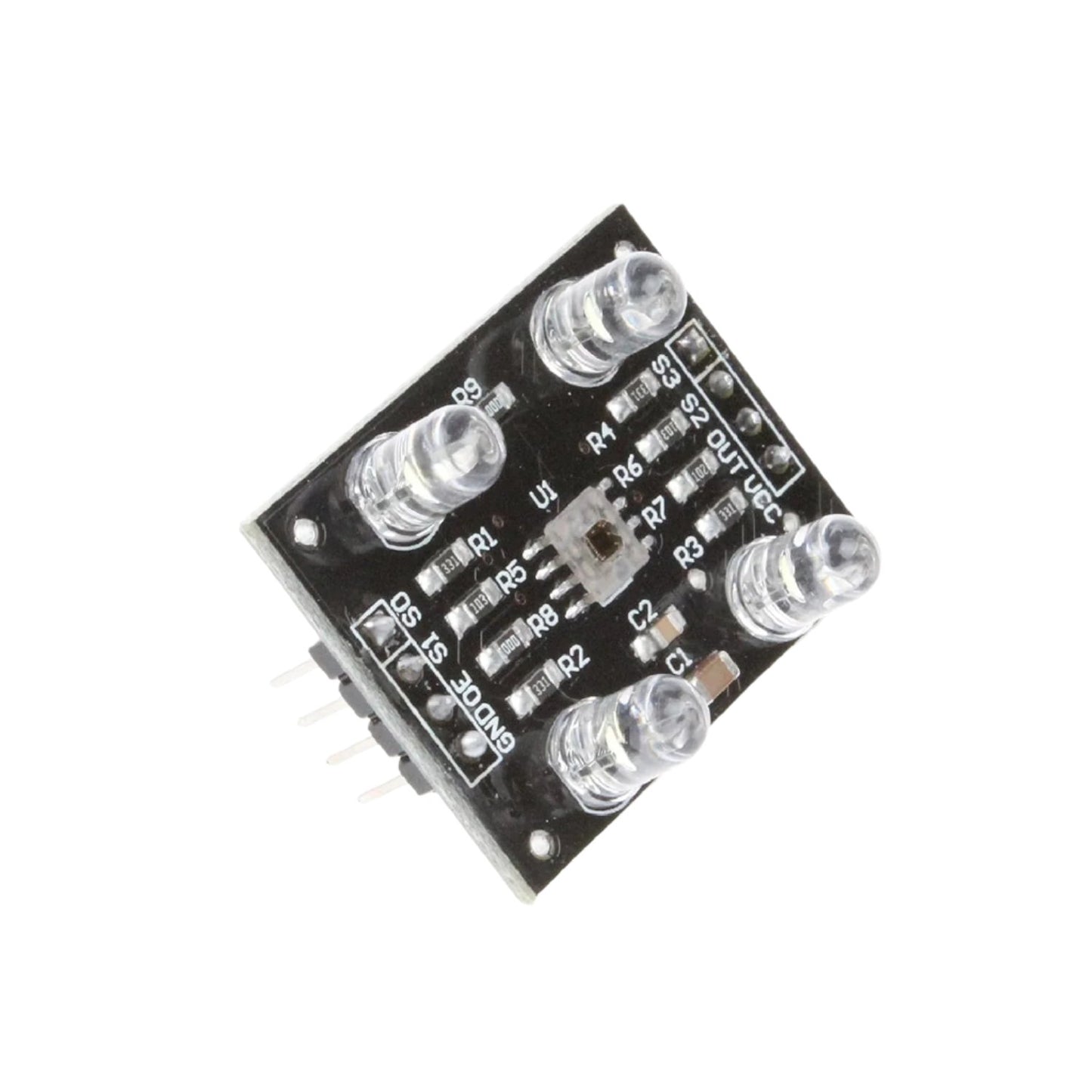

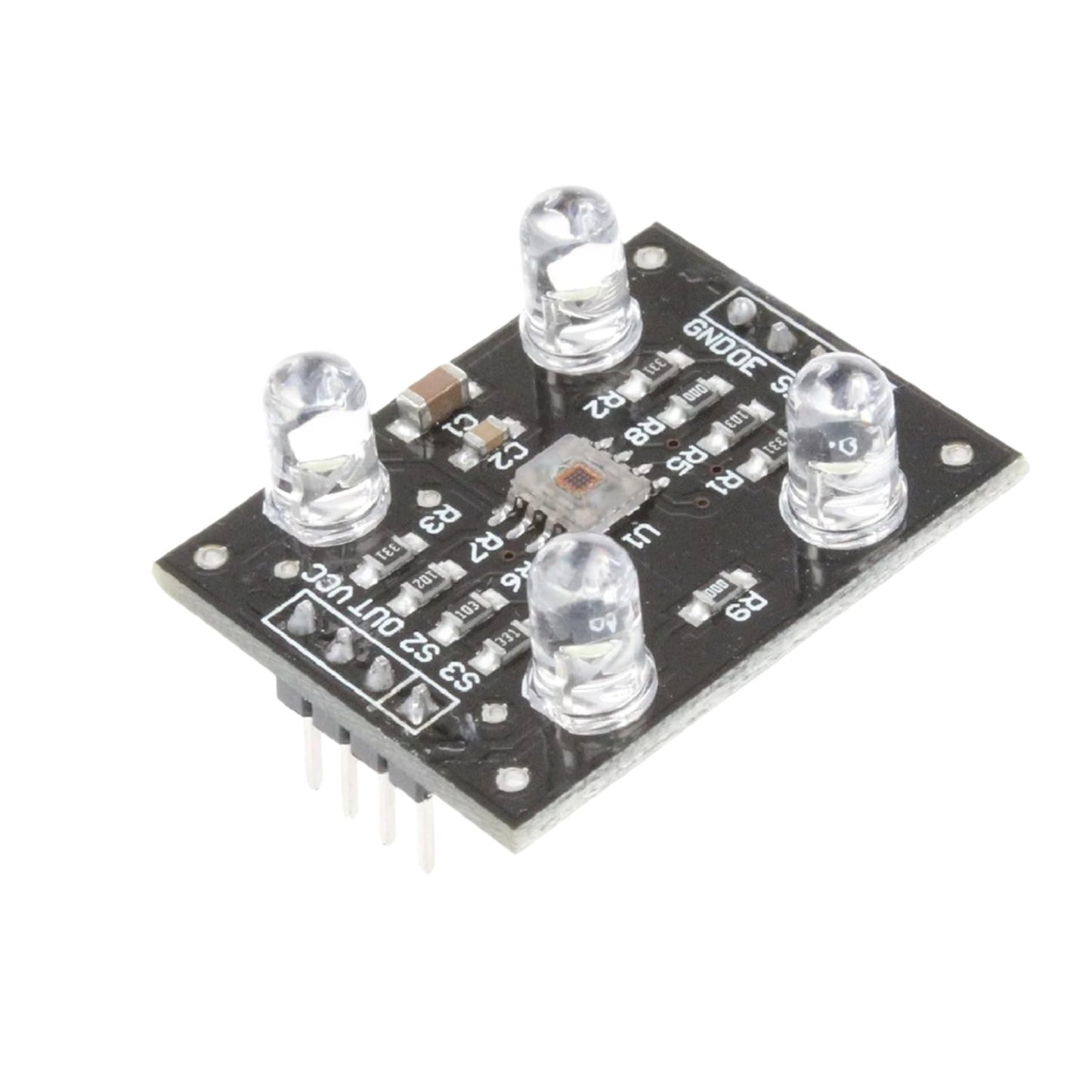

1 x TCS230 TCS3200 Color Recognition Sensor Detector Module
