Description:
The TCRT5000 Reflective IR Sensor works with the general principle of infrared sensors, a sense of transfer. Tcrt5000 has an infrared emission tube and an infrared receiver tube. When the infrared emission tube is reflected in the receiver tube to receive, the resistance of the receiver tube will change, the TCRT5000 Reflective IR Sensor circuit is generally reflected in the form of voltage changes, and after the conversion of the ADC or circuit form lm324 and another output processed after the results. Changes in resistance in the receiver tube to receive the infrared signal strength, It is often reflected on the reflective surface of the color and the reflector distance of the receiver two aspects.
Specifications:
| Model |
TCRT5000 |
| Operating Voltage |
3.6~5V DC |
| Average Current Consumption |
60mA |
| Distance Measuring Range |
1.5cm |
| Output Type |
Phototransistor |
| Working Temperature Range |
-25 to 85°C |
| Color |
Black + blue |
| Material |
Plastic + iron |
| Detecting Method |
Reflective |
| Transistor Properties |
Collector-Emitter: Voltage: 70V |
Features:
- Compact construction
- Senses the presence of an object by using the reflective IR beam from the object
Package Included :

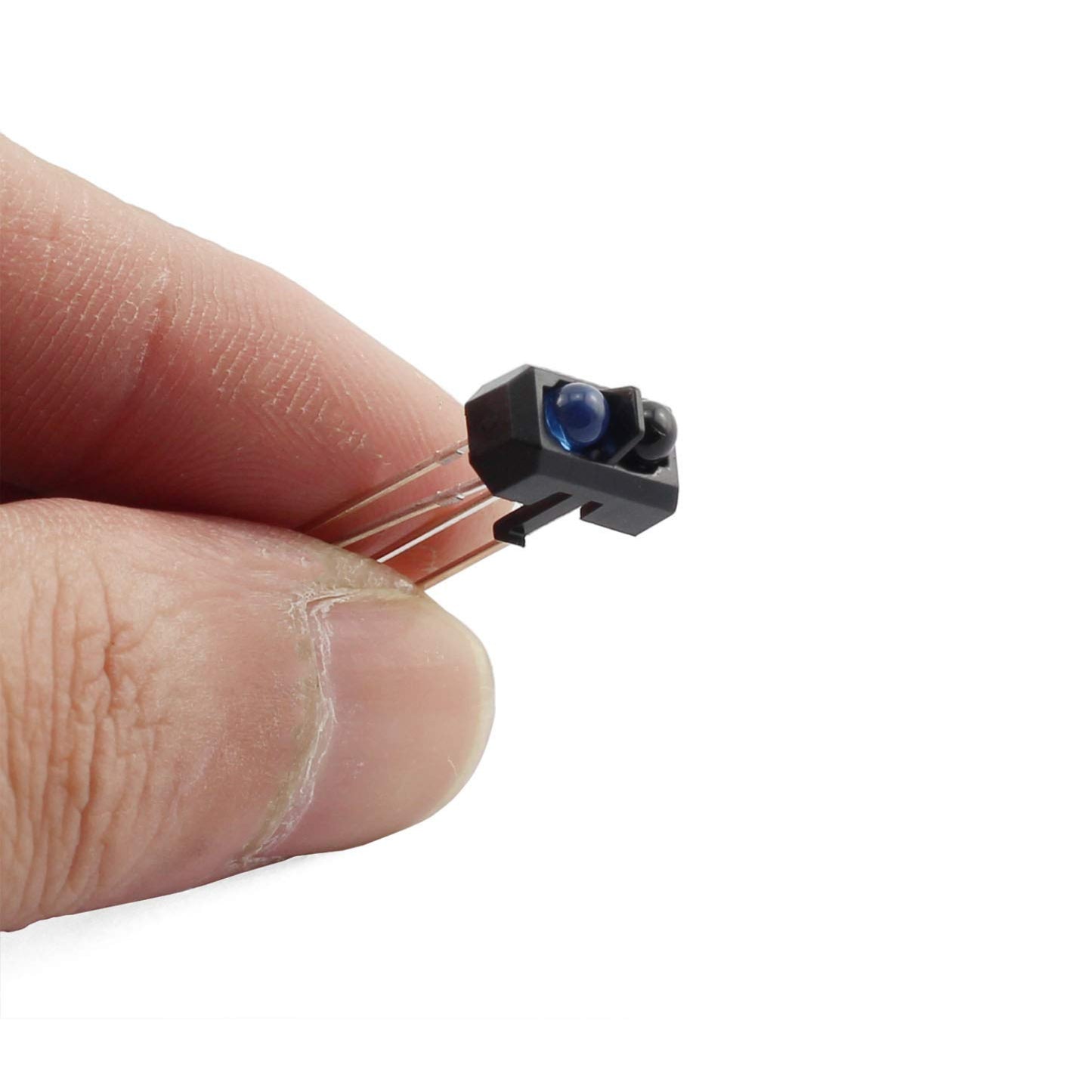

1 x TCRT5000 Reflective IR Sensor Infrared Reflective IR Sensor Photoelectric Switch Reflective IR Infrared Light Emitting Diode Lamp Optical Sensor Switches
