- Connector : SMA-Male
- Polarization : RHCP
- Frequency Range : 5500-6000MHz
- Gain : 1.26dBiC
- Axial Ratio : 0.74
- Antenna Length(mm) : 82
Description :

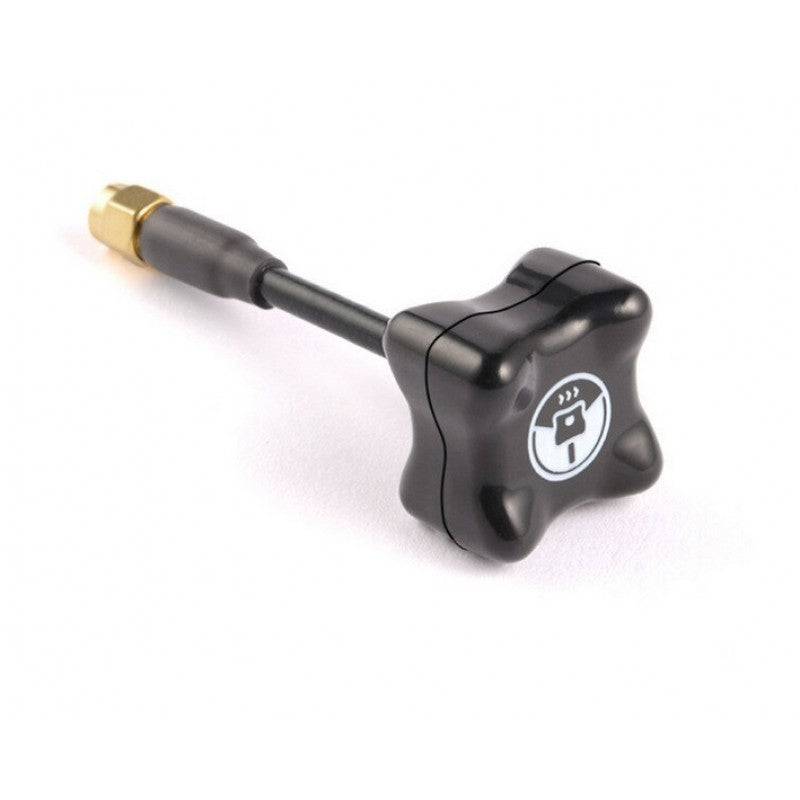

The TBS Triumph Antenna FPV SMA 5.8GHZ Antenna is a step up from the current offerings from many other parties within the FPV world. Video Aerial Systems LLC (IBcrazy) and Team Black-Sheep have come together to re-invent how the modern 5.8 circular polarized antennae should look and perform.
After extensive design and testing, a crucial focus point was making sure the Triumph was durable enough to take even the toughest of abuse. After many test flights and extensive feedback from pilots, it was decided to use a double-jacket heavy duty Semi-Rigid cable and tin-plated connectors. For protection, the Triumph was created with a special foam-filled and ultrasonically welded enclosure to secure the antenna from inbound trees or other objects.
In our quest for the cleanest video signal and best range possible, we have ventured way beyond the traditional bent lobes of Cloverleaf designs and invested significant time and effort in finding the best antenna designs known to man and modifying them specifically for FPV use.

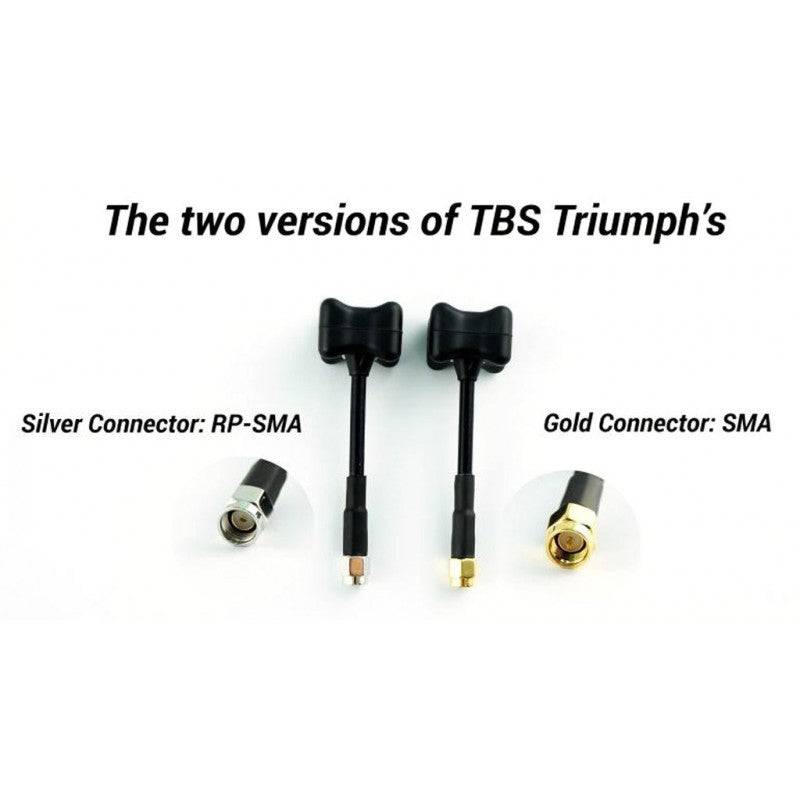

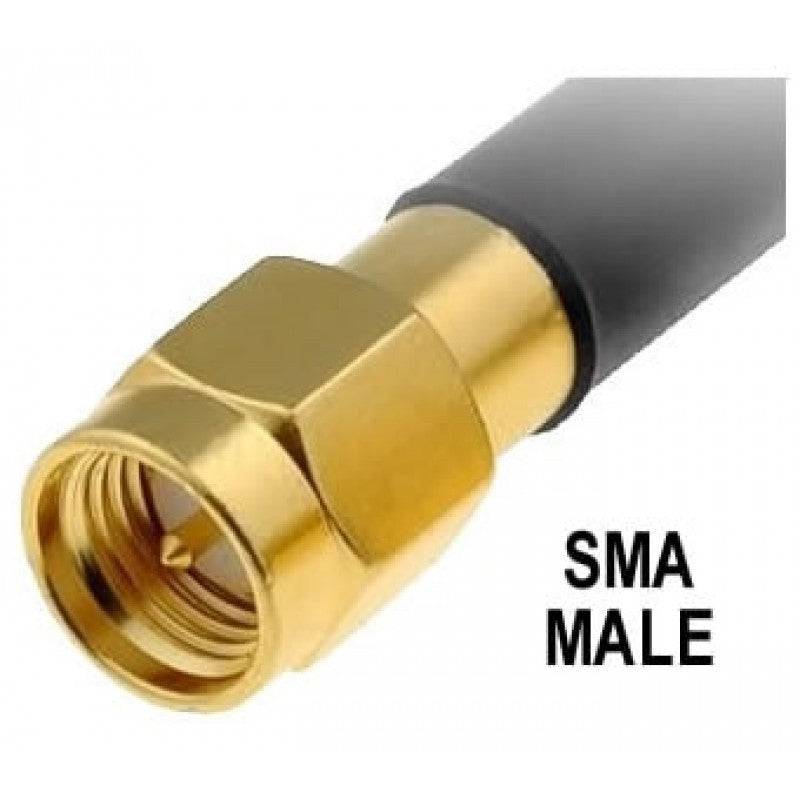

A male SMA connector has a male contact body and a male inner hole sleeve contact, and the female SMA is the exact opposite.
Feature :
- Manufactured and tested to highest standards
- Best in class range and signal quality
- Extra compact and low weight
- Ultrasonic welded and foam infused cover for ultimate crash-protection
- Double-jacket semi-rigid cable for heavy impact resistance.

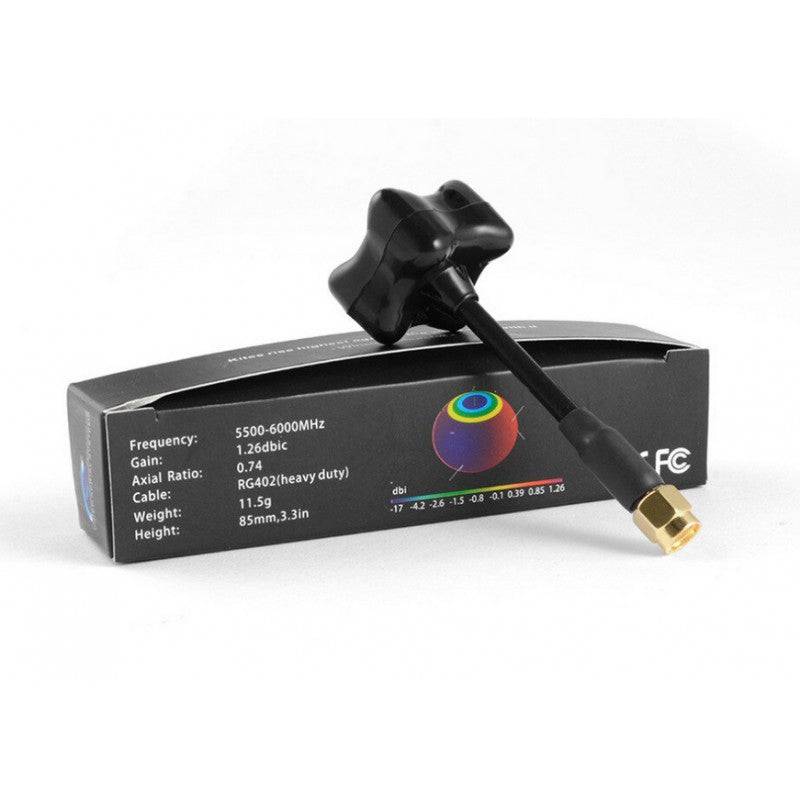

Specification :
- Connector : SMA-Male
- Polarization : RHCP
- Frequency Range : 5500-6000MHz
- Gain : 1.26dBiC
- Axial Ratio : 0.74
- Antenna Length(mm) : 82
Package Included :

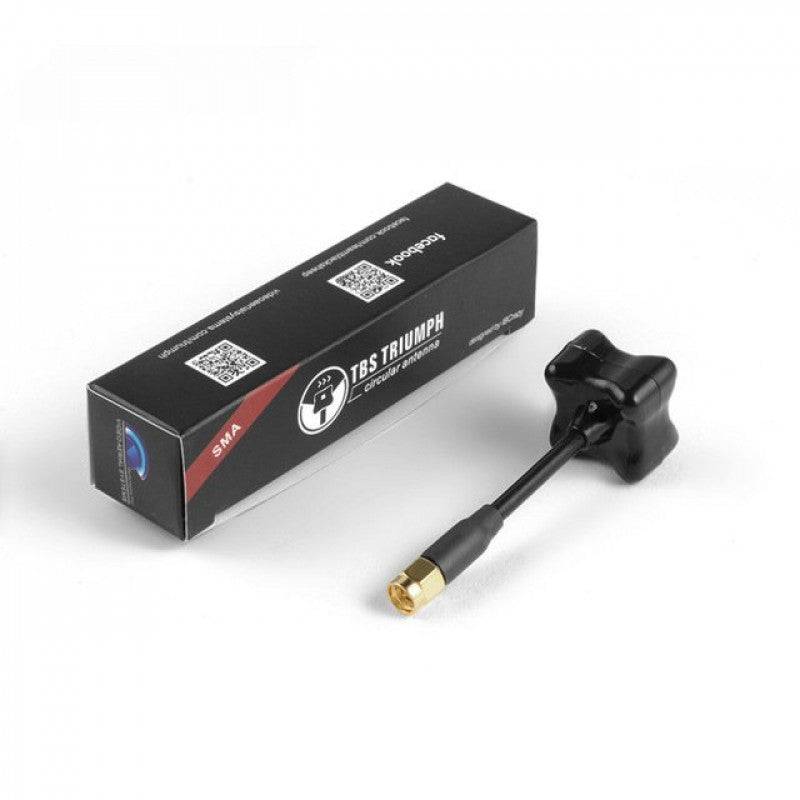

1 x TBS Triumph Antenna FPV With SMA Male Connector.
