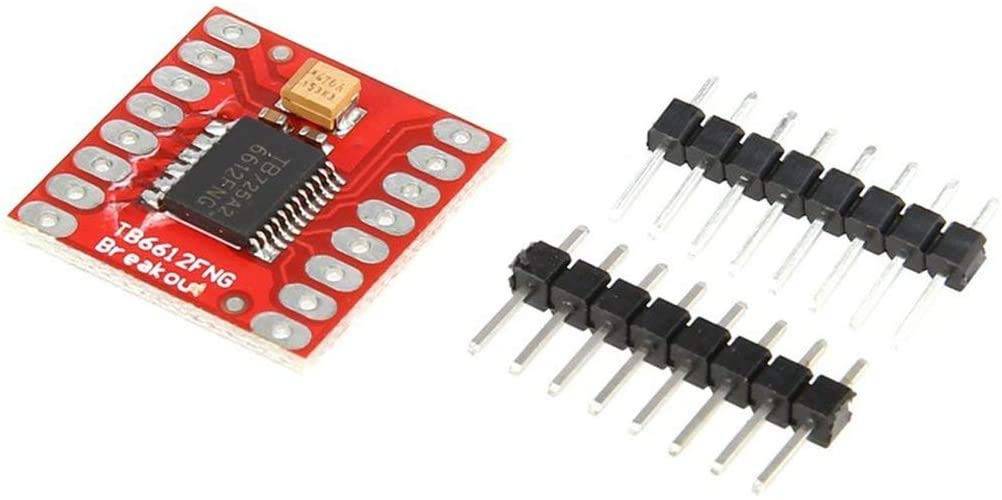

TB6612FNG Dual DC Stepper Motor Control Drive Expansion Shield Board Module for Arduino Microcontroller Better Than L298N- NA272

TB6612FNG Dual DC Stepper Motor Control Drive Expansion Shield Board Module for Arduino Microcontroller Better Than L298N- NA272

SKU:NA272

Regular price Rs. 289.00
Regular price Sale price Rs. 289.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Driver Model: TB6612FNG
  • Operating Voltage: 15V DC
  • Peak Current: 3.2A
  • Continuous Current: 1.2A

Description:

The Motor Driver TB6612FNG Module motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes CW, CCW, short-brake, and stop. The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode. Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse). Board comes with all components installed as shown. Decoupling capacitors are included on both supply lines. All pins of the TB6612FNG are broken out into two 0.1 pitch headers; the pins are arranged such that input pins are on one side and output pins are on the other.

Specification:

  • Driver Model: TB6612FNG
  • Operating Voltage: 15V DC
  • Peak Current: 3.2A
  • Continuous Current: 1.2A
  • No. of Channels: 1
  • LED Indicator: Yes

Features:

  • Output current: Iout=1.2A(average) / 3.2A (peak)
  • Standby control to save power
  • CW/CCW/short break/stop motor control modes
  • Built-in thermal shutdown circuit and a low voltage detecting circuit
  • All pins of the TB6612FNG broken out to 0.1 spaced pins
  • Filtering capacitors on both supply lines

Package Included:

1 x TB6612FNG Dual DC Stepper Motor Control Drive Expansion Shield Board Module for Arduino Microcontroller Better Than L298N
